Home ProductsMilk Pasteurization Equipment

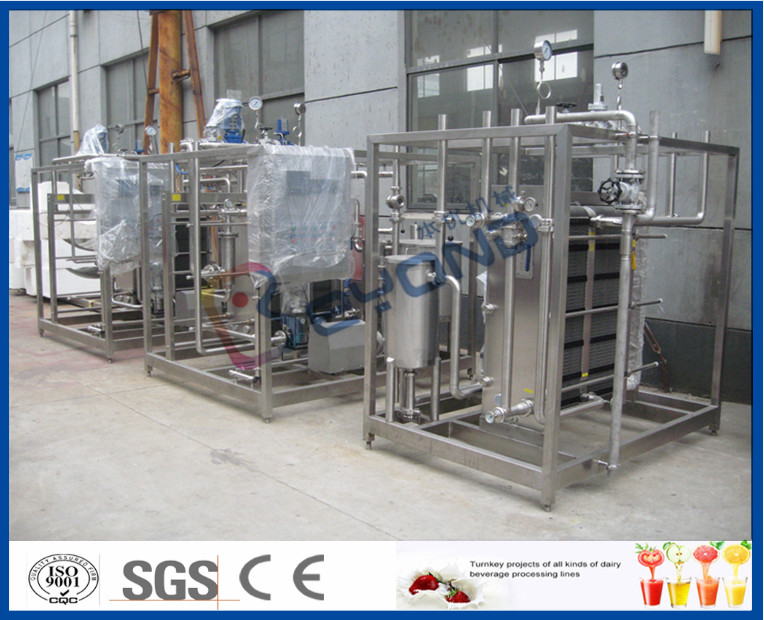

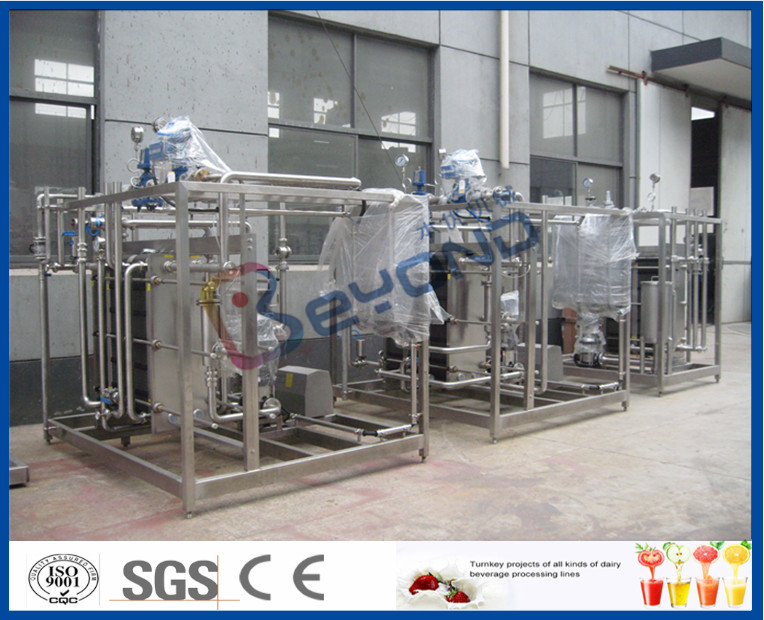

Yoghurt Pasteurizer Milk Pasteurization Equipment With SUS304 / SUS316 Material

Yoghurt Pasteurizer Milk Pasteurization Equipment With SUS304 / SUS316 Material

    • Yoghurt Pasteurizer Milk Pasteurization Equipment With SUS304 / SUS316 Material
    • Yoghurt Pasteurizer Milk Pasteurization Equipment With SUS304 / SUS316 Material
  • Yoghurt Pasteurizer Milk Pasteurization Equipment With SUS304 / SUS316 Material

    Product Details:

    Place of Origin: China
    Brand Name: Beyond
    Certification: CE certificate/ISO9001/SGS
    Model Number: 500L-200000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: wooden box
    Delivery Time: 60-90 days
    Supply Ability: 20 pcs per month
    Contact Now
    Detailed Product Description
    Name: Yoghurt Pasteurizer Material: SUS304 Or SUS316
    Function: Used For Yoghurt Sterilizing Technology: 5℃ -(90-95℃-300s)- 43℃
    Type: Plate Type Operation: Full-auto Or Semi-auto

    yoghurt pasteurizer milk pasteurization equipment plate pasteurizer 1000L



    Yogurt pasteurizer(4 sections)

    Introduction

    This machine is specially designed for yogurt production, the technical parameters are as following:

    inlet at 5℃→65℃(homogenizer) →sterilize at 90~95℃(hold for 300S)→ outlet at 43℃.



    This system adopts 90~95℃, holding for 5 minutes, which ensures to get a most suitable pasteurize efficiency. And also this system makes the most of the whey protein denaturation to form block shape and combine with water, so as to produce stable quality, good taste of yogurt.



    This system use spiral pipes warm holding tank to keep warm for the holding tubes .



    Structure of the holding tank: adopts sus304-2B stainless steel as material, the coil tubes are insulated by silicate in the tank.



    Technical Parameter:

    Model Capacity Heat exchange area(m²)

    Power

    (kw)

    Steam consumption

    (kg/h)

    Dimension

    (L×W×H)mm

    Machine weight

    (kg)

    BR16-SN-05 0.5 t/h 5 5.2 80 1200×1200×1800 780
    BR16-SN-1 1 t/h 8 5.2 120 1500×1500×2000 950
    BR16-SN-1.5 1.5 t/h 11 6 160 2000×1600×2000 980
    BR16-SN-2 2 t/h 14 6 190 2200×2000×2500 1020
    BR16-SN-3 3 t/h 21 8 220 2400×2000×2500 1120
    BR26-SN-5 5 t/h 30 11 350 2600×2000×2500 1260
    BR26-SN-10 10 t/h 54 11 620 2800×2000×2500 1680


    Yoghurt Pasteurizer Milk Pasteurization Equipment With SUS304 / SUS316 Material
