Milk Cooling Stainless Steel Tanks for Cooling / Storage Fresh Milk Customized Size

Milk Cooling Stainless Steel Tanks for Cooling / Storage Fresh Milk Customized Size

    • Milk Cooling Stainless Steel Tanks for Cooling / Storage Fresh Milk Customized Size
    • Milk Cooling Stainless Steel Tanks for Cooling / Storage Fresh Milk Customized Size
    • Milk Cooling Stainless Steel Tanks for Cooling / Storage Fresh Milk Customized Size
  • Milk Cooling Stainless Steel Tanks for Cooling / Storage Fresh Milk Customized Size

    Product Details:

    Place of Origin: China
    Brand Name: Shanghai Beyond
    Certification: SGS/CE/ISO9001
    Model Number: BY-CT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: export standard package
    Delivery Time: 35-50 working days upon receipt of payment and confirmed the drawings
    Supply Ability: 50 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Milk Cooling Tank Material: SUS304/SUS316L
    Function: Cooling And Storage For Fresh Milk Capacity: Customized
    High Light:

    milk storage tank

    ,

    chocolate melting tank

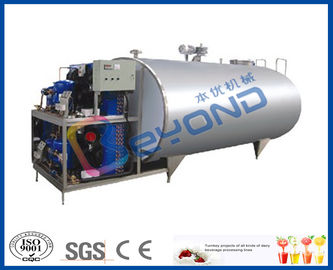

    Stainless Steel Tanks Used for Cooling and Storage for Fresh Milk



    Description of cooling tank:


    Mainly used for cooling and storage for fresh milk, also can be used to cooling or storage for other liquid product.



    The cooling tank is the key equipment for the mechanical milking system in the dairy farms.



    Also widely used in the manual milking farm and milk collection centers, and milk production plants, which can keep the fresh milk at best state and prevent the bacterial growing.



    Features of cooling tank:

    1. The tank wall use advanced dimple pad as evaporator exchange the heat directly with the milk inside.

    2. The refrigeration compressor is imported from France, which composed of full closed compressor and imported expanding valve and electromagnetism valve.

    The system has reliable midpoint protection device to protect the compressor being burned resulted from the overloading or system trouble.

    3. Tank body is made of stainless steel304 or 316, and the machine is equipped with forced automatic rotary cleaning CIP spray head and auto blending device.

    4. The insulation layer use the polyurethane, and good thermal insulation performance.



    Technical Parameter:

    Model Volume(L) Rating power(kw) Refrigeration capacity(w) External size Total weight
    BZLG-500 500 3.6 7380 1750*1150*1300 242
    BZLG -1 1000 4.4 9280 1950*1350*1450 285
    BZLG -2 2000 6.7 15820 3950*1550*1750 460
    BZLG -3 3000 9 19534 3500*1650*1850 645
    BZLG -5 5000 13.6 31640 4000*2050*2150 1150
    BZLG -8 8000 19.6 47460 4700*2300*2400 1450





    Milk tanker on truck

    The milk tanker is widely used for long distance transportation of milk or other liquid products. The tank wall adopts high quality SUS304-2B stainless steel , the jacket adopts high density PU as insulation with new procedure, all the radius of inner corners b are made as big circular arc transition to avoid sanitary dead angel; and CIP spraying balls are fixed inside which enables the easy cleaning. It meets industry standard and food sanitary requirements.

    The tank can keep the milk in good quality during the transportation, improve the sanitary conditions, reduce transfer cost and save labor. It can be as s truck when it does not transfer liquid milk, and download the tank.

    Technical Parameter:

    Tank volume 2000L, 3000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 20000L
    Temperature -20℃~+40℃, liquid temperature:4+/-1°, temperature difference ≤ 2℃.
    Standard configuration



    Quick-opening sealed manhole, breathing valve, CIP cleaning pipes, material inlet (with valve)

    Material SUS 304, Food hygiene grade silicone ring for seal
    Dimension According to the size of truck chassis provided by customer
