Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor

Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor

    • Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor
    • Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor
    • Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor
    • Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor
    • Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor
    • Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor
  • Tea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor

    Product Details:

    Place of Origin: China
    Brand Name: Shanghai Beyond
    Certification: SGS/CE/ISO9001
    Model Number: BY-ET

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: export standard package
    Delivery Time: 35-50 working days upon receipt of payment and confirmed the drawings
    Supply Ability: 50 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Extracting Tank Material: SUS304/SUS316L
    Capacity: Customized Voltage: According To Customer Local Voltage
    Powder Consumption: Energy Saving Type Warranty: 12 Months/1 Year
    Seat Port: Shanghai

    tea extracting tank extracting tank medicine extracting tank



    This extracting tank is mainly used to extract tea from the tea leaves, or make medicine from herbal medicine.

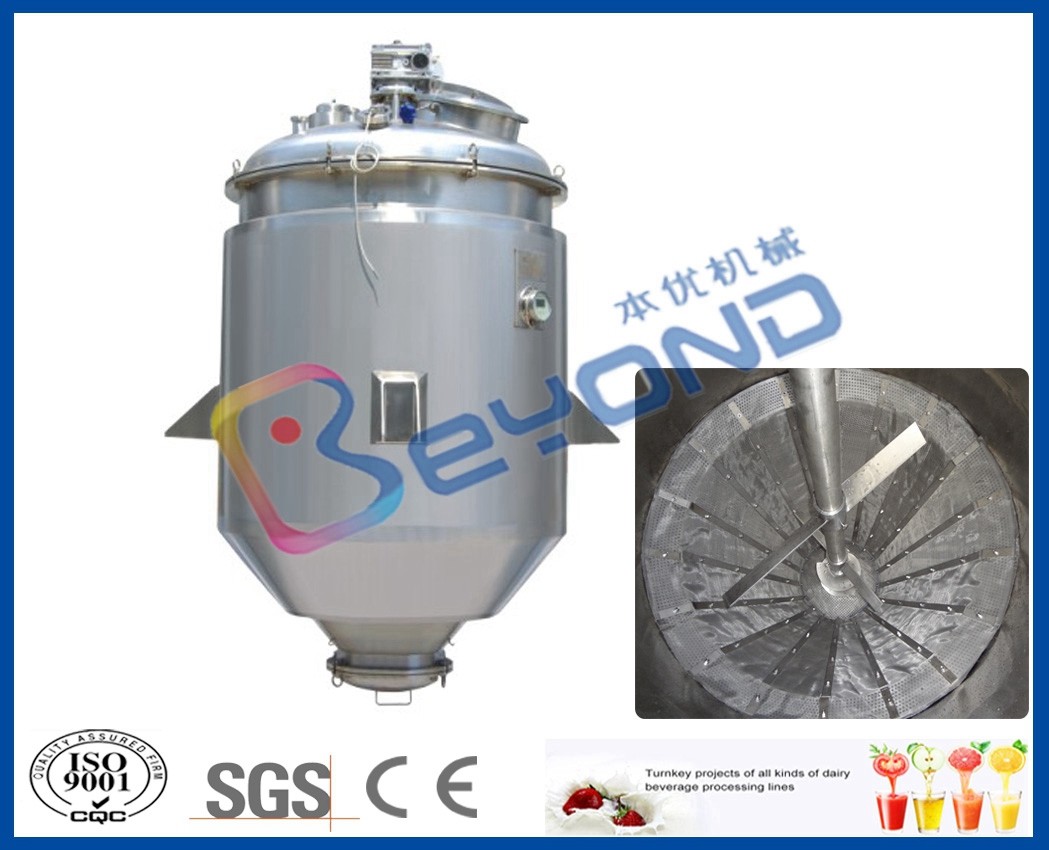

    All the tank wall is made of high quality SUS304-2B stainless steel, the jacket adopts high density of PU as insulation; this tank can use steam to heat the product inside with steam or hot water inside of the dimple pad; the paddle type agitator is mounted from top at the centre; other standard attachments such as: airtight manhole, high and low level probe, temperature sensor.

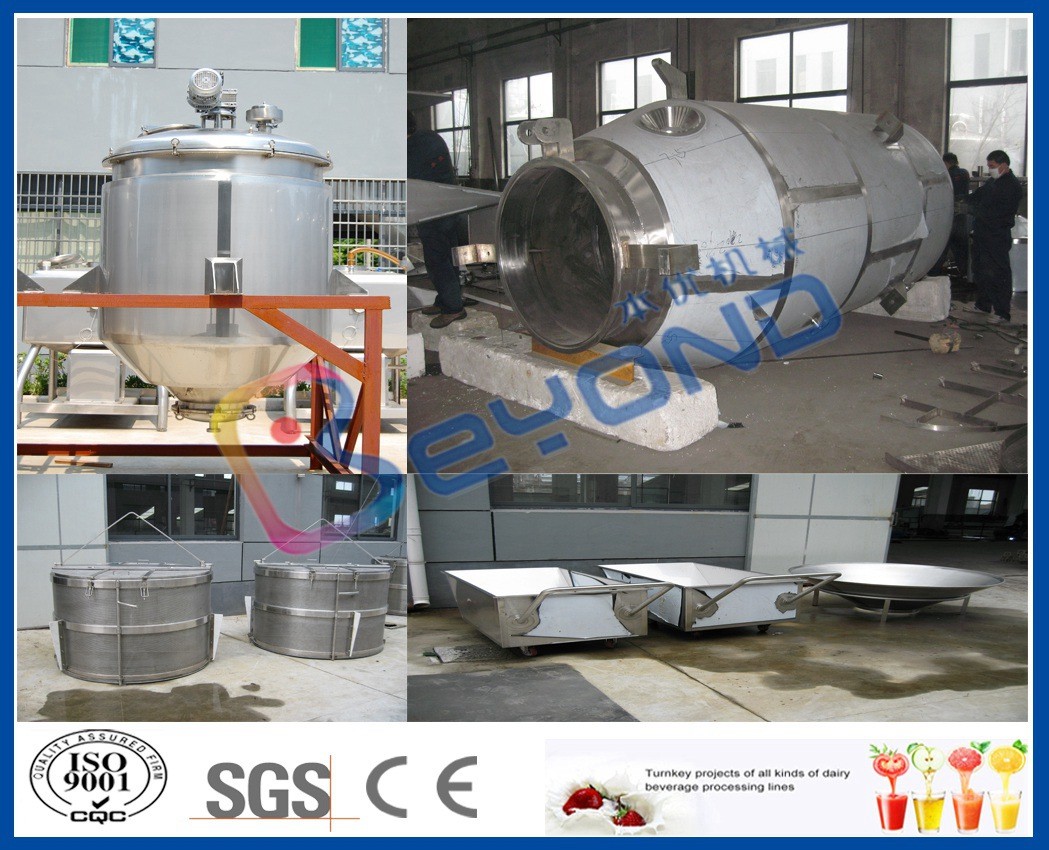

    The extracted liquid product is discharged from bottom outlet; dregs are also discharged from bottom where a net is fixed to separate the dreg from the liquid product; the top cover is elliptical type and bottom base is of conical types.

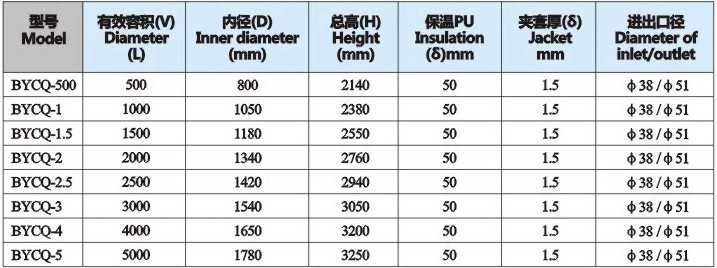

    Technical Parameter

    Model Diameter External diameter

    Height

    (mm)

    Insulation(mm)

    Jacket

    (mm)

    Diameter of inlet/outlet
    BYCQ-500 500 800 2140 50 1.5 φ38/φ51
    BYCQ-1 1000 1050 2380 50 1.5 φ38/φ51
    BYCQ-1.5 1500 1180 2550 50 1.5 φ38/φ51
    BYCQ-2 2000 1340 2760 50 1.5 φ38/φ51
    BYCQ-2.5 2500 1420 2940 50 1.5 φ38/φ51
    BYCQ-3 3000 1540 3050 50 1.5 φ38/φ51
    BYCQ-4 4000 1650 3200 50 1.5 φ38/φ51
    BYCQ-5 5000 1780 3250 50 1.5 φ38/φ51




    Tea / Medicine Extracting Stainless Steel Tanks With Temperature SensorTea / Medicine Extracting Stainless Steel Tanks With Temperature SensorTea / Medicine Extracting Stainless Steel Tanks With Temperature SensorTea / Medicine Extracting Stainless Steel Tanks With Temperature Sensor
