1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing

1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing

    • 1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing
    • 1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing
    • 1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing
    • 1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing
    • 1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing
  • 1440rpm Speed Stainless Steel Tanks For High Speed Emulsification Shearing

    Product Details:

    Place of Origin: China
    Brand Name: Shanghai Beyond
    Certification: SGS/CE/ISO9001
    Model Number: BY-DRT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: export standard package
    Delivery Time: 35-50 working days upon receipt of payment and confirmed the drawings
    Supply Ability: 50 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: High Speed Emulsification Tank Material: SUS304/SUS316L
    Capacity: Customized Voltage: According To Customer Local Voltage
    Powder Consumption: Energy Saving Type Warranty: 12 Months/1 Year
    Seat Port: Shanghai

    high speed emulsification tank shearing tank high speed mixing tank

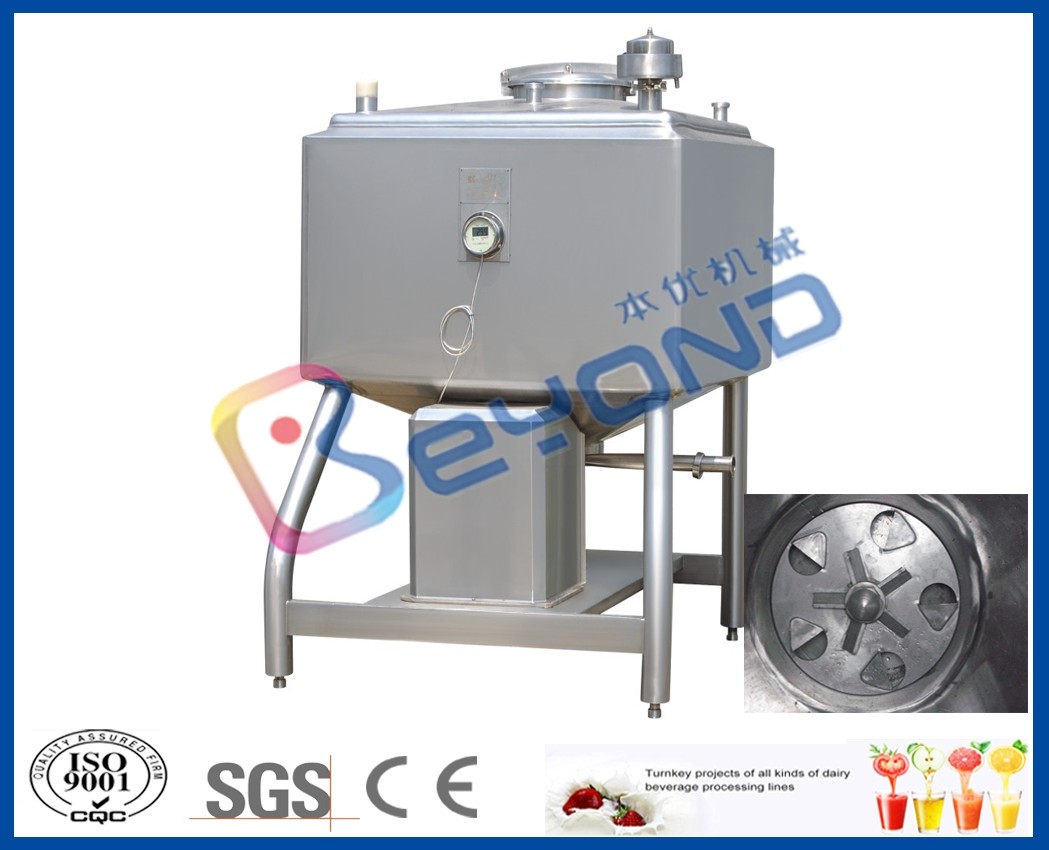

    High-speed emulsification tank, rotated by the high speed mixer at bottom, speed of mixer is 1440rpm;

    This equipment is the best one among the similar types in which materials can be mixed well by stirring, extrusion and shearing.

    This equipment is widely used for mixing sugar, milk powder, starch, stability reagent in emulsion and colloids.



    High-speed emulsification tank, rotated by the high speed mixer at bottom, speed of mixer is 1440rpm;

    This equipment is the best one among the similar types in which materials can be mixed well by stirring, extrusion and shearing.

    This equipment is widely used for mixing sugar, milk powder, starch, stability reagent in emulsion and colloids.



    Technical Parameter:

    Model Volume External dimension Maximum working pressure Maximum working temperature Agitator speed(r/min) Motor power(kw) Material
    RHBF-400



    400L

    950×900×1500 Normal pressure 100℃ 1440 7.5kw SUS304
    RHBF-500



    500L

    1100×1000×1500 Normal pressure 100℃ 1440 7.5kw SUS304
    RHBF-600



    600L

    1200×1100×1600 Normal pressure 100℃ 1440 11kw SUS304
    RHBF-700



    700L

    1300×1200×1600 Normal pressure 100℃ 1440 11kw SUS304
    RHBF-800



    800L

    1400×1300×1700 Normal pressure 100℃ 1440 11kw SUS304
    RHBF-1000



    1000L

    1500×1400×1800 Normal pressure 100℃ 1440 15kw SUS304



    Inlet/outlet for product:Basically isφ51, can be adjust to the customer’s requirements
