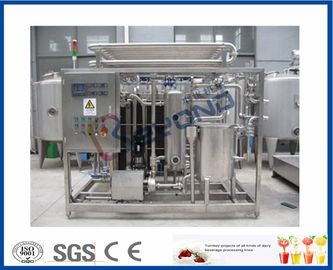

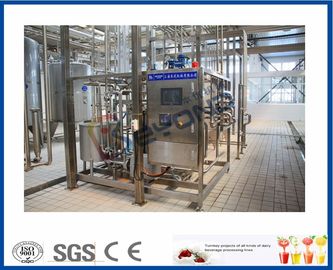

UHT Plate Type Dairy Pasteurization Equipment / Htst Pasteurization Equipment

UHT Plate Type Dairy Pasteurization Equipment / Htst Pasteurization Equipment

    • UHT Plate Type Dairy Pasteurization Equipment / Htst Pasteurization Equipment
    • UHT Plate Type Dairy Pasteurization Equipment / Htst Pasteurization Equipment
    • UHT Plate Type Dairy Pasteurization Equipment / Htst Pasteurization Equipment
  • UHT Plate Type Dairy Pasteurization Equipment / Htst Pasteurization Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Beyond
    Certification: CE certificate/ISO9001/SGS
    Model Number: BY-UP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: negotiable
    Packaging Details: export standard package
    Delivery Time: 60-90 days
    Supply Ability: 20 pcs per month
    Contact Now
    Detailed Product Description
    Name: Plate Type UHT Pasteurizer Material: SUS304 Or SUS316
    Control: Automatically Control And Semi-auto Control Voltage: According To Customer's Local Voltage
    Sea Port: Shanghai Warranty: 1 Year Or 12 Months
    High Light:

    milk sterilizer machine

    ,

    pasteurizing milk machine

    plate type pasteurizer UHT pasteurizer plate type UHT pasteurizer aseptic pasteurizer



    This UHT system adopts ultra high heat treatment to sterilize the liquid dairy products, tea drink or juice for the the aseptic filling production; the sterilize temperature is 137℃ holding for 3~5S, to remain the nature nutrition and flavor of the milk and juice;

    This machine has the following characteristics: high heat reuse efficiency, compact structure design fine looking and good temperature control performance etc; Material outlet temperature from this machine can be self controlled so it is suitable for the hot filling procedure and meanwhile for aseptic cold filling;

    Control styles: full-automatic controlled (PLC, touch screen).



    Model



    LG-UHT-1



    LG-UHT-2



    LG-UHT-3



    LG-UHT-4



    LG-UHT-5



    Production capacity

    1000 2000 3000 4000 5000



    Inlet temperature

    5℃ 5℃ 5℃ 5℃ 5℃



    Holding time(s)

    4-15 4-15 4-15 4-15 4-15



    Sterilize temperature

    105~143℃ 105~143℃ 105~143℃ 105~143℃ 105~143℃



    Product outlet temperature

    20 20 20 20 20



    Ice water inlet temperature

    ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃



    Steam pressure

    0.5MPa 0.5MPa 0.5MPa 0.5 MPa 0.5 MPa



    Steam consumption

    ~150Kg/h ~210Kg/h ~280Kg/H ~350Kg/h ~420Kg/h



    Compressed air pressure

    0.6MPa 0.6MPa 0.6MPa 0.6MPa 0.6MPa



    Compressed air consumption

    50L/H 50L/H 60L/H 60L/H 70 L/H



    External dimension(mm)

    (homogenizer excluded)

    3500×2000×2500 3500×2000×2500 4500×2500×2200 5000×2000×2200 5000×2000×2200



    Total weight of machine

    1700kg 2000Kg 2200 Kg 2500Kg 2800kg

    Technical Parameter

    Technicals: 5℃→65℃(homogenizer)→137℃(3-5S)→20℃-25℃. This UHT system adopts ultra high heat treatment to sterilize the liquid dairy products, tea drink and juice for the the aseptic filling production; the sterilize temperature is 137℃ holding for 3~5S,by this procedure to remain the nature nutrition and flavor of the milk and juice;
    This machine has the following characteristics: high heat reuse efficiency, tight structure design fine looking and temperature control well etc; discharge temperature of this machine can be self controlled so it is available for the hot filling procedure and meanwhile for aseptic cold filling;

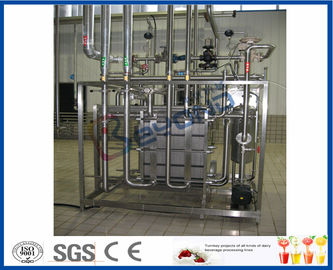

    Plate pasteurizer(3 sections):

    Application: This unit is used as Pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream etc.), and also pre-sterilize material when producing sterilized milk (long life milk).



    Features:

    This unit can be connected with separator, homogenizer, flash evaporator & degasser etc.



    This machine has features of high heat recovery efficiency, low energy cost, compact design on the construction and easy operation, simple maintenance.



    Process design and parameter

    Production capacity: 500L-20000/H
    Technical Parameter: 5℃→65℃(homogenization)→85℃(15S) →5℃
    Control type: Full-automatic control (PLC with touch screen), semi automatic.





    Equipment configuration

    A. plate heat exchanger;

    B. material-balance bucket;

    C. Hot water-balance drum;

    D. hot water pump;

    E. product pump;

    F. steam & water mixer;

    G. electricity box;

    H. stainless steel pipes and valves etc.

    I.PLC and color touch screen;





    Technical Parameter:

    Model Capacity

    Heat exchane

    area (m²)

    Total power

    (kw)

    Steam consumption

    (kg/h)

    Dimension

    (L×W×H)mm

    Machine weight

    (kg)

    BR16-BS-0.5 0.5 5 5.2 52 1200×1200×1500 790
    BR16-BS-1 1 8 5.2 60 1500×1500×1800 880
    BR16-BS-2 2 t/h 13 6 104 1800×2000×1800 980
    BR26-BS-3 3 t/h 20 6 156 2000×2000×2200 1080
    BR26-BS-4-5 4-5 t/h 30-45 8 260 2250×2000×2200 1250
    BR26-BS-6-8 6-8 t/h 35-50 8 400 2250×2000×2200 1250
    BR26-BS-10 10 t/h 60 11 520 2800×2000×2200 1650
    BR35-BS-15 15 t/h 75 11 780 3000×2200×2200 2150
    BR35-BS-20 20 t/h 80 11 945 3300×2200×2200 2350
