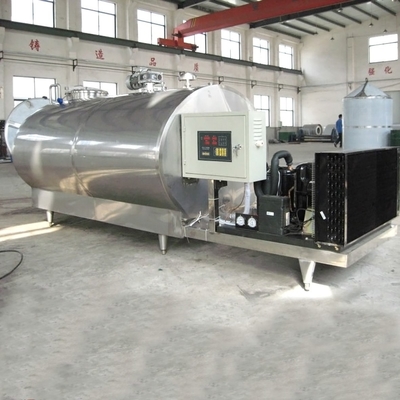

306 / 316L Stainless Steel Milk Cooling Tank Silo Food Grade
| Place of Origin | China |
|---|---|
| Brand Name | Shanghai Beyond |
| Certification | SGS/CE/ISO9001 |
| Model Number | BY-CT |
| Minimum Order Quantity | 1 piece |
| Price | negotiation |
| Packaging Details | export standard package |
| Delivery Time | 35-50 working days upon receipt of payment and confirmed the drawings |
| Supply Ability | 50 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Food Grade Stainless Steel Tanks | Material | SUS304/SUS316L |
|---|---|---|---|
| Function | Cooling And Storage For Fresh Milk | Capacity | Customized |
| Diameter | 500l~8000l | Rating Power | 3.6kw~19.6kw |
| High Light | Stainless Steel Milk Cooling Silo,Food Grade Milk Storage Silo,316L Stainless Steel Milk Silo |
||
Product Description
Milk tank in south africa automotive vehicles stainless steel milk cooling tank silo tank
Description of cooling tank:
Milk cans can be used for a variety of purposes, ranging from 150.0 liter milk cans to about 1 liter milk cans. The stainless steel milk tank is made of 304 stainless steel and meets the required capacity designed according to the designed storage type. 1000 liters or 10000 liters according to your requirements. The input and output of milk products can be adjusted as required. Large stainless steel milk tanks have adjustable support feet.
Application of Stainless Steel Milk Tank
Requirements for dairy farms. In order to meet various needs, a drinkable milk tank is provided: a small vertical open milk tank with a capacity of 330 liters, which can automatically produce horizontal milk tanks of various specifications and large vertical milk tank funnels with a capacity of up to 400 liters. With our control and cooling system, the milk cooling tank can meet your customized needs. Our milk storage tanks are used in conjunction with common milking systems on the market. In other words, our milk storage tanks are suitable for everyone.
Technical Parameter:
| Model | Volume(L) | Rating power(kw) | Refrigeration capacity(w) | External size | Total weight |
| BZLG-500 | 500 | 3.6 | 7380 | 1750*1150*1300 | 242 |
| BZLG -1 | 1000 | 4.4 | 9280 | 1950*1350*1450 | 285 |
| BZLG -2 | 2000 | 6.7 | 15820 | 3950*1550*1750 | 460 |
| BZLG -3 | 3000 | 9 | 19534 | 3500*1650*1850 | 645 |
| BZLG -5 | 5000 | 13.6 | 31640 | 4000*2050*2150 | 1150 |
| BZLG -8 | 8000 | 19.6 | 47460 | 4700*2300*2400 | 1450 |
Milk tanker on truck
The milk tanker is widely used for long distance transportation of milk or other liquid products. The tank wall adopts high quality SUS304-2B stainless steel , the jacket adopts high density PU as insulation with new procedure, all the radius of inner corners b are made as big circular arc transition to avoid sanitary dead angel; and CIP spraying balls are fixed inside which enables the easy cleaning. It meets industry standard and food sanitary requirements.
The tank can keep the milk in good quality during the transportation, improve the sanitary conditions, reduce transfer cost and save labor. It can be as s truck when it does not transfer liquid milk, and download the tank.
Technical Parameter:
| Tank volume | 2000L, 3000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 20000L |
| Temperature | -20℃~+40℃, liquid temperature:4+/-1°, temperature difference ≤ 2℃. |
| Standard configuration |
Quick-opening sealed manhole, breathing valve, CIP cleaning pipes, material inlet (with valve) |
| Material | SUS 304, Food hygiene grade silicone ring for seal |
| Dimension | According to the size of truck chassis provided by customer |
Main features of stainless steel milk tank
304 high quality stainless steel, laser welded on 1.2 mm pin base, fixed on the wall, with cooler evaporator fuse.
Level I welder and level I smooth polishing in the welding area. The platform has an adjustable anchor bolt cooling group for rapid cooling and freezing.
The minimum milk inflation volume is a 404 air-cooled milk cooling tank, which is used to cool each milk to an ambient temperature of 35 to 4 C (32 to 38 ° C). The compressor includes a solenoid valve, an expansion valve, a dryer, an observation glass, a liquid holder and a valve cooling system. The optional design includes a 2-liter, 4-liter, 6-liter cooling system, an electrical unit, an IP 65 enclosure, a working voltage of 380 V, and a temperature display with a digital thermometer.
Specially designed and easy to use electronic control panel, used to control oil tank, oil temperature control, electronic liquid level measurement, cleaning system and menu. If the electronic system fails, it can be turned to the manual position to continue cooling.
Service flow chat
Company information
Our services
Trade shows
Certificate
Packaging & Shipping
FAQ
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.
6) Q: I haven't done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.
7) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
8) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.
9) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
