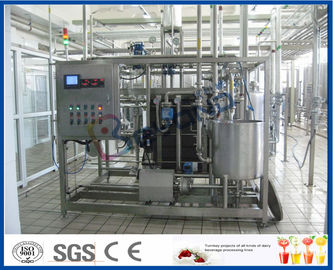

380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency

380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency

    • 380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency
    • 380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency
    • 380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency
    • 380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency
    • 380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency
    • 380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency
  • 380V / 50Hz Dairy Processing Plant Milk Processing Line High Efficiency

    Product Details:

    Place of Origin: China
    Brand Name: Beyond
    Certification: ISO9001
    Model Number: BYMILK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Standard export package
    Delivery Time: 90 work days
    Payment Terms: L/C, T/T
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Efficiency: High Condition: New
    Type: Processing Line Certification: ISO9001
    Control Way: Semi-auto And Full-auto Available Warranty: 12months
    Place Of Origin: Shanghai, China Voltage: 380V/50Hz
    Material: SUS304/ SUS316 Stainless Steel Both Available Performance: Good
    After-sales Service: Engineers Available To Service Machinery Overseas

    Industrial complete full set of dairy milk plant/machine/equipment

    Descriptions of dairy processing line



    This small yogurt production line capacity is 2T/H, it can produce several types of flavored pasteurized milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents, meanwhile with options to produce yogurt, cheese, cream and butter etc.



    This small yogurt production line raw milk can be fresh milk or powder milk or both, this small milk production line milk normally stored at low temperature about 4-5 degree, which can maintain the nutrition at maximum.



    End product package of this small milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box etc. For this dairy production line according to different end product and package type, the production technology is differently designed but commonly include the following steps.

     Raw milk
    Collection and reception
     ↓
    Pre-pasteurization

    Storage in tank

    Pasteurization

    Homogenization



    Storage in tank

    Packing

    Cold store

    Quality of product in laboratory test

    To market





    Equipment list sample of dairy processing line



    Equipment list of dairy processing line
    No. Name Size Main parameter
    1 Milk reception and storage unit


    2 Milk acceptor 300L SUS304 stainless steel, single layer, CIP spraying ball
    3 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    4 Single piping filter 3T/H SUS304, single pipe, stainless steal filter element of 100 mesh
    5 Milk storage tank 1000L SUS304, heat insulated, dimple padjacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
    6 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    7 Blending unit
    8 Storage tank 500L SUS304, heat insulated, dimple padjacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
    9 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    10 Single piping filter 3T/H SUS304, single, stainless steal filter element of 100 mesh
    11 Plate-type exchanger 1.5T/H SUS304, double pipes
    12 High pressure homogenizer 500L/H 40MPa
    13 Cream separtor unit
    14 Milk separator 500L/H The content of dried skim milk (%)<0.03, the speed of rotator is 8000rpm
    15 Buffer container 100L SUS304, with a cover, single layer
    16 Buffer & cooling container 100L SUS304, with a cover, single layer
    17 Milk pump 3T/H SUS304, with a cover, heat insulated, dimple pad jackets
    18 Butter churner 100L SUS304
    19 Yogurt storage, ferment and filling unit
    20 Temporary and ferment storage tanks 500L SUS304, heat insulated, dimple padjacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
    21 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    22 Rotor pump 1T/H SUS304, hard alloy mechanical seal,adjustment speed by manual
    23 Plastic pouch filling machine
    24 Plastic cup-shaped filling machine
    25 CIP system unit
    26 Manual CIP system 3×500L SUS304, single clening circulation, with CIP pump of connected tanks
    27 CIP return pump 10T/H SUS304, pump lift 24m ,hard alloy mechanical seal, inner shell mirror polished
    28 Power system unit
    29 Cold water equipment   7000 kcale per hour, air cooling refrigeration
    30 Hot water boiler   1000Kg/h, outlet temperature is 90°C
    31 Installation system   Stainless steel piping system,power piping system, electric controlling box, electric installation material,installation and commissioning
