500L - 8000L Volume Small Scale Milk Homogenizer Processing Line ISO Approved

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | Voltage | 380V/3PH/50Hz |
---|---|---|---|
Weight | 1000kg | Type | Processing Line |
Dimension(L*W*H) | 1250*900*1030mm | Power(W) | 22kw |
Material | Stainless Steel SUS304 | Function | Homogenizing, Storage, Blending |
Shape | Horizontal Or Vertical Cylinder Shape | Experience | Over 10 Years |
Volume | 500L -8000L | Standard | ISO Approved |
Shipment Term | By Sea | After-sales Service | Engineers Available To Service Machinery Overseas |
Warranty | 1 Year | ||
High Light | dairy processing equipment,milk processing plant |

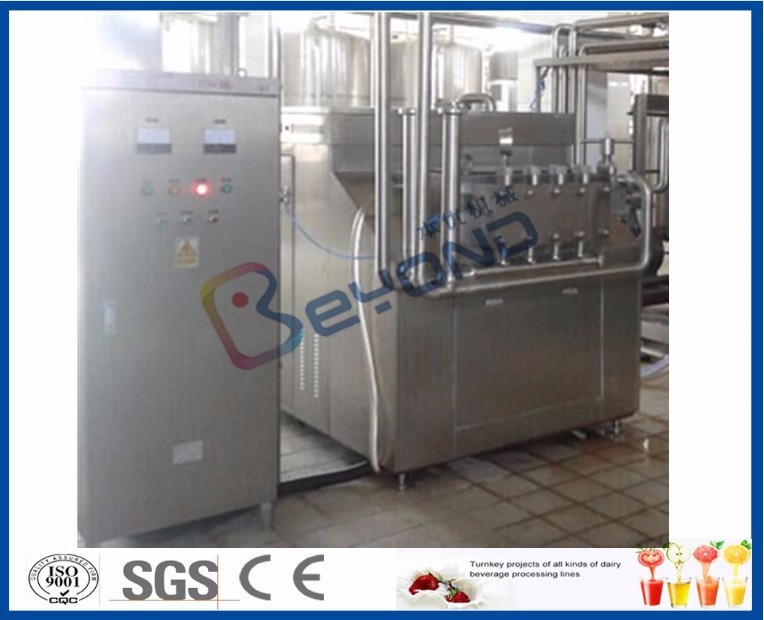

Small Scale Milk Homogenizer with Good Price
Homogenizer is a kind of equipment, wich make a mixture of two or more substance mixed equally. It could improve the stability of the liquid and taste. Homogenized liquid is more smooth and more easily digestible. The homogenizer could be used for milk,ice cream, fruit, herb drink and so on.
Milk homogenizer pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process. Widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development
structural description
A: Power terminal
1.1 Driving: two-stage gear box;first stage, the belt drive, second stage, crank gear symmetrical transmission; Special alloy bearing, bilateral Rolling bearing, horizontal smooth, low noise, mechanical efficiency is increased by about 10% on average.
1.2 Lubricating: Automatic splash lubrication, safe and reliable.
B. Liquid terminal
1.1 Pump: three way type, gland radial self sealing, durable, no leakage.
1.2 Plunge: 3 plunge, durable, safe, easy disassembly.
1.3 Checking valve: Durable, reliable, make sure flow is over rated flow.
1.4 Pressure control: one diaphragm gauge assembly (imported from German), control high pressure and low pressure.
Spare parts of homogenizer:
Spare parts | Qty | |
1 | High pressure sealing gasket | 2 |
2 | High pressure valve seat | 1 |
3 | Impact ring | 1 |
4 | High pressure valva core | 1 |
5 | high pressure shaft cover | 1 |
6 | Sealing ring for flat pump | 3 |
7 | Sealing ring for piston square spacer40*55*8 | 12 |
8 | Square sealing isolating washerδ=2 | 15 |
9 | valve seat | 3 |
10 | valve core | 3 |
11 | Low pressure sealing gasket | 1 |
12 | low pressure shaft cover | 1 |
13 | oil sealing φ40*φ65*12 | 6 |
14 | oil sealing φ55*φ75*12 | 1 |
15 | special seal for hole 45×3.55 | 15 |
16 | product inlet spring for down non-return valve |
3 |
17 | product outlet spring for up non-return valve |
3 |
18 | 6*129*2 Guidance tape | 3 |
19 | 10*129*2 Guidance tape | 3 |
20 | ||
Tools | ||
1 | Hook | 1 |
2 | Cylinder block valve installing bar | 1 |
3 | Cylinder block valva dismantling bar | 1 |
4 | Round nut wrench 55-62 | 1 |
5 | Abrasive grain 180 mesh | 1 |
6 | Dressing forceps 250mm | 1 |
Document | ||
1 | Manual operation | |
2 | Packing list | |
3 | Qualified certificate |
