10TPH Roller Drum Washing Machine Water Spraying Tube For Root Vegetables
Product Details
| After-sales Service | Field Installation, Commissioning And Training | Dimension(L*W*H) | 3000*1200*1850mm |
|---|---|---|---|
| Power(W) | 3-8KW | Weight | 300kg-1000kg |
| Application Fields | Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory,fruit Juice Plant | Raw Material | Fruit, Vegetables |
| Machinery Function | Washing And Cleaning | Capacity | 2-20TPH |
| Control Type | Full-auto | Name | Roller With Brush Washing Machine/Water Spraying Washing |
| High Light | dairy processing equipment,milk processing plant |
||
Product Description

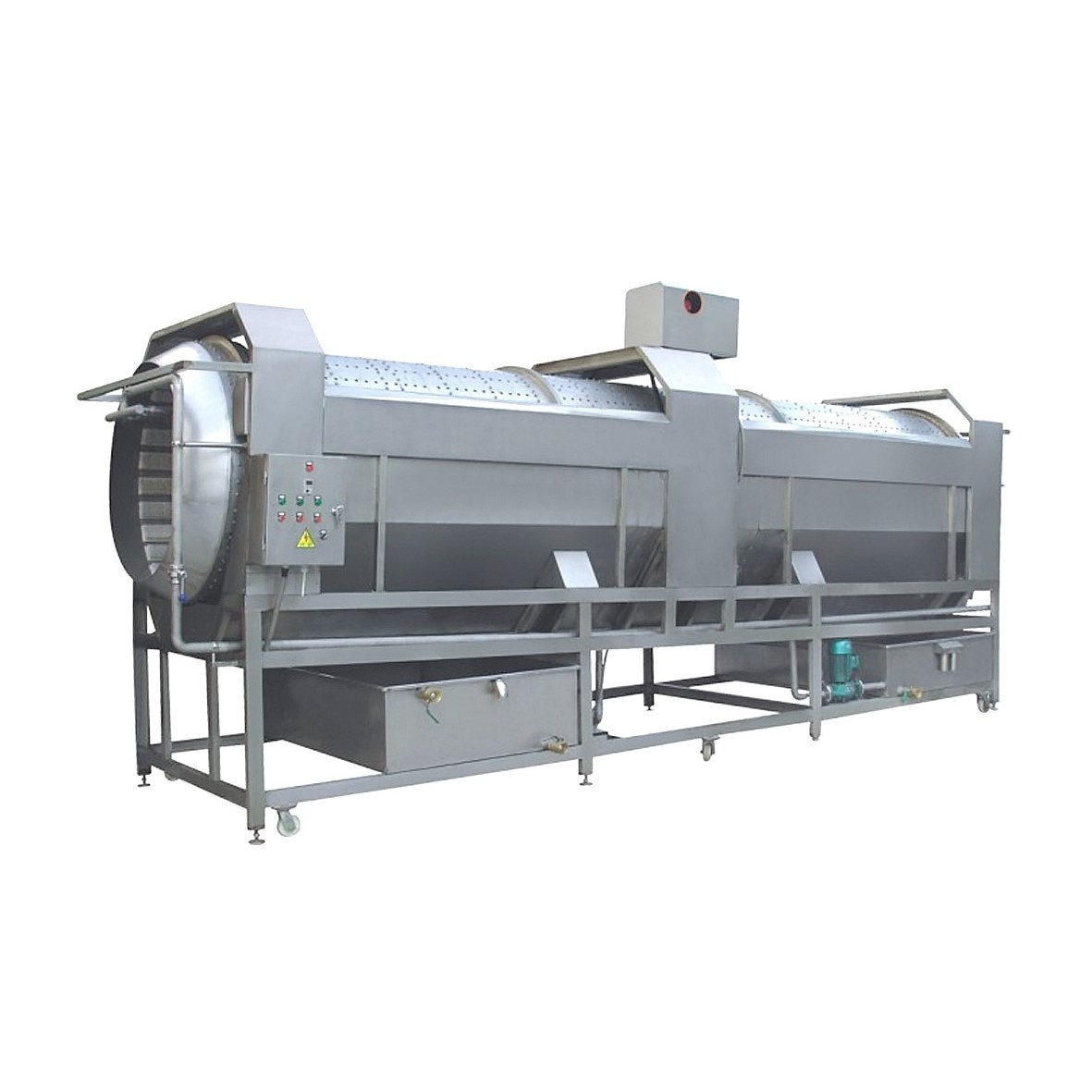

Rolling drum with brush washing machine
• Equipment description:
The equipment consists of motor, water pump, roller, bracket, plate brush, spray pipe, hopper, cover, water tank, valve, drive shaft, motor frame, electrical control switch and other components. The roller is driven by the chain sprocket to drive the long-axis upper sprocket and then the sprocket of the transition shaft and the stainless steel chain on the drum gearing together to realize rotating. After the material enters into the drum, washed by the spray pipe and brushed by the plate brush to achieve the cleaning effect. There are two water tanks under the drum, clear water tank close to the discharge position,water inlet pipe connected by clear water, and the circulating water tank is close to the feeding side. The water source that comes out after materials washed by punching drum is filtered through the filter mesh in the water tank for secondary use. This machine is applicant for washing root vegetables series.
• Technical parameters:
| Name | Description | mm (L×W×H) |
Suggested capacity | Suggested power (kw) |
| The capacity and power subjected to different raw fruits | ||||
| TMQXJ-2 | The material used is SUS304 stainless steel, speed is adjustable, with water spraying device |
3000×1200×1850 | ≤2T/H | 3.3 |
| TMQXJ-5 | 4000×1400×2000 | 3~5T/H | 3.3 | |
| TMQXJ-10 | 5000×1600×2500 | 6~10T/H | 5.2 | |
| TMQXJ-15 | 6000×1900×2800 | 11~15T/H | 6 | |
| TMQXJ-20 | 7200×1900×2800 | 15~20T/H | 7.4 | |
Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;
