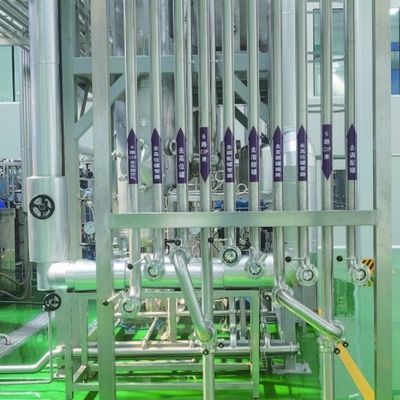

Single Circuit Dairy Processing CIP Washing System Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | SUS 304/ SUS316 | Control Type | Small Type |
|---|---|---|---|
| Working Circuits | 1 Circuits | Steam Pressure Reducer Valve | Spirax Sarco From UK |
| Tank Size | 1000L-10000L | Sea Port | Shanghai |
| Product Name | CIP Cleaning System Food Processing | ||
| High Light | Dairy processing CIP machine,Single circuit CIP machine,Dairy cip washing system |
||
Product Description
Dairy processing equipment coil tube to heat CIP cleaning system food processing
The system can perform the acid cleaning , alkali cleaning and hot water cleaning separately. And also the system can draw up the special full-auto cleaning program according to the request. It will not only clean all the equipments efficiently, but also limit the growing of the microorganism, meanwhile, we can also deploy the semi-auto and full-auto controlling system according to the customer’s requirements.
| Specification | LTCIP-0.5X3 | LTCIP-0.8X3 | LTCIP-1X3 |
| Outside specification: (L* W* H) | 3.2*1.4*1.6 | 5*1.8*2 | 5.5*1.8*2.1 |
| Equipment weight | ≈550kg | ≈650kg | ≈800kg |
|
Basic manually technical parameter |
Inner shell:SUS304, δ3mm,outside shell: δ1.5mm,PU insulation material, coil tube to heat, single circuit. whole line bracket material: SUS304; manually controlling, flow rate: 10m³/h, pump lift:32m,power:3KW;Operating platform, Stainless Steel switch board. |
||
| Semi-auto basic technical parameter | Inner shell:SUS304, δ3mm,outside shell: δ1.5mm,PU insulation material, coil tube to heat, single circuit. whole line bracket material: SUS304; manually controlling, flow rate: 10m³/h, pump lift:32m,power:3KW; imported temperature controller system from BURKERT,German. Operating platform, Stainless Steel switch board. | ||
Main components list
| Item | parts |
| CIP cleaning liquid storage tanks | Include acid tank, alkali tank, hot water tank, clear water tank |
| Concentrated acid and alkali | single layer storage tank for each |
| Pumps | CIP forward and return pumps |
| Two diaphragm pumps for acid/alkali concentrate | |
| Heat exchanger | Plate or tubular type |
| Control cabinet | One electrical appliance box |
| Pipes and valves | One set of controlling pipe and valve component |
| Electrical appliance material | One set of auto-performance components and parts and the electrical appliance material. |
| CIP cleaning liquid storage tank | 1000L-10000L. |
| Cleaning recycles | Single circuit, double circuits, three circuits ,four circuits or multi circuit operating at the same time; We can customized as to customers’ need |
| Heating type | Plate type, coil tube type, tubular type. |
Shanghai Beyond Machinery Co., Ltd, as a private business started in the year of 2005, is a specialized technology-oriented machinery manufacturing enterprise. Integrating scientific research and development, production, installation, commissioning and training, Beyond specializes in the turn-key projects of the design, manufacture, installation and commissioning for the production lines of liquid food such as dairy, drink, ice cream, fruit and vegetable, bioengineering, chemical and pharmaceutical. Through the years of the common efforts of our staff, we have obtained high share in the market of machinery industry, and have developed ourselves into a medium-sized enterprise of certain popularity in the industry. Combining scientific research, technical development, production, marketing and after-sale service, we keep ourselves acting strictly in accordance with the quality assurance system of ISO9001. Supported by a team of highly qualified design, production, marketing and after-sale service people, we have formed up distinctive corporate culture and operation philosophy, and a united, diligent and upward team.
