200TPD UHT Batch Pasteurizer Machine , Milk Pasteurization Unit

Place of Origin CHINA
Brand Name BEYOND
Certification ISO 9001/SGS/CE/TUV
Model Number BY-UT
Minimum Order Quantity 1SET
Price 100000USD-800000USD/set
Packaging Details export standard packing, worthy for long distance sea shipping
Delivery Time 80-100days upon the recipt of downpayment and confirmation of drawings
Payment Terms T/T, L/C, west union
Supply Ability 20 sets per month
Product Details
Material SUS 304or SUS316 Voltage 380V 50Hz/110V 60hz/415V 50Hz
Filling Temperature 20~30 ℃ Capacity 5-200TPD
Certification ISO9001/CE/SGS Warranty 12 Months After Commissioning
After Sales Service Engineers Available To Service Machinery Overseas Manufacturer History About 200-4000T/H,
Effeciency High Effeciency
High Light

UHT batch pasteurizer machine

,

200TPD batch pasteurizer machine

,

UHT milk pasteurization unit

Leave a Message
Product Description

Pasteurized Milk Yogurt Milk Drinks Pasteurization machine UHT Milk Production Line/Mini Dairy Processing Plant Equipment

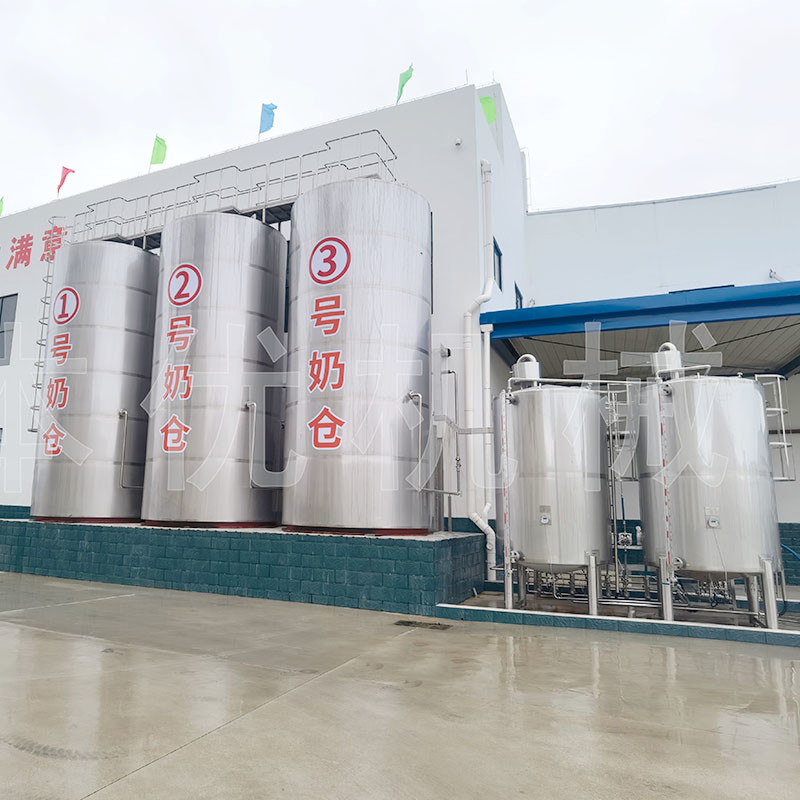

200TPD UHT Batch Pasteurizer Machine , Milk Pasteurization Unit 0

We focus on the research and development of new technologies and have rich experience in pasteurized milk and UHT milk processing equipment such as milk receiving, cream separation, processing, milk standardization and liquid milk filling.
We will always provide complete design and possibility according to the requirements of customers and the budget of milk processing equipment and dairy processing plant.


Pasteurized milk is also called sterilized milk. It is made from qualified fresh milk. It is pure milk after centrifugation, standardization, homogenization, pasteurization, cooling and filling. It is directly supplied to consumers as commercial milk.
In modern UHT plants, milk is pumped through a closed system. In this process, it will not be infected again after preheating, high temperature treatment, homogenization, cooling and aseptic packaging. Milk is usually treated at 135 – 150 ° C for a few seconds by indirect heating, direct steam injection or steam injection.

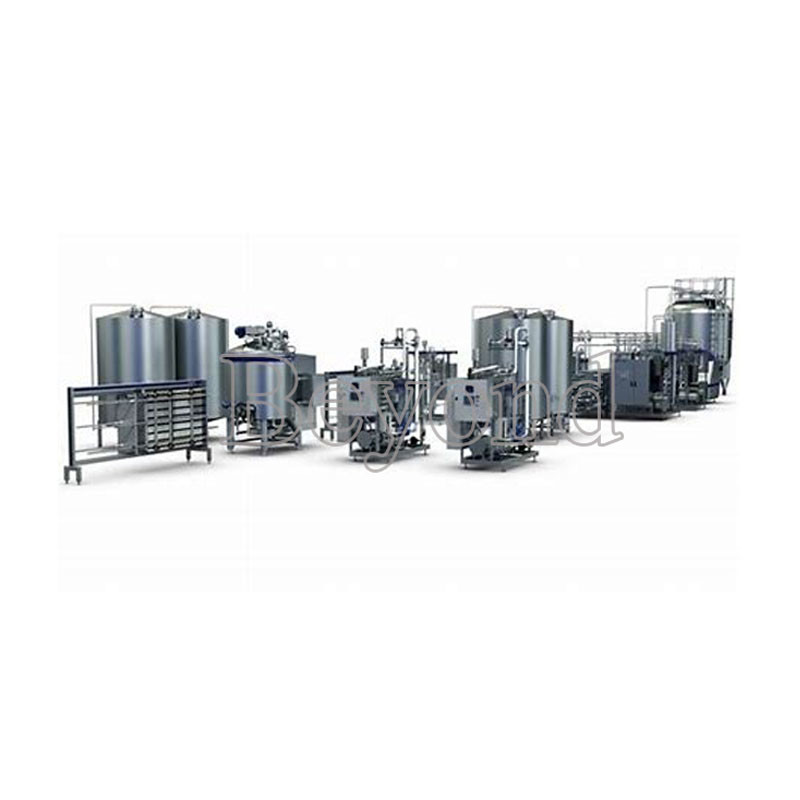

200TPD UHT Batch Pasteurizer Machine , Milk Pasteurization Unit 1



Brief introuction of UHT dairy processing plant

Brand Name: Shanghai Beyond
Model Number: BY-UM
Capacity 5-200TPD
Raw material

Fresh cow milk, buffalo milk, goat milk, camel milk

or milk powder, or both mixed

End product Pure milk, UHT milk, long shelf life milk
Shelf life

35-40days, 3months, 6months, 12months

(keep at room temperature )

Final product fat (%)

Semi-skimmed or double toned milk (1.5%);

Full cream(3% or 6%); Toned milk(3%)

SNF 8.5%(min)
Main material for machines SUS304 or SUS316
Package for end product plastic pouch
Certification: ISO9001/CE/SGS
Place of Origin: China
Manufacturer history More than 10years

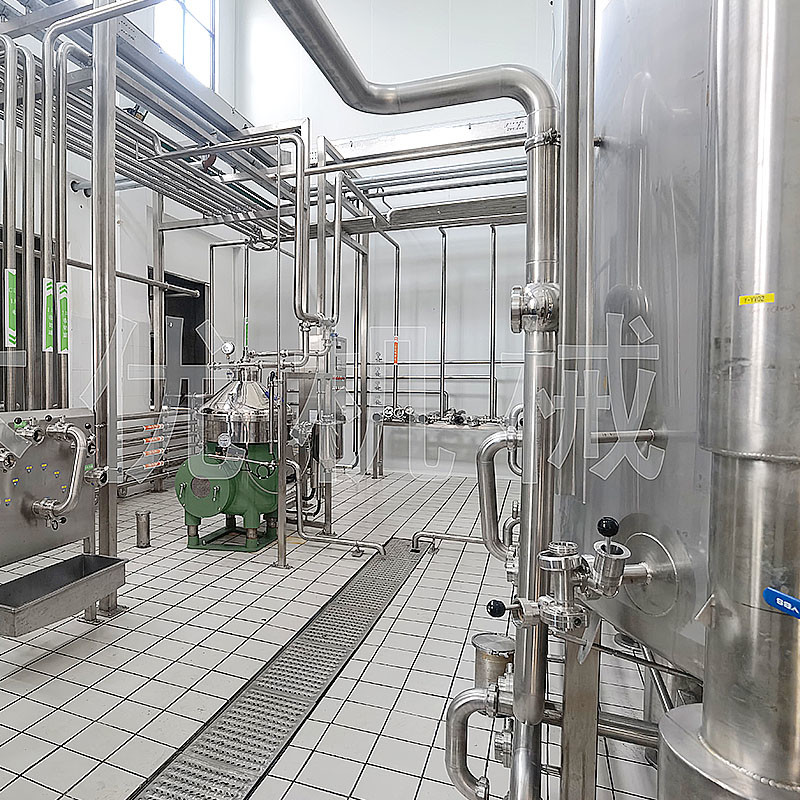

200TPD UHT Batch Pasteurizer Machine , Milk Pasteurization Unit 2





Features and advantages:

1. Processing capacity can be ranged from 2T/Day to 1000T/Day.

2. High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in the dairy processing line.

3. PLC control the whole production line, saving labor force and facilitate production management.

4. Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.

5. Whole line with features as high level automatic, low labour intensity, easy operation, safe function and low operation cost.

6. Whole line adopt sanitary design, can be cleaned thoroughly, with high level sanitation.



Equipment list and technical details:

Flow No. Name Size Main technology parameter Unit QTY
A Milk collection and storage unit
A-1 chiling tank V=3000L SUS304 stainless steel,dimple pad jacket,attached with compressor, temperature automatic control, sealed manhole, breath valve, CIP spray ball, entire frame support pcs 2
A-2 milk transport tank V=5000L SUS304 stainless steel, PU insulation, devided to 2 chambers, saddel type legs, with two manholes, spray balls, product outlet etc pcs 1
A-3 loadometer   maximum weighing 15T PCS 1
A-4 Milk pump 10T/H SUS304 stainless steel, pump lift is 24 meters, mechanical seal Set 1
A-5 Twin piping filter 5T/H SUS304 stainless steel, two pipes, stainless steal filter element 100 mesh Set 1
A-6 Milk cooling tank 3000L
SUS304 stainless steel,dimple pad jacket,equipped with compressor,temperature automatic control,sealed manhole, breath valve, CIP spray ball, entire frame support
Set 2
A-7 Milk pump 3T/H SUS304 stainless steel, pump lift is 24 meters, mechanical seal Set 1
A-8 Milk pump 10T/H SUS304 stainless steel, pump lift is 24 meters, mechanical seal Set 1
A-9 powder and liquid mixer 10T/h SUS304,horizontal type set 1
B pasteurizing unit
B-1
plate pasteurizer
1T/H SUS304 stainless steel, plate type, product inlet temperature 5℃, cream separator temperature 55℃,homogenizer temperature 65℃, pasteurization temperature 72-95℃,15S,output temperature 5℃,semi-automatic control Set 1
B-2 High pressure homogenizer 1T/H 25MPa, including starting cabinet PCS 1
B-3 buffer storage tank 2000L material is SUS304,insulation,with decentration agitator,conical head,sealed manhole,breather vent,simple valve,digital show thermometer,plate anti vortex,adjustable legs PCS 1
B-4 Milk pump 3T/H SUS304 stainless steel, pump lift is 24 meters, mechanical seal Set 1
C Sterilization & Filling unit
C-1 Tubular sterilizer 1-1.25T/H SUS304 stainless steel, aseptic tye, tubular type, inlet temperature 5℃, sterilization parameters:137℃,4S,output temperature 10-20℃,PLC automatic control Set 1
C-2 Full-automatic
vacuum degasser
1-1.25T/H Full-automatic control, SUS304 stainless steel, differential pressure transducer imported from Germany Labom, working vacuum degree -0.64~-0.85Kpa, flow control is frequency converted type, working together with sterilizer, with condensing device PCS 1
C-3 High pressure homogenizer 1-1.25T/H
25MPa, including starting cabinet, frequency conversion control
PCS 1
C-4 Aseptic pouch filling machine   one head,4500pcs/hour, 250ml/pcs PCS 1
C-5 belt conveyor   material SUS304, length 4m PCS 1
D CIP system
D-1 Semi-automatic CIP system 3×0.8T SUS304 stainless steel, conjoined structure with single cleaning way, concentrated acid/alkali tank adding system based on US technology, temperature automatic control, 50L×2 acid/alkali concentrate tanks Set 1
D-R CIP return pump 20T/H SUS316L stainless steel, pump lift is 24 meters, mechanical seal Set 3
E ACCESSORY EQUIPMENTS
E-1 chiller   air-cooled compressor,with F22 as chilling medium, 20000Kcal, with ice water tank and ice water pump pcs 1
E-2 steam boiler Q=500Kg/h coal-burning type, steam pressure 8bar, with water treatment and dust remover pcs 1
E-3 air compressor Q=1m3/min screw type air compressor, include air storage tank, cold drier unit etc pcs 1
E-4 RO water treatment system 2T/h including sand filter, carbon filter, ion exchange,one stage RO system, automatic control SET 1
E-5 water tank 5000L SUS304, single layer SET 2
F Installation part
F-1 Stainless steel piping system   Including CIP system and all product pipe line of whole preparation unit up to filling part, SMS standard, ¢63, ¢51, ¢38 Set 1
F-2 Power piping system   Power pipe line of whole preparation stage till filling part, not include heat insulation Set 1
F-3 Electric controling box
Control all equipments of whole preparation stage up to filling part
Set 1
F-4 Electric installation material   Electric installation material of all equipments of whole preparation stage up stoped at filling part Set 1
F-5 Mounting and debugging fee
Domestic mounting and debugging of all machines offered by Beyond (if out of China, the buyer should pay the round-air ticket fee and road cost , the food and hotel fee person per day for subsidy)
Set 1





Factory preparation requirement for 1500LPH UHT Dairy Processing Plant from Milk Powder Or Fresh Milk

Product Name 5-200TPD Long shelf life UHT milk line
Processing line type Complete turn-key project
Power consumption(Kw) energy saving type, about 100-500kw,
Operator needed About 4-18persons
Cooling water consumption About 60-500M3
Steam consumption About 200-4000T/H,
Factory space needed About 400-6000Sqm
Warranty 12 months

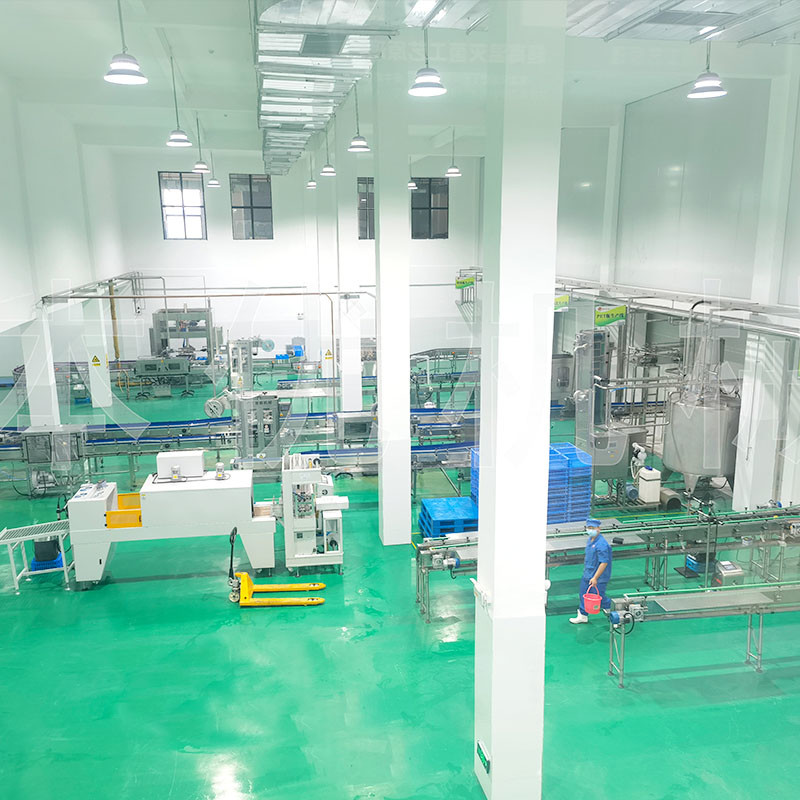

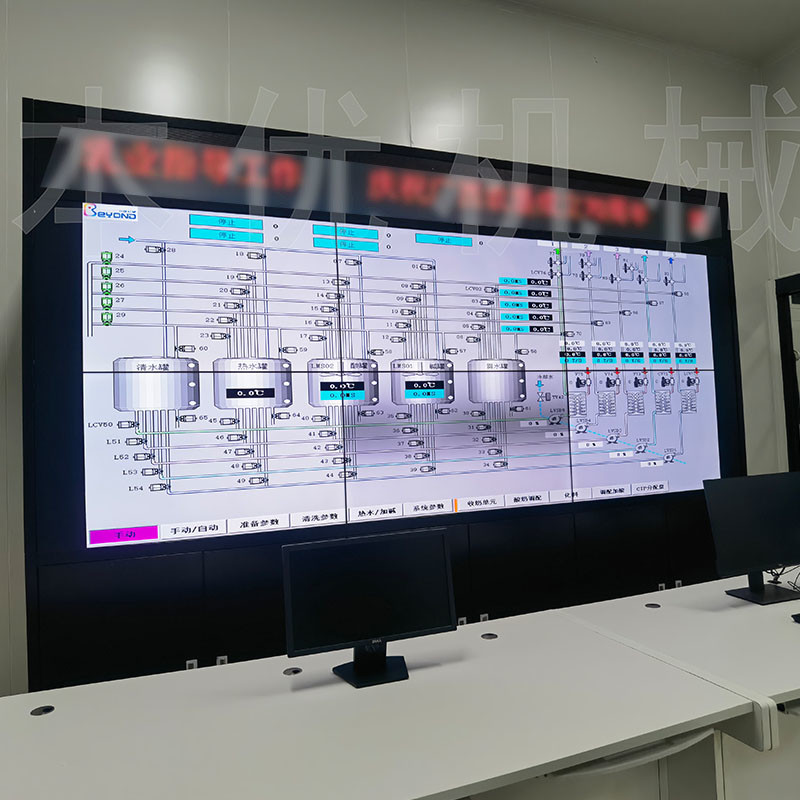

200TPD UHT Batch Pasteurizer Machine , Milk Pasteurization Unit 3200TPD UHT Batch Pasteurizer Machine , Milk Pasteurization Unit 4



Our service

The seller will provide technical training to the buyer. The training contents include: equipment structure and maintenance, control and operation. After training, the buyer's technicians will master relevant operation and maintenance skills, be more skilled in adjusting technology, and be able to deal with various faults in time.



after-sale service

1) After the equipment is qualified, the seller will provide one-year warranty, one-year warranty of control system, free wearing parts and other spare parts at the cost price. During the warranty period, the trained technicians shall strictly comply with the equipment operation and maintenance requirements required by the seller, find and eliminate common faults in time; If the buyer's technicians cannot solve the problem by themselves, the after-sales department will provide remote guidance service by telephone; If relevant measures cannot solve the problem, the seller will send technicians to the buyer's factory to eliminate faults or relevant technical problems on site. The cost will refer to the installation and commissioning cost.



2) After receiving the guarantee, the seller will provide extensive preferential technical support and lifelong after-sales service: preferential prices for vulnerable parts and other spare parts.
