Automatic Fruit Vegetable Washing Machine With Roller Drum 20TPH

Place of Origin Shanghai,China
Brand Name Beyond
Certification ISO9001:2015
Model Number 2-20TPH
Minimum Order Quantity 1 set
Packaging Details Wooden package and Frameworks;Container Loading;PE Film Wraps
Delivery Time 30 days after payment
Payment Terms L/C, T/T
Supply Ability 200sets per year
Product Details
After-sales Service Field Installation, Commissioning And Training Dimension(L*W*H) 3000*1200*1850mm
Power(W) 3-8KW Weight 300kg-1000kg
Application Fields Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory,fruit Juice Plant Raw Material Fruit, Vegetables
Machinery Function Washing And Cleaning Capacity 2-20TPH
Control Type Full-auto Name Fruit And Vegetable Washing Machine
High Light

Roller Drum Fruit Washing Machine

,

8KW Vegetable Washing Machine

,

Automatic Fruit Washing Machine 20TPH

Leave a Message
Product Description

Automatic fruit and vegetable washing machine with roller drum Fruit Processing Lines



Automatic Fruit Vegetable Washing Machine With Roller Drum 20TPH 0

• Equipment description:

The carrot cleaning machine sold is a brush roller type, which can not only clean carrots but also peel them. Equipped with 9 brush rollers, soft brush is used for cleaning and hard brush is used for peeling. The brush roller material is processed by special process (rolled with nylon rope), which is durable and has good wear resistance.



Advantages of carrot cleaning machine

▼ labor and water saving;

▼ power failure protection;

▼ soft and hard brushes for cleaning;

▼ 304 food grade stainless steel;



• Technical parameters:

Name Description mm
(L×W×H)
Suggested capacity Suggested power
(kw)
The capacity and power subjected to different raw fruits
TMQXJ-2 The material used is SUS304 stainless steel,
speed is adjustable,
with water
spraying device
3000×1200×1850 ≤2T/H 3.3
TMQXJ-5 4000×1400×2000 3~5T/H 3.3
TMQXJ-10 5000×1600×2500 6~10T/H 5.2
TMQXJ-15 6000×1900×2800 11~15T/H 6
TMQXJ-20 7200×1900×2800 15~20T/H 7.4



Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;

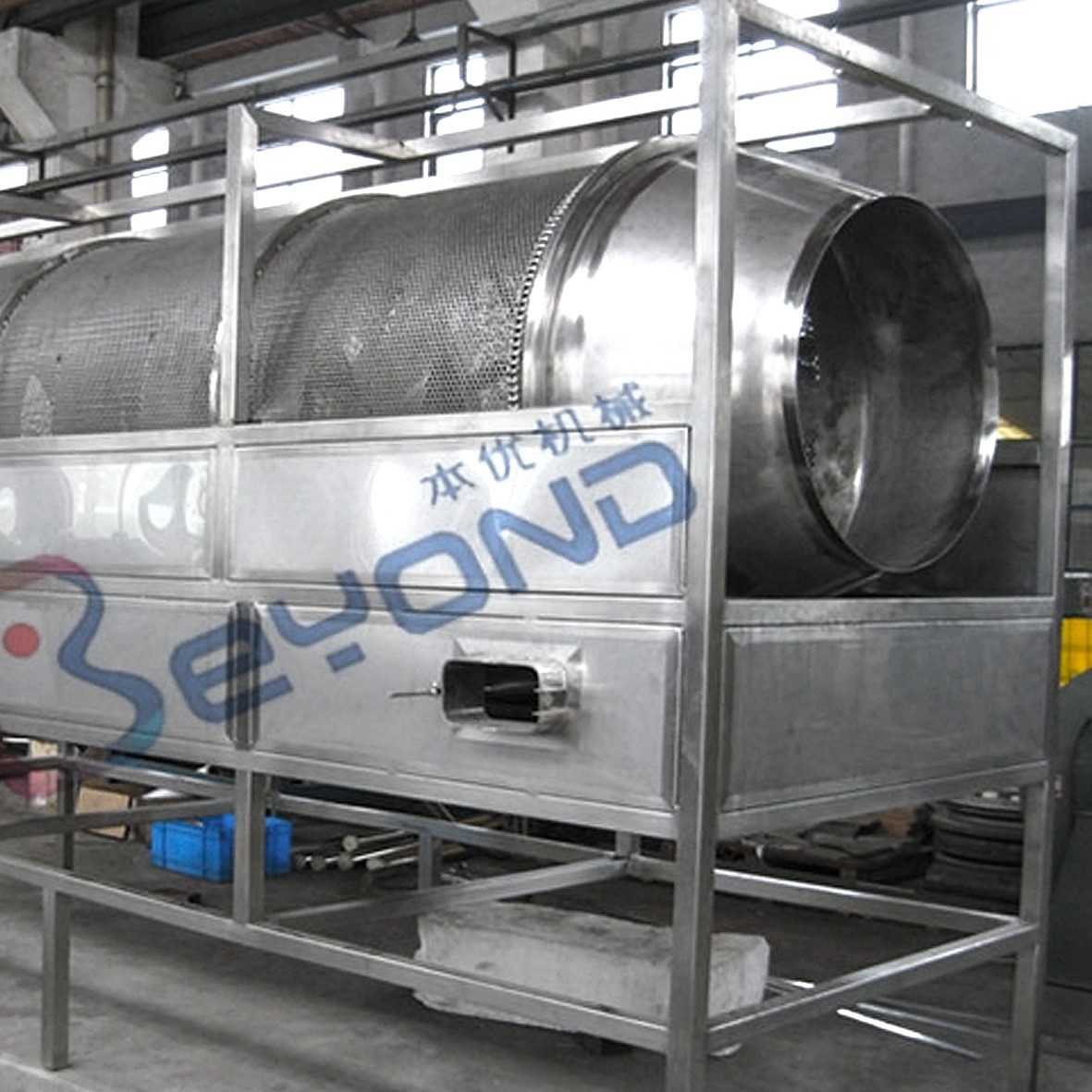

Automatic Fruit Vegetable Washing Machine With Roller Drum 20TPH 1





Application of carrot cleaning and peeling machine

The carrot washing machine sold is widely used for round and oval fruits and vegetables. Such as potatoes, taro, cassava, ginger, radish, konjac, and barbecue products such as pig head, pig hoof and pig ear, the cleaning rate is more than 95%. Large amount of cleaning, high efficiency, low energy consumption, continuous cleaning.



Raw material

Raw materials suitable for cleaning and peeling





Characteristics of carrot washing machine

The carrot skin is clean and the damage of carrot skin is greatly reduced. It can also be used to depilate and clean pig heads and feet;

The motor drives the wool roller to roll in the opposite direction, which directly contacts with the carrot to produce friction, so as to achieve the peeling effect;

It is equipped with a special automatic high-pressure nozzle to peel carrots while cleaning, which can achieve the effect of cleaning and peeling carrots;

The hardness of bristles can be changed according to the variety of carrots. The harder wire brush roller can achieve the peeling effect of carrots, and the softer wire brush roller can wax and polish carrots.



Carrot cleaning and peeling machine

After cleaning and peeling carrots, we can also support carrot slicing or cutting machine, as well as carrot slicing freezing, carrot slicing dehydration and carrot juicer. If you have any questions about carrot processing, please feel free to contact us.

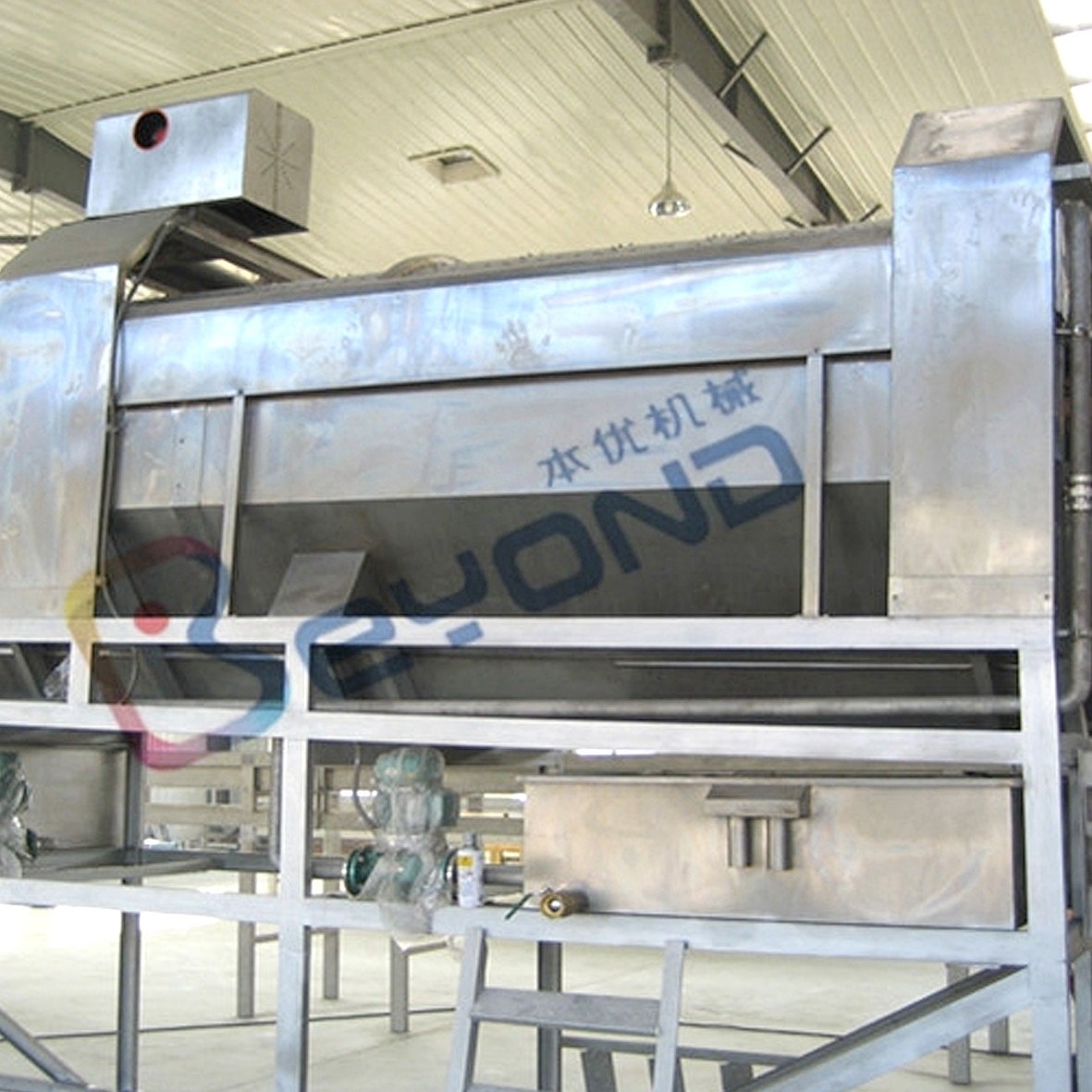

Automatic Fruit Vegetable Washing Machine With Roller Drum 20TPH 2
