SUS304 Industrial Orange Processing Line Fruit Bubble Washing Machine 6KW

Place of Origin China
Brand Name Beyond
Certification ISO9001:2008/SGS/CE
Model Number BYGPQXJ
Minimum Order Quantity 1 set
Packaging Details Standard export package
Delivery Time 40 work days
Payment Terms L/C, T/T
Supply Ability 100 Set/Sets per Year
Product Details
Condition New Type Fruit Washer
Power(W) 6KW Dimension(L*W*H) 3*2*1.5m
Warranty 1 Year Material SUS304/SUS316L Stainless Steel
Energy Consumption Low Energy Consumption Voltage 380V ,50Hz
Weight 2000kg Certification ISO9001:2008/SGS/CE
After-sales Service Free Spare Parts,engineers Available To Service Overseas Control Automatic Controll
High Light

6KW Industrial Orange Processing Machine

,

Fruit Bubble Washing Machine 6KW

,

SUS304 Industrial Orange Washing Machine

Leave a Message
Product Description

Fruit bubble washing machine for Dates Palm Washing Line Commercial and Industrial Use

SUS304 Industrial Orange Processing Line Fruit Bubble Washing Machine 6KW 0

























































































The date coconut cleaning line mainly includes the cleaning, lifting, drying, grading pretreatment and date coconut pretreatment.

Characteristics of jujube coconut cleaning line:

1. Save water, electricity, time, sanitation and do not damage the product.

3. High efficiency, small floor area, safe and reliable.

4. Simple installation, convenient operation, convenient maintenance and low energy consumption.



Technical parameter of fruit washer



Name  Description

mm

L*W*H

Suggested capacity Suggested power(kw)
The capacity and power say to different raw fruits
GQXJ-2 Material :SUS304 stainless steel,speed is stepless adjusted,with air fan and compressing pump 3000*800*1200 ≤2T/H 2.2
GQXJ-5 3500 *1000*1200 3~5T/H 3
GQXJ-10 5000*1100*1200 6~10T/H 4.4
GQXJ-15 5000*1300*1200 11~15T/H 5.5
GQXJ-20 5000*1500*1200 16~20T/H 5.5





SUS304 Industrial Orange Processing Line Fruit Bubble Washing Machine 6KW 1

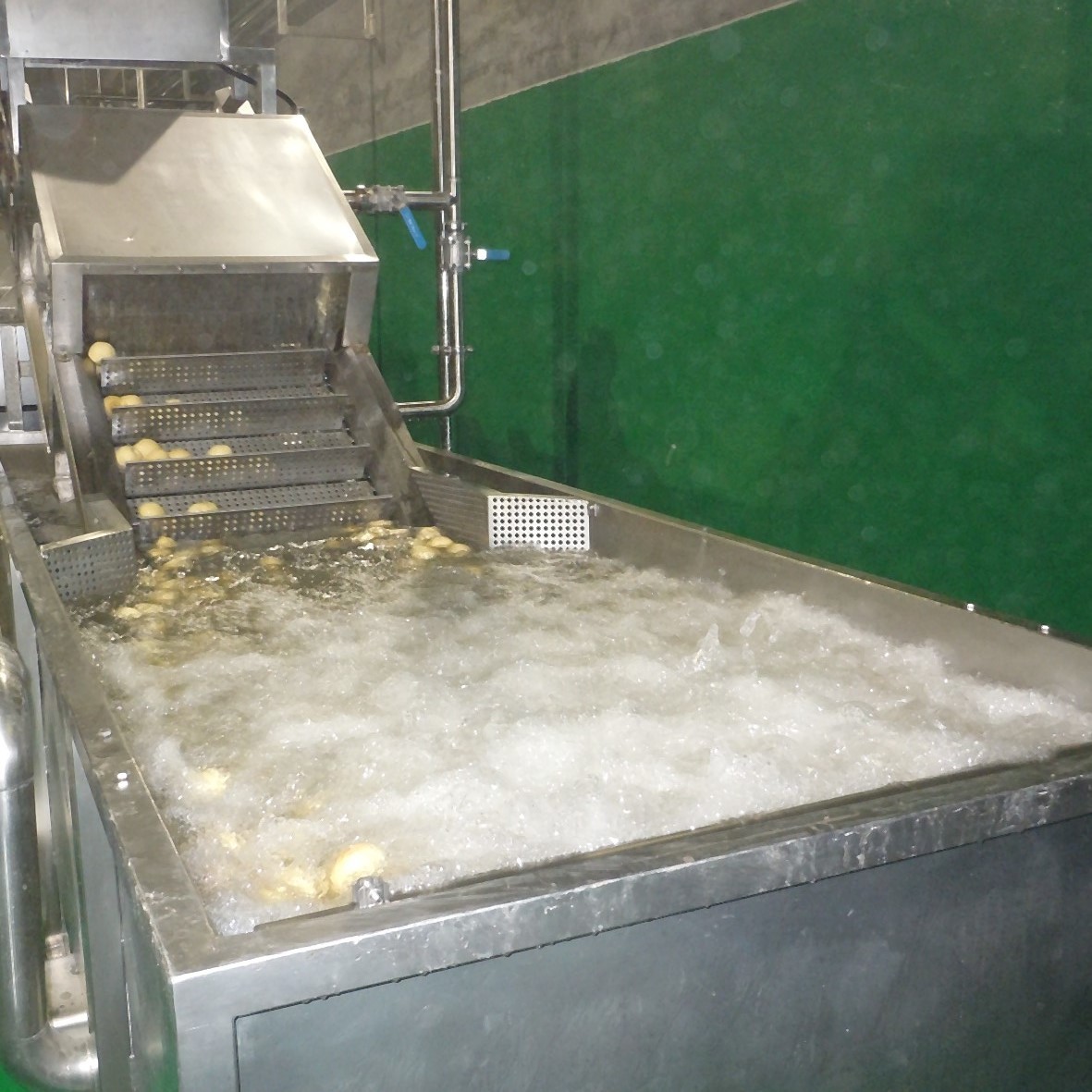

Bubble washing machine

Use high-pressure steam to soak in water bath for cleaning, supplemented by strong water flow to clean jujube coconut

We designed a bubble generating device and a high-pressure spray device to make the date palm in a rolling state and remove the pesticide residues on the product surface.

Large amount of cleaning, high cleaning rate, no damage to jujube peel. After rotation, it flows on the mesh belt to the conveying mesh belt

Floating objects can overflow from the overflow tank and discharge sediments from the mouth to achieve the purpose of cleaning.

After being washed by high-pressure water flow, it is transported to the conveyor belt.

SUS304 Industrial Orange Processing Line Fruit Bubble Washing Machine 6KW 2

Brush roller washing machine

The parallel roller cleaning machine is made of food grade SUS304 stainless steel, which meets the food industry standards. The technology of rough roller cleaning and spray was used to clean jujube. The cleaning speed is adjustable and the date runs smoothly on the brush.

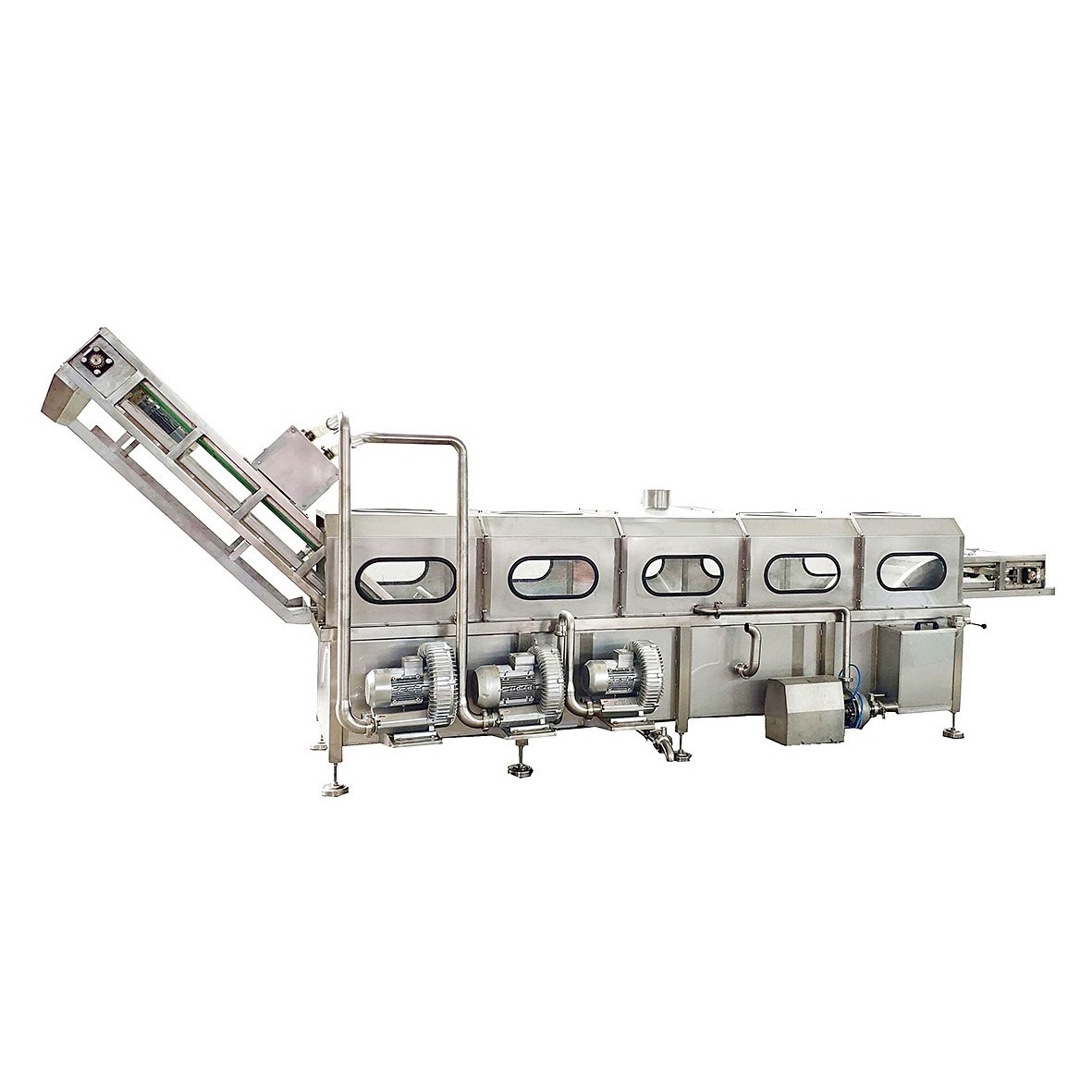

Air dryer

The air dryer is suitable for the drainage of jujube coconut after washing. The hot air generated by the eddy current air pump is used to dry and wash the jujube at room temperature, which can effectively protect the color and quality of the jujube itself and shorten the time of subsequent processing or packaging. It is one of the core equipment of fruit and vegetable cleaning and processing.



Date sorter

1. It is applicable to fruits classified by fruit shape and size.

2. Through the operation of silicon tape, the fruit falls into the result slot with appropriate aperture, and then is discharged from the fruit outlet.

3. The date coconut sorter adopts bell mouth sorting to make the sorting hole spacing more standardized.

4. The date sorter is made of silica gel, which directly contacts the fruit and is round and smooth without damaging the fruit.

5. Stainless steel raw materials are used as a whole, which is safe and hygienic and meets the hygienic standards of food processing equipment.



SUS304 Industrial Orange Processing Line Fruit Bubble Washing Machine 6KW 3
