Turn Key Projects 20000LPD Pasteurized Milk Production Line for 200 - 1000ml Bag Pouch
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Raw Material | Fresh Milk Or Milk Powder | End Product | Pasteurized Milk, Fresh Milk, Pouch Milk |
|---|---|---|---|
| Capacity | 1000-6000LPH | Power Consumption | 120-360KW |
| After Sales Service | Engineers Are Available To Go Oversea | Shelf Life | 5-7days |
| Storage Temperature | 4degree | ||
| High Light | milk processing equipment,milk processing plant |
||
Product Description

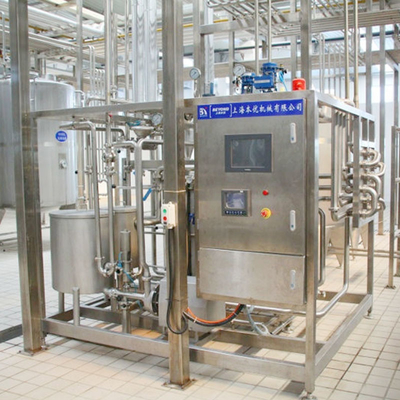

Turn Key Projects 20000LPD Pasteurized Milk Production Line 200-1000ml bag pouch
Equipment list:
| № | Наименование | Шт. |
| 1 | Self priming receiving pump, 12,5 м3/h | 1 |
| 2 | counting, filtering and air release unit | 1 |
| 3 | ТГ-5000, outside tank, 5000 L | 2 |
| 4 | Centrifugal pump, 6,3 м3/h | 2 |
| 5 | Pasteurising Unit, 3000 l/h | 1 |
| 6 | Automatic Separator with normalizer 3000 l/h | 1 |
| 7 | Homogenizer , 3000 l/h | 1 |
| 8 | ЕН-300, a storage tank for the collection of the cream from the separator, 300 l | 1 |
| 9 | Centrifugal pump, 1,5 м3/H | 4 |
| 10 | Milk heating tank for cream normalization and heating for homogenization, computer controlled, 500 L | 1 |
| 11 | Cream homogenizer, 500 L | 1 |
| 12 | Sour cream heating and cooling tank, 500 L, computer controlled | 1 |
| 13 | Sour cream heating and cooling tank, 400 L, computer controlled | 2 |
| 14 | Screw pump, 1,8 м3/h | 4 |
| 15 | Control cabinets with automatic control | 3 |
| 16 | Plastic cup packing equipment, 1200 cups per hour for sour cream | 2 |
| 17 | Cooling and heating tank, 500L | 2 |
| 18 | Cottage cheese equipment, 100 L | 2 |
| 19 | Plastic cup packing equipment, 1200 cups per hour (cotton cheese) | 1 |
| 20 | Vertical milk tank for heating and cooling 500 L (baked milk) | 1 |
| 21 | Vertical milk tank for heating and cooling 2000 L (baked milk) | 2 |
| 22 | Horizontal outdoor tank for pasteurized milk 3000 L | 2 |
| 23 | Packing equipment for Polipack 25 package per minute. | 1 |
| 24 | Packing equipment for Polipack 50 (2x25) package per minute | 1 |
| 25 | Screw compressor with reciever | 1 |
| 26 | Refrigerating unit | 1 |
| 27 | СIP-washing line | 1 |
| 28 | Superheated water unit | 2 |
| 29 | Laboratory cabinet with ventilation | 1 |
| 30 | Laboratory glasswear cabinet | 1 |
| 31 | Stainless steel Table 1200х600х800 | 6 |
| 32 | Personal hand washing table | 1 |
| 33 | Washing unit | 5 |
| 34 | Box washing unit | 1 |
| 35 | Water heating | 5 |
| 36 | Shower | 1 |
| 37 | Clothes wardrobes | 8 |
| 38 | Conditionnins system | 4 |
| 39 | Outdooe ice water generator 40000 | 1 |
Flowchart for Turn Key Projects 30000LPD Pasteurized Milk Production Line 200-1000ml bag pouch
Equipment list for Turn Key Projects 20000LPD Pasteurized Milk Production Line 200-1000ml bag pouch
| NO. | FLOW NO. | NAME | SIZE | MAIN TECHNOLOGY PARAMETER | UNIT | QTY |
| 1 | A | MILK RECEIVE AND STORAGE UNIT | ||||
| 2 | A-1 | Milk pump | Q=10T/h | SUS304 stainless steel,pump lift 24M,mechanical seal | pcs | 1 |
| 3 | A-2 | Electronic scale | maximum weighing 1000KG | pcs | 1 | |
| 4 | A-3 | Milk weighing tank | V=300L | made of SUS304 stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball | pcs | 1 |
| 5 | A-4 | Milk receiving tank | V=500L | SUS304 stainless steel,single layer,CIP cleaning ball | pcs | 1 |
| 6 | A-5 | Milk pump | Q=10T/h | SUS304 stainless steel, pump lift 24M, mechanical seal | pcs | 1 |
| 7 | A-6 | Twin piping filter | Q=10T/h | SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh | pcs | 1 |
| 8 | A-7 | Plate cooler | Q=10T/h | SUS304 stainless steel,one stage,ice water cooling,20-4℃ | pcs | 1 |
| 9 | A-8 | Milk storage tank | 5000L | SUS304 stainless steel,heat insulated,dimple jacket,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet | pcs | 2 |
| 10 | A-9 | Milk pump | Q=3T/h | SUS304 stainless steel, pump lift 24M,mechanical seal | pcs | 1 |
| 11 | Subtotal A: | |||||
| 12 | B | HOMOGENIZER/PASTEURIZE UNIT | ||||
| 13 | B-1 | Plate type pasteurizer | 2T/h | SUS304 stainless steel, plate type, inlet temperature 4℃, pasteurizing temperature 85℃, holding tube 15S for milk ,outlet temperature 4℃, PID temperature auto control,include Spirax Sarco steam control system,milk balance tank, milk pump, plate heat exchanger, pipes and valves, frame and support, electrical control box etc | pcs | 1 |
| 14 | B-2 | High pressure homogenizer | 2T/h | 25MPa,(starting box included) | pcs | 1 |
| 15 | Subtotal B | |||||
| 16 | C | FILLING UNIT | ||||
| 17 | C-1 | High position tank | V=1000L | SUS304 stainless steel,heat insulated,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet | pcs | 2 |
| 18 | C-2 | Plastic bag filling machine | 6000 b/h,500ml/bag | pcs | 2 | |
| 19 | C-3 | High level platform | SUS304,4500*3000*2000mm | pcs | 1 | |
| 20 | Subtotal C: | |||||
| 21 | D | CIP UNIT | ||||
| 22 | D | CIP system | 3*1000L | Three tanks, single circulation, Semi-auto CIP, double layers insulation tank, tank material SUS304 stainless steel,acid&alkali tank with stirrer, high&Low liquid level alarm system, Spirax Sarco temperature auto control, JUMO temperature sensor, Shanghai YUAN brand progress pump 1 pieces, 10T/H, pumping lift 36M,100L concentrated acid & alkali tank which material is SUS316L , The USA imported pneumatic diaphragm pump two pieces. | pcs | 1 |
| 23 | R-1 | Return pump | Q=20T/h | SUS316L stainless steel,pump lift 24M,Mechanical Seal | pcs | 4 |
Design and build your entire production line
Beyond's extensive product portfolio provides solutions for every food production task. You can always find the right machine for the job at hand.
Given the quality and variety of beyond food processing equipment, you can:
Easy access to all devices from one source
Customize the processing line to meet your needs
Mix and match brands to achieve the settings you need
Seamless replacement of individual components of existing production lines
Respond to change with greater flexibility
Expand operation scale more smoothly
In addition, you can upgrade your production line with beyond Upgrade Kits, parts, detergents and lubricants.
No matter which or how many machines you use, you will enjoy the ease of assembling the production line with beyond. We always try to make it a pleasant and direct effort.
