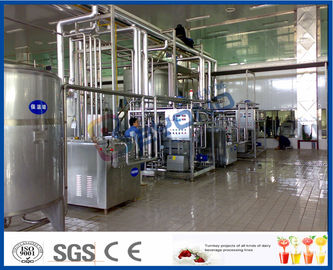

2TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel

  • 2TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel
  • 2TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel
  • 2TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel
  • 2TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel
Place of Origin CHINA
Brand Name BEYOND
Certification ISO
Model Number BYNNX
Minimum Order Quantity 1
Price USD 150000-250000 PER SET
Packaging Details WOOD CASE
Delivery Time 70DAYS
Payment Terms L/C, T/T
Supply Ability 12 SETS PER YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL SS304 OR SS316L CAPACITY 2TPH-10TPH
MANUFACTURING TIME 70 DAYS
High Light

dairy processing equipment

,

milk processing plant
Leave a Message
Product Description

Shanghai Beyond Machinery Co., Ltd. is a professional machinery manufacturer based on technical developing. Combining with R&D, manufacturing, installation debugging and training, we are engaged in producing the liquid projects used in Dairy,Fruit &Vegetable juice,Beverage,Tea,Brewing,Flavoring,Pharmacy,Egg,Bone & Meat processing and Daily chemical products etc.

. We have cooperated with the same occupations from domestic and international to introduce and develop many advanced procedures of manufacturing and designing.

With so many excellent staffs in technical and marketing, we are distributing in a more flexible and invigorative working surrounding development and helping our customers more success in the corresponding areas by offering better products and service.

We supply all kinds of dairy processing line, for turnkey projects, include designing, equipment manufacturing, installation, commissioning and training workers etc.

2TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel 02TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel 12TPH - 10TPH ISO Milk Production Process Milk Powder Making Machine With SS304 / SS316 Steel 2

The final product can be pasteurized milk, yogurt (with flavored), cheese, butter, ice cream, condensed milk, powder milk etc.



Capacities can be 500L to 10,000 L per day!



Please have a check of below technical specifications:



FLOW NO. NAME MAIN TECHNOLOGY PARAMETER UNIT QTY
A Hot-water unit
A-1 Hot water tank SUS304,double layers, PU insulation, coil pipe heating, air-tight manhole, water inlet, digital thermometer, glass level, ladder, adjustable legs set 1
A-2 Water Pump SUS304,pump lift 24M,machinical sealing, inner polished set 1
A-3 Temperature control system With temperature automatic control to control the whole system set 1
B Dissolving unit
B-1 Emulsifying tank Stainless steel SUS304,square shape, double layers, with PU insulation, CIP cleaning ball, air-tight manhole, high speed shear -cut at the top,1400 rounds per minute, digital thermometer, adjustable legs set 2
B-2 Milk Pump SUS304,pump lift 24M,machinical sealing, inner polished set 1
B-3 Double pipe filters Stainless steel SUS304,double pipe, stainless steel filter,100 mesh set 1
B-4 Operate platform Stainless steel, SUS304, with handrails and ladders set 1
C Milk standardization unit
C-1 Blending tank SUS304,doubel layers, with off center vertical agitator, CIP cleaning ball, manhole, digital thermometer, glass tube gauge, simple valve, ladders, adjustable legs, set 2
C-2 Milk pump SUS304,pump lift 14M,mechanical
sealing ,inner polished		 set 1
C-3 Double pipe filters Stainless steel SUS304,double pipe, stainless steel filter,100 mesh set 1
D Homogenize and pasteurizing unit
D-1 Plate pasteurizer Stainless steel SUS304,30℃ inlet, temperature automatic control, pasteurize parameters:95℃, 300 seconds, 40-45℃ outlet set 1
D-2 Homogenizer Work pressure 25Mpa,inclduing the start cabinet set 1
D-3 Holding tank SUS304, keep the temperature for 300s set 1
E Fermentation unit
E-1 Fermentation tank Stainless steel SUS304,three layers, dimple pad jacket, insulation with PU material, central agitator with double blend speed :15 round per minute and 30 round per minute inlet and outlet, CIP cleaning ball, breath valve, digital thermometer, air-tight manhole, sight glass, simple valve, adjustable legs set 5
E-2 Rotor pump Stainless steel SUS304,food grade, with stepless speed adjustable set 1
E-3 Plate cooler Stainless steel SUS304,large gap, Tm=30℃,with stepless speed adjustable set 1
E-4 Operate platform Stainless steel,SUS201, with handrails and ladders set 1
F Filling unit
F-1 High level tank Stainless steel SUS304,doubel layers, CIP cleaning ball, manhole,digital thermometer, simple valve, adjustable legs, set 1
F-2 Plastic cup filler Capacity: 4000pouch/h, filling volume: 250g/pouch, filling precision: ±1.5% set 2
G CIP unit
G-1 Semi-auto CIP system SUS304, temperature is automatic controlled, consist of 3 tanks, double cleaning circuits, acid tank, alcali, hot water tank, 2000L each tank, double layer with PU insulation, coil pipe inside of tank for heating, with CIP forward pump, 20T/H, pump head is 24m, with acid/alkali concentrate adding system set 1
G-2 Return Pump SUS304,pump lift 24M,mechanical sealing, inner polished set 4
