Fully Enclosed Low Temperature Fruit Juice Evaporator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Juice Evaporator For Sale | Material | SUS304 Or SUS316 |
|---|---|---|---|
| Operation | Full-auto Or Semi-auto | Effect | 4stages |
| Application | Food,medicine,industry,environment And So On | Products | Apple Clear Juice, Peach Clear Juice , Or Pear Clear Juice, Or Similar Juice. |
| Suggested Power | 20kw~35kw | ||
| High Light | low temperature juice evaporator,Fully enclosed juice evaporator,Fully enclosed fruit evaporator |
||
Product Description
Full closed process fast and low temperature evaporation juice evaporator for sale

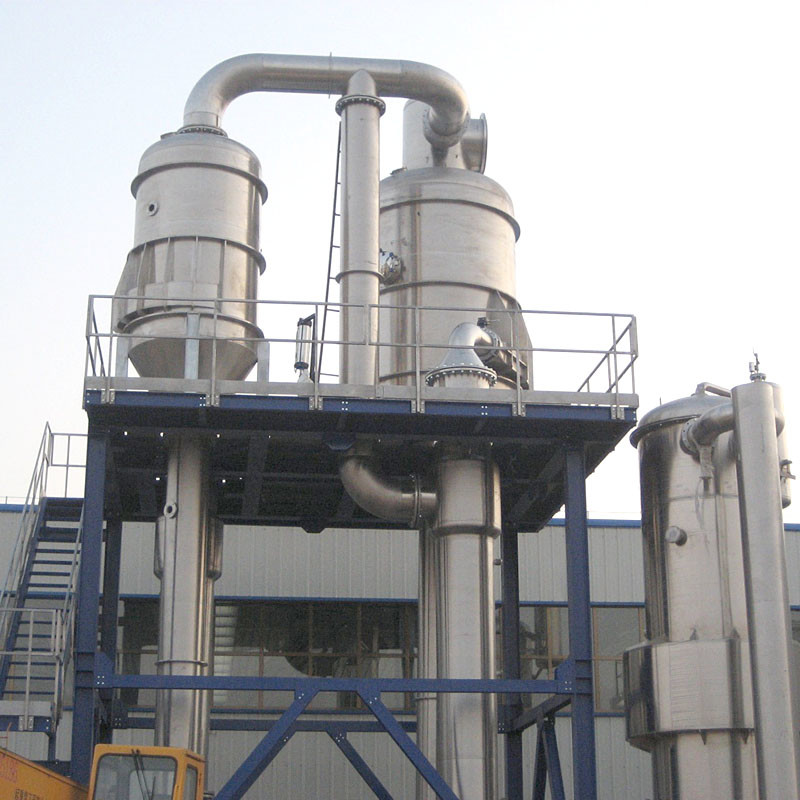

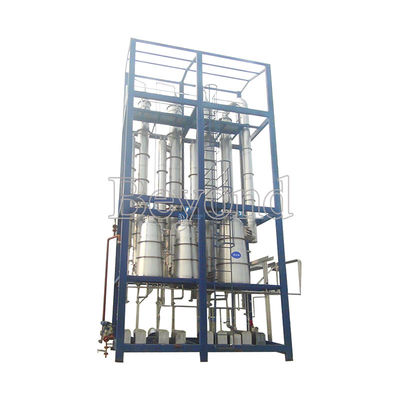

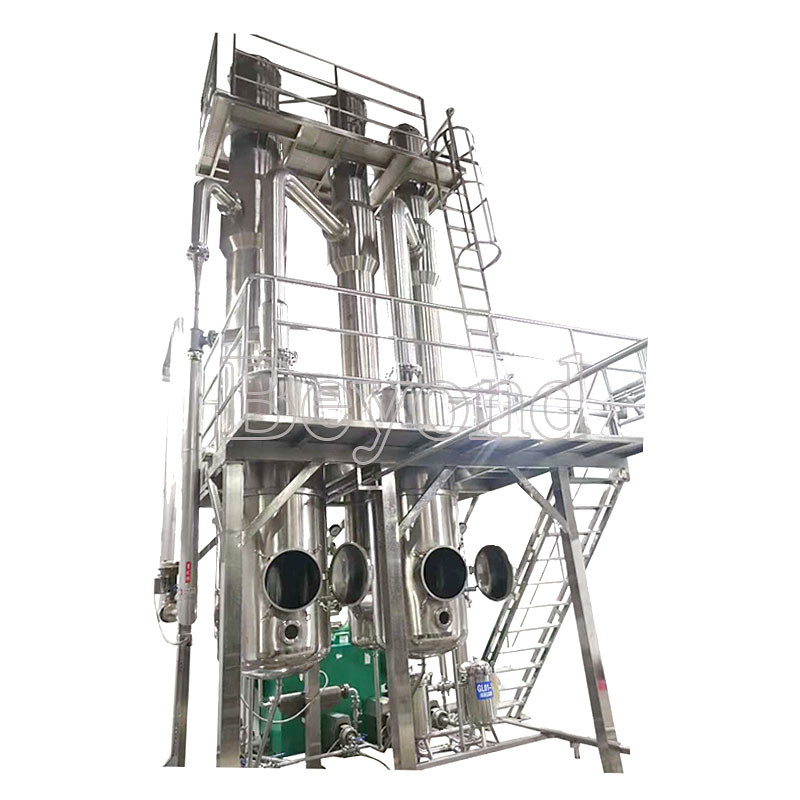

Falling film evaporator
Scope of application: Applicable to the food, pharmaceutical, chemical, biological, environmental protection, waste recycling and other sectors of the low-temperature continuous evaporation and concentration, this evaporator has characteristics of high heat transfer efficiency, short heating time of materials etc, so especially suitable for heat-sensitive, foaming material etc.
Equipment composition:The evaporator, separator, condenser, heat pressure pump, vacuum pump, product liquid pump, condensate pump, operating platform, instrument and valve pipeline system etc.
Falling Film Concentrator for AppleJuice
1.Design requirements
1.Material: Apple clear juice, peach clear juice , or pear clear juice, or similar juice.
2. Evaporating capacity: 4T/h, material inlet: 5t/h
3. material original concentration: 6~10%
2.Designed parameter
| Machine type | Three-stage falling film downstream evaporator |
| Steam consumption: | ~1600kg/h；0.1~0.3Mpa; |
| Evaporating capacity | 4T/h, material inlet: 5t/h; |
| Cooling water consumption | ~96t/h,inlet30°C,outlet38°C |
| First stage evaporating temperature | 72~82℃ (-0.071~-0.051) |
| Second stage evaporating temperature | 60~70℃(-0.080~-0.069) |
| Third stage evaporating temperature | 45~55℃(-0.09～0.085) |
| Total rated power | ~28KW |
3. Application
This equipment is widely used in the luquid material concentrating, like milk, glucose, oligosaccharides, sorbitol, fruit and vegetable juice. And there is a wide range of applications on the concentrating of aqueous solution and organic solvent solution in the area of food processing, pharmacy, grain processing, beverage ,light industry, environmental protection as well as the chemical industry etc.
4. Features
1). Uniformity Steam heating: it has the characteristics of high heat transfer efficiency and short heating time.
2). Evenly distributation of materials: Material are evenly distributed in the evaporator heating tube by the distribution device, materials, under the action of gravity and vacuum induction and its airflow, flow from top to bottom in film-like form, and are evaporated in the process of movement through heat exchanging with the heating steam of heating tube outer wall.
3). Vacuum evaporating: The evaporation works under the vacuum condition, and in a relative low evaporating temperate, thus it is not easy to lead to the scale formation in evaporator.
4). CIP cleaning: This machine is equipped with CIP cleaning head, and easy to clean whole machine, dead-zone free.
5). Continiously working: Materials are continiously feeded and discharged.
5. Equipment configuration list
| NO. | Name | Spec | Qty | Unit | Remarks |
| 1 | First stage evaporator | 57m2 | 1 | piece |
Material: SUS304, tubular type; with material distributing device;shell diameterΦ442,thickness:3mm, |
| 2 | Second stage evaporator | 73m2 | 1 | piece |
Material: SUS304, tubular type; with material distributing device;shell diameterΦ546,thickness:3mm, |
| 3 | Third stage evaporator | 86.6m2 | 1 | piece |
Material: SUS304, tubular type; with material distributing device;shell diameterΦ622,thickness:3mm, |
| 4 | First stage separator | Φ800X1600X4 | 1 | piece | Tangent intubation are connected to the evaporator; with sight glasses and cleaning nozzle; The steam-liquid separation; 304 shell material, oval head |
| 5 | Second stage separator | Φ800X1600X4 | 1 | piece | Tangent intubation are connected to the evaporator; with sight glasses and cleaning nozzle; The steam-liquid separation; 304 shell material, oval head |
| 6 | Third stage separator | Φ1000X2000X4 | 1 | piece | Tangent intubation are connected to the evaporator; with sight glasses and cleaning nozzle; The steam-liquid separation; 304 shell material, oval head |
| 7 | Condensor | 83m2 | 1 | piece |
Material: SUS304, tubular type; with material distributing device;shell diameterΦ548,thickness:4mm, |
| 8 | Valve pipe fittings | 1 | set | The connection tubes between the evaporator system, the material 304, excluding raw steam pipes, cooling water pipes, process water pipe and outer pipe system | |
| 9 | Electric instrument | 1 | set |
Including thecontrol cabinet, thermometer, pressuregauge, system cable, flowmeter etc. |
|
| 10 | Platform | 1 | set | Carbonated steel |
6. Working process:
The primary steam firstly enters into the first stage heating chamber to heat the materials, and in the vacuum condition, injects into first stage evaporating chamber through tubes, the materials return back to heating room through curve, and are heated again then injected to evaporating section, and form the circular. When the material liquid is sprayed into the evaporation chamber and nebulized, moisture is quickly evaporated, and the evaporated second steam enters to the second stage heating chamber to heat the material, and in the vacuum condition, injects into second stage evaporating chamber through tubes, the materials return back to heating room through curve, and are heated once more then injected to evaporating section, and form the circular. Then the material liquid is sprayed into the evaporation chamber and nebulized, moisture is quickly evaporated, and the evaporated third steam enters to the third stage heating chamber to heat the material and finally the steam goes into the condensor, and cooled by tap water into condensate water, and discharged tilll it reaches hlaf of the sight glass.
The moisture in the liquid material is continiously evaporated and concentration is increased to the expected rate and discharged from outlet.
The cooling water temperature will be increased to 30 -40 degree after the condenser exchanging, and sent to the water resource for whole plant usage or cooling tower recycling .
Technical parameter
|
Model
|
Evaporation capacity of water
|
External dimension
(L×W×H) |
Steam consumption
(kg/h) |
power
|
|
JNS-2-0.8
|
≤0.8(T/H)
|
4500*2500*7000
|
≤0.45(T/H)
|
20
|
|
JNS-2-1
|
≤1(T/H)
|
4500*2500*7200
|
≤0.55(T/H)
|
22
|
|
JNS-2-1.5
|
≤1.5(T/H)
|
4800*3000*7600
|
≤0.8(T/H)
|
30
|
|
JNS-2-2
|
≤2(T/H)
|
4800*3000*7800
|
≤1.1(T/H)
|
30
|
|
JNS-2-3
|
≤3(T/H)
|
4800*3200*7800
|
≤1.65(T/H)
|
35
|
Our evaporator (thermally accelerated short-term evaporation) provides pasteurization and juice stability after the preheating cycle and the first evaporation stage. In the tube nest, the juice is introduced in the form of turbulent fog, and the heat transfer rate is several times higher than expected under any other conditions.
Features and benefits
Reduce traffic by up to 50%
The total residence time is four to five minutes
Low installation and maintenance costs
User friendly, low maintenance and easy operation
Since there is no product recycling, the product quality is high
Simple adjustment of processing from fruit juice to Tomato
Reduce thermal damage and obtain considerable energy-saving effect at the same time
details
Designed for concentrated citrus juice and other transparent juices
Combined with forced circulation evaporator, it is an efficient pre evaporator

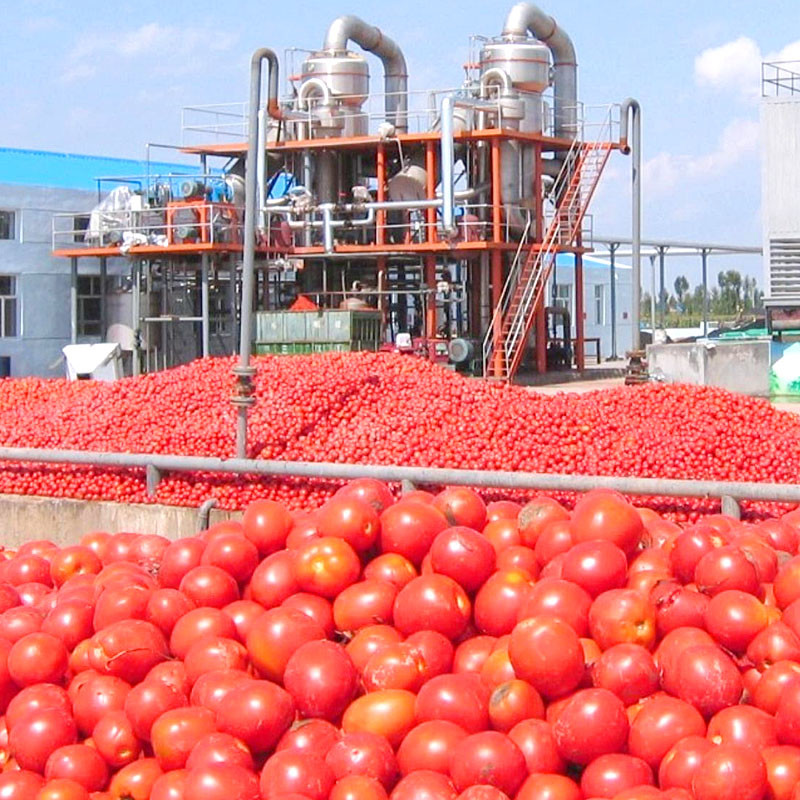

The device can process tomato sauce
Options and models
Forced circulation evaporator
Mixed evaporator
