Customization Pasteurizer Milk Production Machine

Place of Origin China
Brand Name Shanghai Beyond
Certification ISO9001/CE/SGS
Model Number BY-BL
Minimum Order Quantity 1set
Price USD100000-150000/Set
Packaging Details Export standard package
Delivery Time 60-100 working days upon receipt of payment and confirmed the drawings
Supply Ability 50sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Raw Material Fresh Cow Milk, Buffalo Milk, Goat Milk, Camel Milk Or Milk Powder, Or Both Mixed Shelf Life 60days-360days
Package For End Product Plastic Bag, Plastic Container, Vacuum Package Or Others Warranty 12 Months After Commissioning
After Sales Service Engineers Available To Service Machinery Overseas
High Light

pasteurizer milk production machine

,

mixed milk pasteurizer

,

50000LPD milk pasteurizer

Leave a Message
Product Description

Factory milk/yogurt/cheese processing plant,pasteurizer milk production machine

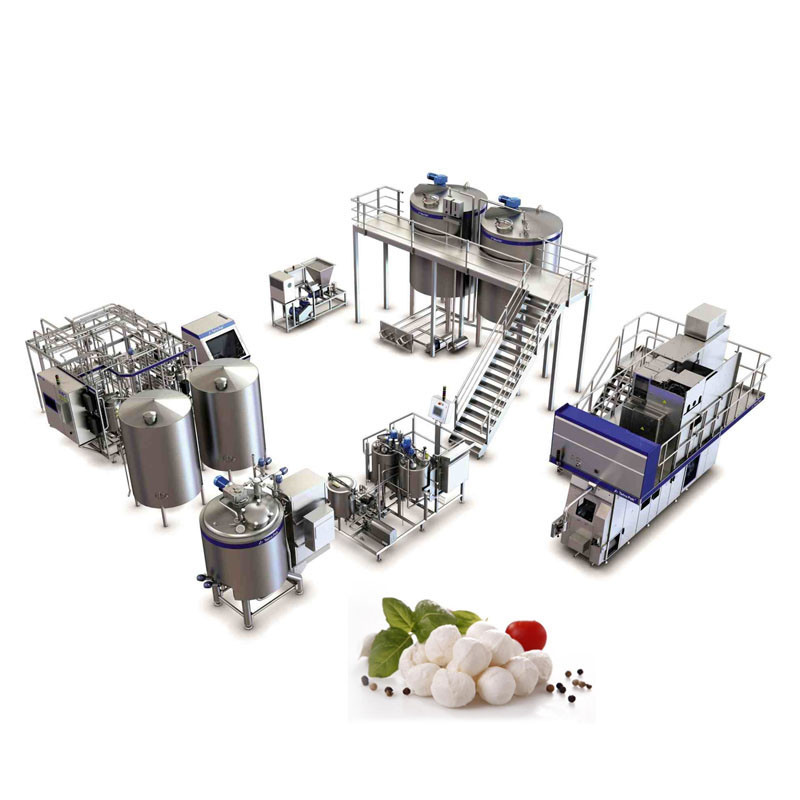

Customization Pasteurizer Milk Production Machine 0



The automatic processing cheese factory meets the growing market demand for melted and paveable cheese.
The system includes steam cooker, which is characterized by special steam technology, which can be sprayed directly or through 4-rod double jacket. The product is then pumped into a dedicated storage tank and then into the UHT system to ensure maximum food safety. In the last part, the product is packaged. The cheese production line device has achieved considerable savings in time, labor and energy consumption.
The system is completely made of AISI 304 / 316 stainless steel and is completely used for CIP automatic cleaning system.
The size and function can be personalized according to customer requirements.



BENEFIT
1.Opportunity to realize products with customized recipes.
2.Opportunity to produce more than one product with the same processing line.
3.High quality of the final product keeping an elevated nutritional value.
4.Wide customization of the final product.
5.Maximum yield, minimum production waste.
6.Highest energy savings thanks to the most advanced technologies.
7.Complete line supervision system through monitoring of every process phase.
8.Recording, visualization and printing of all daily production data.


Brief Information:

Brand Name: Shanghai Beyond
Model Number: BY-CL
Capacity 200-50000LPD
Raw material

Fresh cow milk, buffalo milk, goat milk, camel milk

or milk powder, or both mixed

Shelf life 60days-360days
Main material for machines SUS304 or SUS316
Package for end product

plastic bag, plastic container,

vacuum package or others

Certification: ISO9001/CE/SGS
Place of Origin: China
Manufacturer history More than 10years



Our Services



1. Allotted for equipment inspection certificate and manual, to ensure that users properly install and use

2. Equipment to reach the destination, the company will send engineers to guide installation and commissioning and customer training until satisfied

3. The warranty period will be free to customers wearing accessories, shelf life outside of my company to provide parts at cost.

4. I provide lifelong maintenance service, including if necessary, to send engineers to the customer at the service.







Equipment list for 1000LPH pasteurized milk, cream, butter production line



Line
Item #
Item Capacity Qty Technical Specification
A-MILK RECEIVE AND STORAGE UNIT
A-1 electronic scale   1-pcs maximum weighing 500KG, indictor board is SUS304, size:700*1000 MM
A-2 milk weighing tank V=300L 1-pcs made of SUS stainless steal,single layer,product fed in through 40 mesh filter net,CIP cleaning ball
A-3 milk acceptor V=500L 1-pcs SUS304 stainless steel,single layer,CIP cleaning ball
A-4 milk pump Q=10T/h 1-pcs SUS304 stainless steel,pump lift 24M
A-5 twin piping filter Q=10T/h 1-pcs SUS304 stainless steel,two pipe,Stainless Steel Filter Element 100 Mesh
A-6 chiling tank V=4000L 1-pcs SUS304 stainless steel,alveolate jacket,attached with compressor,temperature automatic control
A-7 milk pump Q=10T/h 1-pcs SUS304 stainless steel,pump lift 24M
A-8 Plate cooler 5T/h 1-pcs SUS316,△tm=15℃
B-HOMOGENIZER/PASTEURIZE/CREAM SEPERATOR UNIT
B-1 plate type
pasteurizer
Q=1T/h 1-pcs SUS304 stainless steel, plate type, inlet temperature 4℃,pasteurizing temperature 85-90℃,holding temperature 15S,outlet temperature 4/42℃,300S temperature holding connection reserved,PID temperature auto control, include milk balance tank, milk pump, plate heat exchanger,pipes and valves, frame and support, electrical control box etc.
B-2 cream seperator Q=1T/h 1-pcs fully automatic control box, auto discharge dregs, with friction when starting, pressure at outlet ≤2bar,fat content in skimmed milk≤0.1%
B-3 high pressure homogenizer Q=1000lit/h 1-pcs 25MPA, two stage homogenizer, starting box included , stainless steel housing, product contact parts is SUS304 stainless steel
B-4 temperature holding tank Q=1T/h 1-pcs SUS304 stainless steel, holding for 300S for yoghurt pasteurization, coil pipe, use rock wool as insulation
C-FILLING AND PACKING UNIT
C-1 high position fermentation tank V=1000L 2-pcs SUS304 stainless steel,heat insulated with dimple jacket,vertical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-vortex baffle,supporters with adjustable feet
C-2 High positioned Pasteurized Milk storage tank V=1000L 1-pcs SUS304 stainless steel,heat insulated,top off- center vertical agitator,conical top,airtight manhole, breather valve,digital readout thermometer,anti-vortex baffle,supporters with adjustable feet
C-3 cream storage tank V=300L 1-pcs SUS304,with heat insulation ,Miller Jacket,the speed of vertical agitator with scraper is15-30rpm.digital display thermometer, CIP cleaning ball
C-4 butter-churner(automatic butter making machine) V=300L 1-pcs SUS304 stainless steel, stainless steel control box, frequency convertor adjustable, spraying cooling, with protection cover
C-5 plastic pouch filling machine with date coding device   1-pcs stainless steel external housing, gravity flowing filling, volume 250ml-500ml,500ml-1000ml/bag, 1000-2000bags/hour, plastic pouch filling, film width 320mm,central sealing type
C-6 plastic cup filling machine   1-pcs Stainless steel SUS 304, Plastic cup filling, rotary type; Filling volume 250ml-500 ml/cup adjustable,1000 – 2000 cups/hours; diameter of cup neck should be same;
Filling Accuracy: 0.5 %, easy to operate and minimum
maintenance rate.
automatic cup dropping (cups can be stacked without sticking together), automatic filling, automatic foil sucking, automatic sealing, auto cup unloading
C-7 high level platform   1-pcs SUS304 stainless steel, dimension is 6000*2500*2200mm, water collected for drainage, with staircase and handrail
D-CIP UNIT
D-1 CIP system Q=10t/h 1-pcs SUS304 stainless steel, union style, tanks volume 0.8T×3, electrical heating, with discharge pump
D-2 CIP return
pump
Q=20T/h 1-pcs SUS304 stainless steel,pump lift 24M,hard alloy mechanical seal,inner shell bright polished
E-ACCESSORY EQUIPMENTS
E-1 refrigerator unit   1-pcs air-cooled compressor,with freon as chilling medium,40000Kcal,with ice water pool and pump
E-2 hot water boiler Q=1000L/h 1-pcs output water temperature is 100degc, electricity power 90kw, with recirculation water pump, temprature auto control
E-3 cold room V=25M3 1-pcs Cool with Freon, temperature 5 degree,double surface color steel jacketed PU insulation sheet, thickness 100mm, single way manual sliding door,power 4kw
E-4 Incubation chamber 2mx2mx3.5m 1-pcs
electric heat,size:2000*2000*3500mm
E-5 air compressor Q=1m3/min 1-pcs screw type air compressor,with air storage tank, cold drier unit etc
E-6 Laboratory equipment’s   1-set refer to Attachment # 3
E-7 Water softener unit Q=1000L/h 1-set The boiler provided by BEYOND using hot water recirculation system,no need soft water
F-INSTALLATON UNIT
F-1 stainless piping system   1-set including CIP systemand all product pipe line ,SMS standard,¢63,¢51,¢38
F-2 power piping system   1-set power pipe line ,customer provide pipes heat insulation
F-3 electric controlling box   1-set controls of all equipments,customer connect the electic cable to the electric controlling box of Beyond company
F-4 electric installation material   1-set electric installation material of all equipments



With the increasing demand for string cheese, beyond provides an innovative automatic production system.
The automatic production system of string cheese consists of the following parts: steam pot stretcher, which is directly introduced or passed through 4-rod double jacket, with additional feeder, facing the automatic forming machine equipped with special extrusion system. The final product is introduced into the automatic precooling and cutting system.
The final stage includes entering the salt water bucket and drying channel.
By using this system, our customers can choose the required diameter and variable length to produce fine line cheese.
The system is completely made of AISI 304 / 316 stainless steel and is completely used for CIP automatic cleaning system.
The size and function can be customized according to customer requirements.

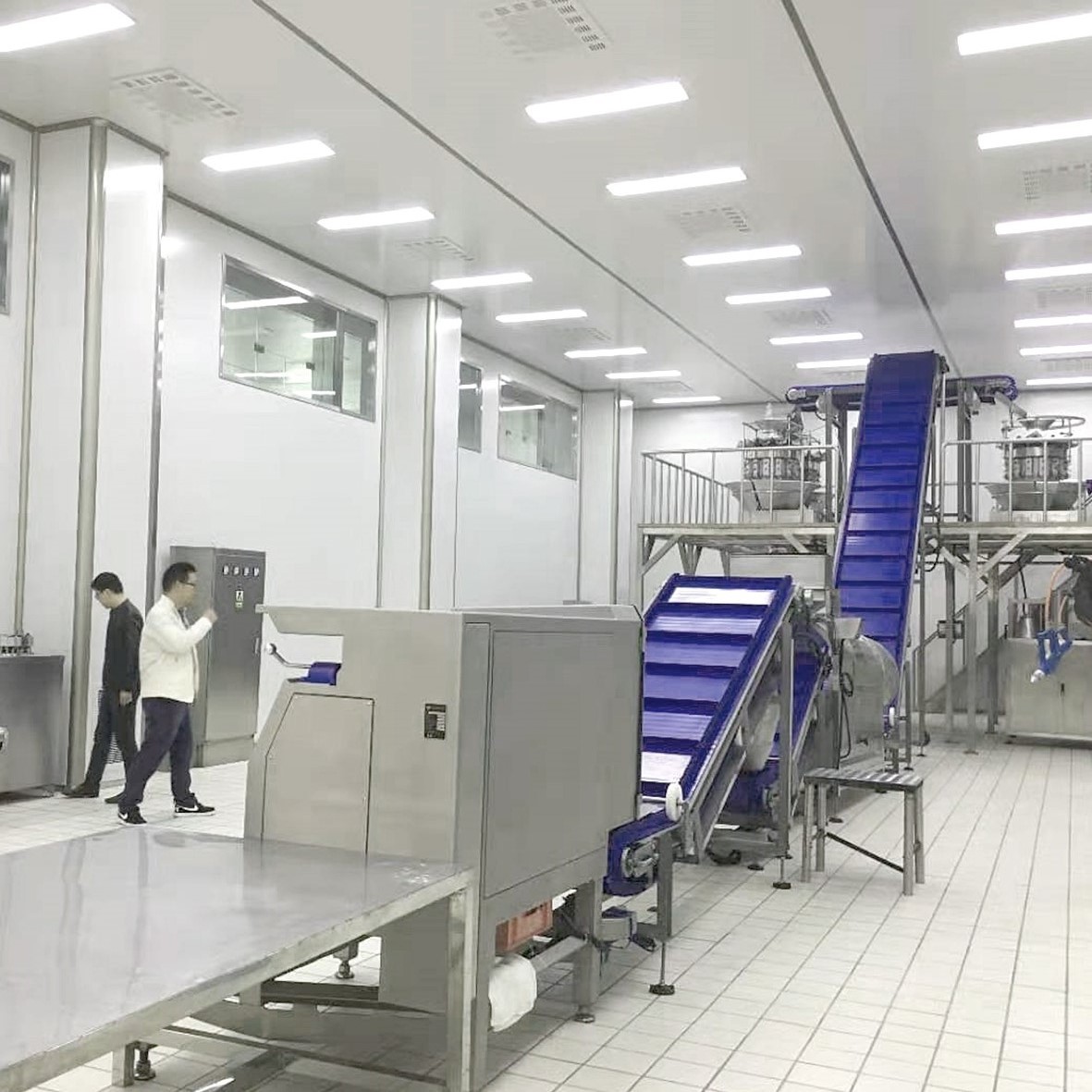

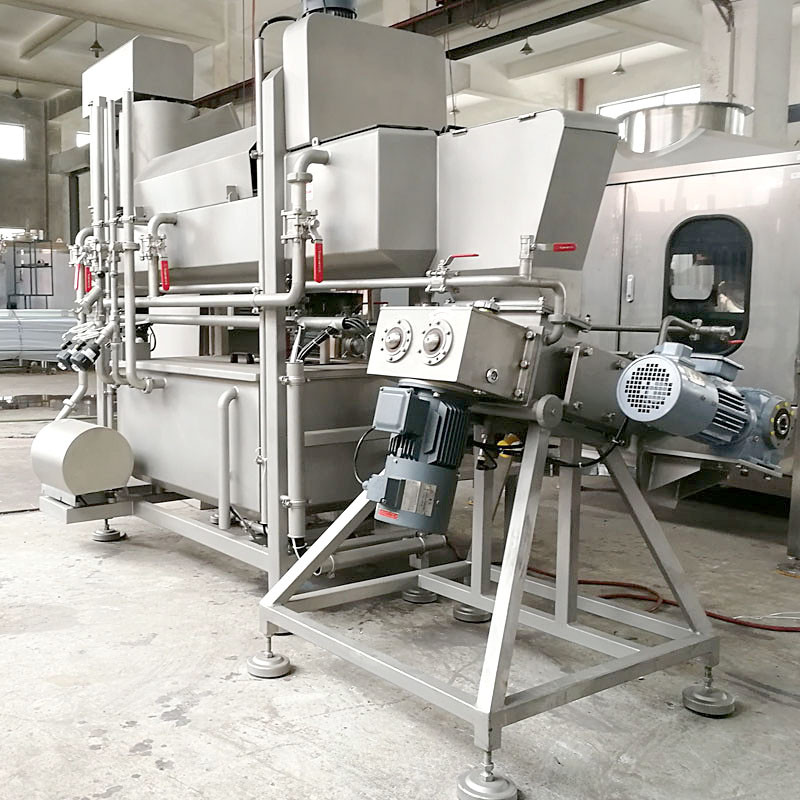

Customization Pasteurizer Milk Production Machine 1Customization Pasteurizer Milk Production Machine 2Customization Pasteurizer Milk Production Machine 3

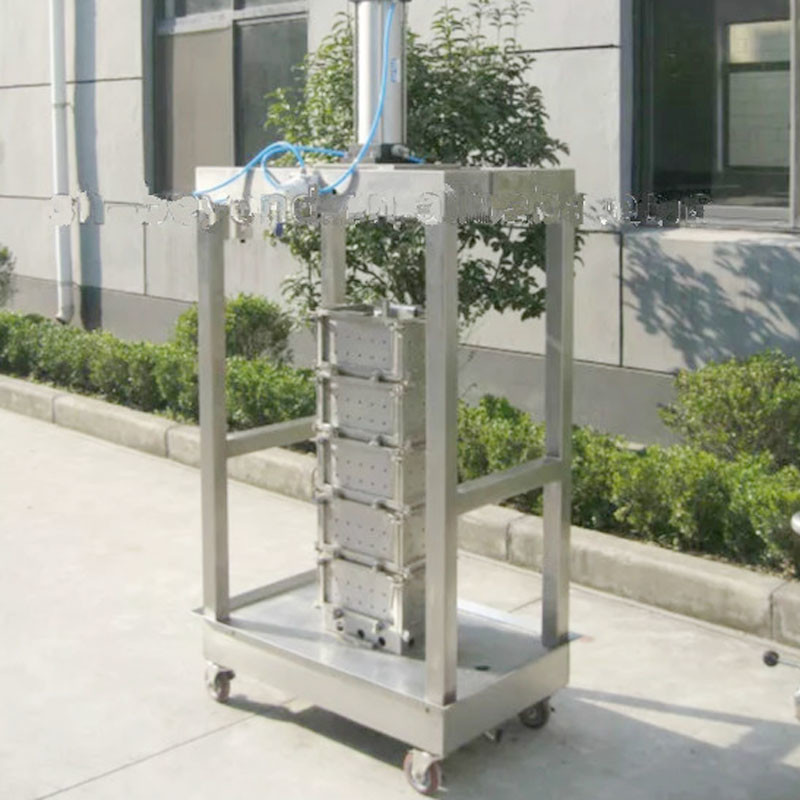

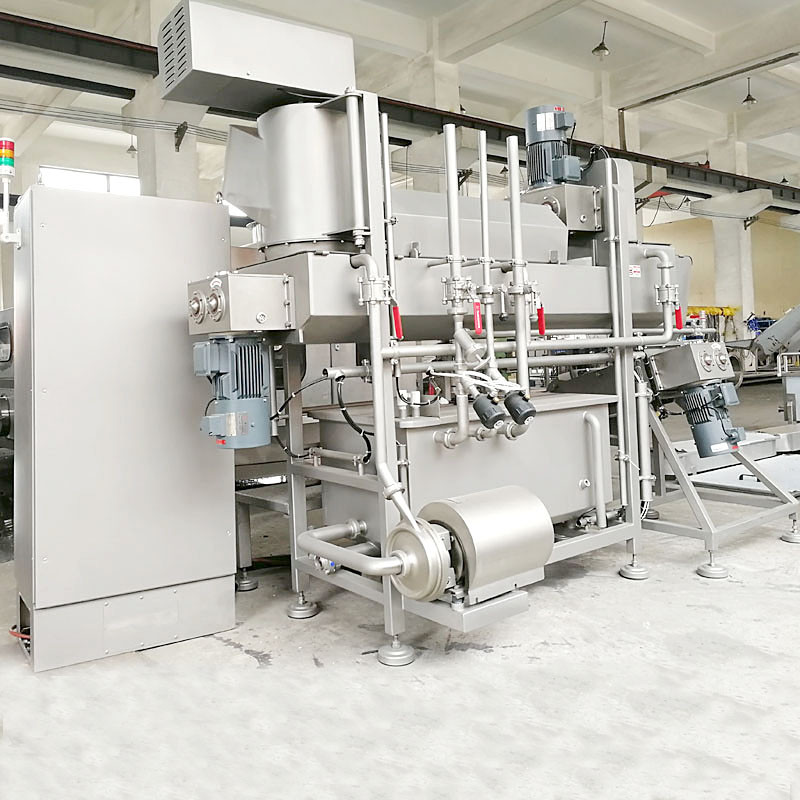

Customization Pasteurizer Milk Production Machine 4Customization Pasteurizer Milk Production Machine 5
