2000kg/H Mozzarella Dairy Cheese Processing Machine

Place of Origin CHINA
Brand Name Beyond
Certification ISO:9001
Model Number BY-MSLL
Minimum Order Quantity 1 set
Price negotiable
Packaging Details wood case
Delivery Time 90-120 days
Payment Terms L/C, T/T
Supply Ability twenty units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL Sus304 Sus316l Capacity 200kg/h-2000kg/h
Gurantee Time 12 Months Sea Port Shanghai Port
Name Cheese Making Machine
High Light

mozzarella cheese processing machine

,

2000kg/h cheese processing machine

,

mozzarella cheese processing equipment

Leave a Message
Product Description

Butter / Cheese Processing Plant Cheese Making Equipment , 20000L/D Mutifuntional Cheese Processing Equipment



2000kg/H Mozzarella Dairy Cheese Processing Machine 0

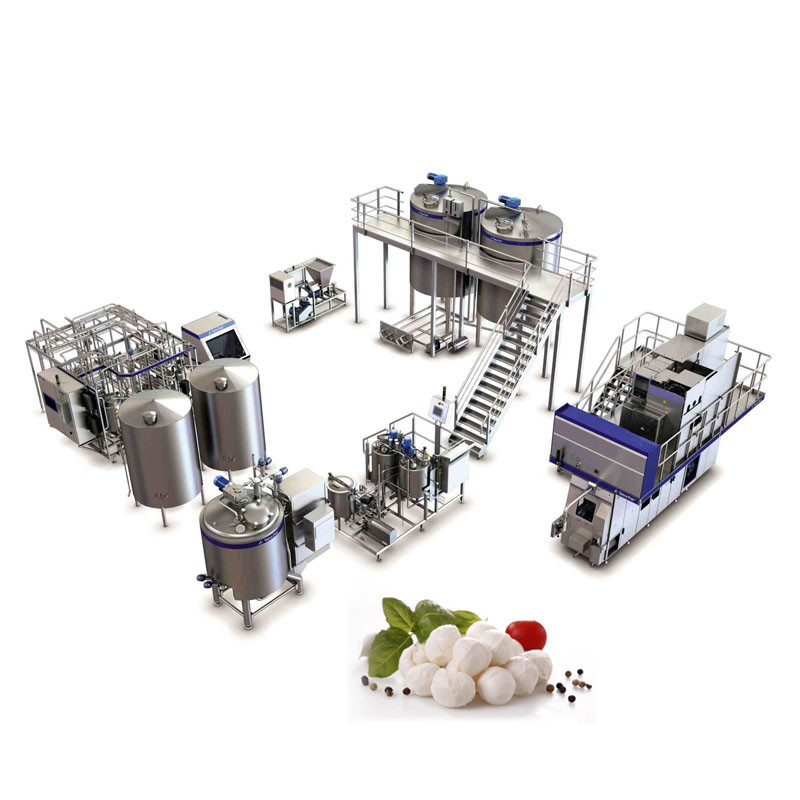

Complete mozzarella dairy cheese processing machine processed cheese machine

2000kg/H Mozzarella Dairy Cheese Processing Machine 1





The combination of dairy equipment and PLC technology can easily press cheese with stable quality. It can be designed according to the wishes of customers.


Share:
Automatic cheese press
Our equipment includes the cheese press, which, among other things, lies in the ingenious automatic operation system using PLC technology. A lot of manual labor required to make cheese, such as pressing cheese, can be completed with the click of a button. The cheese press provides constant quality. Each kind of cheese is pressed to the same standard through different time and pressure.


Customer choice
The cheese press can be designed according to the wishes of customers. Different numbers of locations can be made with or without separate programs.


There are two types of cheese press: automatic cheese press, which can be integrated into the full-automatic cheese processing system. And a manual cheese press.



DESCRIPTION

Characteristics:

Processing capacity can be ranged from 2T/Day to 1000T/Day.
2000kg/H Mozzarella Dairy Cheese Processing Machine 2

You can process cow(goat)milk etc into various liquid or non-liquid dairy products.

High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in the dairy processing line.

PLC control the whole production line, saving labor force and facilitate production management.

Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.


ADVANTAGES AND STRONG POINTS



Technical parameters

Raw material Fresh cow(goat)milk and milk powder
End product Various pure milk, yogurt, flavored milk, milk beverage, butter, cheese etc
Capacity 2T/D – 1000T/D
End product package Pre-pak pouch, Brick-shape carton, Gable Top bag, plastic bottle, plastic cup, glass bottle etc





Equipment list of 20000L/D Butter & Cheese Processing Line



NO. FLOW NO. NAME SIZE MAIN TECHNOLOGY PARAMETER UNIT QTY
1 A MILK RECEIVE AND STORAGE UNIT
2 A-1 electronic scale   maximum weighing 1000KG pcs 1
3 A-2 milk weighing tank V=300L made of SUS304 stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball pcs 1
4 A-3 milk acceptor V=500L SUS304 stainless steel,single layer,CIP cleaning ball pcs 1
5 A-4 milk pump Q=10T/h SUS304 stainless steel,pump lift 24M,mechanical seal pcs 1
6 A-5 twin piping filter Q=10T/h SUS304 stainless steel,two pipe,Stainless Steal Filter 100 Mesh pcs 1
7 A-6 Plate cooler Q=10T/h SUS304 stainless steel,one stage,ice water cooling, 20-4℃ pcs 1
8 A-7 Milk storage tank 10000L SUS304 stainless steel, heat insulated,dimple jacket,off-center vertical agitator, conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet pcs 2
9 A-8 Milk storage tank 5000L SUS304 stainless steel, heat insulated,dimple jacket,off-center vertical agitator, conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet pcs 2
10 A-9 milk pump Q=10T/h SUS304 stainless steel,pump lift 24M,mechanical seal pcs 2
11   subtotal:
12 B BLENDING/HOMOGENIZER/PASTEURIZE UNIT
13 B-1 plate type pasteurizer 5T/h SUS304 stainless steel, plate type, inlet temperature 4℃, pasteurizing temperature 85℃, holding tube 15S for milk ,outlet temperature 4/40℃, PID temperature auto control,include Spirax Sarco steam control system,milk balance tank, milk pump, plate heat exchanger, pipes and valves, frame and support, electrical control box etc pcs 1
14 B-2 Cream separator 5T/h Disk separator, automatic control, three-phase, started with frequency conversion, self-discharging pcs 1
15   subtotal
16 C BUTTER UNIT
17 C-1 Cream buffer tank 2000L Material-touch is SUS304 stainless steel, insulation, top off-center vertical agitator, conical head, airtight manhole, breathing valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet PCS 1
18 C-2 Milk pump 5T/H Material-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical seal PCS 1
19 C-3 plate type pasteurizer 1T/h SUS304 stainless steel, plate type, inlet temperature 4℃, pasteurizing temperature 85℃, holding tube 15S ,outlet temperature 4/40℃, PID temperature auto control,include Spirax Sarco steam control system,milk balance tank, milk pump, plate heat exchanger, pipes and valves, frame and support, electrical control box etc pcs 1
20 C-4 Cream storage tank 1000L Material-touch is SUS304 stainless steel, insulation,dimple jacket, frame vertical agitator, conical head, airtight manhole, breathing valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet PCS 2
21 C-5 Milk pump 5T/H Material-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical seal PCS 1
22 C-6 Butter Churner 1000L SUS304,stainless steel power distribution cabinet,Frequency control of motor speed, spray cooling, with transparent protective cover PCS 1
23 C-7 Butter melting vat 1000L Material-touch is SUS304 stainless steel, insulated, miller jacket, coil pipe indide equipped, open cover, supporters with adjustable feet PCS 1
24 C-8 Milk pump 5T/H Material-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical seal PCS 1
25 C-9 Ghee boiler 500L Material-touch is SUS304 stainless steel, insulated, miller jacket, top vertical mixing, ball shape seal head, airtight manhole, breathing valve, digital display thermometer, anti-eddy baffle, supporters with adjustable feet PCS 2
26 C-10 Milk pump 5T/H Material-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical seal PCS 1
27 C-11 separator 0.5T/h Disk separator, automatic control, two-phase, started with frequency conversion, self-discharging pcs 1
28 C-12 Ghee storage tank 1000L Material-touch is SUS304 stainless steel, insulation, conical head, airtight manhole, breathing valve, digital display thermometer, anti-eddy baffle, supporters with adjustable feet PCS 1
29 C-13 Milk pump 5T/H Material-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical seal PCS 1
30 C-14 butter packing machine     pcs 1
31 C-15 Ghee filler     pcs 1
32   subtotal:
33 D Butter & Cheese unit
34 D-1 Cheese vat 5000L SUS304, honeycomb jacket for heating or cooling, with agitator, temperature sensor, can be tilted horizontally, water drainage, residue discharge outlet PCS 1
35 D-2 Cheese milling machine 500KG/H SUS304 set 1
36 D-3 Cheese presser 500KG/H SUS304, pneumatic press set 1
37   Moulds   SUS304, 20KG/piece set 50
38 D-4 Cheese remaker 500KG/H SUS304 PCS 1
39 D-5 Cheese cutting machine 500KG/H SUS304 PCS 1
40 D-6 Cheese vat 2000L SUS304; Turning type, easy for pouring out cheese; With cutting knives, made of acid-resistant steel. Mechanical agitator, of sanitary construction. Automatic whey draining, automatic turning over. With a system of heating curd with hot water,With a system spreading of process water onto the entire surface. Dynamic temperature adjustment and measurement.CIP cleaning/disinfection, automatic control PCS 1
41 D-7 Acidification tank 500L SUS304 stainless steel, each set with stainless steel sieve for draining whey, with wheels, for cutting the big block to small blocks, connect with whey collection tank, valves and pumps set 2

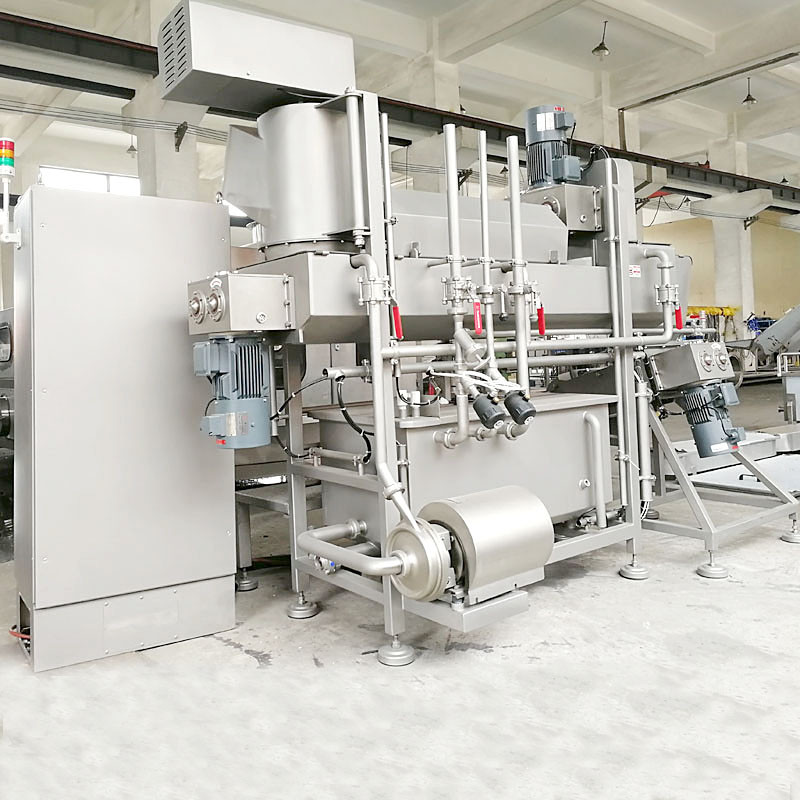

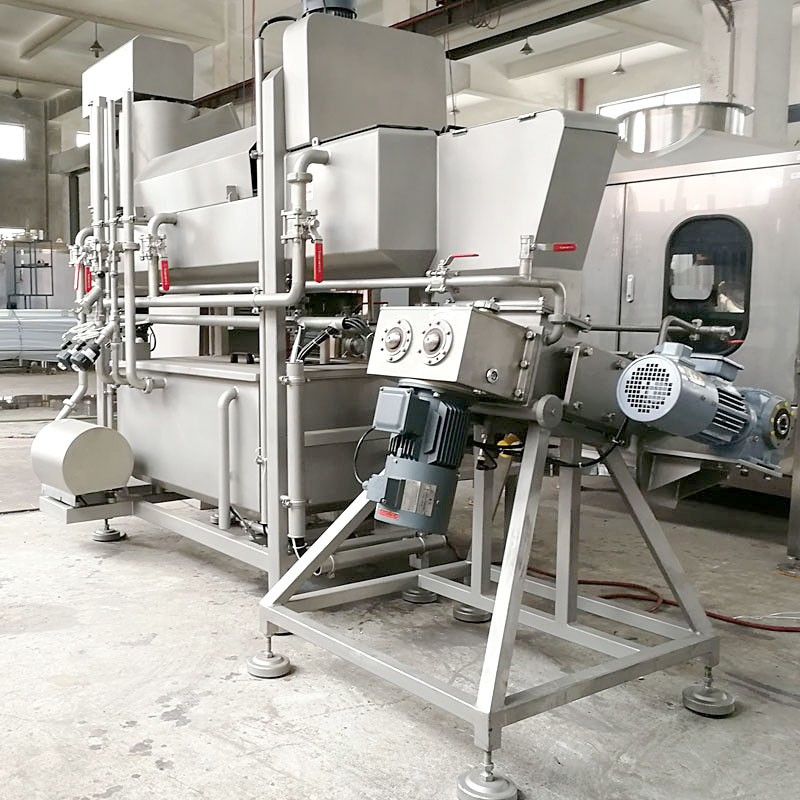

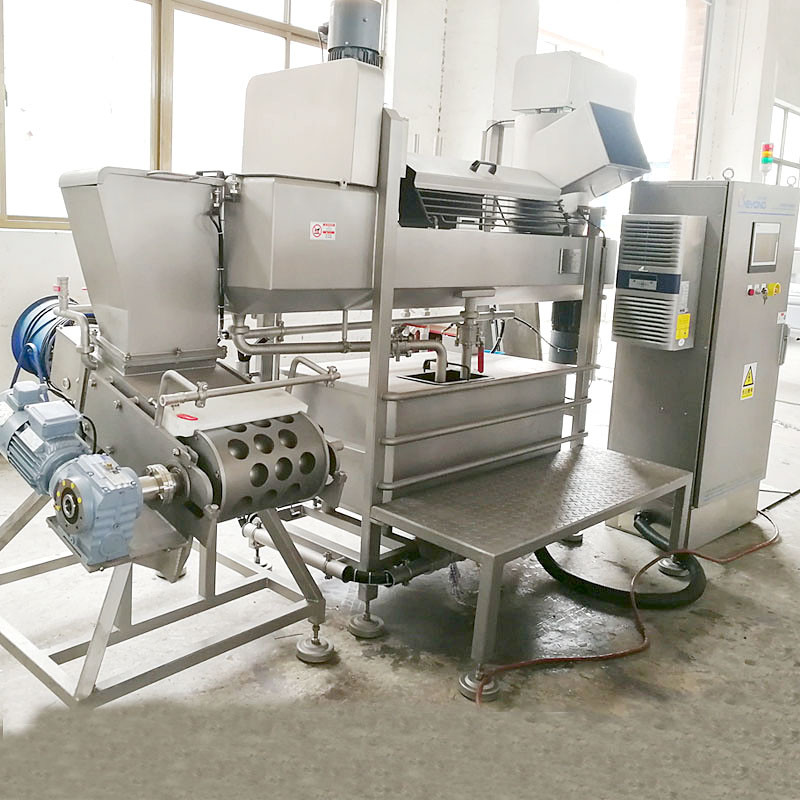

42 D-8 Cuttingcookingstretchingmoulding system 200KG/H elevator with feed funnel, automatic control, cutting curdcookingstretchingmoulding,
Capacity: 100-200kg/h, Include : cutting curdcookingstretchingmoulding, stretching speed adjustable, hot water generating and recirculation system, moulds size: 2.5kg per pipece, also include valves, filter, pump and piping for water rout
pcs 1
43 D-9 Cooling vat 1200L material SUS316L, single layer vessel, with wheels, Drain valve, overflow pipe pcs 1
44 D-10 Brining vat 1000L material SUS316L, single layer vessel, with wheels, Drain valve, overflow pipe pcs 1
45 D-11 Vacuum packing machine for cheese 500KG/H SUS304,auto vacuuming,and sealing,Capacity: 500kg/d,Size :250g,150g,10kg,17kg pcs 1
46   subtotal:
47 E WHEY PROCESSING UNIT
48 E-1 Whey storage tank 10000L SUS304 stainless steel, heat insulated,off-center vertical agitator, conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet pcs 2
49 E-2 milk pump Q=10T/h SUS304 stainless steel,pump lift 24M,mechanical seal pcs 1
50 E-3 milk pump Q=10T/h SUS304 stainless steel,pump lift 24M,mechanical seal pcs 1
51   subtotal:
52 F CIP UNIT
53 F CIP system 3*2000L Three tanks, single circulation, Semi-auto CIP, double layers insulation tank, tank material SUS304 stainless steel, plate heater, acid&alkali tank with stirrer, high&Low liquid level alarm system, Spirax Sarco temperature auto control, JUMO temperature sensor, Shanghai YUAN brand progress pump 1 pieces, 20T/H, pumping lift 36M,200L concentrated acid & alkali tank which material is SUS316L , The USA imported pneumatic diaphragm pump two pieces. pcs 1
54 R return pump Q=20T/h SUS316L stainless steel, pump lift 24M,Mechanical Seal pcs 3





2000kg/H Mozzarella Dairy Cheese Processing Machine 32000kg/H Mozzarella Dairy Cheese Processing Machine 42000kg/H Mozzarella Dairy Cheese Processing Machine 5



2000kg/H Mozzarella Dairy Cheese Processing Machine 6



The cheese production line has proved very successful in the mold processing system of different types of cheese molds.


Customized semi-automatic die processing system
Beyond produces a series of special equipment for processing cheese molds. Such as cover removal (or placement) machine, blowing and rotating system.


The system is completely customized according to the customer's specifications. Different configurations are possible. Such as automatic mold lifter and manual cheese blower.


Beyond is also very successful in automatic mold processing system.
