Full Auto / Semi Auto Milk Pasteurization Equipment For Aseptic Filling Production

Place of Origin China
Brand Name Shanghai Beyond
Certification CE/ISO9001/SGS
Model Number 500L-200000L
Minimum Order Quantity 1pcs
Price negotiable
Packaging Details exporting standard package
Delivery Time 60-90days
Supply Ability 20pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SUS304 Or SUS316 Type Plate Type
Operation Full-auto Or Semi-auto Pasteurizing Technology 5℃→65℃(homogenizer)→137℃(3-5S)→20℃-25℃
Function Used For Milk,juice And So On
High Light

milk sterilizer machine

,

dairy pasteurization equipment

Leave a Message
Product Description

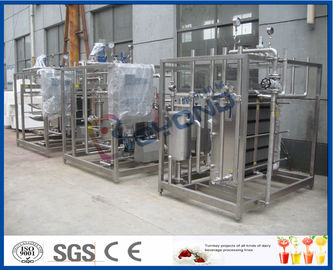

High Heat Treatment SUS 304 Plate UHT Sterilizer for Milk Pasteurization Equipment



Technicals:



This UHT system adopts ultra high heat treatment to sterilize the liquid dairy products, tea drink and juice for the the aseptic filling production; the sterilize temperature is 137℃ holding for 3~5S,by this procedure to remain the nature nutrition and flavor of the milk and juice;
This machine has the following characteristics: high heat reuse efficiency, tight structure design fine looking and temperature control well etc; discharge temperature of this machine can be self controlled so it is available for the hot filling procedure and meanwhile for aseptic cold filling;



Model

Production

capacity

L/H

temperature Holding
time
(s)
Sterilize temperature Product outlet temperature Steam consumption Compressed air pressure Compressed air consumption External
diamension
(mm)
Total weight of machine
LG-UHT-1 1000 5℃ 4-15 105~143℃ 20 ℃ ~150Kg/h 0.6MPa 50L/H 3500×2000×2500 1700kg
LG-UHT-2 2000 5℃ 4-15 105~143℃ 20 ℃ ~210Kg/h 0.6MPa 50L/H 3500×2000×2500 2000Kg
LG-UHT-3 3000 5℃ 4-15 105~143℃ 20 ℃ ~280Kg/H 0.6MPa 60L/H 4500×2500×2200 2200Kg
LG-UHT-4 4000 5℃ 4-15 105~143℃ 20 ℃ ~350Kg/h 0.6MPa 60L/H 5000×2000×2200 2500Kg
LG-UHT-5 5000 5℃ 4-15 105~143℃ 20 ℃ ~420Kg/h 0.6MPa 70 L/H 5000×2000×2200 2800kg
