10TPH Fruit Juice Extraction Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fruit Juice Extracting Machine | Capacity | 5TPH-10TPH |
|---|---|---|---|
| Material | SUS304/SUS316 | Applied Fruit | Orange/Lemon/Citrus |
| Function | Juice Extracting And Pulping | Control Type | Full-auto |
| Usage | Fruit Juice Processing Line | Keywords | Lemon Juice Extractor Extractor Industrial De Jugo De Naranja Planta De Procesamiento De Jugo De Fruta |
| High Light | 10TPH Fruit Juice Extraction Machine,Citrus Juice Pulping Machine,ISO Fruit Juice Extraction Machine |
||
Product Description
Fruit juice extractor for Orange/Lemon/Citrus

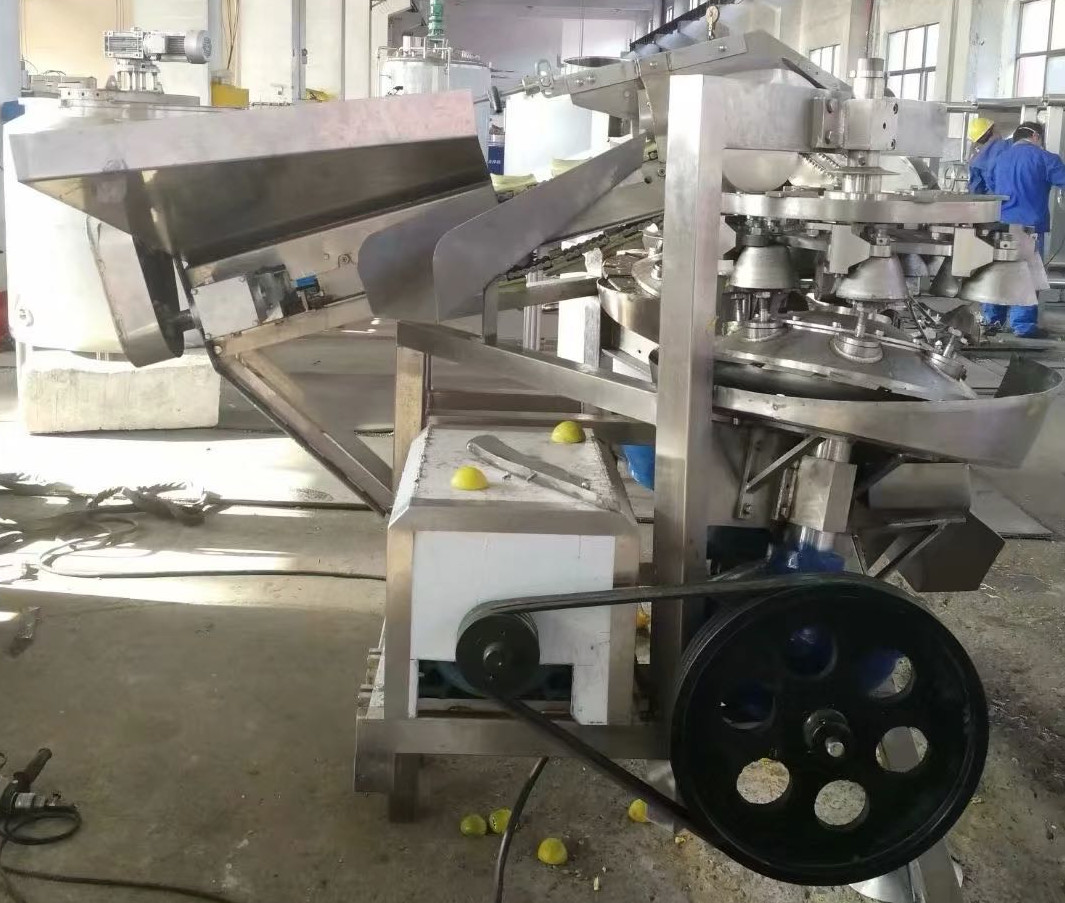

Roller half-cut juice extractor is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.
Equipment description
This machine is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.
It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.
|
Machine capacity |
300-320 pcs/mins |
|
Juice extracting rotor drum |
2 pcs |
| Extracting heads | 7 pcs/ drum |
| Motor power | 5.5kw, 960r/min |
| Machine size | 1700×1670×1600mm(Length×Width×Height) |
| Machine net weight | 2T |
It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.This machine is composed of the parts: machine frame, gear box, juice collecting bucket, left rotor drum, blades, 4-opens rotary tables, right rotor drum, bowl-shape conveyor, safety cover, driving motor, etc. The working theory is the motor drives the main shaft through the V-belt pulley, the main shaft will transfer the power to the following structures: bowl-shape conveyor, 4-opens rotary tables, left rotor drum, and right rotor drum.
