Hammer Type Fruit Crushing Machine , Industrial Fruit Presses And Crushers

Place of Origin China
Brand Name beyond
Certification CE/ISO9001
Model Number BY-HC
Minimum Order Quantity 1 set
Price negotiation
Packaging Details standard package
Delivery Time 35-60 working days
Supply Ability 50 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hammer Type Crusher Material Stainless Steel
Voltage According To Customer Local Voltage Power Consumpiton Energy Saving Type
Warranty 12 Months Sea Port Shanghai
Function To Pulp Various Fruit And Vegetable Feature High Efficiency,separates The Pulp From The Juice
High Light

fruit grading equipment

,

fruit and vegetable washer

Leave a Message
Product Description

Fruit crusher hammer type crusher apple crusher pineapple crusher apircot crusher

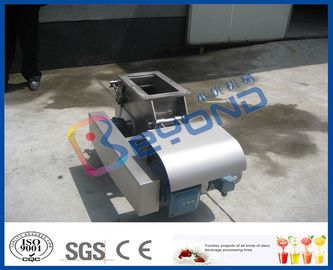

Hammer Type Fruit Crushing Machine , Industrial Fruit Presses And Crushers 0



Usage: used to break the fruit and the vegetables.

Characteristics: this machine is composed of side cover,swift knife,screen,main body,principal axis etc.

The food crusher machinery has some features such as light in weight, low energy consumption, good quality, long life and easy to clean.

Working principal: the principal axis is regularly driven to circumvolve by a couple straps on running wheels; so the knives on the principal axis with circumvolve swiftly. When the fruits drop down to the feeding hopper from the lifer, they will be crushed by the swift knives; the crushed fruits will fly through the filter net on the drum to the storage groove under the centrifugal effect.

The advantages:

1). Good looking in surface; color coordination; spray-painted solid;

2). Hopper, crushing room, misreported is disserted, easy to dumpster gate;

3). The crushing room use noise arrester to lower noise;

4). Pulley with guards so it is safe and reliable;

5). Clean and insurance;

6). The motor has a protective device and power chain protection system;

7). The using life of the alloy blade is much longer than the ordinary one, moreover. It is very suitable for smashing high-densely plastic.



Hammer Type Fruit Crushing Machine , Industrial Fruit Presses And Crushers 1



Technical parameter



Model Description

External dimension(mm)

(L*W*H)



Suggested capacity Suggested power

capacity and power varies as to

different fruits

CPPSJ-2 All made of sus304 stainless steel 995*510*565 ≤2(T/H) 3
CPPSJ -5 1100*580*645 3~5(T/H) 5.5

CPPSJ-10



1300*750*645 6~10(T/H) 7.5
CPSJ-5 1200*1200*1800 ≤5(T/H) 15
CPSJ -10 1500*1500*1800 10(T/H) 18.5
CPSJ -20 2000*2000*1800 20(T/H) 22




Hammer Type Fruit Crushing Machine , Industrial Fruit Presses And Crushers 2
