Double Stage Fruit Pulper Machine , Mango Pulping Industrial Juice Extractor Machines

Place of Origin China
Brand Name beyond
Certification CE/ISO9001
Model Number BY-DP
Minimum Order Quantity 1 set
Price negotiation
Packaging Details standard package
Delivery Time 35-60 working days
Supply Ability 50 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Double Stage Pulper Machine Material Stainless Steel
Voltage According To Customer Local Voltage Power Consumpiton Energy Saving Type
Warranty 12 Months Sea Port Shanghai
High Light

fruit crusher machine


fruit and vegetable washer

Leave a Message
Product Description

Fruit pulping machine double stage fruit pulper mango pulping machine

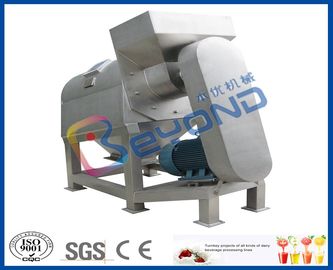

Double Stage Fruit Pulper Machine , Mango Pulping Industrial Juice Extractor Machines 0

Usage: this machine can be used to pulp on the following fruits;

  • stone fruits after the stone has been removed, such as mango, peach, apricot, date;
  • Also used for the baccas (Chinese goose beery and strawberry);
  • kernel fruits after been cooked and softened(such as apple,pear,pumpkin)



The double stage pulping machine adopts two stages pulping to enhance the quality of the fruit pulp, to make it even thinner and separate the dreg with fruit in further.

  • fruit pulp and the dreg separate automatically;
  • can be mounted in a processing line, and also can perform the production by own.
  • All the material where contact with the product is made of high quality stainless steel which are in standard of food requirements.
  • Easy to clean and disassemble and assemble.


Technical parameter

Model Description

External dimension(mm)


Suggested capacity Suggested power

capacity and power varies as to

different fruits



All made of sus304 stainless steel, rotating 960RPM-1350RPM

1170*950*1250 ≤2(T/H) 7.5
SDJ-5 1760*1350*1500 3~5(T/H) 18.5
SDJ-10 1950*1550*1880 6~10(T/H) 30
SDJ-15 2150*1550*1880 11~15(T/H) 37

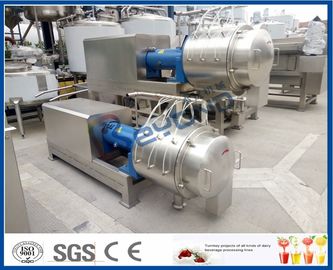

Double Stage Fruit Pulper Machine , Mango Pulping Industrial Juice Extractor Machines 1Double Stage Fruit Pulper Machine , Mango Pulping Industrial Juice Extractor Machines 2


Our juicer is designed to process a variety of fruits and vegetables to produce delicious, high-quality fruit juices and purees. It separates solid phase from liquid phase through excellent refining performance. Other features in include safely mounted motors that provide vibration free operation.

Cold drawing machine
Cold extraction is the latest development of fruit and vegetable puree extraction. It can do better because its special design ensures that the fruit stems and seeds will not be damaged and the bitterness in the product will not be released.
Features and benefits
Reduce floor space
Optional distribution panel
Speed adjustable
Mild product handling, quality control and configuration
Safely mounted motors provide virtually vibration free operation


Our equipment is a mixture of mature spirals and blade designs, capable of processing citrus in all directions, including juice finishing (juice separation from pulp), oil finishing (separating frit from oil-water emulsion) and soluble solids recovery (washing).

Features and benefits
Fully enclosed and protected driving
Hybrid worm design (screw / blade)
Adapt to customer needs
It is mainly used in the washing process of raw juice and fruit pulp
