PLC Control Cheese Making Equipment Full Auto CIP Cleaning

Place of Origin China
Brand Name Shanghai Beyond
Certification ISO9001/CE/SGS
Model Number BY-CL
Minimum Order Quantity 1set
Price USD100000-150000/Set
Packaging Details Export standard package
Delivery Time 60-100 working days upon receipt of payment and confirmed the drawings
Supply Ability 50sets/Year
Product Details
Shelf Life 60days-360days Package For End Product Plastic Bag, Plastic Container, Vacuum Package Or Others
Power Consumption(Kw) Energy Saving Type, About 100-500kw, Main Material For Machines SUS304 Or SUS316
Fresh Milk Inlet Temperature 4 ℃ Manufacturer History More Than 10years
High Light

CIP Cleaning heese Making Equipment

,

variable speed Cheese Making Equipment

,

CIP Cleaning cheese processing machine

Leave a Message
Product Description

Cheese making equipment/High Quality Cheese Making Equipment/Cheese Production Line

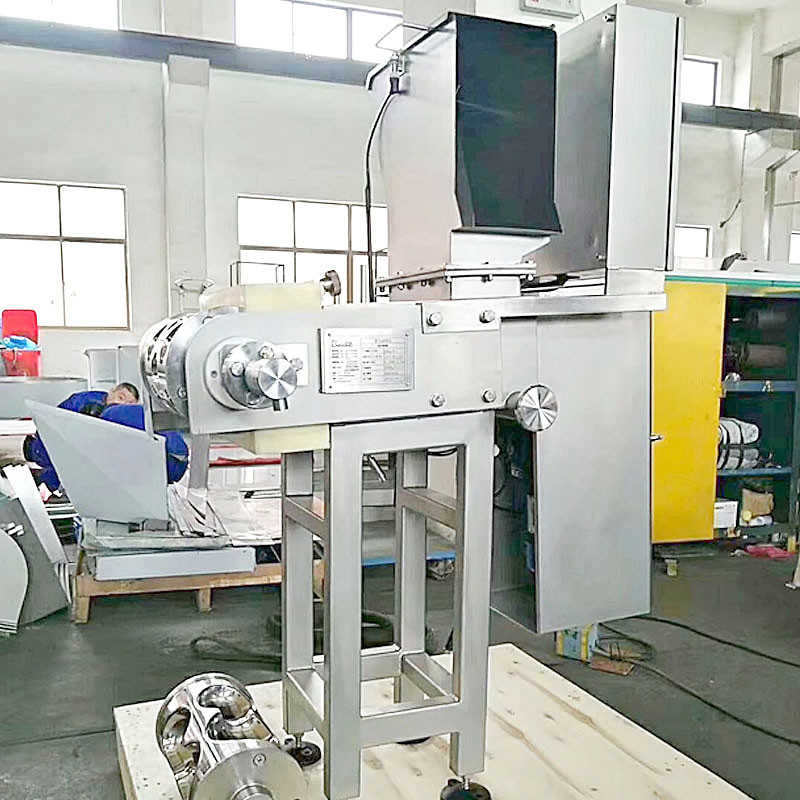

PLC Control  Cheese Making Equipment Full Auto CIP Cleaning 0

Automatic pizza cheese factory is an innovative solution that combines stretching with steam technology and automatic molding to form a complete production process. It is especially suitable for medium and large products. The process starts with the steam pot through the direct introduction of exclusive steam technology or double jacket. Then, the product is introduced into the automatic rotary table forming machine through the screw conveyor feeder, so as to make the production process continuous.
In the final process stage, the feed is carried out through the automatic variable speed cooling cylinder. The automatic pizza cheese factory has achieved considerable savings in time, labor and energy consumption.
The system is completely made of AISI 304 / 316 stainless steel and is completely used for CIP automatic cleaning system.
The size and function can be personalized according to customer requirements.

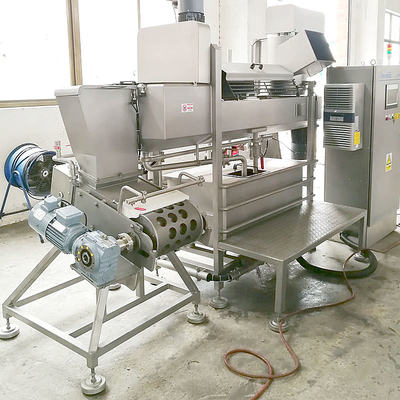

PLC Control  Cheese Making Equipment Full Auto CIP Cleaning 1

Features and advantages:

1. Processing capacity can be ranged from 200-50000LPD.

2. High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in the dairy processing line.

3. PLC control the whole production line, saving labor force and facilitate production management.

4. Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.

5. Whole line with features as high level automatic, low labour intensity, easy operation, safe function and low operation cost.

6. Whole line adopt sanitary design, can be cleaned thoroughly, with high level sanitation.



Brief Information:

Brand Name: Shanghai Beyond
Model Number: BY-CL
Capacity 200-50000LPD
Raw material

Fresh cow milk, buffalo milk, goat milk, camel milk

or milk powder, or both mixed

End product Soft cheese, white cheese, unpasteurized cheese, matured cheese, mazerella cheese,cream and butter
Shelf life 60days-360days
Main material for machines SUS304 or SUS316
Package for end product

plastic bag, plastic container,

vacuum package or others

Certification: ISO9001/CE/SGS
Place of Origin: China
Manufacturer history More than 10years



The automatic spherical cheese production system is a turnkey solution, starting from the solidification of milk until the product is ready for packaging. The displayed system includes a cheese barrel machine, which is essential if milk is selected as the raw material. In the first stage of the production process, its function is: milk coagulation and curd ripening. The curd is then discharged into a suitable drainage truck and introduced into the medium after reaching the appropriate mature pH
Cooker stretcher. The stretched cheese will be formed by a special forming roller machine, which strings the cheese into pre cooling and cooling cylinders.
The system is completely made of AISI 304 / 316 stainless steel and is completely used for CIP automatic cleaning system.
The size and function can be personalized according to customer requirements.







*installation terms:

1. 50-60 days for installation and commissioning.

2. BEYOND CO., provide installation, commissioning of all equipment supplied by BEYOND CO., as stated in the quotations.

3. buyer provide round way air tickets,local traffic , room and board,in addition pay $100 per day for each engineer.



3 Cheese vat 500L 1. Materia:SUS304;
2. Triple layers with PU as insulation and dimple pad jacket for heating and cooling;
3. Ellipse shape,
4. Two agitators,one is for mixing, the other one is for cutting cheese to small pcs;
5. Agitator is able to move from one end to another;
6. Temperature auto control panel;
7. Auto discharge whey outlet etc.
8. Electric power: 380V,50HZ, 3phases; if other requirement can be customized
EXW price shanghai factory
4 Cheese presser 500L Pneumatic control,
Pneumatic press from top on the formed cheese;
2 seats * 6pieces mold at one time;
5kg in one mould;
The picture is only for refernce for mould type
EXW price shanghai factory
5 Cheese vat 1000L
1. Material: SUS304 stainless steel
2. With dimple pad jacket and PU insulation
3. Two agitators, one is for mixing, the other is for cutting cheese into small pieces. Agitators are able to move from one side to the other
4. Temperature automatic control panel, automatic discharge whey outlet
5. The cheese vat platform will be prepared by user;
6. Electric power: 380V,50HZ, 3phases; if other requirement can be customized
EXW price shanghai factory

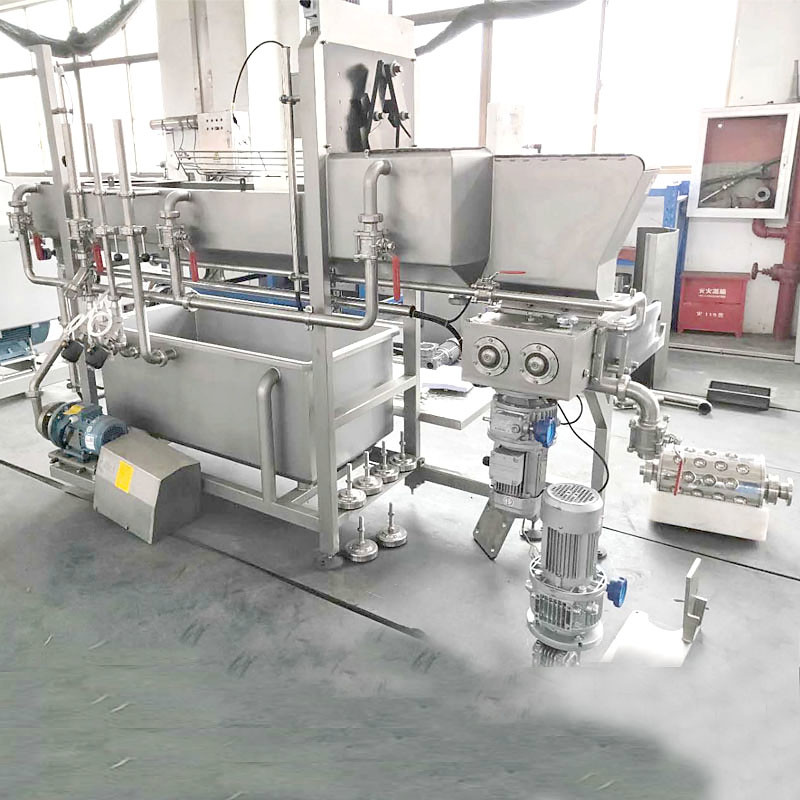

PLC Control  Cheese Making Equipment Full Auto CIP Cleaning 2

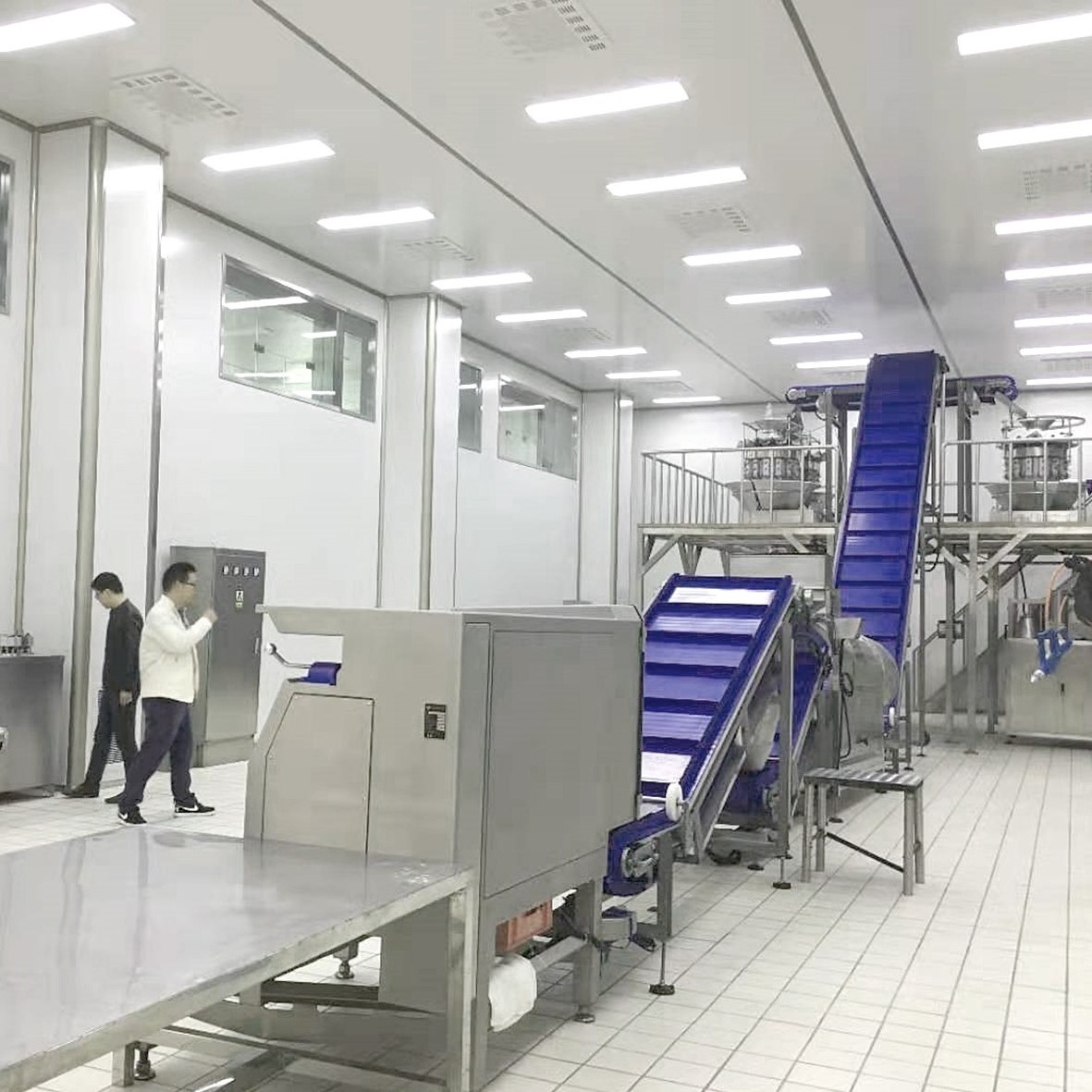

PLC Control  Cheese Making Equipment Full Auto CIP Cleaning 3



*Duration of Guarantee:

Q1: Are you a trading company or a manufactory
A1: We are the manufacture of food processing equipment over 15 years.We just not only sell machines, we sell our brand and service.

Q2: Do you have technical support after we purchased your machines?
A2: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q3: If you buy our machines, can you offer us wear-out spare pats?
A3: We provide our high quality machine 1 years guarantee , and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
