SUS316 50Hz Tomato Paste Production Line Energy Saving Type

Place of Origin China
Brand Name Shanghai Beyond
Certification ISO9001/CE/SGS
Model Number BY-TPL
Minimum Order Quantity 1set
Price negotiable
Packaging Details exporting standard package
Delivery Time 50-100 working days upon receipt of payment and confirmed the drawings
Supply Ability 50sets/month
Product Details
Juice Yield ≥ 90% Final Product Brix 7-12brix(for Juice)
Package For End Product Aseptic Large Bag In Drum/ Glass Bottle/PET Bottle, Roof Type Carton Box/ Brick Shape Carton Main Material For Machines SUS304 Or SUS316
Voltage 380V 50Hz/110V 60hz/415V 50Hz Warranty 12 Months
Name Tomato Paste Processing Machines
High Light

50Hz Tomato Paste Making Machine


Energy Saving Tomato Sauce Machine 50Hz


SUS316 Tomato Pulp Making Machine

Leave a Message
Product Description

Tomato paste processing machines turnkey projects tomato paste production line

SUS316 50Hz Tomato Paste Production Line Energy Saving Type 0



Tomatoes are used in a large number of foods. This also means that many different types of processing are involved and strict hygiene standards are required.


Advantages Beyond tomato processing line

Increase capacity by up to 25% at no additional cost

Unparalleled hygiene standards mean better product value

Lower power consumption means lower operating costs

Significantly better control of pulp viscosity.


Tomato processing is seasonal, with only 60-100 days per year. There are many kinds of tomatoes, and their quality also depends largely on climatic conditions and weather.



Brand Name: Shanghai Beyond
Model Number: BY-TC
Capacity 2-50T/H
Raw material Fresh tomato / carrot/tomato paste
End product NFC fresh tomato juice, concentrated tomato paste , tomato ketchup, tomato sauce, tomato puree, etc.
Juice yield ≥ 90%
Final product brix 7-12brix(for juice)
Package for end product Aseptic large bag in drum/ glass bottle/PET bottle, Roof type carton box/ brick shape carton
Certification: ISO9001/CE/SGS
Main material for machines SUS304 or SUS316
Place of Origin: China
Manufacturer history More than 10years
Voltage 380V 50Hz/110V 60hz/415V 50Hz
Power consumption(Kw) energy saving type, about 100-500kw,
Operator needed About 6-20persons
Cooling water consumption About 80-300M3
Steam consumption About 300-5000T/H,
Factory space needed About 500-5000Sqm
Warranty 12 months after commissioning


After sales service

Engineers available to service machinery overseas


SUS316 50Hz Tomato Paste Production Line Energy Saving Type 1

SUS316 50Hz Tomato Paste Production Line Energy Saving Type 2



  • High yield up to 90% of juice
  • Low energy cost.
  • Low temperature evaporation resulting improved quality of products.
  • User friendly.
  • Semi-automatic as well as fully automatic system available
  • Both hot break and cold break systems available.


Production line machine composition:


fruit collecting and feeding;

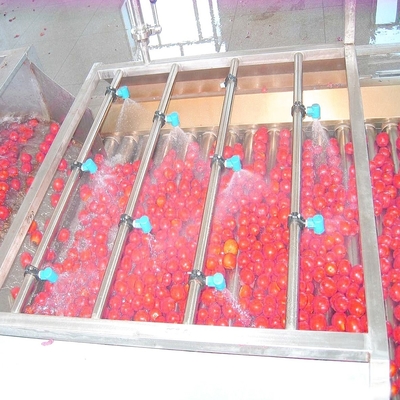

tomato washing machine;

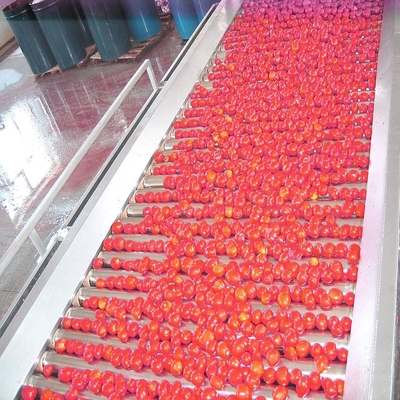

tomato sorting machine;

cold break tomato pulping machine;

tomato puree storage tank;

tubular tomato pre-heating machine ;

tomato refining machine;

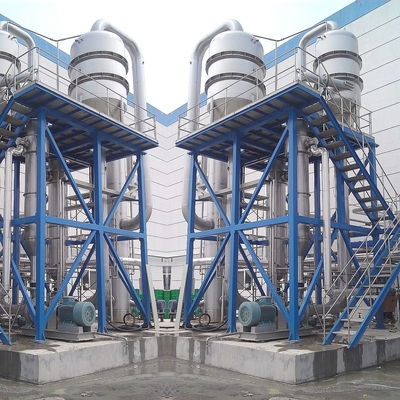

tomato paste/sauce/ketchup evaporator;

tomato paste/ sauce/ketchup storage tank;

tomato paste/ sauce/ketchup sterilizer;

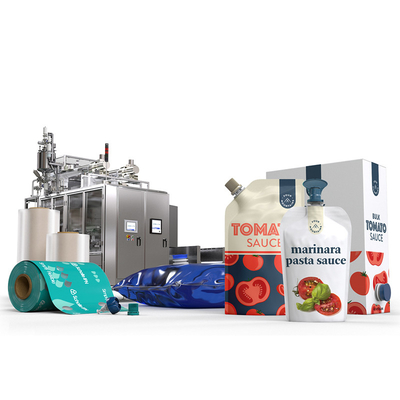

tomato paste/ sauce/ketchup aseptic filling machine.

SUS316 50Hz Tomato Paste Production Line Energy Saving Type 3SUS316 50Hz Tomato Paste Production Line Energy Saving Type 4

SUS316 50Hz Tomato Paste Production Line Energy Saving Type 5

SUS316 50Hz Tomato Paste Production Line Energy Saving Type 6


For all manufacturers, the main requirement is to have an efficient, reliable and multifunctional continuous operation processing plant. Manufacturers have been looking for any possible way to improve quality and output.


Separation plays an important role in their ability, and the super centrifuge is the ideal solution to complete this task.


Mold control of tomato processing line

In the production of tomato juice, the quantity of mold in tomato juice directly affects the quality of tomato juice.

The pretreated fruit goes through the refiner / pulper. Wet cakes from there can also be reprocessed by turbine presses and centrifuges to recover the remaining juice.
