Industrial Tomato Paste Making Machine Automatic Ketchup Processing Plant
| Place of Origin | China |
|---|---|
| Brand Name | Shanghai Beyond |
| Certification | ISO9001/CE/SGS |
| Model Number | BY-TPL |
| Minimum Order Quantity | 1set |
| Price | negotiable |
| Packaging Details | exporting standard package |
| Delivery Time | 50-100 working days upon receipt of payment and confirmed the drawings |
| Supply Ability | 50sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Package For End Product | Aseptic Large Bag In Drum/ Glass Bottle/PET Bottle, Roof Type Carton Box/ Brick Shape Carton | Voltage | 380V 50Hz/110V 60hz/415V 50Hz |
|---|---|---|---|
| Warranty | 12 Months | End Product | NFC Fresh Tomato Juice, Concentrated Tomato Paste, Concentrated Carrot Juice, Tomato Ketchup, Tomato Sauce, Tomato Puree, Etc. |
| Name | Tomato Paste Making Machine Price | ||
| High Light | Industrial Tomato Paste Making Machine,Automatic Ketchup Processing Plant,Tomato Ketchup Processing Plant |
||
Product Description
Tomato sauce processing plant automatic industrial tomato paste making machine price
Ketchup / sauce / sauce processing plant and machinery
We manufacture and install ketchup, ketchup, sauce processing equipment and machinery.
We provide tomato processing equipment, such as tomato washing machine, conveyor, crushing, pasteurization, evaporation, filling and packaging bottles and bags.
The ketchup processing line in the cold pressing and hot pressing systems runs from 2 T / h to 20 t / h, with different levels of automation and different full tomato feeding systems.
It can be used to make ketchup, ketchup, ketchup and canned peeled tomatoes.
Brief Information:
| Product Name | 2-50T/H Tomato/Carrot processing line |
| Processing line type | Complete turn-key project |
| Juice yield | ≥ 90% |
| Final product brix | 7-12brix(for juice) |
| Voltage | 380V 50Hz/110V 60hz/415V 50Hz |
| Power consumption(Kw) | energy saving type, about 100-500kw, |
| Operator needed | About 6-20persons |
| Cooling water consumption | About 80-300M3 |
| Steam consumption | About 300-5000T/H, |
| Factory space needed | About 500-5000Sqm |
| Warranty | 12 months |
Can, bottle, bag, barrel sterile bag packaging products
Plant capacity: -0.5/1/2/5/10/15/20 T / h.
Our product line is characterized by long-term experience, professional technology, strong structure and energy saving.

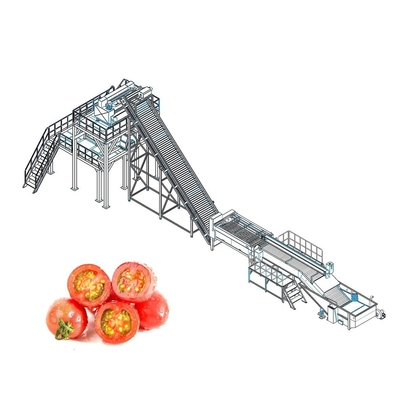

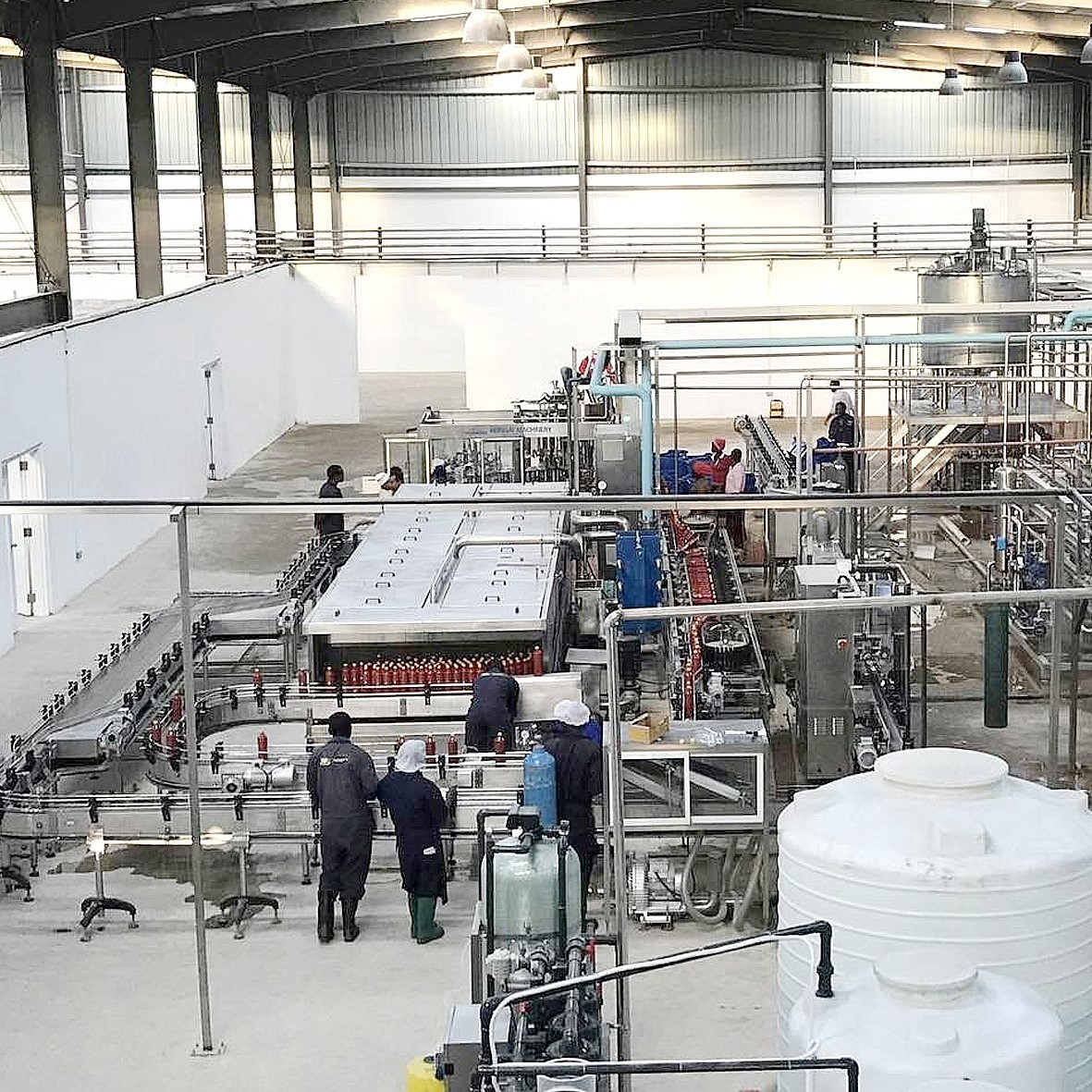

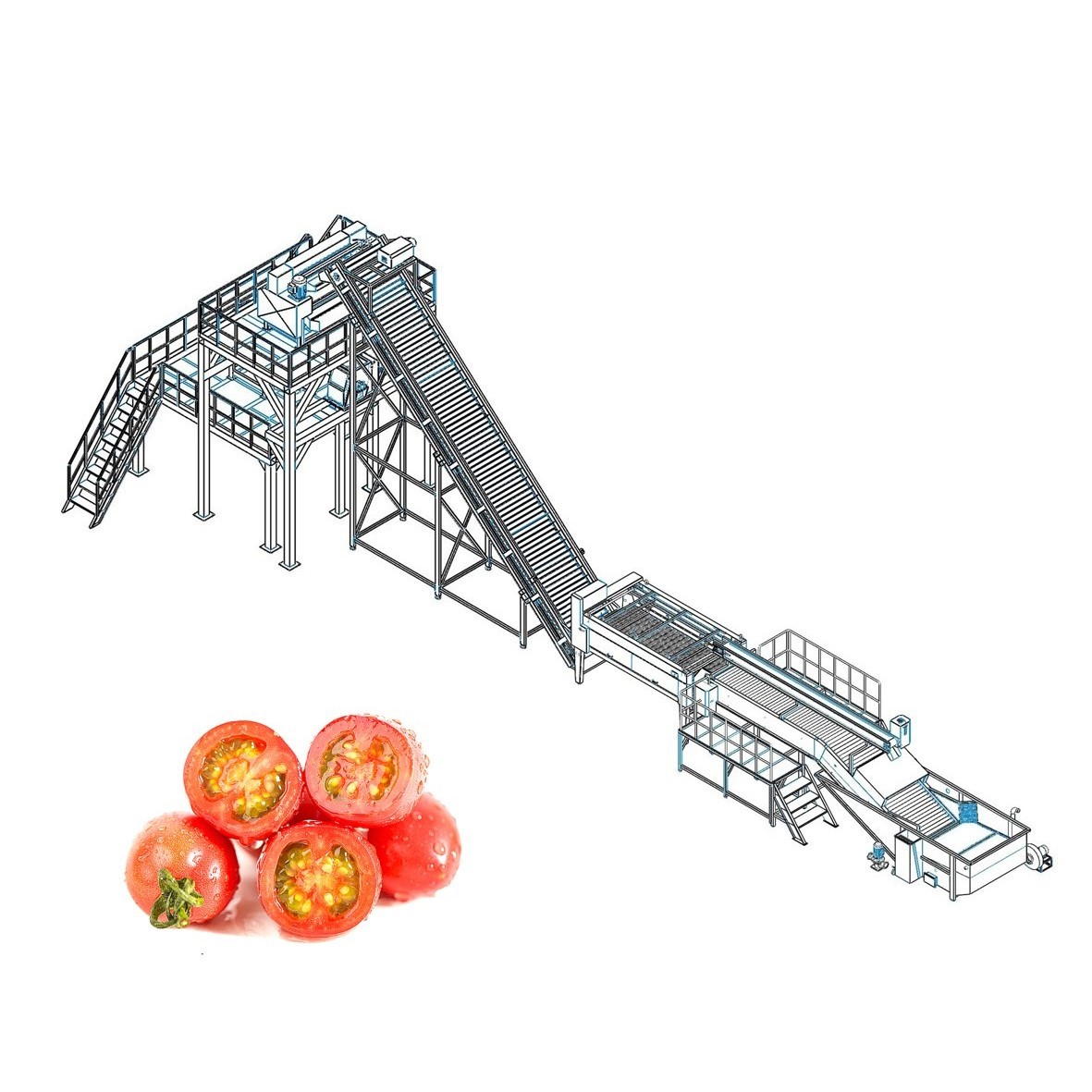

Complete production line of tomato paste, tomato paste and tomato puree:

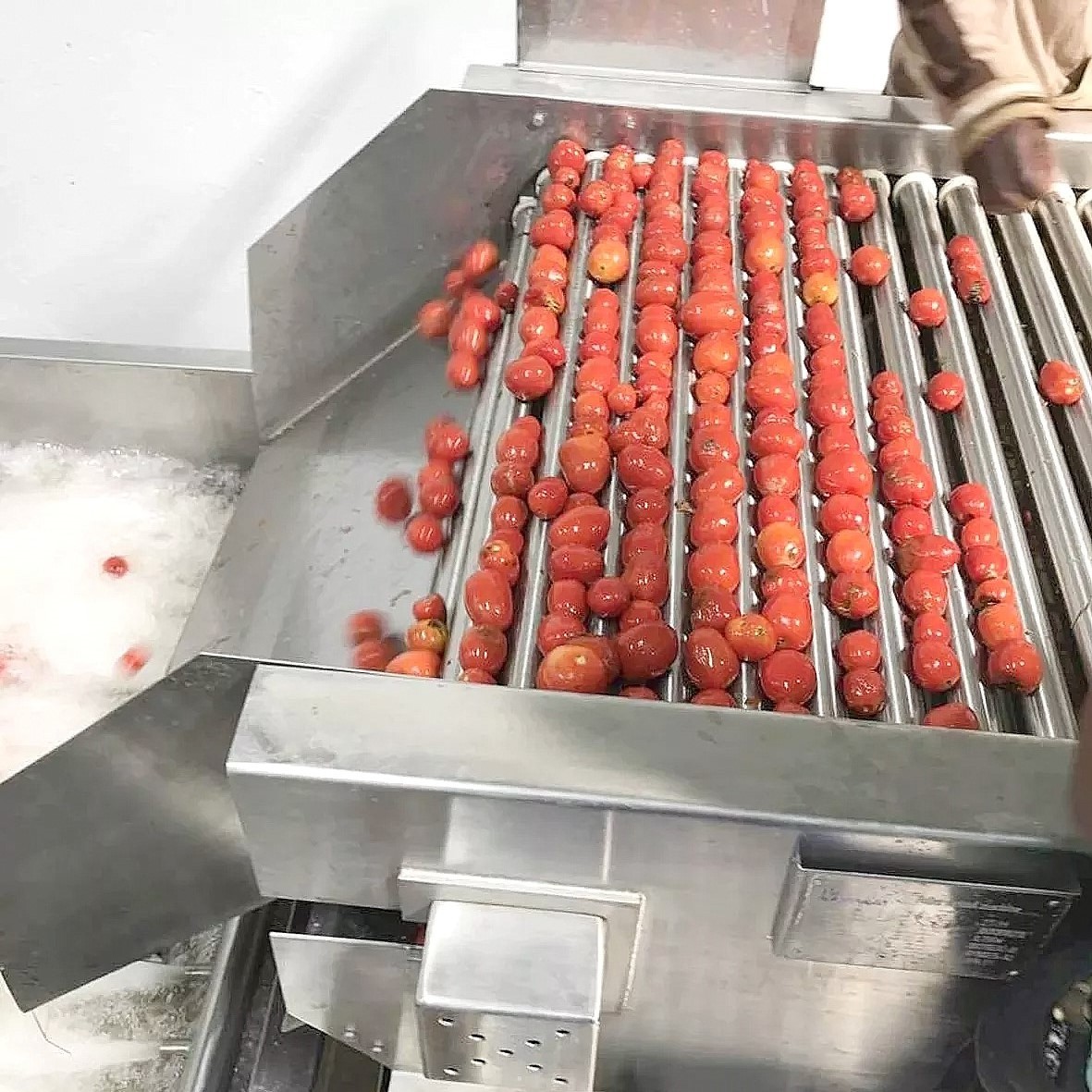

1. Washing machine
2. Sort conveyor

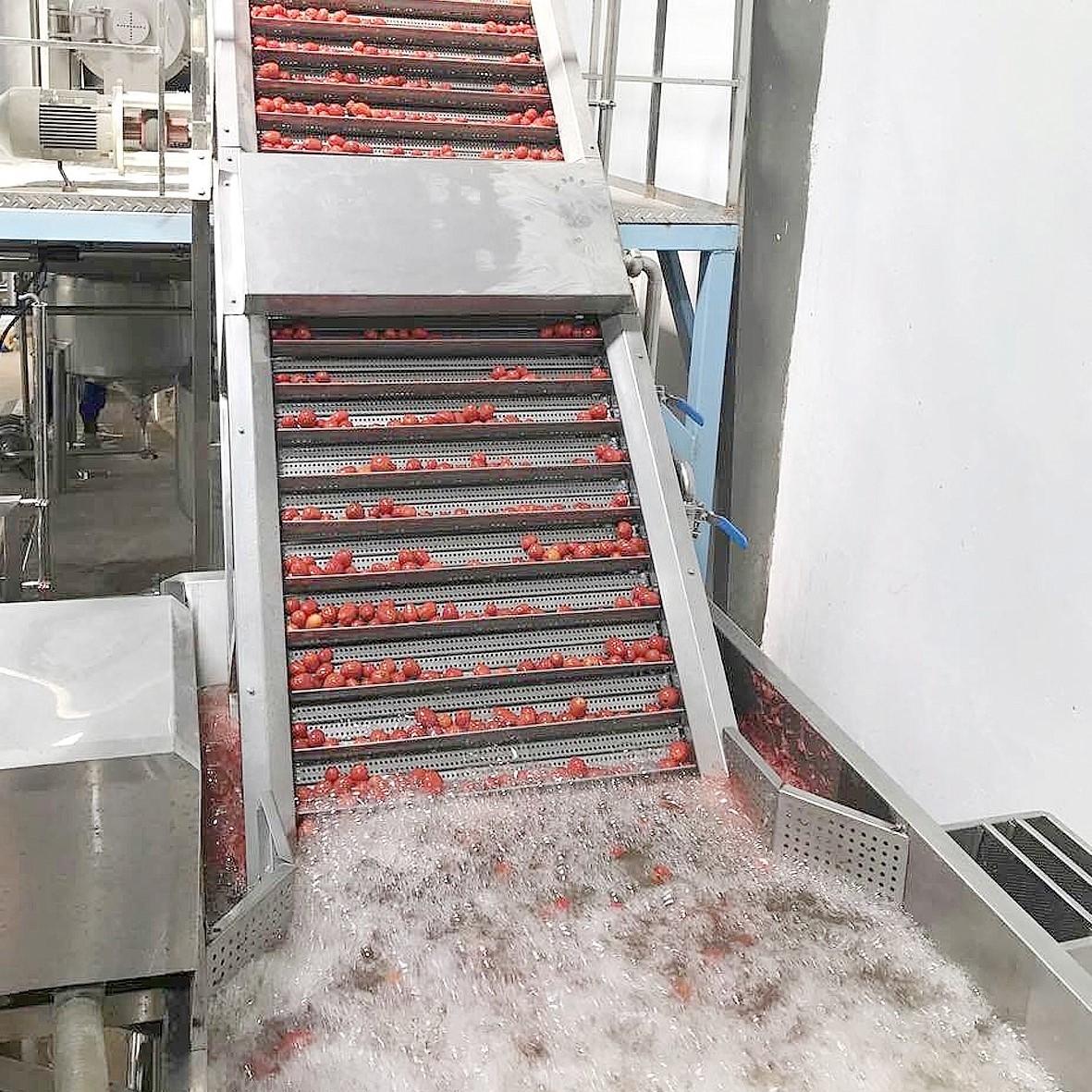

3. Elevator
4. Crusher
5. Cold / hot braking system
6. tubular preheater pasteurizer
7. Pulping machine
8. Vacuum evaporator / continuous / forced circulation evaporator
9. Filling line - can filling machine / bottle filling machine / small bag filling machine / sterile bag filling machine.
Specifications:
| Brand Name: | Shanghai Beyond |
| Model Number: | BY-TC |
| Capacity | 2-50T/H |
| Raw material | Fresh tomato / carrot/tomato paste |
| End product | NFC fresh tomato juice, concentrated tomato paste, concentrated carrot juice, tomato ketchup, tomato sauce, tomato puree, etc. |
| Juice yield | ≥ 90% |
| Final product brix | 7-12brix(for juice) |
| Package for end product | Aseptic large bag in drum/ glass bottle/PET bottle, Roof type carton box/ brick shape carton |
| Certification: | ISO9001/CE/SGS |
| Main material for machines | SUS304 or SUS316 |
We design and manufacture ketchup processing machinery according to customers' needs. Our after-sales engineers are responsible for assisting customers in the installation and commissioning of ketchup processing machinery, so that customers' new equipment can quickly enter the working state. Our ketchup customers are distributed in different industries in many countries around the world, and they have achieved remarkable success.
