Concentrated Mango Juice Production Line PET Bottle Package SUS316





Mango Processing Machine mango juice production plant mango pulp plant cost



Mango is a common tropical fruit originating from India and Malaysia. It looks oval and light yellow. Mango is rich in protein, vitamins, minerals and other nutrients. It has anti-oxidation effect, can reduce cancer risk, prevent cardiovascular disease, remove phlegm, delay aging, strengthen stomach and resist depression. Mango pulp tastes sweet and can be eaten directly or made into dried fruit. Usually, mango is processed into mango juice, brewing wine, mango vinegar, dried mango and canned mango.



Processing mango into fruit juice beverage can prolong its shelf life, increase added value, increase farmers' income and enrich the fruit juice market. The production process of mango juice includes sorting, peeling and coring, softening, pulping, homogenization, degassing, sterilization, filling and packaging, and cooling. Beyond provides a full set of mango juice production lines. High quality and reasonable price are the guarantee!

Specifications:



Brand Name:	Shanghai Beyond
Model Number:	BY-MPL05
Capacity	5-50T/H
Raw material	Fresh Mango / pineapple
End product	NFC fresh juice, concentrated juice, Concentrated juice, clear juice, ,cloudy juice
Juice yield	50-75%
Fruit input brix	10-20brix (fresh fruit)
End product brix	60~72Brix( for concentrated )
Package for end product	Aseptic large bag in drum/ glass bottle/PET bottle, Gable top box/ brick shape carton
Certification:	ISO9001/CE/SGS
Main material for machines	SUS304 or SUS316
Place of Origin:	China
Manufacturer history	More than 10years
Voltage	380V 50Hz/110V 60hz/415V 50Hz
Power consumption(Kw)	energy saving type, about 100-500kw,
Operator needed	About 6-20persons
Cooling water consumption	About 80-300M3
Steam consumption	About 300-5000T/H,
Factory space needed	About 500-5000Sqm
Warranty	12 months after commissioning
After sales service	Engineers available to service machinery overseas



Production technology of mango juice

Mango juice production line includes the following equipment, but not all of them are essential.

Fruit Sorter

Fruit washing machine

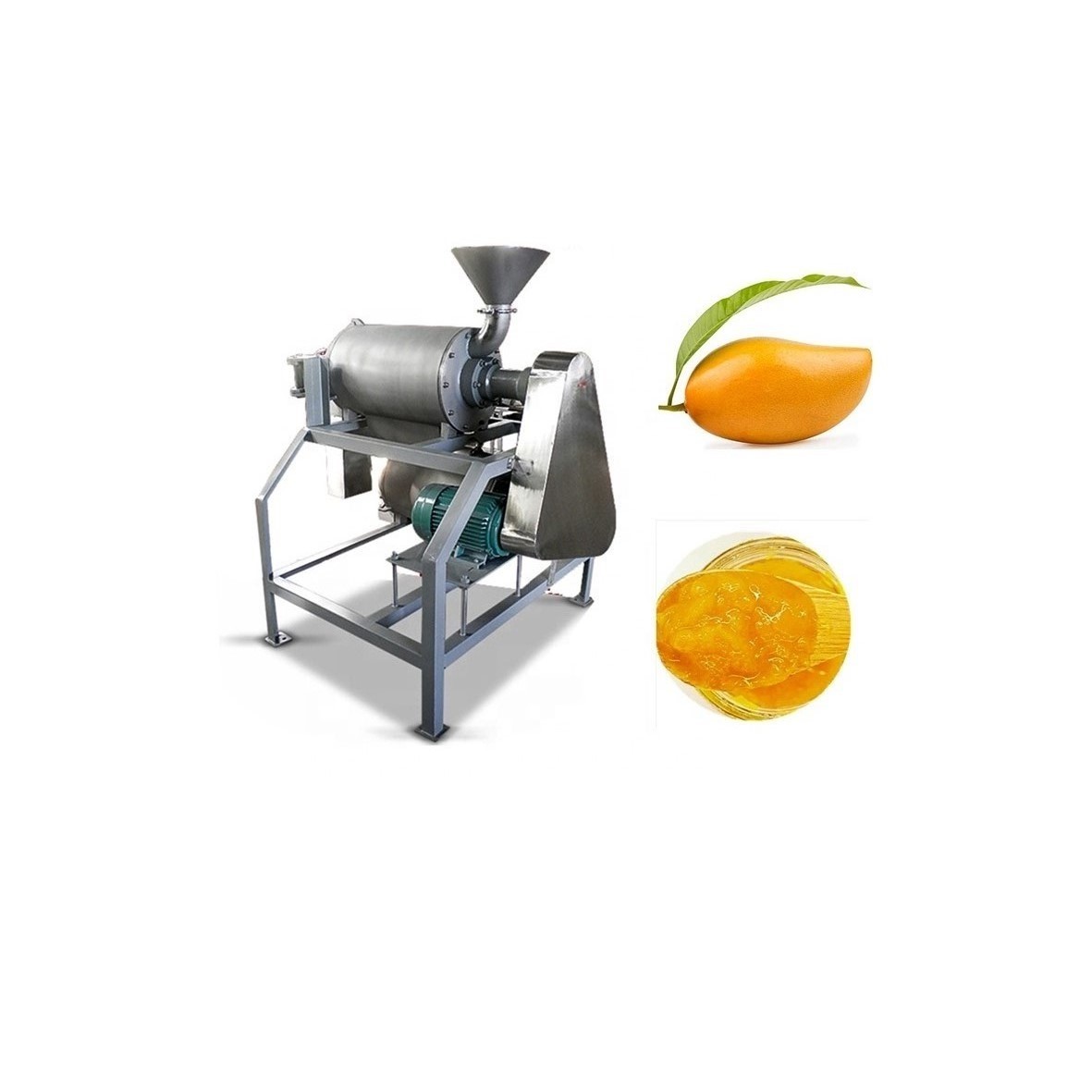

Mango pulper

Vacuum degasser

Juice homogenizer

Juice pasteurizer

Fruit juice filling machine



Mango sorting technology

The sorting process is to check the raw materials to ensure the quality of mango juice. Mature is the best. The fruit sorter can help the staff deal with the immature, sick or rotten fruits.

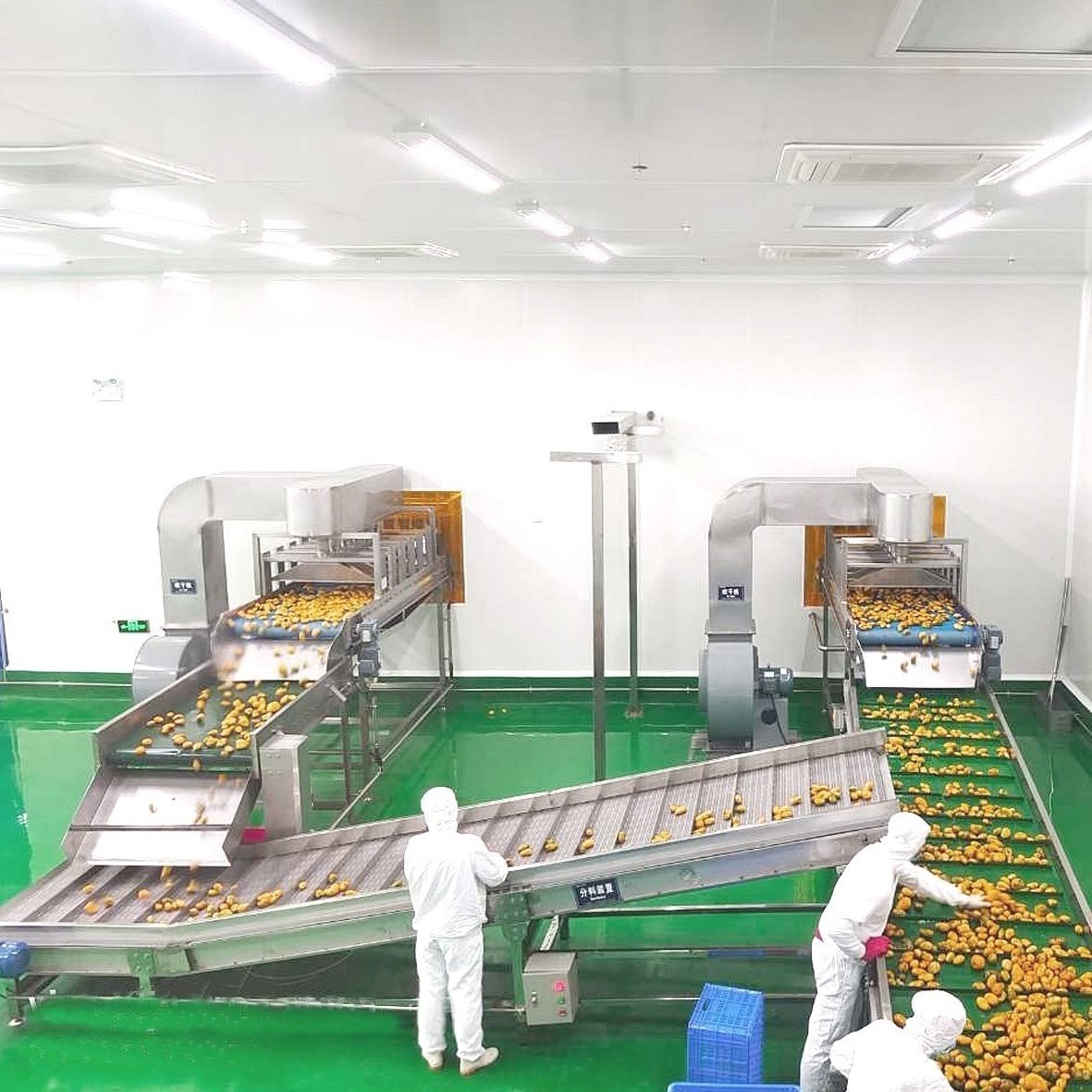

Roller type mango sorter can be used to select spherical and oval fruits such as mango. The fruit sorter can work independently or connect with other mango juice processing machines. The roller bar is driven by a horizontally moving chain to push the mango forward and rotate at the same time. During this process, employees can observe from various angles and pick out unqualified products.



Mango sorter

Mango sorter has the following advantages:

The transmission shaft is made of stainless steel with stepless speed regulation device.

The rolling rod is made of stainless steel with smooth surface and no damage to the fruit surface.

The motor is equipped with a shield and the oil conduit is grounded. They contribute to a hygienic environment for fruit classification.

Mango washing technology

The mango juice production process is carried out by a surf type fruit washing machine. It is suitable for spherical and oval fruits. Under the washing of the high-pressure water pump, the fruit rolls and is washed by the tumbling water. Then, they are washed into the elevator and the next process is carried out by the inflow of water.



Features of mango processing line



The processing capacity is varied from 60 tons/day to 1500 tons/day;

The line is also suitable for processing the fruits that share the similar characteristics;

Using the high efficient of mango de-stoner to improve the mango output percentage effectively;

The production process fully automatic PLC control to save labor and facilitate production management;

Low-temperature vacuum evaporation ,Maximize reserve the flavor substances and nutrients also save energy.

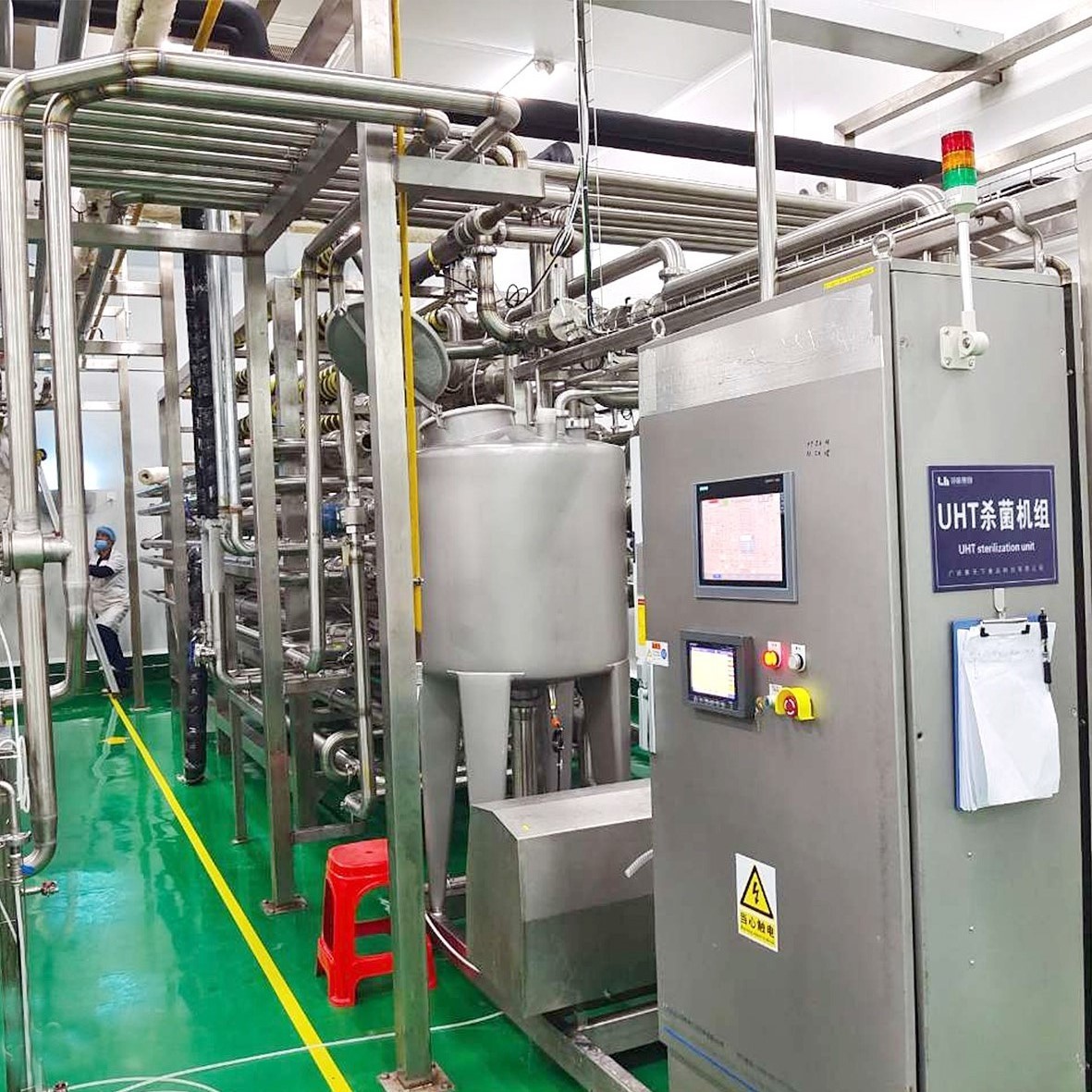

Tubular UHT sterilizer and Aseptic filling machine, produce high-quality aseptic juice products

Automatic CIP cleaning ,ensure the entire line equipment of food hygiene and safety requirements





Project samples:





No.	Project information	Place	Remark
1	5T/H Pineapple crushing	Kenya	Crushing machine
2	2T/H pineapple juice processing line	Sri Lanka	Fresh fruit pre-processing project
3	6t/H Beverage Production Line	Liaoning huludao	Turnkey Project
4	3t/H Pectin Beverage Production Line	Shandong yantai	Turnkey Project
5	24000 p/H PET honeysuckle Extraction Drink Pre-process Production Line	Chongqing Xiushan	Turnkey Project
6	12t/H beverage production line	Henan Sanmenxia	Turnkey Project
7	5 t/H Aloe Beverage Production Line	Zhejiang jiaxing	Turnkey Project
8	Fruit processing machinery	France	Fruit processing machinery
