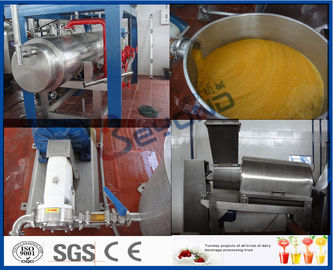

5 - 50 T/H Mango Processing Plant With Mango Pulp Machine ISO9001 / CE / SGS
Place of Origin | China |
---|---|
Brand Name | Shanghai Beyond |
Certification | ISO9001/CE/SGS |
Model Number | BY-MPL |
Minimum Order Quantity | One set/one line |
Price | Negotiation |
Packaging Details | PE film wrapping, or carbon steel frame packing, or wooden case packing as to clients’ requirement |
Delivery Time | 50-100 working days upon receipt of payment and confirmed the drawings |
Supply Ability | 50 Sets Per Season |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 5-50T/H Mango Pulp And Juice Line | Processing Line Type | Complete Turn-key Project |
---|---|---|---|
Juice Yield | 50-75% | Fruit Input Brix | 10-20brix (fresh Fruit) |
End Product Brix | 60~72Brix( For Concentrated ) | Voltage | 380V 50Hz/110V 60hz/415V 50Hz |
Operator Needed | About 6-20persons | ||
High Light | mango processing plant,mango pulp machine |
5-50T/H Mango Pulp and Juice Processing Line
Specifications:
Brand Name: | Shanghai Beyond |
Model Number: | BY-MPL05 |
Capacity | 5-50T/H |
Raw material | Fresh Mango / pineapple |
End product | NFC fresh juice, concentrated juice, Concentrated juice, clear juice, ,cloudy juice |
Juice yield | 50-75% |
Fruit input brix | 10-20brix (fresh fruit) |
End product brix | 60~72Brix( for concentrated ) |
Package for end product | Aseptic large bag in drum/ glass bottle/PET bottle, Gable top box/ brick shape carton |
Certification: | ISO9001/CE/SGS |
Main material for machines | SUS304 or SUS316 |
Place of Origin: | China |
Manufacturer history | More than 10years |
Voltage | 380V 50Hz/110V 60hz/415V 50Hz |
Power consumption(Kw) | energy saving type, about 100-500kw, |
Operator needed | About 6-20persons |
Cooling water consumption | About 80-300M3 |
Steam consumption | About 300-5000T/H, |
Factory space needed | About 500-5000Sqm |
Warranty | 12 months after commissioning |
After sales service |
Engineers available to service machinery overseas |
Description:
Mango is a famous tropical fruit, Because of its delicate flesh, unique flavor, which is very popular and known as the "king of tropical fruit". Complete plant of mango processing equipment including following procedures, washing the fresh mango, peeling, pulping, crushing, squeezing, enzyme destruction, membrane filtrating, concentrating, sterilizing, filling process etc.
the fresh mango is processing into the clear juice and cloudy juice, then packing into the gable top box, aseptic bags, PET bottles and other containers, achieving the selling purpose of cold chain or normal temperature.
Features of mango processing line
The processing capacity is varied from 60 tons/day to 1500 tons/day;
The line is also suitable for processing the fruits that share the similar characteristics;
Using the high efficient of mango de-stoner to improve the mango output percentage effectively;
The production process fully automatic PLC control to save labor and facilitate production management;
Low-temperature vacuum evaporation ,Maximize reserve the flavor substances and nutrients also save energy.
Tubular UHT sterilizer and Aseptic filling machine, produce high-quality aseptic juice products
Automatic CIP cleaning ,ensure the entire line equipment of food hygiene and safety requirements
Project samples:
No. | Project information | Place | Remark |
1 | 5T/H Pineapple crushing | Kenya | Crushing machine |
2 | 2T/H pineapple juice processing line | Sri Lanka | Fresh fruit pre-processing project |
3 |
6t/H Beverage Production Line |
Liaoning huludao | Turnkey Project |
4 | 3t/H Pectin Beverage Production Line | Shandong yantai |
Turnkey Project |
5 | 24000 p/H PET honeysuckle Extraction Drink Pre-process Production Line | Chongqing Xiushan |
Turnkey Project |
6 |
12t/H beverage production line |
Henan Sanmenxia |
Turnkey Project |
7 | 5 t/H Aloe Beverage Production Line | Zhejiang jiaxing |
Turnkey Project |
