Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz

Place of Origin China
Brand Name Shanghai Beyond
Certification ISO9001/CE/SGS
Model Number BY-TPL
Minimum Order Quantity 1set
Price negotiable
Packaging Details exporting standard package
Delivery Time 50-100 working days upon receipt of payment and confirmed the drawings
Supply Ability 50sets/month
Product Details
Package For End Product Aseptic Large Bag In Drum/ Glass Bottle/PET Bottle, Roof Type Carton Box/ Brick Shape Carton Voltage 380V 50Hz/110V 60hz/415V 50Hz
Warranty 12 Months End Product NFC Fresh Tomato Juice, Concentrated Tomato Paste, Concentrated Carrot Juice, Tomato Ketchup, Tomato Sauce, Tomato Puree, Etc.
Name Tomato Meat Processing Machine
High Light

Concentrated Tomato Paste Production Line 380V

,

Automatic Tomato Paste Production Line

,

SUS304 Tomato Paste Making Machine

Leave a Message
Product Description

Tomato meat processing machine tomato paste production line tomato paste production machine

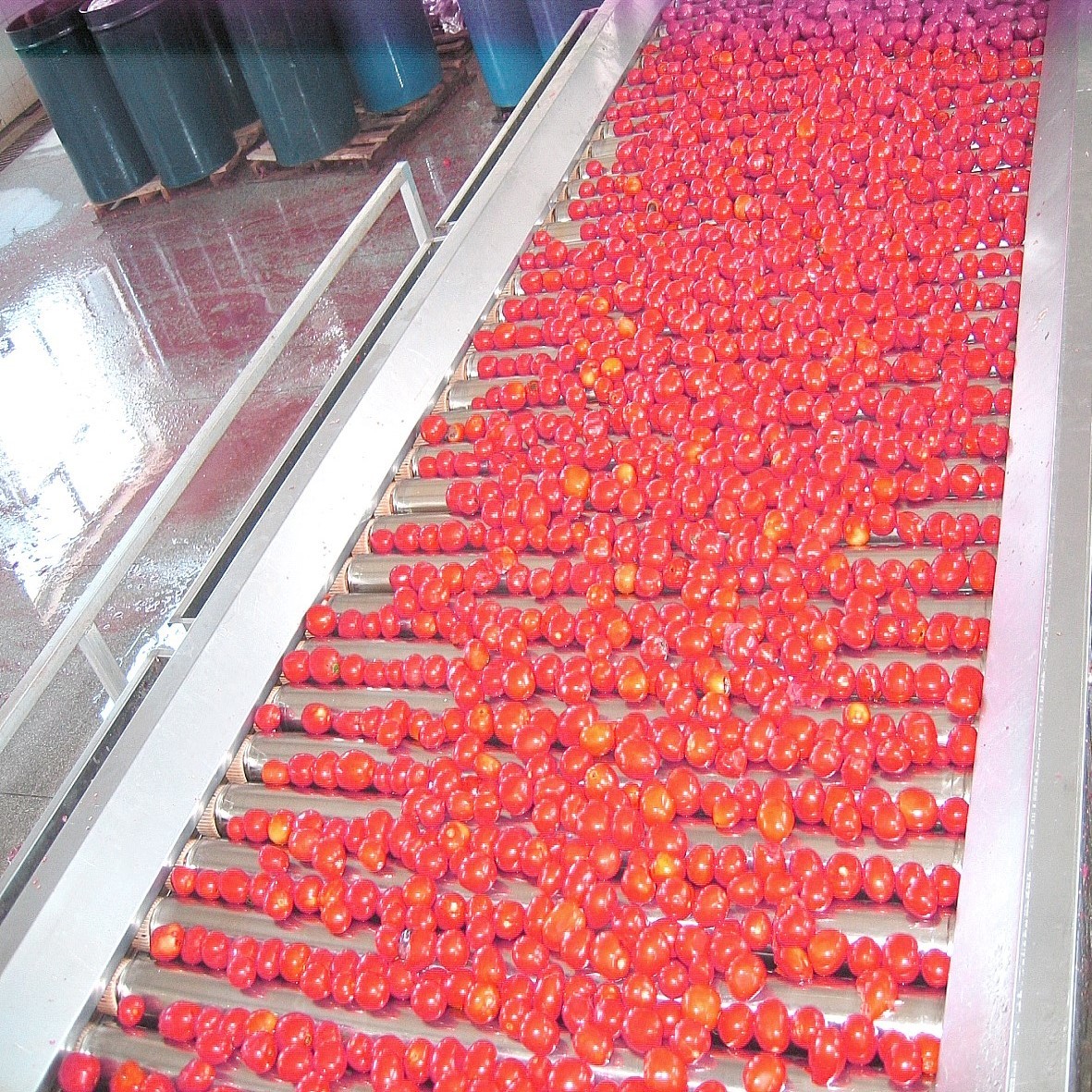

Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz 0



Description:

Tomato is a fruit with a wide range of uses and is regarded as a major grain in many countries. Tomato sauce processing line can turn tomatoes into products that can be preserved for a long time. Tomato sauce processing line contains many processing equipment with different functions. Tomatoes are usually processed into paste. The processing line mainly includes five parts: fresh tomato receiving, pre washing and sorting section, crushing and pulping section, concentration section, pasteurization or sterilization section Aseptic throwing section and auxiliary energy section.



Brief Information:

Product Name 2-50T/H Tomato/Carrot processing line
Processing line type Complete turn-key project
Juice yield ≥ 90%
Final product brix 7-12brix(for juice)
Voltage 380V 50Hz/110V 60hz/415V 50Hz
Power consumption(Kw) energy saving type, about 100-500kw,
Operator needed About 6-20persons
Cooling water consumption About 80-300M3
Steam consumption About 300-5000T/H,
Factory space needed About 500-5000Sqm
Warranty 12 months

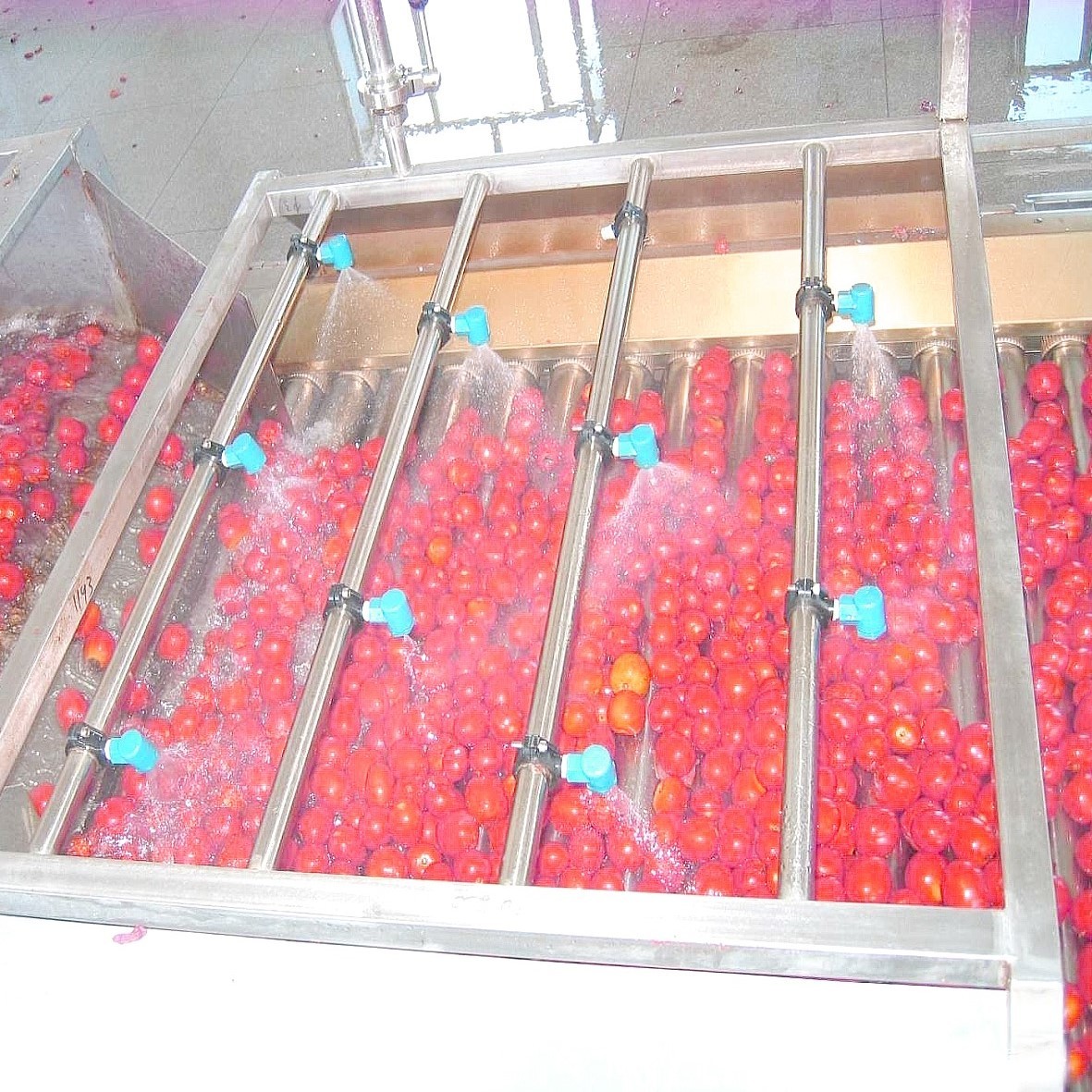

Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz 1



The production capacity includes 40 tons, 60 tons, 100 tons, 150 tons, 300 tons, 400 tons, 500 tons, 600 tons, 800 tons, 1000 tons, 1200 tons and 1500 tons of fresh tomatoes per day.

The concentration of tomato paste was 28%, 30%, 32%, 36% and 38%, respectively.



Ketchup can be put into sterile bags in barrels or cans, or further processed into ketchup, sauce, juice in cans / small bags, etc.



Characteristics of tomato sauce processing line

Advanced technology and energy conservation.

SUS304 / 316L material, international brand high-quality parts.

Provide semi-automatic and fully automatic systems.

Customized turnkey solution, including installation and commissioning.

The finished product has excellent quality and delicious color.

High production efficiency, flexible production, can be customized according to customer needs.

Complete monitoring system with control room to monitor each processing stage.

Daily output can be clearly displayed.

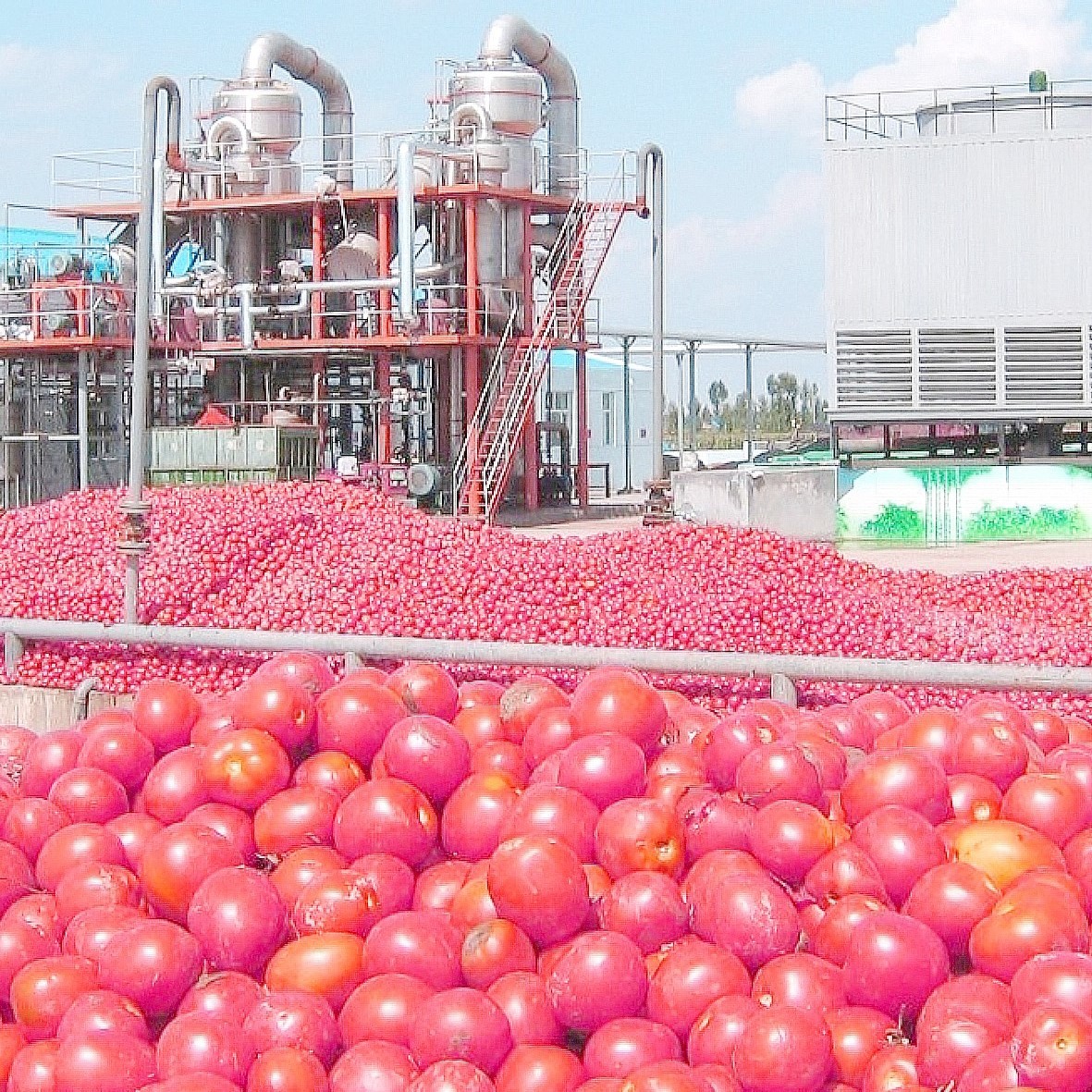

Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz 2

Process of tomato processing line



The tomato processing line has many different equipment, which play different functions and roles in the processing process. First, we introduce fresh tomatoes into the cleaning tank through the elevator, wash them with bubbles in the drum tank, select the cleaned tomatoes on the roller bar machine, introduce high-quality tomatoes into the crusher through the high-level elevator for pulp treatment, and then introduce the processed pulp into the buffer tank. Then we put the tomato pulp into the preheating and enzyme killing equipment for treatment. After the treatment, we introduce the pulp into the beater for refining, Then it is introduced into the buffer tank to continue the vacuum concentration process. The pulp is introduced into the buffer tank, and then the sleeve is introduced for sterilization. After that, it is aseptically filled, and the pulp is packaged for delivery.



Specifications:

Brand Name: Shanghai Beyond
Model Number: BY-TC
Capacity 2-50T/H
Raw material Fresh tomato / carrot/tomato paste
End product NFC fresh tomato juice, concentrated tomato paste, concentrated carrot juice, tomato ketchup, tomato sauce, tomato puree, etc.
Juice yield ≥ 90%
Final product brix 7-12brix(for juice)
Package for end product Aseptic large bag in drum/ glass bottle/PET bottle, Roof type carton box/ brick shape carton
Certification: ISO9001/CE/SGS
Main material for machines SUS304 or SUS316

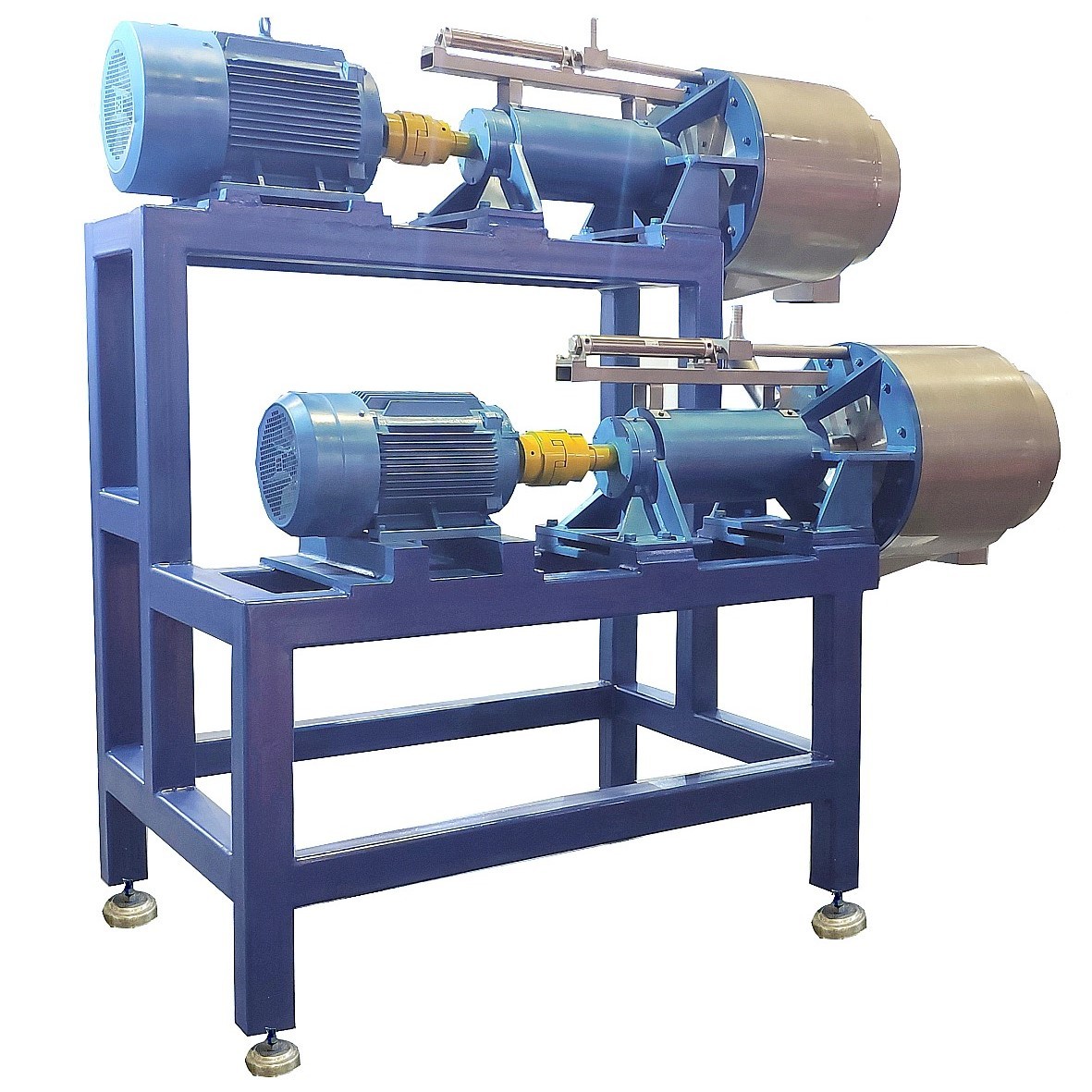

Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz 3



We can design and manufacture tomato processing lines according to customers' needs. Our service engineers assist customers in the installation and commissioning of tomato processing lines, so that the tomato processing lines invested by customers can meet production needs and achieve successful production of tomato processing lines in the shortest time.

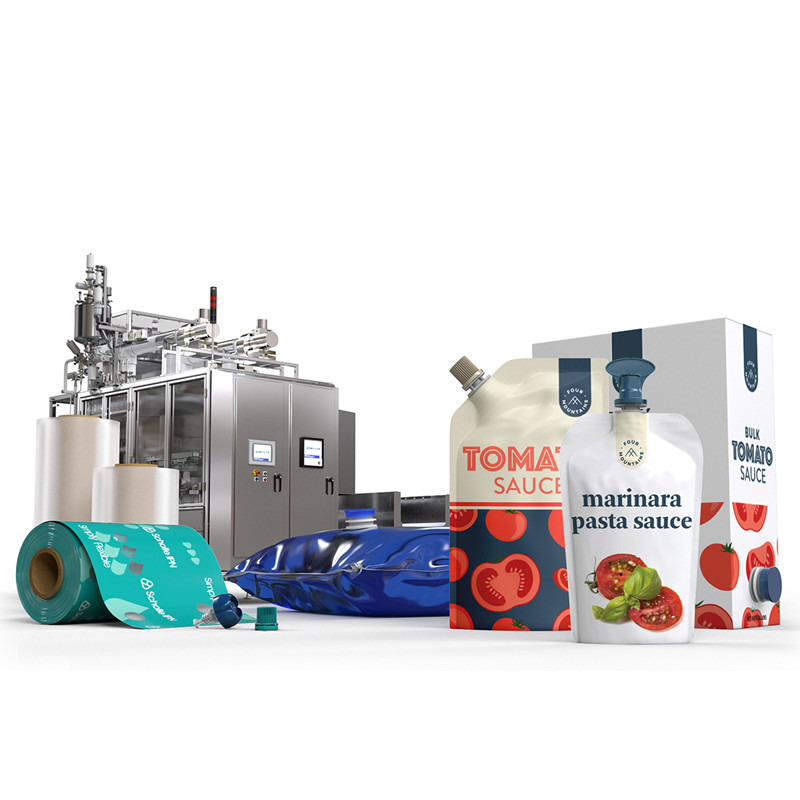

Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz 4

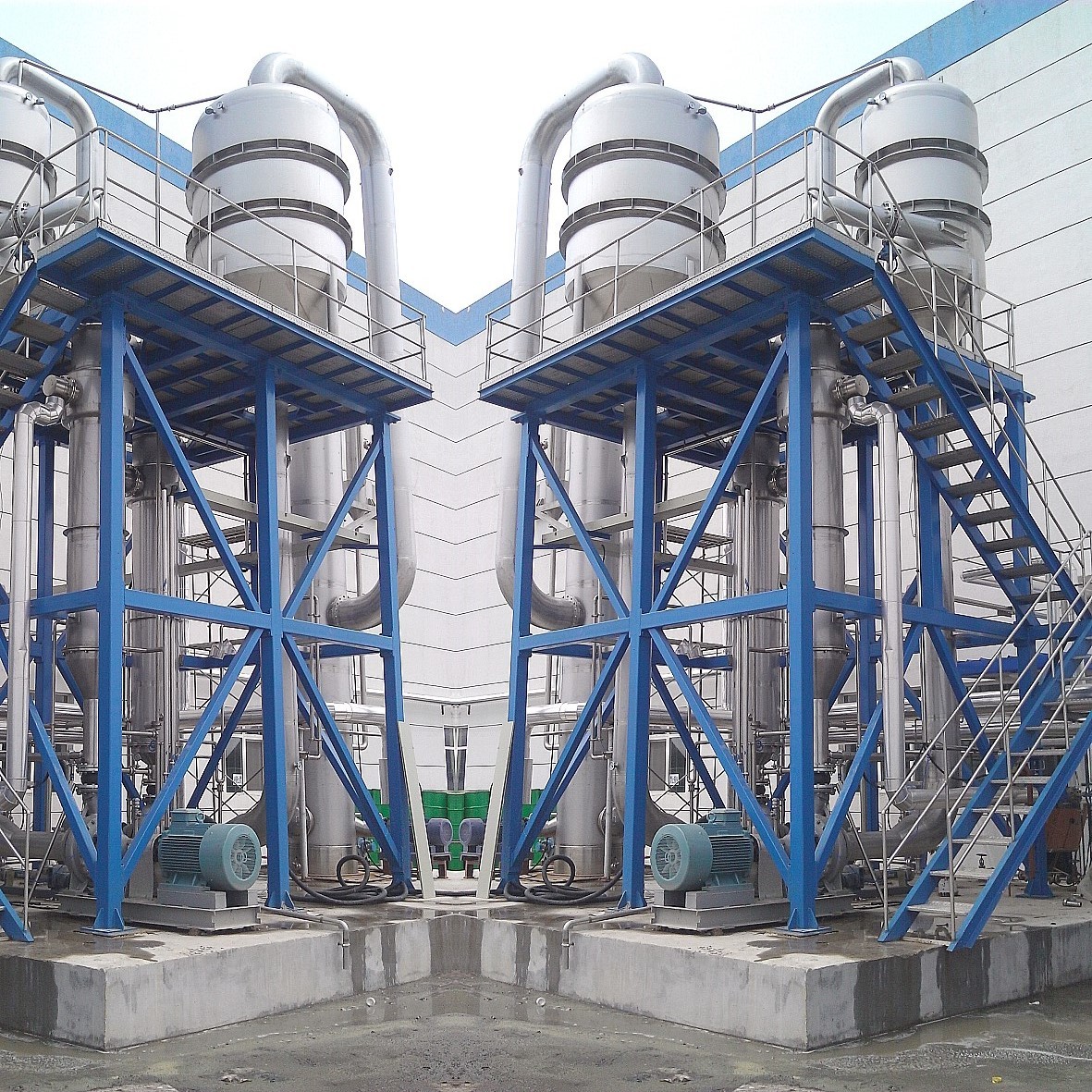

Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz 5

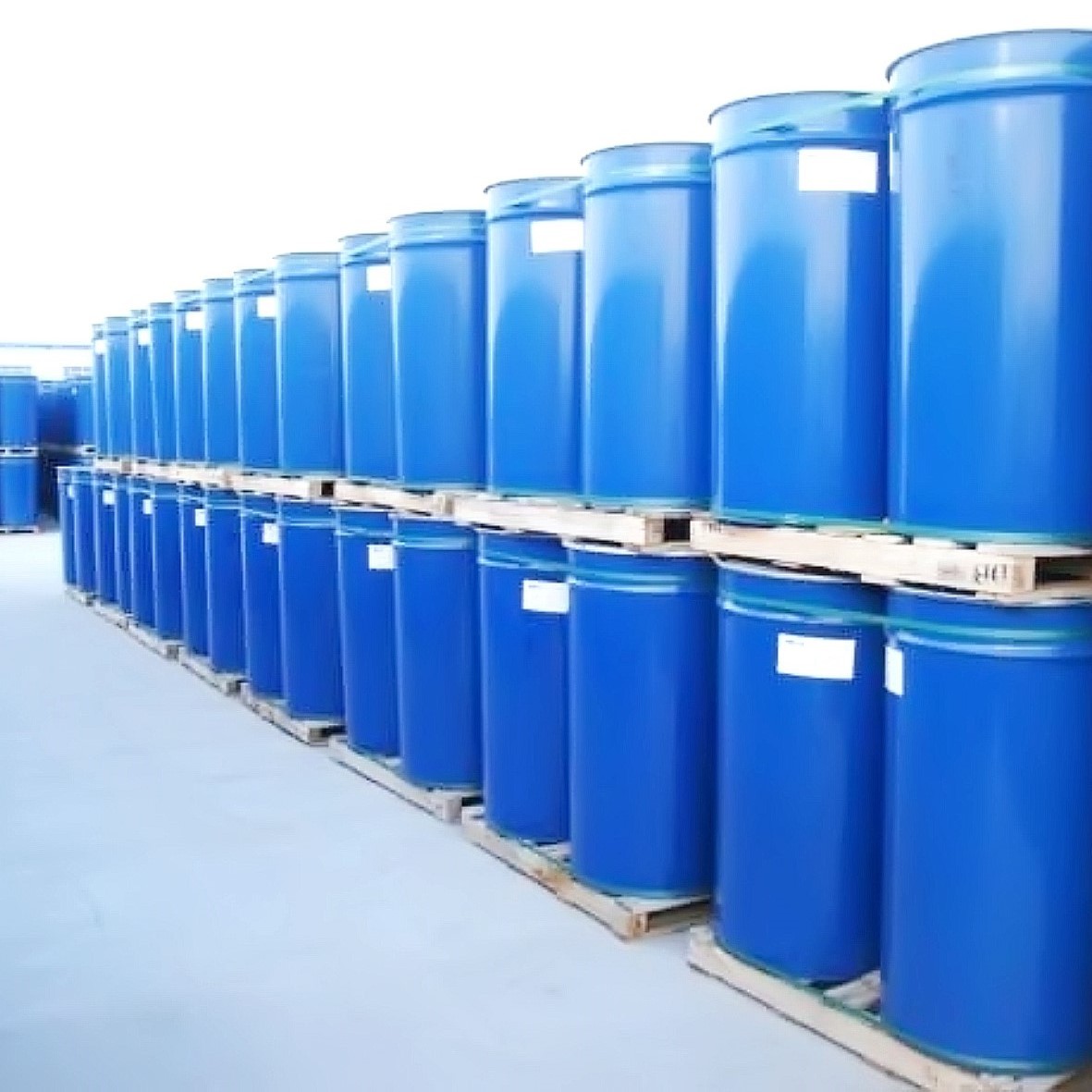

Automatic Concentrated Tomato Paste Production Line SUS304 380V 50Hz 6
