xProduct Name | Stainless Steel Food Storage Tanks | Warranty | 12 Months/1 Year |
---|---|---|---|
Material | SUS304/SUS316L | Function | Milk Storage And Juice Storage |
Agitator | Customized | Jacket Type | Miller Type |
Electric Power Supply | 380V 50Hz/110V 60hz/415V 50Hz | Sea Port | Shanghai Port |
Attachment | One PT100 Thermometer | ||
High Light | Miller Chemical Storage Stainless Steel Tanks,304 Stainless Steel Food Storage Tanks,380V 50Hz Water Storage Tank |

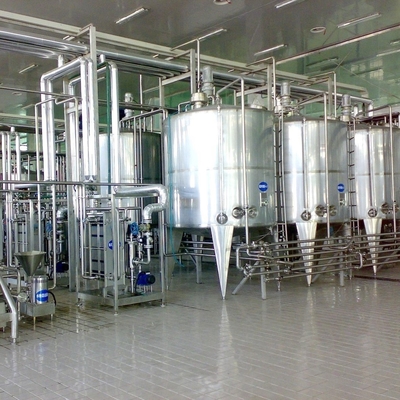

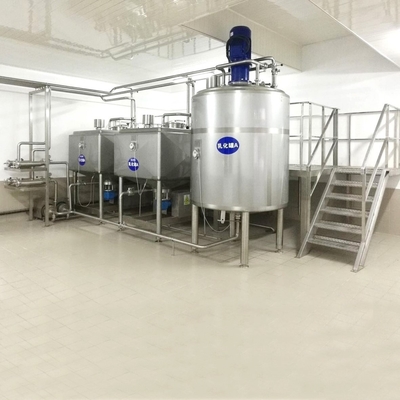

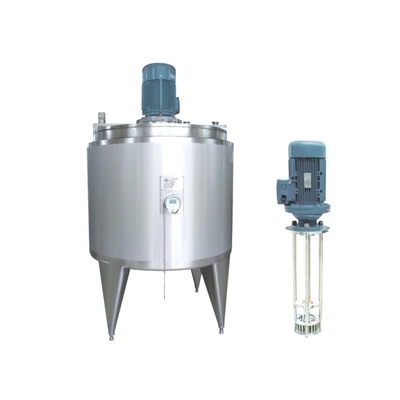

Stainless Steel Food Storage Tanks chemical storage equipment Water Storage Tank
We can provide single-layer, double-layer and three-layer stainless steel tanks, which can mix products with or without stirring. These tanks are widely used in beverage, food, dairy, pharmaceutical, chemical and processing industries, as well as agitator tanks, buffer tanks and storage tanks. The equipment meets the health standards of the food industry.
Characteristics of stainless steel tank:
1. Single layer/double layer/three layer structure
2. The tank is made of stainless steel
3. The tank design is welcomed by customers
Application field of stainless steel tank:
1. It is used for raw milk tank, processing milk tank, mixing tank (without heating), temporary storage tank, waiting tank, etc.
2. It is applicable to dairy products, fruit juice, beverages, pharmaceutical and chemical engineering or bioengineering projects.
Structure:
1. It is composed of inner tank body and outer covering layer, including thermal insulation materials.
2. The water tank is made of high-quality stainless steel.
Standard scheme of stainless steel tank:
1. Quick opening manhole
2. Digital indicating thermometer
3. T-type washing head
4. Lever drain valve
5. Adjustable tapered support foot
Technical parameter
Model | Volume (L) | External diameter(mm) |
Height |
Plate thickness(mm) | Diameter of inlet/outlet |
BYDG-500 | 500 | 800 | 2140 | δ3 | φ38 |
BYDG-1 | 1000 | 1050 | 2380 | δ3 | φ38 |
BYDG-1.5 | 1500 | 1180 | 2550 | δ3 | φ38 |
BYDG-2 | 2000 | 1340 | 2760 | δ3 | φ38 |
BYDG-2.5 | 2500 | 1420 | 2940 | δ3 | φ38 |
BYDG-3 | 3000 | 1540 | 3050 | δ3 | φ38 |
BYDG-4 | 4000 | 1650 | 3200 | δ3 | φ38 |
BYDG-5 | 5000 | 1780 | 3250 | δ3 | φ38 |
BYDG-6 | 6000 | 1900 | 3350 | δ3 | φ38 |
BYDG-8 | 8000 | 2100 | 3800 | δ4 | φ65 |
BYDG-10 | 10000 | 2300 | 4050 | δ4 | φ65 |
BYDG-12 | 12000 | 2520 | 4450 | δ4 | φ65 |
BYDG-15 | 15000 | 2540 | 4700 | δ4 | φ65 |
Technical parameters of stainless steel tank:
Stainless steel tank
Material: SS304 or SS316L or duplex stainless steel or 904L
Design pressure: - 1-10 bar (g) or ATM B9
Operating temperature: 0-200 ° C
Volume: 100~30000L
Construction: vertical or horizontal
Type of sheath: pit sheath, full sheath or coil sheath
Structure: single layer vessel, vessel with jacket, vessel with sheath and insulation
Function: According to heating or cooling requirements, the oil tank will have a jacket for the required function
Eye motor: Siemens, SEW or Chinese brand
Surface finish: mirror polishing or matte polishing or pickling and pickling or 2B
Standard components: manhole, observation hole, cleaning ball
Optional components:
Ventilation filter, thermometer, directly displayed on the instrument on the container
Temperature sensor PT100, digital display of instrument on control cabinet
Temperature sensor with heating and cooling control device with digital level gauge
The instrument load cell valve is displayed on the control cabinet
Application of stainless steel tank:
Wine, beer juice, food and beverage, pharmacy, biotechnology and
Laboratory medical and medical equipment Chemical industry Coating industry
Minimum Order Quantity: | One set/one line |
Price: | negotiation |
Payment Terms: | T/T or L/C |
Supply Ability: | 50 Sets Per Season |
Delivery Time: | 50-100 working days upon receipt of payment and confirmed the drawings |
Packaging Details: | PE film wrapping, or carbon steel frame packing, or wooden case packing as to clients’ requirement |
Warranty | 12 months after commissioning |
|
Engineers available to service machinery overseas |
