Product Details
End Product Output Brix 65-72Brix For Concentrate Voltage 380V 50Hz/110V 60hz/415V 50Hz
Raw Material Fresh Apple End Product NFC Fresh Apple/pear Juice, Concentrated Apple/pear Juice, Clear Apple/pear Juice
Certification ISO9001/CE/SGS
High Light

fruit and vegetable processing device

,

fruit juice processing machines
Leave a Message
Product Description

Apple processing line pear processing line guava processing line

Fruit Juice Processing Machines , Apple Processing Machine For Juice Making 0



DESCRIPTION

China is the world's largest producer of apples and pears.The end product is divided into transparent juice,cloudy juice ,NFC fresh nature juice,and juice concentrate.

Complete plant of apples and pears processing equipments include

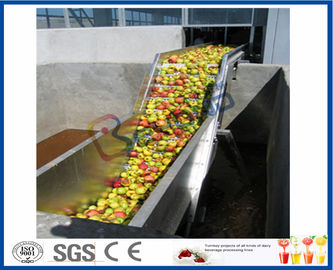

washing ,crushing,squeeze extractor, enzymolysis, evaporator,sterilizer, aseptic filling and etc. Beyond has created apple and pears processing equipments with different functions like crusher,squeeze extractor are simple construction,easy operation, ,High production efficiency have positioned Beyond as the Chinese market leader in the worldwide.



Fruit Juice Processing Machines , Apple Processing Machine For Juice Making 1

Characteristics and advantages

The processing capacity is varied from 60 tons/day to 2000 tons/day.

1. The line Can deal with similar characteristics of fruits.



2. Automatic disinfection liquid concentration control system, effectively guarantee the sterilization effect and control the disinfection residue



3. Efficient crusher improved the high output percentage of apples and pears

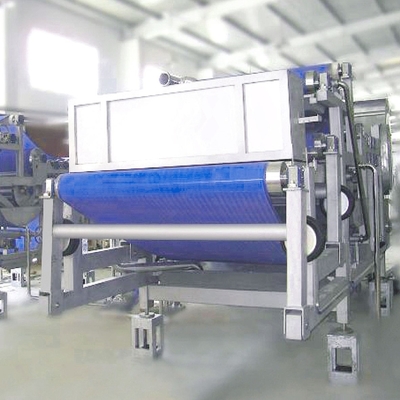

4. Using efficient belt juice extractor to improve the juice efficiency and the output percentage



5. The production process fully automatic PLC control to reduce the labor intensity and Improve production efficiency



6. Low-temperature vacuum evaporation Greatly reduce the flavor substances and nutrient losses



7. A variety of energy recovery measures , increased the energy utilization and greatly reduce production cost



8. Tubular UHT sterilizer and Aseptic filling machine, Isolated from the pollution of bacteria,ensure the safety of the food and extend the shelf life of the product



9. A complete set of production with self CIP system reduce the labor intensity and ensure the high level sanitation.



Parameters

Raw material Fresh apple/pear
End product Concentrated juice, clear juice,NFC fresh juice
Processing capacity From 60tons/day to 1500 tons/day
Output percentage 60-75%
Solid content 10-12Brix
concentrated juice content 65-72Brix
End package Aseptic bag/gable top box /PET bottle



Fruit Juice Processing Machines , Apple Processing Machine For Juice Making 2

Ultrafiltation system for clear apple juice
The Ultra-filtration system is designed to produce clear apple juice in the juice processing line.It is consist of tanks,recycling pump,membrane stack as the core part,clear juice pump,clear juice tank,and control system etc.This system has high filtration accuracy and less loss of effective nutrients and aromatic components in the juice.And the system process mature and reliable,high degree of automation,simple operation,high labor intensity.

Apple/Pear juice sterilizing machine
Clear apple juice uses tubular type or plate type sterilizer to process depending on the filling method.If we use the hot filling,then we can use the plate-type pasteurizer.The sterilizing technological process is 90-95℃ for 15 sec;if we use the aseptic filling,then we use the tubular type sterilizer.The sterilizing technological process is 135-137℃ for 4-6 seconds.

Apple/Pear juice filling machine
There are two types for filling,One is for the hot filling,the other is for aseptic filling.The hot filling machine usually connects with pasteurizer,filling into small bottles or pouches;And aseptic filling machine usually connects with tubular type UHT sterilizer,filling into aseptic bags,tetra pak packages.

Fruit Juice Processing Machines , Apple Processing Machine For Juice Making 3

Fruit Juice Processing Machines , Apple Processing Machine For Juice Making 4

Fruit Juice Processing Machines , Apple Processing Machine For Juice Making 5Fruit Juice Processing Machines , Apple Processing Machine For Juice Making 6
