EC 10TPD Soft Cheese Making Equipment For Cheese Making Factory / Cheese Making Plant
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Gurantee Time||12 Months||Sea Port||Shanghai Port|
|Name||Cheese Making Machine|
Cheese Processing Equipment,
cheese processing plant
EC certificate 10TPD soft cheese machine, pizza cheese making machine, cheese moulds
Dairy processing lines mainly use fresh cow or goat milk etc as raw material through different processing method, which can be manufactured into various food products.
You can use cow milk, goat milk, camel milk and mare's milk etc as raw material, through clarification, cream separation, pasteurization, homogenization, degassing, fermentation, blending, UHT sterilization, filling etc flow procedure, and filling them into Pre-pak pouch, Brick-shape carton, Plastic bag, Gable top bag, plastic cup, plastic bottle etc containers, which can get various types of finished products like pasteurized milk, pure milk, yogurt, flavored milk, milk beverage, condensed milk, single cream, butter, milk slag, cheese etc, and their shelf life can be ranged from 2 day or even 2 years.
Processing capacity can be ranged from 2T/Day to 1000T/Day.
You can process cow(goat)milk etc into various liquid or non-liquid dairy products.
High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in the dairy processing line.
PLC control the whole production line, saving labor force and facilitate production management.
Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.
|Raw material||Fresh cow(goat)milk and milk powder|
|End product||Various pure milk, yogurt, flavored milk, milk beverage, butter, cheese etc|
|Capacity||2T/D – 1000T/D|
|End product package||Pre-pak pouch, Brick-shape carton, Gable Top bag, plastic bottle, plastic cup, glass bottle etc|
10T/D Cheese Processing Line Equipments List
|NO.||FLOW NO.||NAME||MAIN TECHNOLOGY PARAMETER||UNIT||QTY|
|1||A||MILK COLECTIONSTORAGE UNIT|
|2||A-1||self-priming pump||SUS304 stainless steel,pump lift 24M, Mechanical Seal||set||1|
|3||A-2||Twin piping filter||SUS304 stainless steel,two pipe,Stainless Steel Filter Element 100 Mesh||set||1|
|4||A-3||Rotational flow degasser||SUS304 stainless steel||set||1|
|6||A-5||Temporary storage tank||SUS304 stainless steel,double-layer, 60mm PU insulation, eccentric vertical stirrer, sealing manhole, breath valve, CIP cleaning ball, material inlet & outlet, ladder, glass tube level, digital thermometer, sample valve, draw bar, adjustable legs||set||1|
|7||A-6||milk pump||SUS304 stainless steel, pump lift 24M, Mechanical Seal||set||1|
|8||A-7||Milk clarifier||SUS304 stainless steel, two phases separating||set||1|
|10||A-9||milk storage tank||SUS304 stainless steel,double-layer, 60mm PU insulation, side stirrer, sealing manhole, breath valve, CIP cleaning ball, material inlet & outlet, ladder, high & middle & low level, digital thermometer, sample valve, draw bar, adjustable leg||set||2|
|11||A-10||milk pump||SUS304 stainless steel,pump lift 24M,Mechanical Seal||set||1|
|12||R||CIP return pump||SUS304 stainless steel,pump lift 24M,Mechanical Seal||set||2|
|14||B||Homogenizer and Sterilizer Unit|
|15||B-1||plate pasteurizer||Four section, 5℃ feeding material,75℃15S(yogurt sterilizing),outlet TEMP: 42℃||set||1|
|16||B-2||homogenizer||25MPa,including starting box||set||1|
|18||C||Curd making unit|

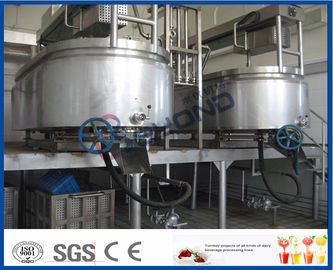

|19||C-1||Cheese vat||SUS304 stainless steel, dimple jacket, ice water inlet&outlet, steam inlet&outlet, horizontal & upright slicer||set||4|
|20||C-2||Steam pressure reducing system||1PCS DN40 Spirax sarco,20PCS DN25 shutoff valve, 6PCS DN20 drainage valve||set||1|
|24||D-2||Cheese Pressing machine||SUS304,6 head,cylinder forming||set||2|
|28||E-1||stainless piping system||stainless pipes and fittings for connection of all equipments from the seller's company; including CIP piping system and all product pipe line,SUS304 ,∅51,∅38||set||1|
|29||E-2||power piping system||power pipe line of all equipments from the seller's company;heat insulation excluded||set||1|
|30||E-3||electric controlling cabinet||electrical control of all equipments from the seller's company||set||1|
|31||E-4||electric installation material||electrical installation materials of all equipments from the seller's company||set||1|
|32||E-5||installation and commissioning cost||the buyer should pay the round-trip ticket of the supplier's installation and commisoning engineers and provide the accommodation||set||1|
