Industrial Fruit And Vegetable Crusher High Crushing Efficiency Energy Saving

Place of Origin China
Brand Name Beyond
Certification ISO9001
Model Number 1-10TPH
Minimum Order Quantity 1 set
Packaging Details Container Lading;Wooden Package and Frameworks;PE Film Wraps
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 50 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Raw Material Fruit, Vegetables, Garlic/Pepper/Celery/Pumpkin Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Food Shop, Food&Beverage Shops
Power(W) ≤30KW Warranty 1 Year
After-sales Service Field Installation, Commissioning And Training Application Fields Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory
Ory Machinery Function Crushing Machine Output Product Name Fruit And Vegetables Mince
Application Fruit And Root Vegetables Material SUS304/316L
Capacity 1-10TPH Particle Size 100mesh
Condition New
High Light

juice manufacturing plant


juice processing machine

Leave a Message
Product Description

10T/H Fruit and Vegetables Multi-function Crusher

Industrial Fruit And Vegetable Crusher High Crushing Efficiency Energy Saving 0

• Equipment Description:

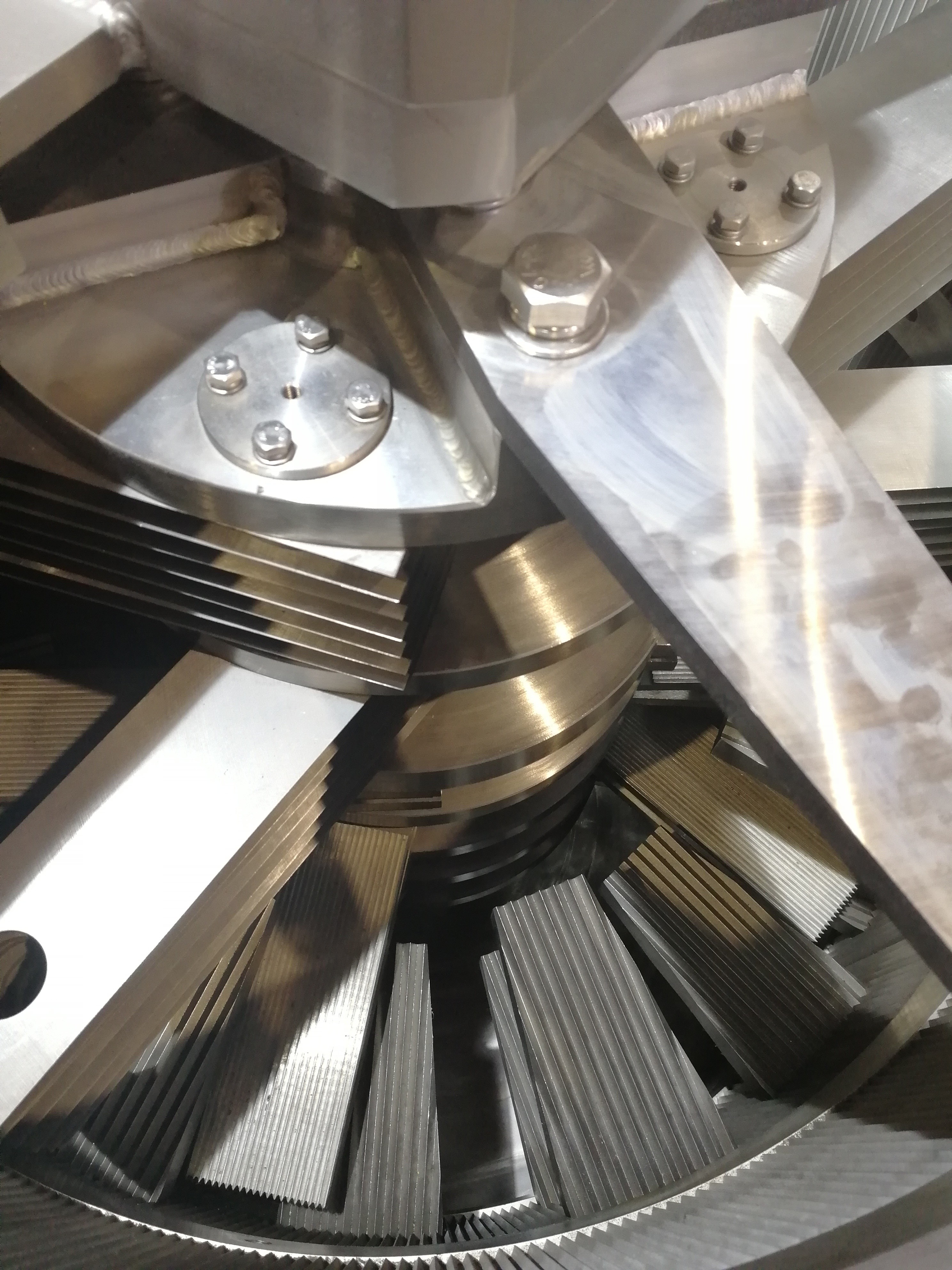

The raw material vertically falls into the high-speed rotating impeller from the upper part of the machine. Driven by high-speed centrifugal force, materials are regularly hinged in the cutter, swift knife and grinding plate clamping chamber on the rotary table. When the turntable rotates, the cutter will cut the materials inside the machine into pieces, the swift knife will cut the sections into fine particles, and the grinding plate will grind them into slurry. The crushed materials are discharged straight through the bottom part, forming a closed circuit and circularly discharged for many times. The machine is mainly composed of frame, cutter, throwing knife, grinding plate, coupling, bearing, motor, drive shaft and other components. The frame is a fully closed frame structure welded from stainless steel thick plates and other profiles, having an excellent safety protection performance.

• Application Scope:

Suitable for fruit and vegetables crushing such as stone fruit (mango, peach, apricot, jujube etc.),berry (kiwi, strawberry etc.), kernel fruit (apple, pear, pumpkin etc.) and also fiber vegetables (green vegetable, celery, pepper, etc.).
Industrial Fruit And Vegetable Crusher High Crushing Efficiency Energy Saving 1
• Equipment Features:

1. High crushing efficiency, energy saving, minor impacts by product status, high crushing ratio, high output capacity, 1.5 times higher than similar domestic

2. Wearing parts use high hardness, high toughness and multi-alloy wear-resistant materials, the service life extended by 2-3 times;

3, The Cutter, throwing knife, grinding plate are easy and convenient to replace, can meet a variety of products crushing.


Industrial Fruit And Vegetable Crusher High Crushing Efficiency Energy Saving 2
