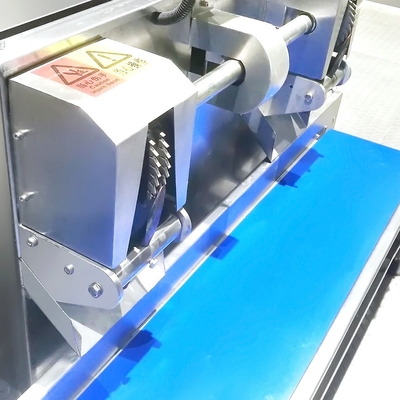

Horizontal Stainless Steel Fruit Conveyor Belt Energy Saving Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Belt Type Conveyor | Material | Stainless Steel |
|---|---|---|---|
| Voltage | According To Customer Local Voltage | Power Consumpiton | Energy Saving Type |
| Warranty | 12 Months | Application | Used For Fruit Conveying |
| Sea Port | Shanghai | ||
| High Light | Fruit Processing Stainless Steel Conveyor,Stainless Steel Fruit Conveyor Belt,Horizontal Fruit Conveyor Belt |
||
Product Description
Fruit conveyor stainless steel Conveyor With Belt Manufacturer & Supplier Good quality Perfect Service
The belt conveyor adopts chip rubber belt baffle as the carrier, which is suitable for the lifting and transportation of various materials in the food industry.
features
The rack is made of all stainless steel. Various profiles can be made according to user requirements, and spray pipes and water collecting tanks can also be added.
The machine uses the transmission motor to drive the sheet base rubber to rotate, so as to realize the conveying and lifting of materials. Horizontal conveying and inclined lifting conveying can be realized.
The lifting angle during inclined conveying is generally no more than 45 °.
Advantages of non slip belt conveyor
The fruit and vegetable belt conveyor adopts foreign advanced technology for processing, with compact structure, low noise and convenient use, which is convenient for open-air transportation and hoisting.
Technical parameter
| Model | Description | Transportation capacity |
Suggested power (kw) |
||
| Line speed | Capacity | ||||
| PDSS-P250 |
Supporter is made of sus304 stainless steel, Material of the belt can be of PPC,PV or PU, Speed can is step-less adjustable |
0.2-0.6m/s | 1-3(m³/H) | 5-10m | 0.55 |
| 10-20m | 0.75 | ||||
| PDSS –P400 | 0.2-0.6m/s | 4-6(m³/H) | 5-10m | 0.75 | |
| 10-20m | 1.1 | ||||
| PDSS –P800 | 0.2-0.6m/s | 8-10(m³/H) | 5-10m | 1.1 | |
| 10-20m | 2.2 | ||||
| PDSS -P1000 |
0.2-0.6m/s
|
8-10(m³/H) | 5-10m | 1.5 | |
| 10-20m | 3 | ||||
| PDSS -P1200 | 0.2-0.6m/s | 10-15(m³/H) | 5-10m | 2.2 | |
| 10-20m | 4 | ||||
| PDSS -P1500 | 0.2-0.6m/s | 15-20(m³/H) | 5-10m | 3 | |
| 10-20m | 5.5 | ||||
Working principle
Belt conveyor includes transmission motor, frame, drive shaft, driven shaft, film rubber conveyor belt and other components.
The film type rubber conveyor belt is driven by the transmission motor to rotate.
After entering the conveyor belt, the materials move with the conveyor belt to achieve the purpose of conveying and lifting.
Parameter
Effective width: 300-1200mm
Lifting angle: ≤ 38 °
Limit length of single drive: 1000-10000mm
Conveying speed: up to 18m / min (adjustable)
Motor power: 0.18 kW / 0.37 kW / 0.55 kW / 0.75 kW / 1.1 kW / 1.5 kW / 2.2 kw

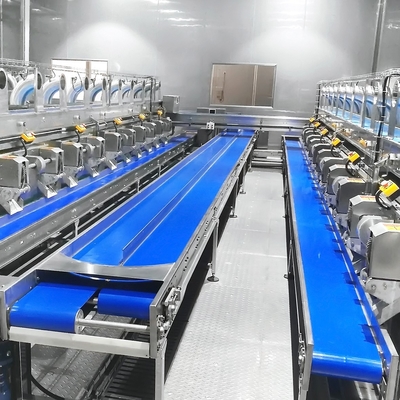

This belt conveyor is suitable for automatic juice or sauce processing line of any fruit and vegetable.
