Automatic Industrial Bubble Washing Machine For Vegetable Fruit 220V

Place of Origin China
Brand Name Beyond
Certification ISO9001:2015
Model Number 2-20TPH
Minimum Order Quantity 1 set
Packaging Details Wooden package and Frameworks;Container Loading;PE Film Wraps
Delivery Time 30 days after payment
Payment Terms L/C, T/T
Supply Ability 30 sets per month
Product Details
Machinery Function Washing And Cleaning Output Product Name Fruit And Vegetabbles Raw Materials
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops Voltage 220V/380V
Power(W) 2-5KW Dimension(L*W*H) 3000*800*1200mm
Weight 300kg-1000kg After-sales Service Field Installation, Commissioning And Training
Application Fields Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory,Fruit Juice Plant Capacity 2-20TPH
Control Type Full-automatic Name Surfing Washing Machine/Bubble Washing Machine
High Light

Industrial Bubble Washing Machine

,

Bubble Fruit And Vegetable Washer

,

Fruit Washing Machine 220V

Leave a Message
Product Description



Great Quality Industrial bubble washing machine vegetable and fruit

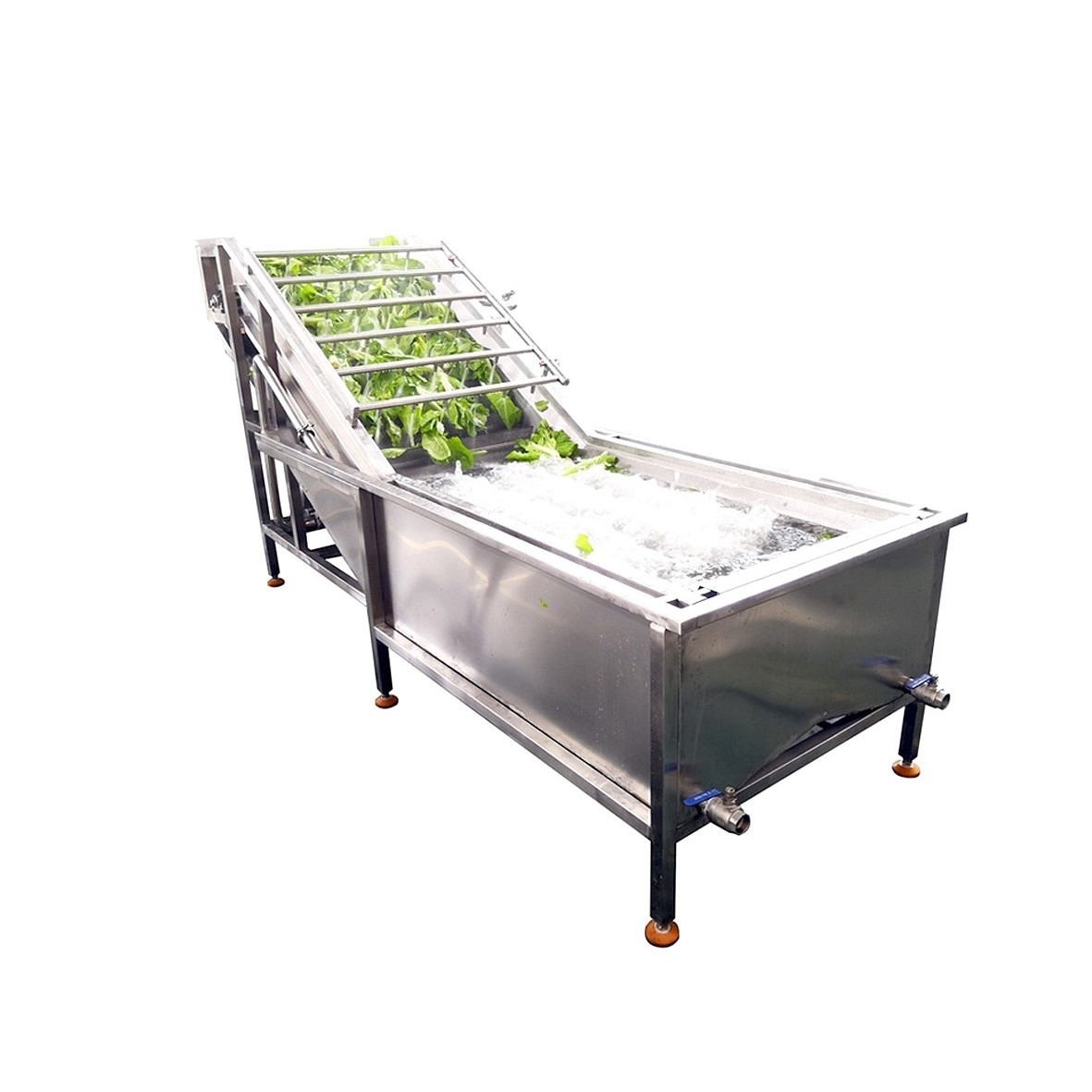

Automatic Industrial Bubble Washing Machine For Vegetable Fruit 220V 0

Introduction

Vegetable and fruit bubble washing machine is widely used and is the preferred equipment for most food washing processes. Because the equipment replaces manual operation, it saves cost, solves the problem of labor shortage, improves output and product quality, and has the advantages of less investment.





Application



Bubble washing machine

1. Cleaning of various fruits and vegetables: peas, broccoli, rape, cucumber, spinach,

2. Cleaning of various agricultural products: medlar, red jujube, chestnut, peanut, hawthorn, etc.,

3. Various seafood cleaning operations: fish, shrimp, starfish, crab, etc.,







Technical parameter(refer to the raw fruit processing capacity)

Model Description External dimension
(L×W×H)(mm)
Suggested capacity Suggested power(kw)
capacity and power varies as to
 different fruits
GQXJ-2 Material: sus304 stainless steel ,speed is step-less adjustable, with air fan and compressing pump 3000*800*1200 ≤2(T/H) 2.2
GQXJ-5 3500*1000*1200 3~5(T/H) 3
GQXJ-10 5000*1100*1200 6~10(T/H) 4.4
GQXJ-15 5000*1300*1200 11~15(T/H) 5.5
GQXJ-20 5000*1500*1200 16~20(T/H) 5.5

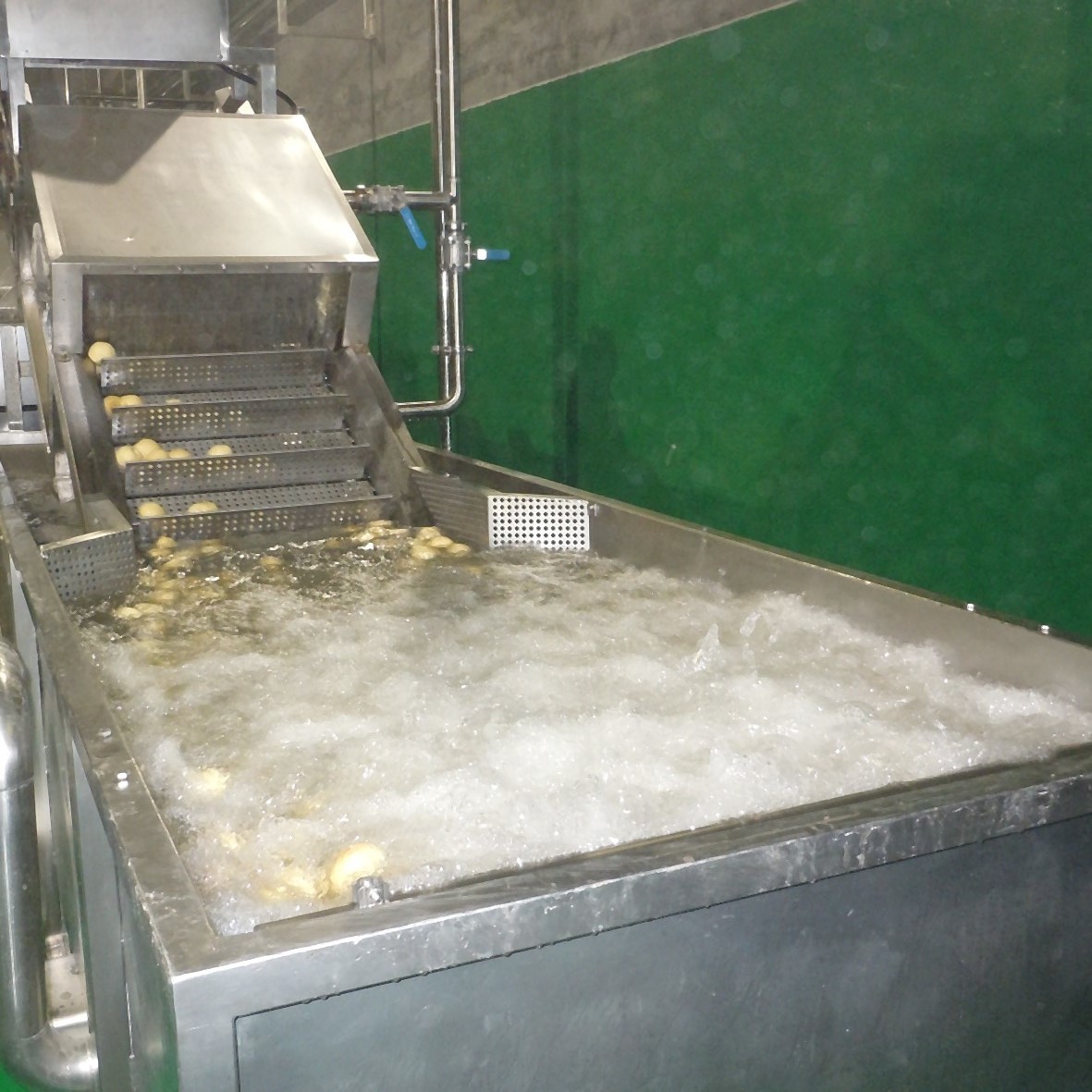

Automatic Industrial Bubble Washing Machine For Vegetable Fruit 220V 1

Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;

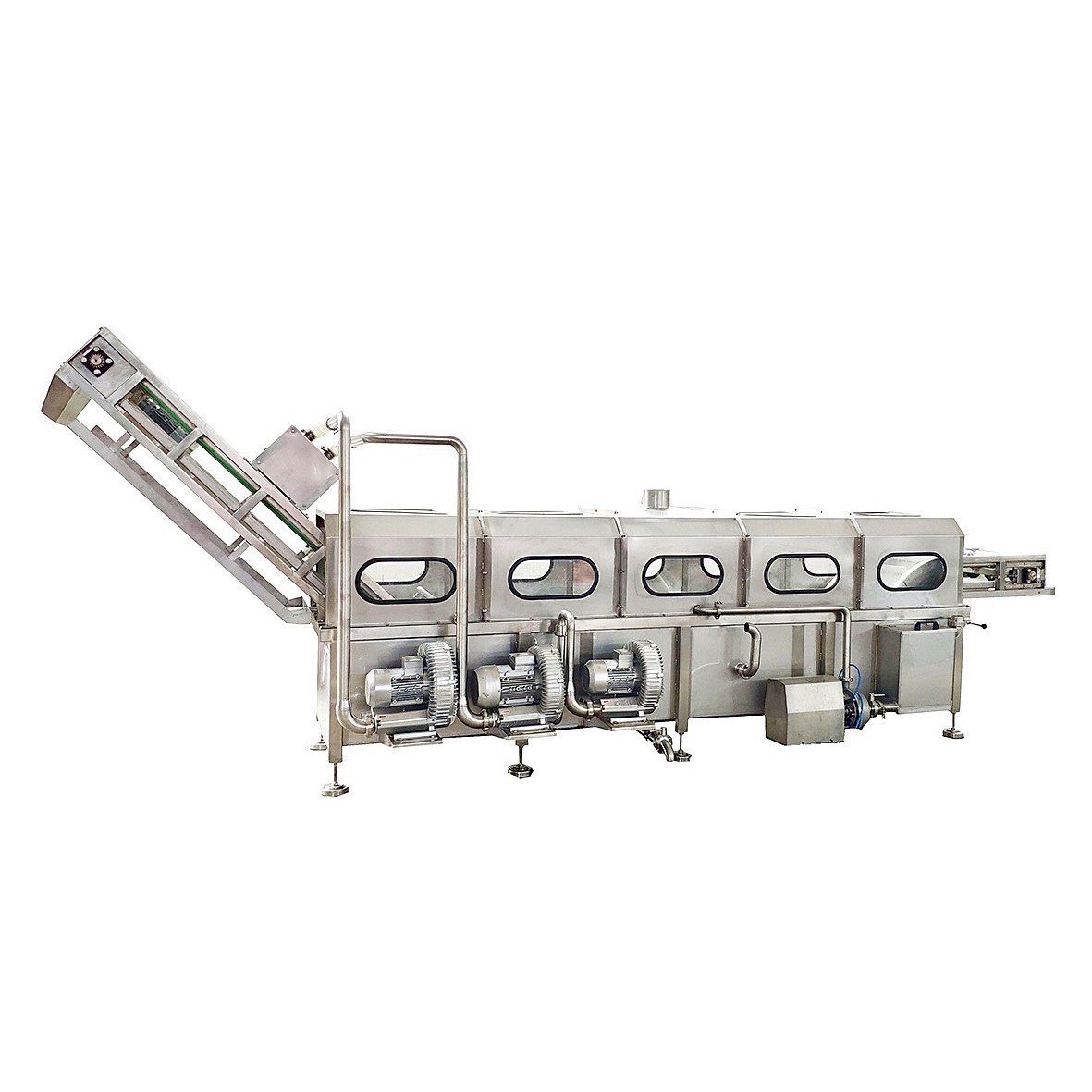

Automatic Industrial Bubble Washing Machine For Vegetable Fruit 220V 2





Features

1. The vegetable and fruit bubble washing machine is equipped with circulating water pump and filter water tank to realize the recycling of cleaning water, save water, and replace new water according to the actual situation;

2. The conveyor belt motor of the equipment can realize the speed regulation function. The cleaned vegetables are transported through the network chain and automatically fed and discharged as needed

The conveying speed of the conveyor belt needs to be adjusted during production;

3. The spraying device comprises a spraying device. After cleaning, it is transported to the next process to spray the product to reduce secondary pollution;

4. The equipment plate adopts SUS304 food grade stainless steel, which has no corrosion and deformation, stable operation and durability.

5. In the process of material conveying, the washing machine adds the function of spray cleaning, so that the materials can be sprayed after being cleaned in the steam bath.

Cleaning, the function of this process is to replace and remove the dirty water on the surface of the material, so as to improve the cleaning effect of the material.

6. At the same time, after the material is cleaned twice, the external cleaning spray water will automatically flow into the water bath to replace the auxiliary water bath.

The internal cleaning water maintains the cleanliness of water bath water, improves the utilization rate of cleaning water and improves the cleaning effect.
