Air Bubble Type Tomato Washing Machine For Vegetable Fruit Processing

Place of Origin China
Brand Name Beyond
Certification ISO9001:2015
Model Number 2-20TPH
Minimum Order Quantity 1 set
Packaging Details Wooden package and Frameworks;Container Loading;PE Film Wraps
Delivery Time 30 days after payment
Payment Terms L/C, T/T
Supply Ability 30 sets per month
Product Details
Machinery Function Washing And Cleaning Output Product Name Fruit And Vegetabbles Raw Materials
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops Voltage 220V/380V
Power(W) 2-5KW Dimension(L*W*H) 3000*800*1200mm
Weight 300kg-1000kg After-sales Service Field Installation, Commissioning And Training
Application Fields Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory,Fruit Juice Plant Capacity 2-20TPH
Control Type Full-automatic Name Tomato Water Washing Machine
High Light

Tomato Washing Machine For Vegetable Processing

,

Air Bubble Tomato Washing Machine

,

Tomato Bubble Washing Machine

Leave a Message
Product Description



Vegetable and Fruit Washing Machine Air Bubble Type Tomato Water Washing Machine for Sale

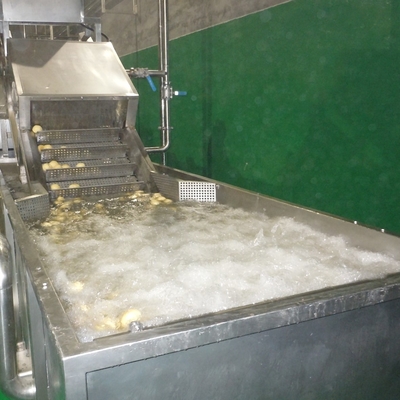

Air Bubble Type Tomato Washing Machine For Vegetable Fruit Processing 0

Introduction


Tomato washing machine, also known as tomato floating washing machine, uses water to transport tomatoes to the next process, and the sand and gravel are precipitated to the bottom for drainage.



Tomato washing machine

It is used for floating cleaning of fresh tomatoes, carrots, apples, mustard, onions, peppers and other roots and bulk fruits and vegetables.

Advantages of tomato washing machine

1. Save water, electricity, time and sanitation.

2. No damage to vegetables, high efficiency, small floor area, safe and reliable.

3. Simple installation, convenient operation, convenient maintenance and low energy consumption.

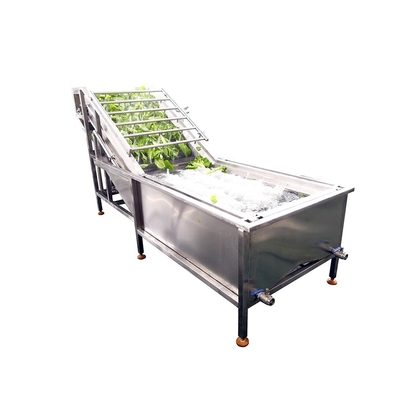

Air Bubble Type Tomato Washing Machine For Vegetable Fruit Processing 1

Technical parameter(refer to the raw fruit processing capacity)

Model Description External dimension
(L×W×H)(mm)
Suggested capacity Suggested power(kw)
capacity and power varies as to
 different fruits
GQXJ-2 Material: sus304 stainless steel ,speed is step-less adjustable, with air fan and compressing pump 3000*800*1200 ≤2(T/H) 2.2
GQXJ-5 3500*1000*1200 3~5(T/H) 3
GQXJ-10 5000*1100*1200 6~10(T/H) 4.4
GQXJ-15 5000*1300*1200 11~15(T/H) 5.5
GQXJ-20 5000*1500*1200 16~20(T/H) 5.5

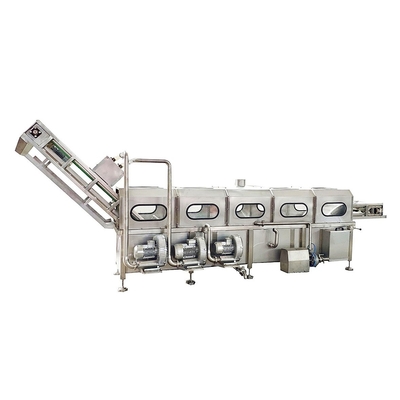

Air Bubble Type Tomato Washing Machine For Vegetable Fruit Processing 2

Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;

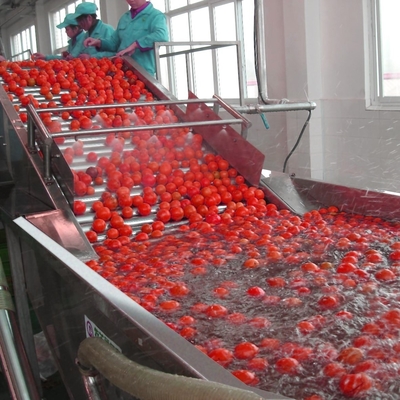

Air Bubble Type Tomato Washing Machine For Vegetable Fruit Processing 3





Characteristics of tomato fruit washing machine

1. This equipment is suitable for cleaning all kinds of fruits and vegetables. Tomatoes are transported by hydraulic transmission, which is hygienic and reliable. It can not only clean, but also save electric energy.

2. Adjustable feet and aeration pump can be cleaned thoroughly without damaging tomatoes.

3. Driven by the water flow in the conveying tank, the tomato follows the water flow into the next process. It is equipped with a spray cleaning device. The ingenious double-layer design allows sand and gravel to settle to the bottom layer and discharge.

4. High quality stainless steel production, super welding technology and unique design process all reflect the beauty of appearance and internal practicability.



How to wash tomatoes

The structure and principle of the tomato cleaning machine is to replace the mesh belt conveyor belt in the water tank with fence plate or mesh plate, which can sink rocks, remove heavy debris and ensure the purity of emissions.

The head of the box is equipped with five water inlets. When the tomato passes through the box, it will continue to move forward under the impact of the water injection port. When the water comes out, the high end is equipped with a nozzle and a high-pressure fan to effectively remove the surface. Moisture proof to ensure the requirements of the next process.

The principle of water shock wave can clean the surface of tomato, improve the working efficiency by more than 50%, effectively kill harmful bacteria and decompose residual pesticides;



Profit of tomato washing machine

If you are in the pre-processing business of fruits and vegetables, you can also use tomato sorters to sort clean and air dried tomatoes, package them, and then sell them at twice the price in supermarkets.




Tomato packaging machine and its final products

If you are a large-scale tomato farmer, you don't have to worry that your tomatoes won't sell out in the current season.




Ketchup production line

The cleaned and air dried tomatoes can be further processed through our ketchup production line to make large barrels of ketchup. With a shelf life of up to one year, it is not only easy to store, but also bring more revenue to your tomato planting business.



Air Bubble Type Tomato Washing Machine For Vegetable Fruit Processing 4
