Multi Functional Fruit Processing Equipment Pomegranate Peeling Machine 5THP

Place of Origin CHINA
Brand Name BEYOND
Certification ISO9001
Model Number BY-5T
Minimum Order Quantity 1set
Price USD 1500-29000/set
Packaging Details standard sea worthy packing
Delivery Time 40-50days
Supply Ability 60set per year
Product Details
Processing Capacity 5-20TPH Application Apple/pear/pineapple
End Product Fruit Juice Warranty 12months
Name Pomegranate Peeling Machine
High Light

Pomegranate Fruit Peeling Machine

,

5THP Pomegranate Peeling Machine

,

Multi Functional Pomegranate Peeling Machine

Leave a Message
Product Description

Multi-functional Fruit Peeling Machine pomegranate peeling machine



Multi Functional Fruit Processing Equipment Pomegranate Peeling Machine 5THP 0



Pomegranate seed extractor pomegranate automatic peeling machine is used to separate pomegranate peel and pomegranate seed. It is an essential equipment for the pretreatment of pomegranate juice extraction.




Characteristics of pomegranate seed extractor

▼ large production capacity;

▼ the particle size of the material is the same;

▼ stable operation and low noise during operation;

▼ made of high-quality stainless steel



3. Photos:

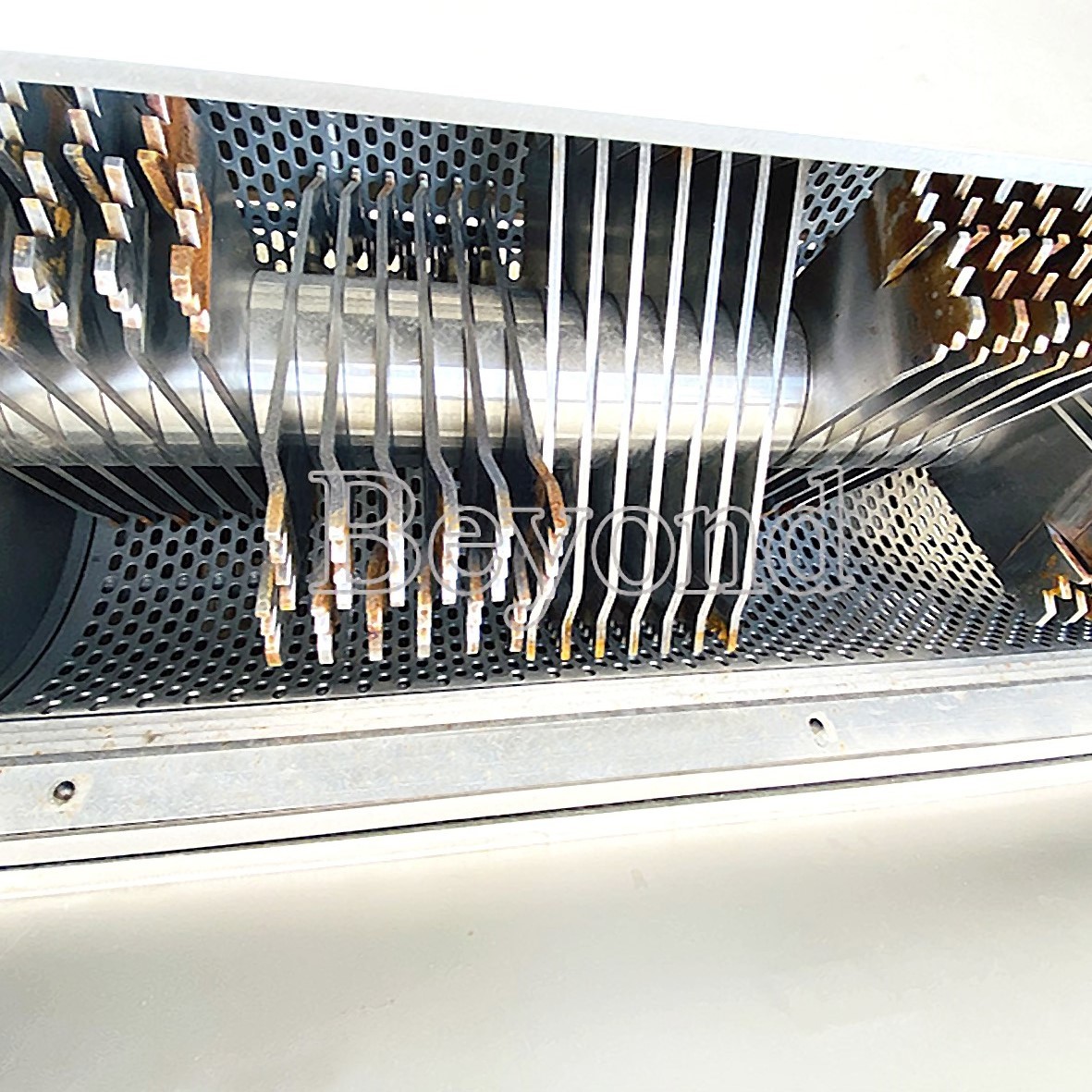

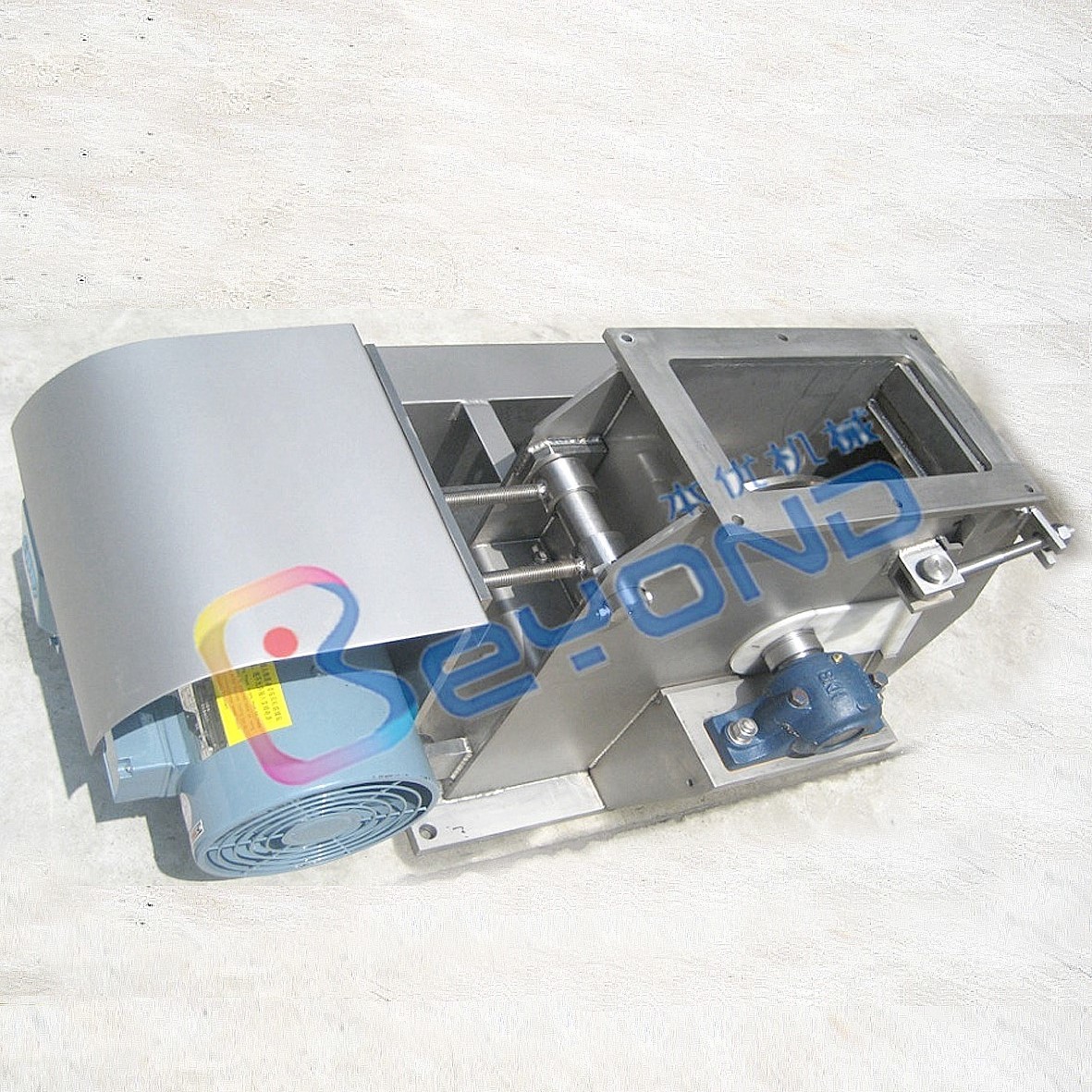

Multi Functional Fruit Processing Equipment Pomegranate Peeling Machine 5THP 1Multi Functional Fruit Processing Equipment Pomegranate Peeling Machine 5THP 2





The following is the production process of pomegranate juice for your reference!!

How to use pomegranate peel?

Pomegranate enters the crushing device from the feed hopper. After the relative extrusion of the press roller and the severe pressure of the blade on the press roller, the pomegranate seed and some fruit juice leak out of the screen hole, and the pomegranate peel is discharged from the tail of the equipment.




Pomegranate peeling machine

Application of pomegranate seed removal tool

In fruits and vegetables, such as grapes, seabuckthorn, pomegranate seeds, oranges, etc., the sugar content is high. Traditional Chinese medicine residue, pulp residue and bagasse in plants contain coarse and large fibers.



In these equipment, they may slide during the pressing process, or because the fiber is thick and cannot be discharged, a single screw press with forced feed plate should be used.



6.Technical parameter and price

Machine name Model Machine type Capacity Power
Pineapple crusher with hopper



CSPSJ-5



Teeth type



5TPH

380V 50hz

5.5kw



Machine size



1705*585*645mm



Machine weight:550kg





Machine material



SUS 304; 3Cr13 for crusher plate























Advantages of automatic pomegranate peeling machine

We need to design the hydraulic pressure and pressure chamber of the forced feed plate according to different materials. If it is not designed properly, it will lead to the bursting of the drying cylinder.



The single screw press can control the dry humidity, the discharge is uniform and convenient, and the output is satisfactory to users.

It can minimize the damage of pomegranate seeds and retain more juice. It can not only keep the original juice and flavor of pomegranate, but also meet the standard tannin content, no more than 4%. It has high nutritional value and avoids bitterness.




Pomegranate products

Automatic pomegranate peeling machine is used for pomegranate wine, pomegranate juice and other production equipment. It is one of the special equipment for pomegranate deep processing. If you finally want pomegranate juice or frozen peeled pomegranate seeds for packaging, or pomegranate powder.

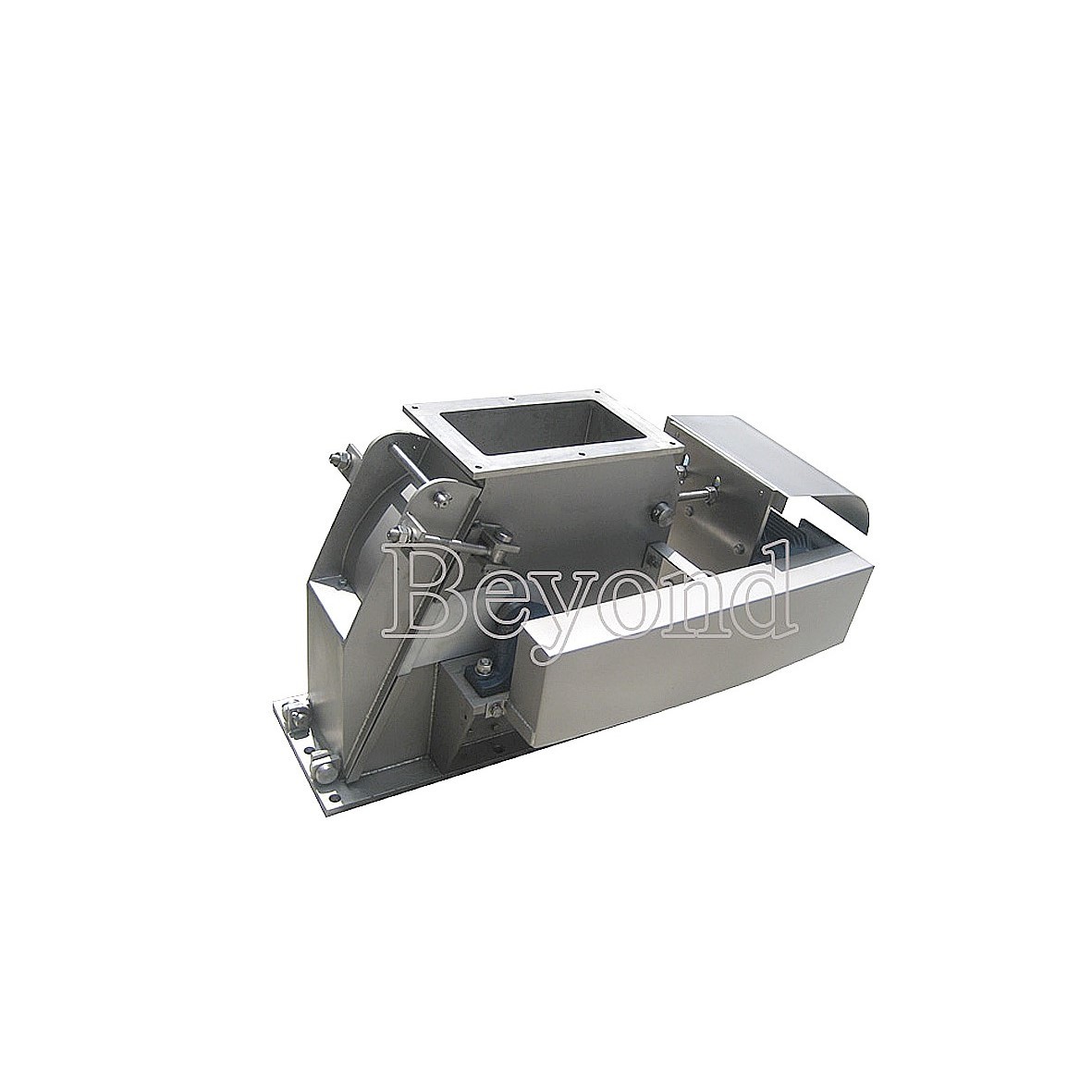

Multi Functional Fruit Processing Equipment Pomegranate Peeling Machine 5THP 3

7. Spare parts list

No Name Specification Material

Qty

(Piece)

1 Framework oil seal 50*68*8 Fluorous rubber 3
2 Framework oil seal 55*72*8 Fluorous rubber 1
3 Self aligning ball bearing 2210   2
4 Lubricating nipple M8*1 Copper 2
5 Blade     3

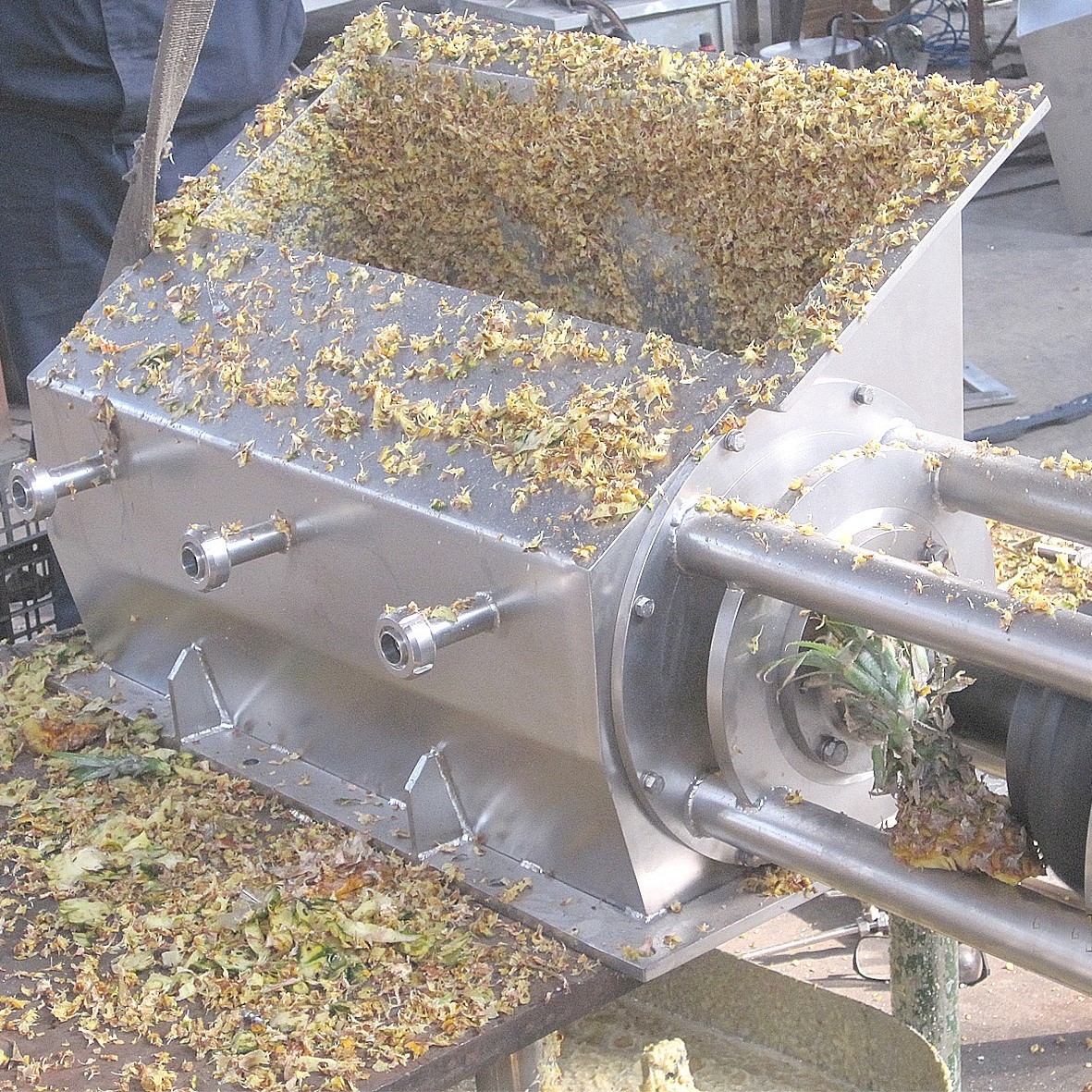

Multi Functional Fruit Processing Equipment Pomegranate Peeling Machine 5THP 4
