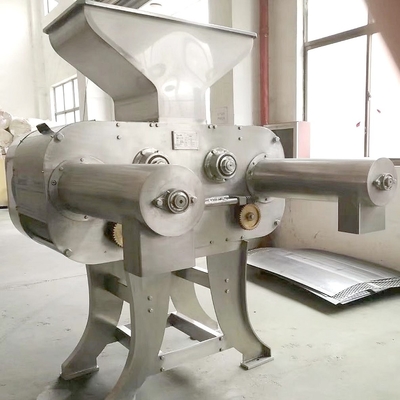

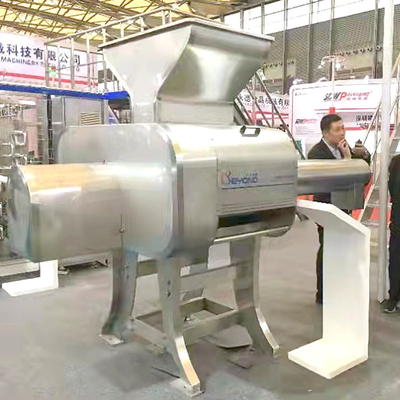

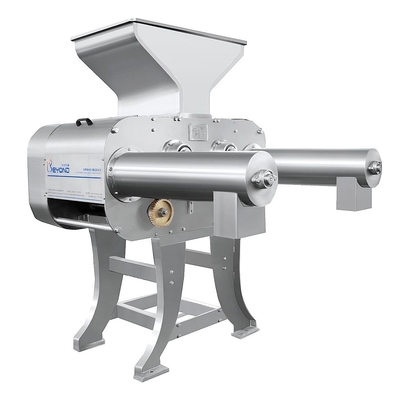

Roller Type Fruit Processing Equipment Automatic Industrial Orange Juicer Machine

         Orange juicer machine automatic industrial orange juice extractor roller type juicer machine

The industrial orange juice machine can efficiently process all kinds of fruits and extract juice continuously. This industrial orange juice machine can realize full automation, and the operation is very simple. It can be competent only with simple training.

Multifunctional stainless steel drum Juicer: the spiral commercial juicer is suitable for all kinds of fruits and vegetables. It can be used to automatically separate fruit juice from waste, such as melon, apple, orange, pineapple, pear, lemon, pomegranate seed, papaya, tomato, beet, carrot, etc.

Roller half-cut juice extractor is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.

Equipment description

This machine is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.

It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.

It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.This machine is composed of the parts: machine frame, gear box, juice collecting bucket, left rotor drum, blades, 4-opens rotary tables, right rotor drum, bowl-shape conveyor, safety cover, driving motor, etc. The working theory is the motor drives the main shaft through the V-belt pulley, the main shaft will transfer the power to the following structures: bowl-shape conveyor, 4-opens rotary tables, left rotor drum, and right rotor drum.

Features of industrial orange juice machine:

1. This machine is made of stainless steel. Therefore, it is easy to clean and disinfect. Always keep the inside and outside of the machine clean after each use.

2. Before blanking, please cut the fruits and vegetables in half and move the spiral shaft clockwise.

3. Advanced design, compact structure and beautiful appearance. Complete all kinds of fruit and vegetable juice automatically and separate residue juice automatically. High efficiency, energy saving, low noise and no pollution.

The industrial orange juice machine can be customized according to the production needs of customers, so that this semi cutting drum Juicer can fully meet the production and installation needs of customers, and better play an important role in daily work. We provide integrated services of pre-sales design and after-sales installation and commissioning, so that customers from different countries can use it at ease.
