SUS304 Automatic Mango Washing Machine For Fruit Cleaning

Automatic mango washing machine industrial fruit mango cleaning machine

Introduction

Mango fruit washing machine is an important design in the fruit and vegetable processing line. Mango industrial fruit washing machine is a kind of bubble fruit washing machine. It can thoroughly clean the soil on the surface of fruits and vegetables by means of surfing, bubbling and water spraying. Beyond provides different models of mango fruit cleaning machines at different costs. The mango fruit washing machine can efficiently handle fruits of different sizes, so that these fruit products can smoothly enter the next workflow of the fruit and vegetable processing line. The mango fruit washing machine can also be used alone, so as to turn the harvested fruits into edible clean fruits.

Main structure

The equipment is mainly composed of frame, main drive, passive drive, brush roller, reduction motor, fruit catching device, spray device, feed hopper, discharge hopper etc.

Detailed description of mango fruit washing machine

1. Mango fruit washing machine II is made of high-quality SUS304 stainless steel, which meets the national food safety standard.

2. Use bubble rolling, brush coating and spraying technology to clean objects to the greatest extent.

3. The pipeline can be customized according to the different processing characteristics of each single user to best meet the process requirements.

4. Mango fruit washing machine adopts the design of circulating filtered water, and users can set it according to different cleaning contents.

Fruit driving device(Entire machine features)

The surface of the brush roller is elliptical arc shape, which can effectively remove the residues, debris and pesticide residues on the fruit skins.

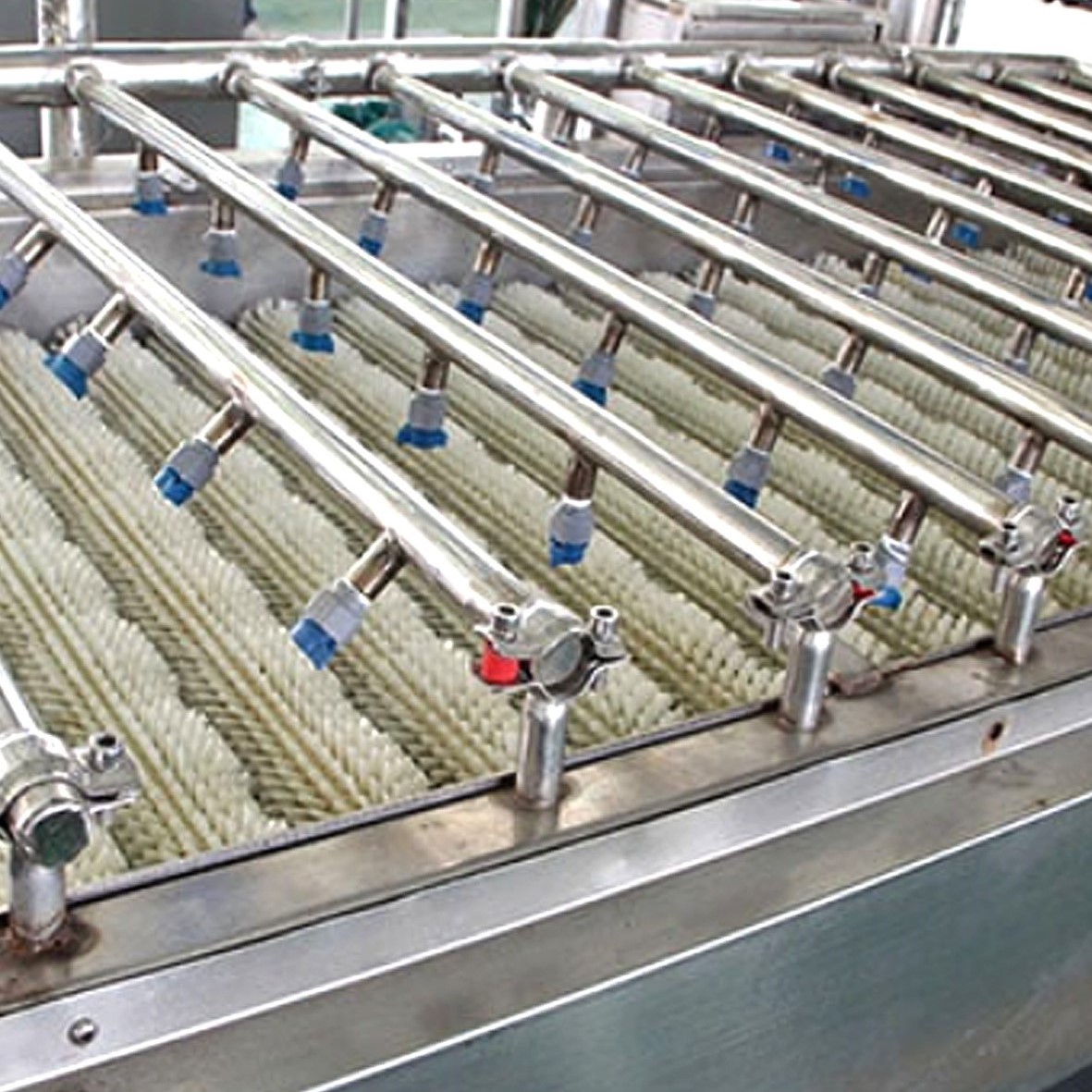

The upper part of the machine is equipped with a spray device, which can effectively wash and remove the agricultural residues, leaves and soil remaining on the surface of fruits and vegetables.The frame structure welded by stainless steel tubes and other profiles, with good overall rigidity, the whole machine in low vibration, and the transmission chain has a safety cover to ensure good safety protection performances.The equipment has a fruit catching device, effectively convey the remaining product materials to the discharge port, and then enter the next working section.

Working principles
The cleaned fruit go to the brush cleaning machine from the previous process, and come into the high-speed rotating brush roller. By means of the collisions between the fruit and the friction on fruit from the brush roller, remove the remaining agricultural residues, leaves and soil on the surface of the fruits and vegetables. The spray device on the top cleans the removed debris, several sets of brush rollers operate at the same time, and the auxiliary drive of the fruit drive device convey the product materials to the discharge port, and then go to the next process.


Technical parameter(refer to the raw fruit processing capacity)

Application of mango fruit washing machine:

Industrial mango fruit washing machine is widely used to clean materials with high shape requirements such as carrots, hawthorn, apples, oranges, mangoes, jujubes and jujubes. It is suitable for granular, leaf, root and other products such as vegetables, fruits and aquatic products. We can customize the mango washing machine according to your capacity requirements.

In addition to the motor, bearing and other standard parts, the rest of the mango fruit washing machine are made of SUS304 / 2B stainless steel, which fully meets the hygienic requirements of exported food.

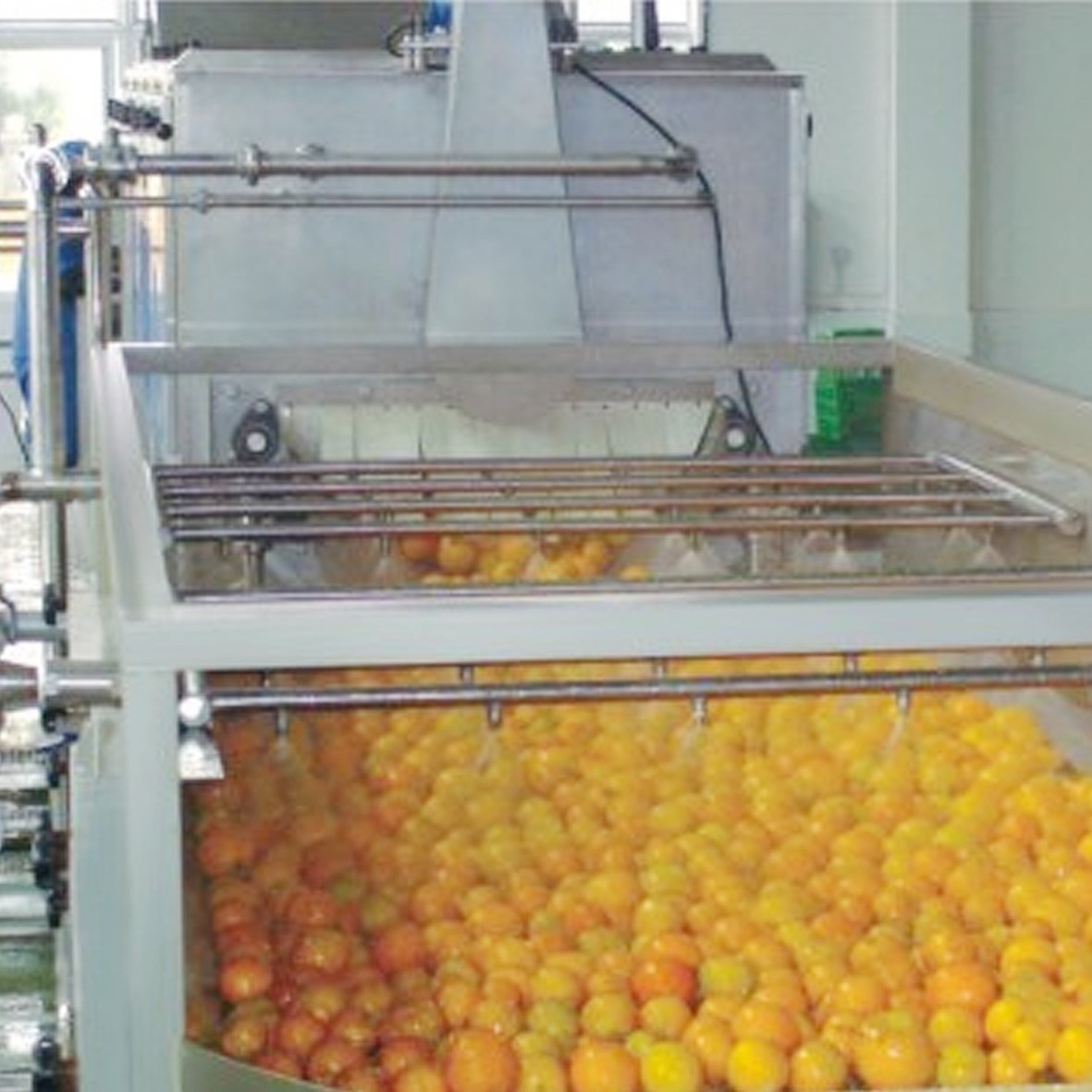

The fruit, vegetable and mango washing machine is designed with circulating water pump and filter water tank. Use blistering, surfing and high-pressure spraying. The box is equipped with a forced impurity removal filter water tank for water circulation treatment to remove impurities mixed into the product and thoroughly clean it. This kind of cleaning equipment is indispensable to mango processing plant.

The mango fruit washing machine can be customized according to the actual needs of customers, so that the mango fruit washing machine can fully meet the needs of customers and maximize the investment benefit of purchasing equipment. Our mechanical engineers will carry out simultaneous design from pre-sales to after-sales technical support, so that customers can buy at ease. Any problems encountered by customers in the process of use can be solved at the first time. Mango fruit washing machine is exported to many countries and regions in the world and has been highly recognized by local customers.
