ISO Automatic Fruit Processing Equipment Industrial Blueberry Washing Machine

Place of Origin China
Brand Name Shanghai Beyond
Certification ISO/CE/SGS
Model Number BY-CW
Minimum Order Quantity 1PCS
Price negotiable
Packaging Details exporting standard package
Delivery Time 60 days upon receipt of advance payments and confirming the drawing
Supply Ability 20pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel And Plastic Speed Adjustable
Advantage Avoiding Chemicals Solvents Or Reagents Application Plastic Crates
Certification CE ISO Warranty 1 Year
After-sales Service Provided Video Technical Support Capacity 1-5t/h
Name Industrial Blueberry Washing Machine
High Light

Industrial Blueberry Washing Machine

,

Automatic Blueberry Washing Machine

Leave a Message
Product Description

Industrial blueberry washing machine automatic blueberry washing equipment for sale



ISO Automatic Fruit Processing Equipment Industrial Blueberry Washing Machine 0



Introduction

Blueberry cleaning machine cleans the surface of fruits through high-speed brush and water flow, so that a large number of fruits

can be thoroughly cleaned in a very short time. Blueberry cleaning machine can be used alone or integrated into ready-made fruit

processing production line. Blueberry cleaning machine is widely used for cleaning mulberry, cabbage, spinach, lettuce, pepper, leek,

musk, carrot, potato, sweet potato, apple, pear, Begonia rootstock, fish and shrimp. It is designed of stainless steel and driven by mesh

belt. The high-pressure air pump generates gas to make the vegetables rotate strongly in the washing machine.



The bubble type blueberry cleaning machine mainly works by bubbling, surfing, cleaning spray and other means to thoroughly clean the fruit cleaning liquid.



1. This is a stainless steel fruit washing and drying machine.

2. High pressure fan and high-pressure water impact are adopted to achieve the effect of soaking, washing vegetables and desalination.

3. Blueberry cleaning machine is suitable for strawberries, apples, pears and other vegetables.



ISO Automatic Fruit Processing Equipment Industrial Blueberry Washing Machine 1



Main structure

The equipment is mainly composed of frame, main drive, passive drive, brush roller, reduction motor, fruit catching device, spray device, feed hopper, discharge hopper etc.



ISO Automatic Fruit Processing Equipment Industrial Blueberry Washing Machine 2

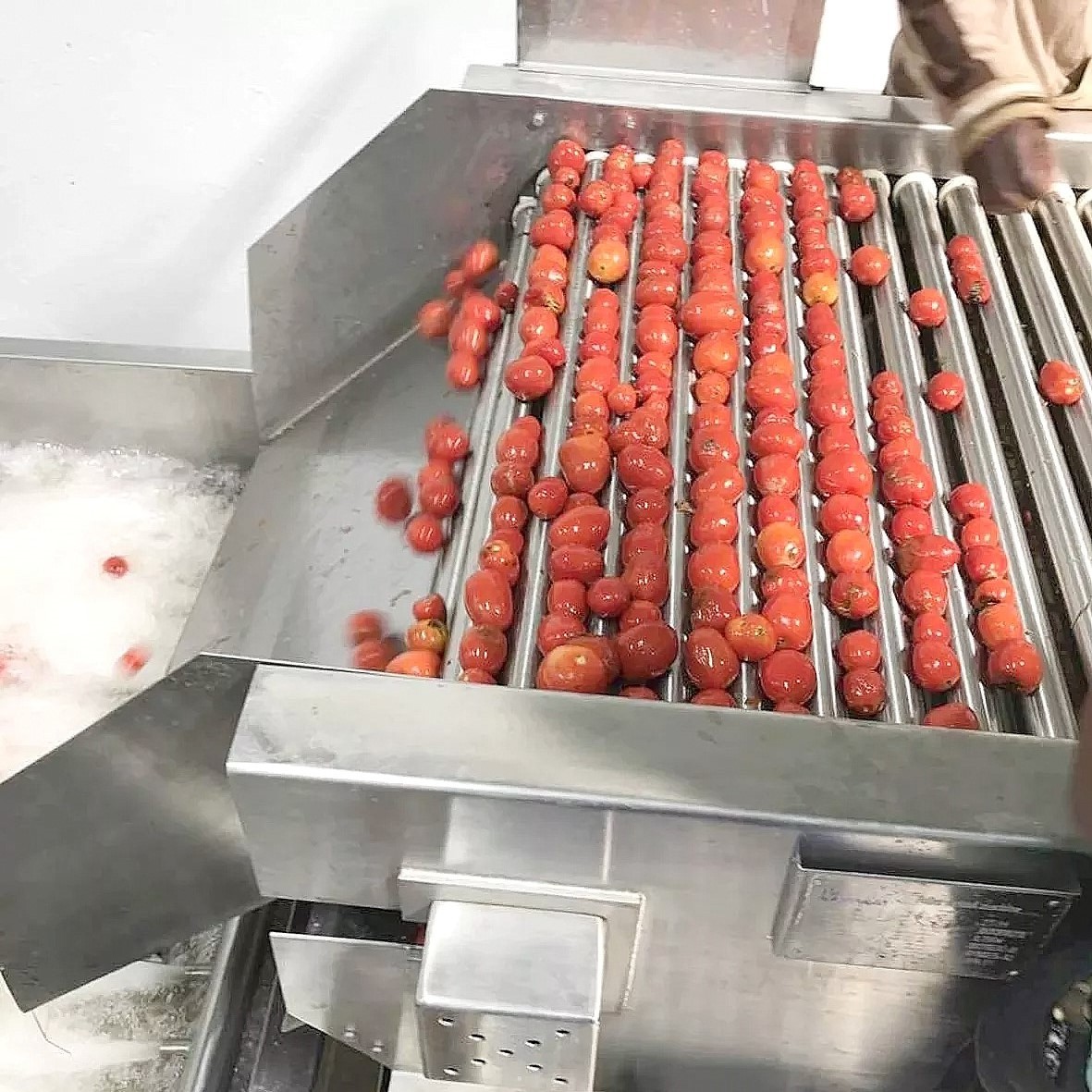

Fruit driving device(Entire machine features)

The surface of the brush roller is elliptical arc shape, which can effectively remove the residues, debris and pesticide residues on the fruit skins.
The upper part of the machine is equipped with a spray device, which can effectively wash and remove the agricultural residues, leaves and soil remaining on the surface of fruits and vegetables.The frame structure welded by stainless steel tubes and other profiles, with good overall rigidity, the whole machine in low vibration, and the transmission chain has a safety cover to ensure good safety protection performances.The equipment has a fruit catching device, effectively convey the remaining product materials to the discharge port, and then enter the next working section.



Working principles
The cleaned fruit go to the brush cleaning machine from the previous process, and come into the high-speed rotating brush roller. By means of the collisions between the fruit and the friction on fruit from the brush roller, remove the remaining agricultural residues, leaves and soil on the surface of the fruits and vegetables. The spray device on the top cleans the removed debris, several sets of brush rollers operate at the same time, and the auxiliary drive of the fruit drive device convey the product materials to the discharge port, and then go to the next process.





Technical parameter(refer to the raw fruit processing capacity)



Model Description

External dimension

(L×W×H)(mm)



Suggested capacity

















Suggested power(kw)

capacity and power varies as to

different fruits

GMQXJ-2 The material used is sus304 stainless steel, speed is adjustable, with water spraying device



3000*1000*1850







≤2(T/H) 1.1
GMQXJ-5 3000*1250*1850 3~5(T/H) 1.5
GMQXJ-10 3800*1500*2000 6~10(T/H) 2.2
GMQXJ-15 4000*1650*2000 11~15(T/H) 3
GMQXJ-20 4000*1900*2000 16~20(T/H) 4
GMQXJ-40 4500*2200*2000 40(T/H) 5.5



ISO Automatic Fruit Processing Equipment Industrial Blueberry Washing Machine 3

Working process of industrial fruit blueberry cleaning machine:

Fruits or vegetables will be polluted by dust, sand, fertilizer microorganisms and packaging materials during growth, ripening, harvesting, packaging, storage and transportation. Therefore, effective cleaning must be carried out before processing. However, due to the variety, shape and size of vegetables, there are also many cleaning methods. In the past, most vegetables were deeply washed manually. However, manual cleaning of vegetables is limited by subjective and objective reasons, such as the proficiency and sense of responsibility of employees. In the cleaning process, there will be problems such as vegetable damage and low cleanliness. With the development of economy, consumers' cleanliness of vegetables will also be improved. Due to more and more attention and higher labor cost, manual cleaning method is no longer suitable for vegetable cleaning.



This fruit blueberry cleaning machine produced by beyond can be used in vegetable wholesalers, fruit and vegetable deep processing enterprises and food processing plants. It is a mechanical equipment for deep cleaning of vegetables before sales or production. The blueberry cleaning machine keeps the original color and cleanliness as much as possible in the process of cleaning fruits.



Blueberry cleaning machine is a fully automatic intelligent fruit processing equipment. It can be customized according to the needs of customers, so as to fully meet the production needs of customers and maximize the investment benefits of customers. All the important parts inside the blueberry cleaning machine are international well-known products, which can be competent for long-term and high-intensity production tasks. If there are any problems in the use process, you can directly consult our after-sales engineers. They will solve any problems encountered by customers at the first time, so that customers can choose our blueberry cleaning machine products at ease.
