220V Bubble Tomato Washing Machine For Vegetable Fruit Processing

Place of Origin China
Brand Name Beyond
Certification ISO9001:2015
Model Number 2-20TPH
Minimum Order Quantity 1 set
Packaging Details Wooden package and Frameworks;Container Loading;PE Film Wraps
Delivery Time 30 days after payment
Payment Terms L/C, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machinery Function Washing And Cleaning Output Product Name Fruit And Vegetabbles Raw Materials
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops Voltage 220V/380V
Power(W) 2-5KW Dimension(L*W*H) 3000*800*1200mm
Weight 300kg-1000kg After-sales Service Field Installation, Commissioning And Training
Application Fields Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory,Fruit Juice Plant Capacity 2-20TPH
Control Type Full-automatic Name Bubble Washing Machine
High Light

Fruit Processing Vegetable Washing Machine 220V

,

Bubble Tomato Washing Machine

,

220V Tomato Washing Machine

Leave a Message
Product Description



Tomato bubble washing machine vegetable and fruit

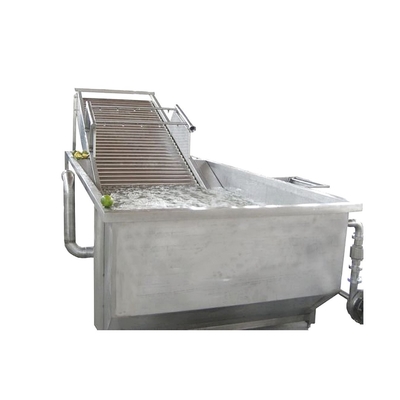

220V Bubble Tomato Washing Machine For Vegetable Fruit Processing 0

Introduction


The tomato fruit bubble vegetable washing machine can efficiently clean fruits and vegetables of different shapes. The tomato washing machine mainly uses bubbles and spray water to clean the surface of tomato vegetables, which does no harm to the surface of red mature tomatoes. Tomato washing machine, also known as tomato floating washing machine, uses fence plate or mesh plate to replace the mesh belt conveyor in the water tank, which can sink stones, remove a large number of sundries and ensure the purity of discharged materials. At the same time, a high-pressure fan can be installed after the secondary spraying of the lifting part. The tomato fruit cleaning function can effectively remove surface moisture and ensure the requirements of the next tomato processing.



220V Bubble Tomato Washing Machine For Vegetable Fruit Processing 1

Technical parameter(refer to the raw fruit processing capacity)

Model Description External dimension
(L×W×H)(mm)
Suggested capacity Suggested power(kw)
capacity and power varies as to
 different fruits
GQXJ-2 Material: sus304 stainless steel ,speed is step-less adjustable, with air fan and compressing pump 3000*800*1200 ≤2(T/H) 2.2
GQXJ-5 3500*1000*1200 3~5(T/H) 3
GQXJ-10 5000*1100*1200 6~10(T/H) 4.4
GQXJ-15 5000*1300*1200 11~15(T/H) 5.5
GQXJ-20 5000*1500*1200 16~20(T/H) 5.5

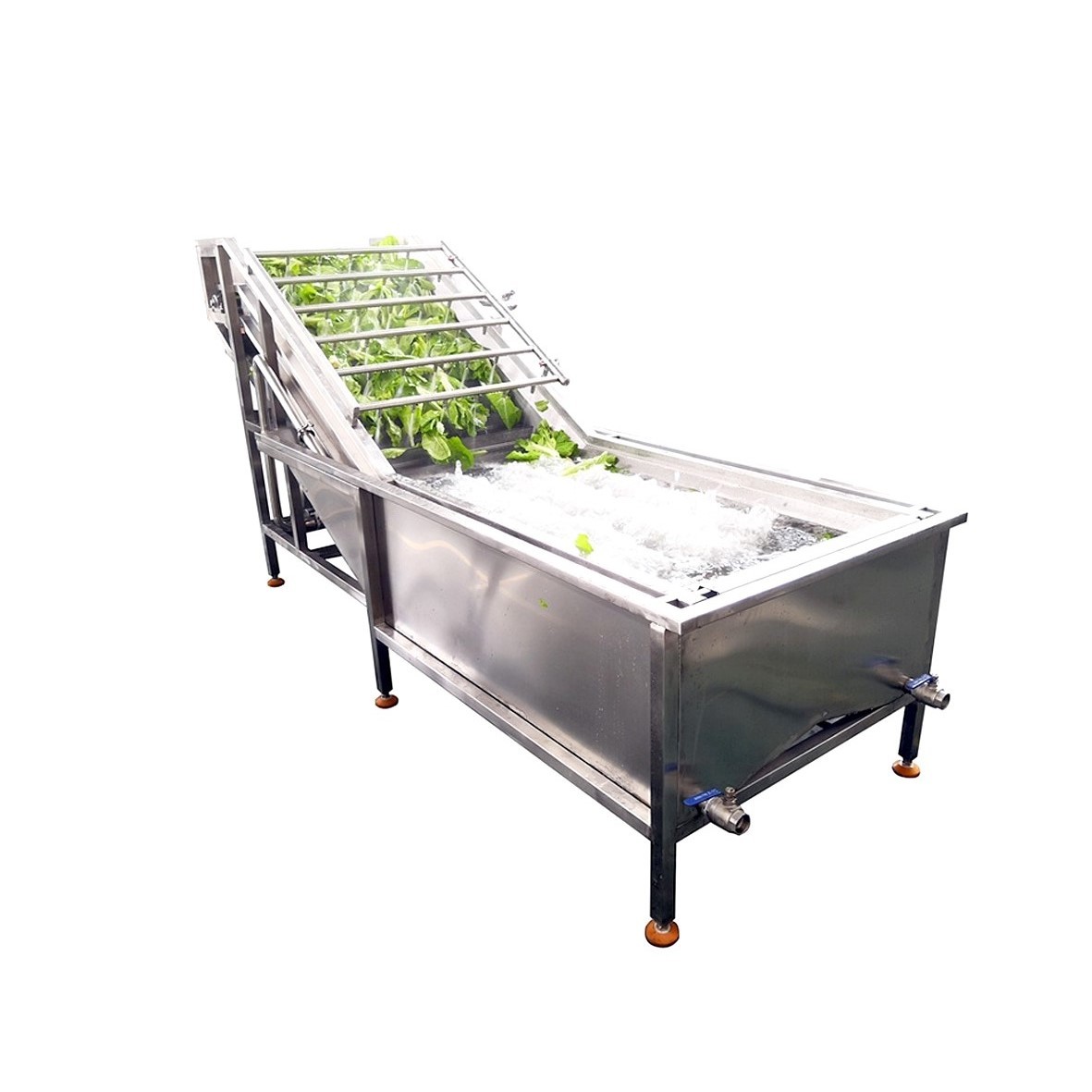

220V Bubble Tomato Washing Machine For Vegetable Fruit Processing 2

Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;

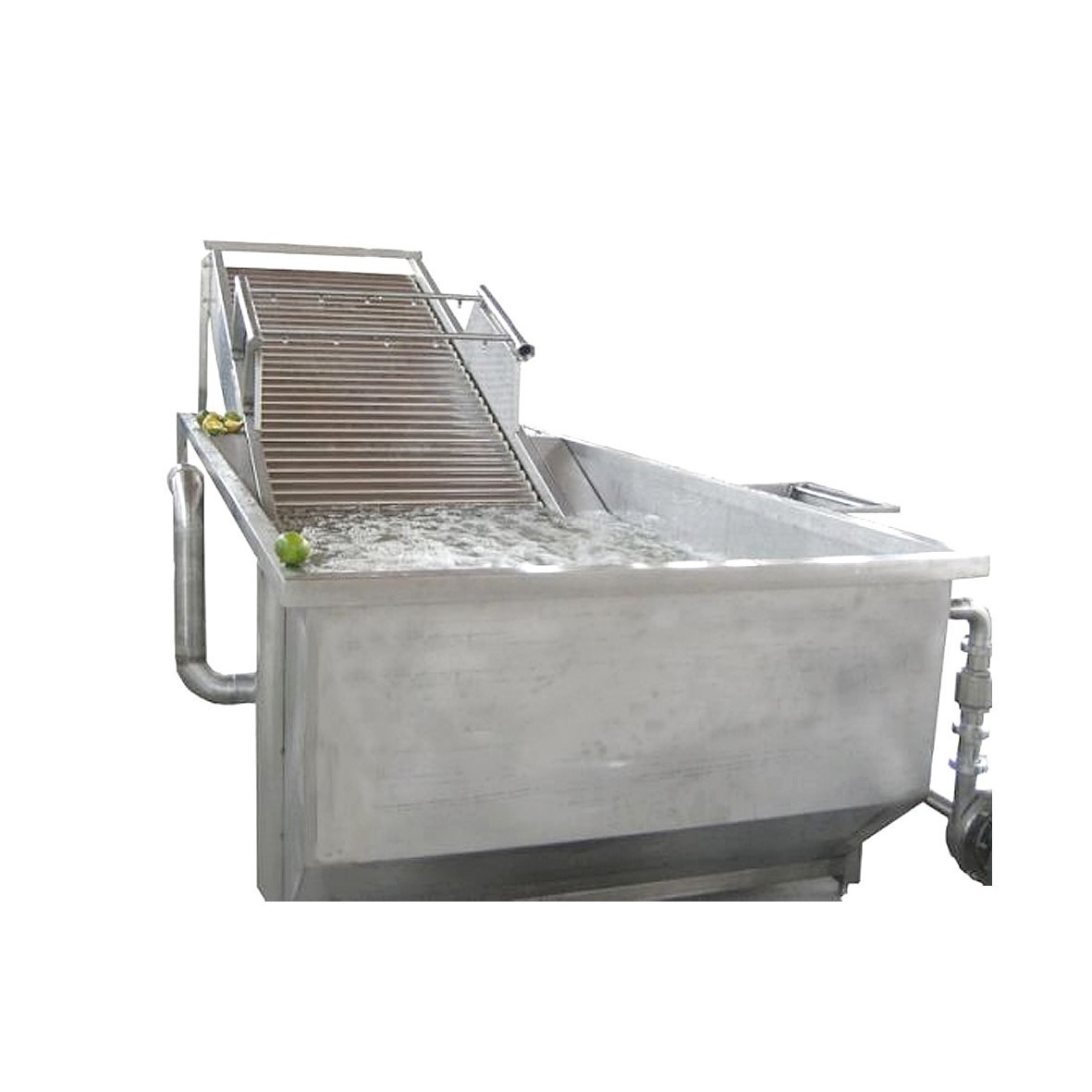

220V Bubble Tomato Washing Machine For Vegetable Fruit Processing 3





Advantages of tomato washing machine

304 food grade stainless steel, durable;

Water saving, time saving, power saving, low energy consumption and high efficiency;

Beautiful appearance, compact structure and high degree of automation in tomato cleaning.



Tomato washing machine features

It uses high-pressure water flow to push tomatoes forward, and high-pressure spray technology can clean pesticide residues on the surface of tomatoes.

The tomato cleaning machine has a bubble generating device to make the tomato in a rolling state and remove pesticide residues on the product surface;

The aerosol overflows from the overflow tank and the sediment is discharged from the sewage outlet to achieve the purpose of cleaning tomatoes.

Tomato fruit washing machine adopts food grade materials, which is safe, reliable and pollution-free. The tomatoes move through the conveyor belt to avoid damaging the tomato skin.



How to wash tomatoes

The structure and principle of the tomato cleaning machine is to replace the mesh belt conveyor belt in the water tank with fence plate or mesh plate, which can sink rocks, remove heavy debris and ensure the purity of emissions.

The head of the box is equipped with five water inlets. When the tomato passes through the box, it will continue to move forward under the impact of the water injection port. When the water comes out, the high end is equipped with a nozzle and a high-pressure fan to effectively remove the surface. Moisture proof to ensure the requirements of the next process.

The principle of water shock wave can clean the surface of tomato, improve the working efficiency by more than 50%, effectively kill harmful bacteria and decompose residual pesticides;



The tomato fruit bubble vegetable washing machine can be designed according to the needs of customers, so that the performance parameters of the machine can fully meet the working needs of customers. We have advanced industrial cleaning technology. Our customers are all over the world. We have rich service experience in customer production in different countries, which can well meet the personalized needs of customers, So that the tomato fruit bubble vegetable washing machine can play a long-term important role in customers' daily production activities.

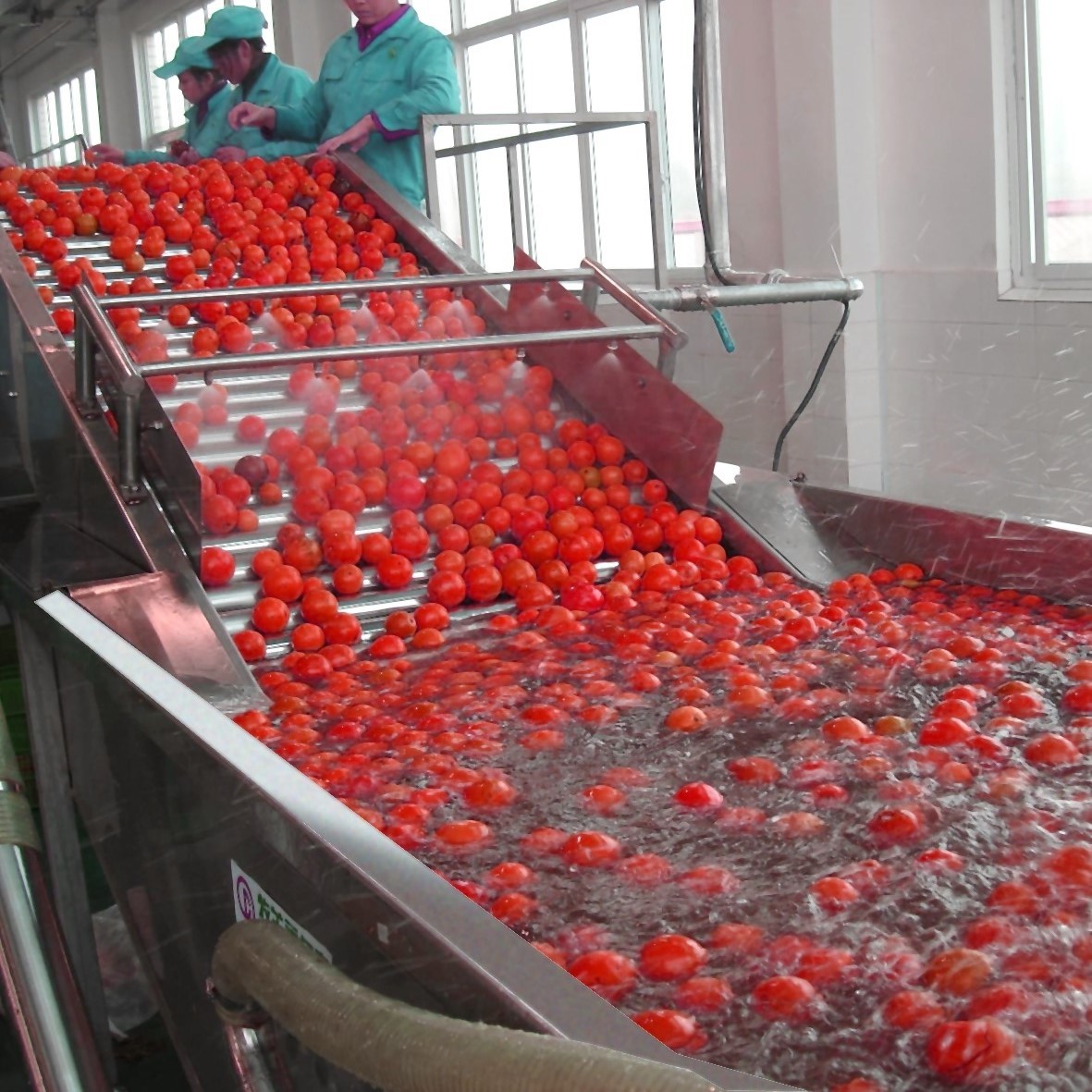

220V Bubble Tomato Washing Machine For Vegetable Fruit Processing 4
