xProduct Details
| Material | Stainless Steel And Plastic | Speed | Adjustable |
|---|---|---|---|
| Advantage | Avoiding Chemicals Solvents Or Reagents | Application | Plastic Crates |
| Certification | CE ISO | Warranty | 1 Year |
| After-sales Service Provided | Video Technical Support | Capacity | 1-5t/h |
| Name | Tomato Vegetable Cleaning Machine | ||
| High Light | Tomato Fruit Processing Equipment,Industrial Fruit Washing Equipment ISO,Automatic Vegetable Cleaning Machine |
||
Product Description
Tomato vegetable cleaning machine automatic industrial fruit washing equipment
Tomato and vegetable cleaning machine is suitable for large-scale fruit processing industry. This machine can clean tomatoes, strawberries, grapes and other berries in a short time. The cleaned berries can be used to make fruit juice or jam, or directly enter the packaging process. The tomato cleaning line can clean mature tomatoes without damaging the surface of tomatoes. Then dry quickly to remove the remaining water droplets on the surface of the tomato. Driven by the water flow in the conveying tank, the tomatoes follow the water flow into the next process. It is suitable for cherry tomato, piccolo tomato, black cherry tomato and other tomato varieties.
Tomato cleaning line mainly includes tomato bubble cleaning, brush roller cleaning, air drying system and packaging machine.

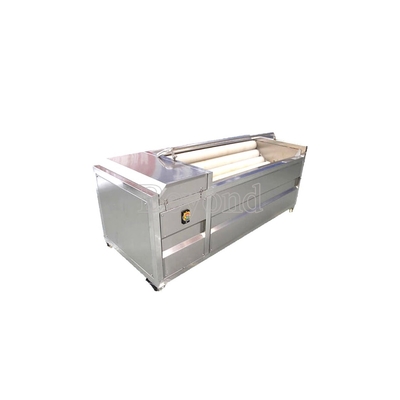

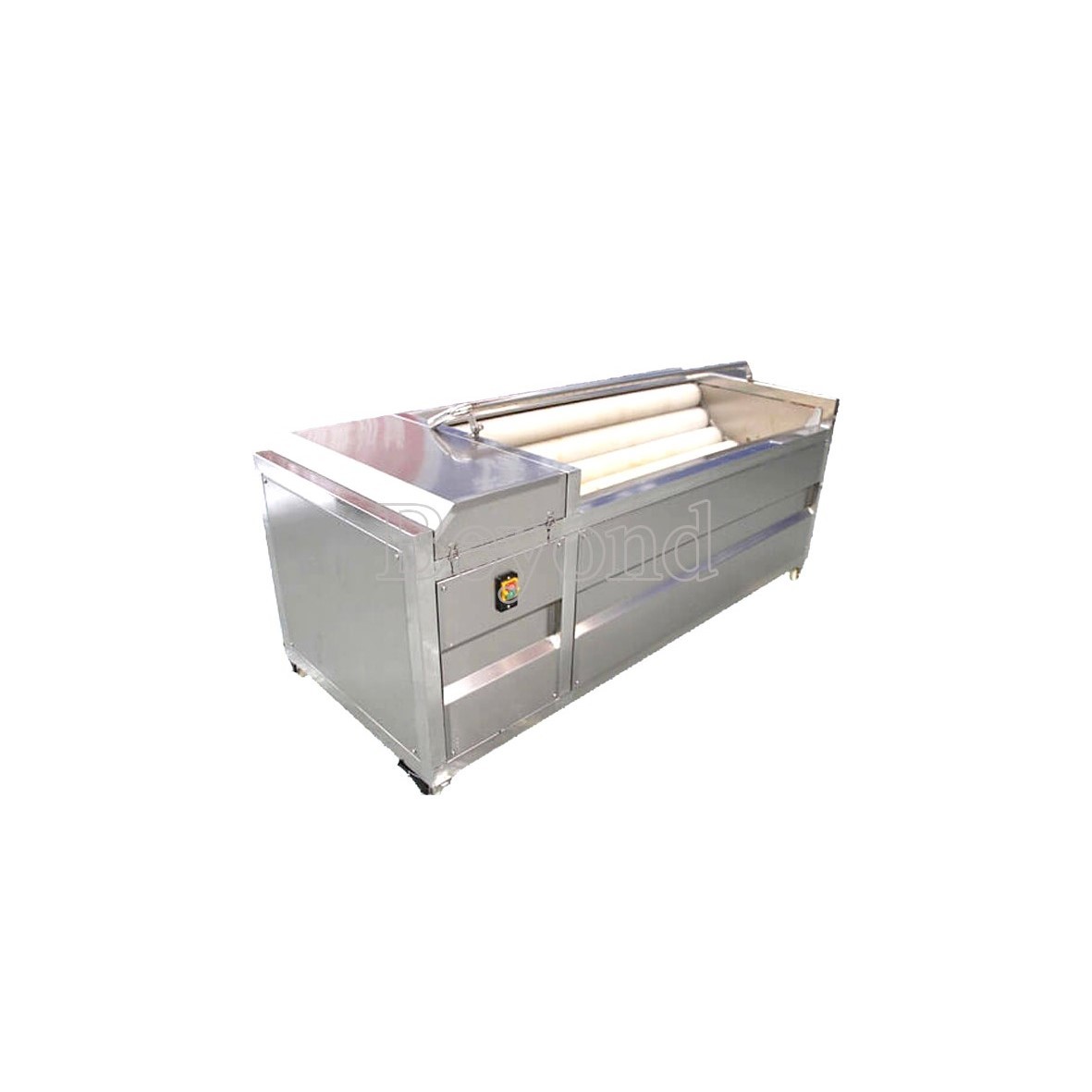

Tomato vegetable cleaning machine
The tomato vegetable cleaning machine adopts the bubble generating device to make the tomato in the tumbling state, effectively remove the pesticide residues on the tomato surface and remove the surface impurities.
The floating debris can overflow from the overflow tank, and the sediment is discharged from the sewage outlet. The cleaned tomatoes are lifted to the next process with the mesh belt.
The invention has the advantages of high cleanliness, energy saving, water saving, stable and reliable vegetable cleaning machine, etc.

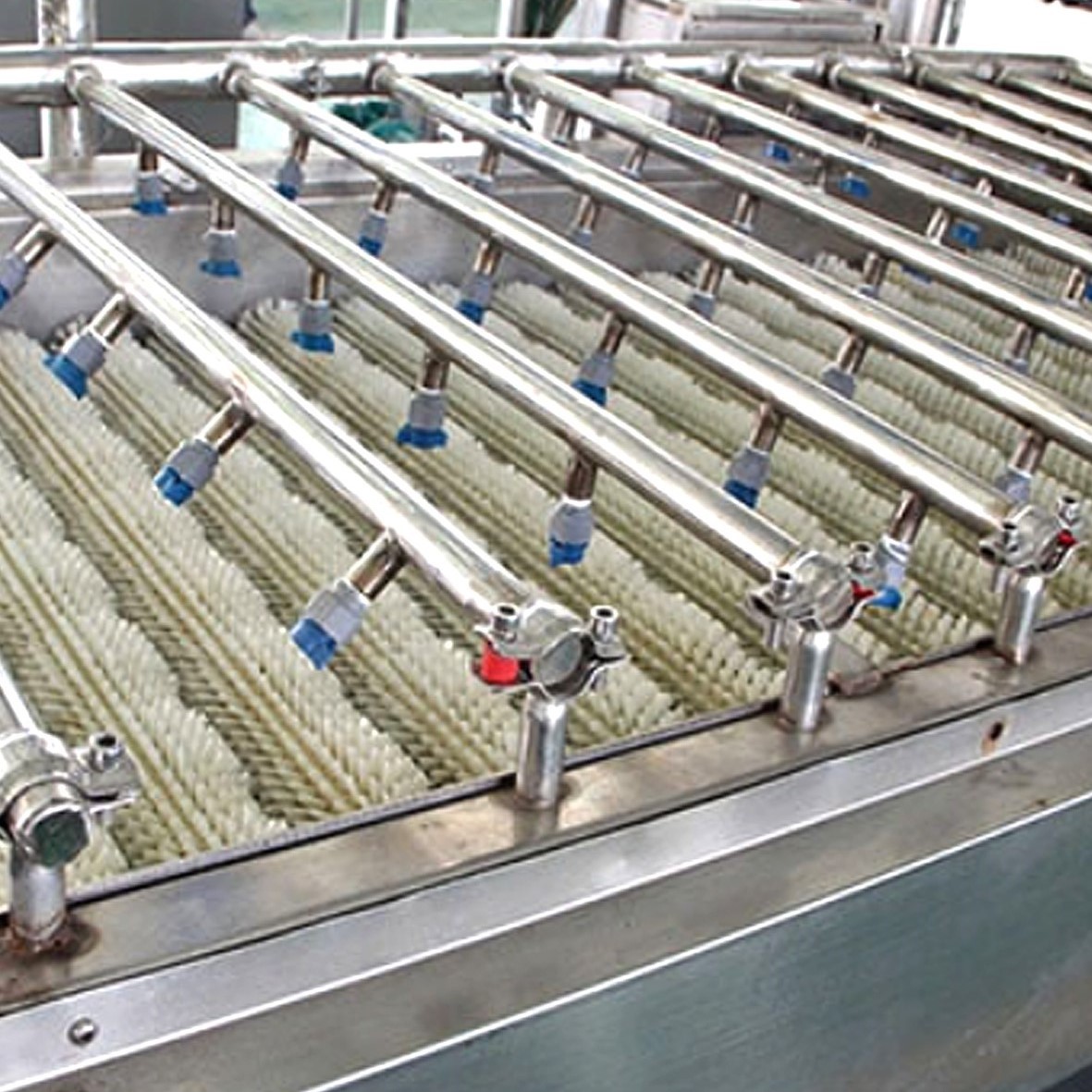

Tomato brush washing machine
The tomato moves forward on the running brush. The tomato and the brush rub the dust, impurities and soil attached to the tomato.
At the same time, numerous high-pressure nozzles spray water on the upper part to achieve the purpose of efficient cleaning.
When tomatoes enter the next process, a waste collection tray can also be installed at the bottom of the machine to prevent sewage and dander from polluting the ground.
Technical parameter(refer to the raw fruit processing capacity)
| Model | Description |
External dimension (L×W×H)(mm) |
Suggested capacity
|
Suggested power(kw) | |
|
capacity and power varies as to different fruits |
|||||
| GMQXJ-2 | The material used is sus304 stainless steel, speed is adjustable, with water spraying device |
3000*1000*1850
|
≤2(T/H) | 1.1 | |
| GMQXJ-5 | 3000*1250*1850 | 3~5(T/H) | 1.5 | ||
| GMQXJ-10 | 3800*1500*2000 | 6~10(T/H) | 2.2 | ||
| GMQXJ-15 | 4000*1650*2000 | 11~15(T/H) | 3 | ||
| GMQXJ-20 | 4000*1900*2000 | 16~20(T/H) | 4 | ||
| GMQXJ-40 | 4500*2200*2000 | 40(T/H) | 5.5 | ||
Silk wool is durable, with a large amount of cleaning and cleaner cleaning. It is equipped with a spray device, which is clean and sanitary, and the cleaning is very thorough.

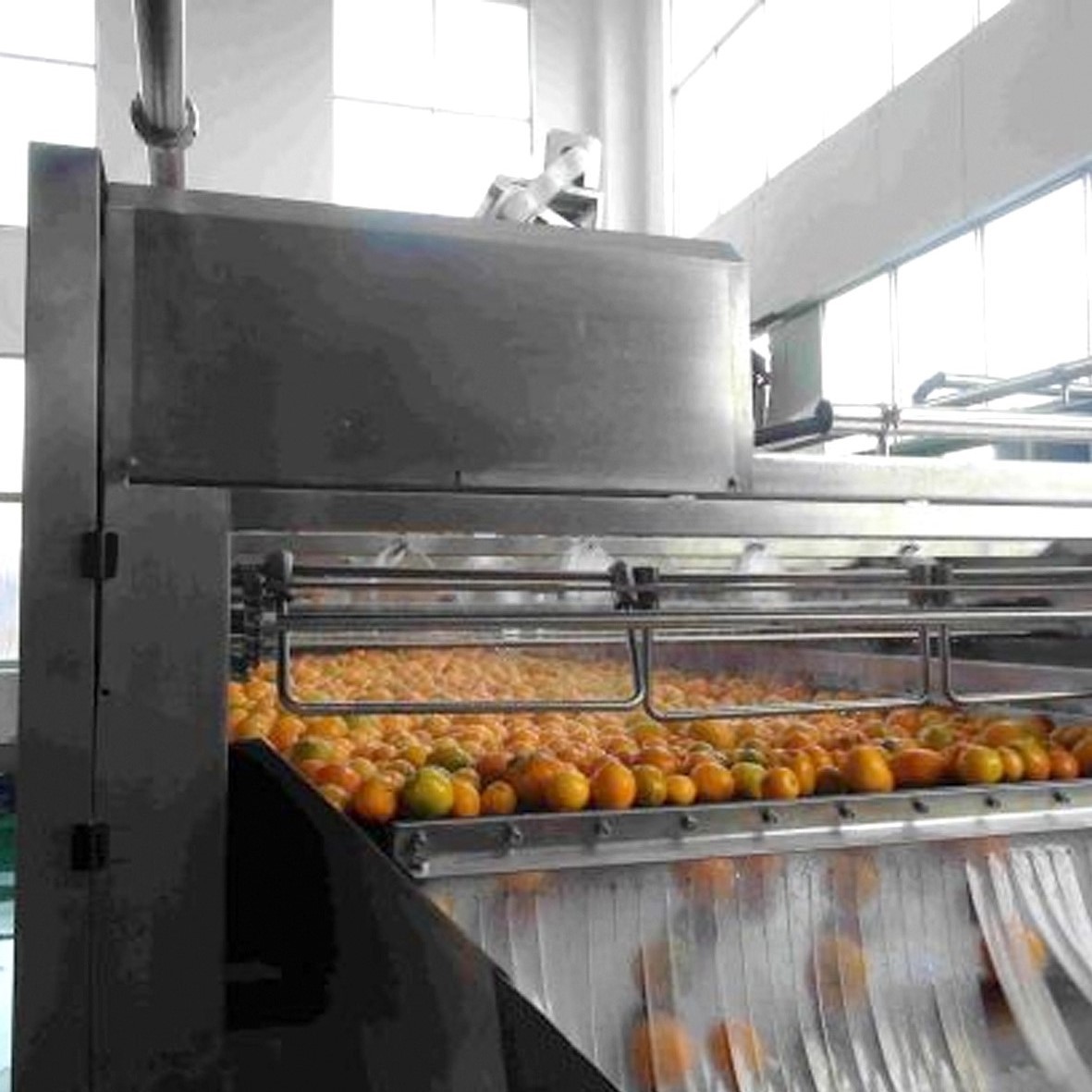

Tomato cleaning and packaging line
The tomato cleaning line has a special water tank to filter the washed impurities. The oil content of water is reduced and the recovery rate of washing water is greatly improved.
The unique water flow conveying design has no damage to the tomato skin and greatly improves the conveying efficiency.
The utility model has the advantages of simple installation, convenient operation, convenient maintenance and low energy consumption.
The principle of bubble shock wave can clean the surface of tomato, effectively kill harmful bacteria and decompose residual pesticides.
The tomato and vegetable cleaning machine can be designed and installed according to the needs of customers, so as to fully meet the needs of customers. Our many years of experience in this industry will help various types of customers, so that they can obtain satisfactory tomato and vegetable cleaning machine equipment.
