Industrial Automatic Fruit Vegetable Extractor For Juice Refinery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V/380V/415V | Power(W) | 5-10KW |
|---|---|---|---|
| Dimension(L*W*H) | 1300*1250*1400mm | After-sales Service | Field Installation, Commissioning And Training |
| Application Fields | Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory, | Machinery Function | Juice Pulping And Extractor |
| Raw Material | Fruit, Vegetables | Output Product Name | Fruit Puree/Juice |
| Capacity | 2-20TPH | Application | Fruit And Vegetables |
| Material | SUS304/316L | Product Name | Fruit Refinery Extractor |
| Function | Juicer Extracting | Rotate Speed(r/min) | 960-1450RPM |
| High Light | Industrial Fruit Extractor Machine,Automatic Fruit Vegetable Extractor,Refinery Fruit Juice Production Line |
||
Product Description

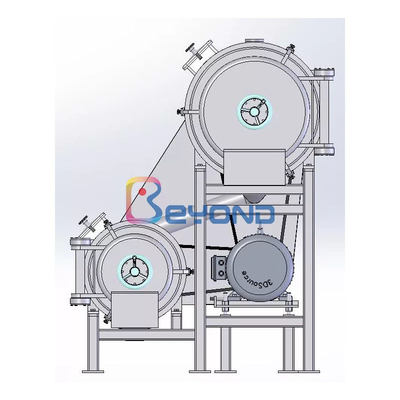

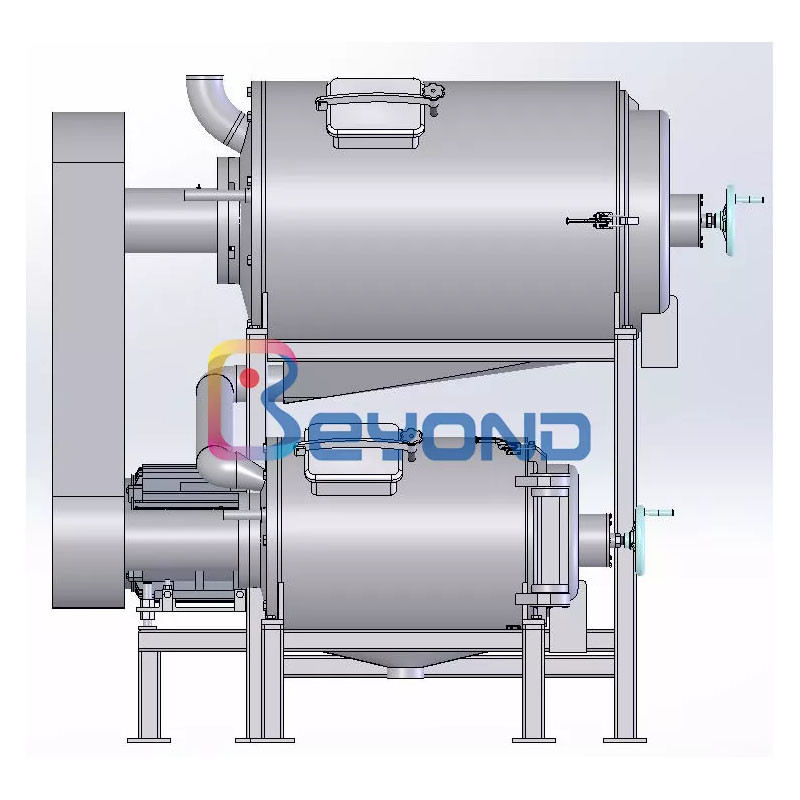

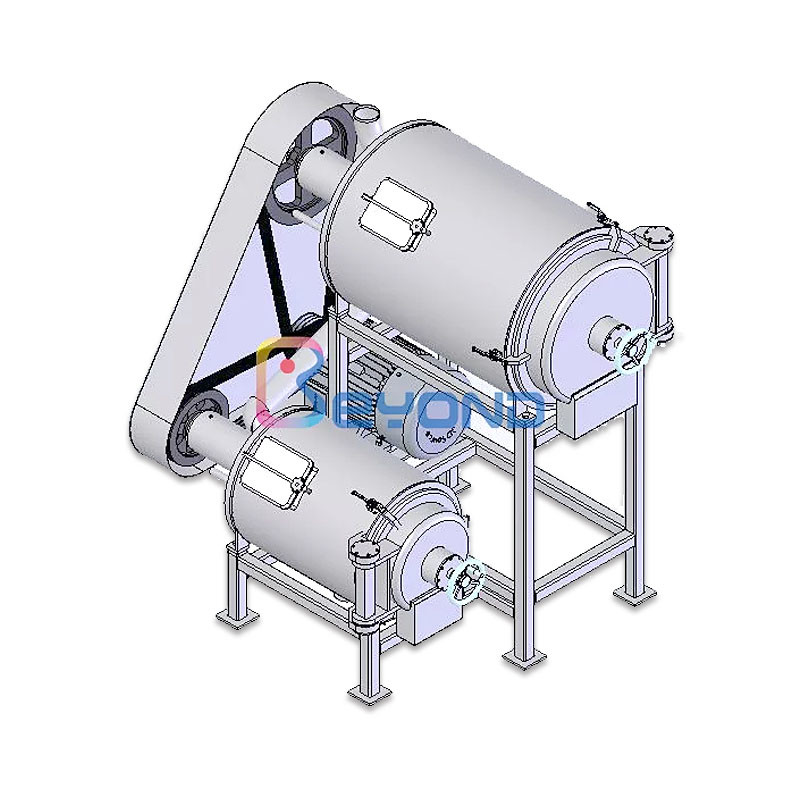

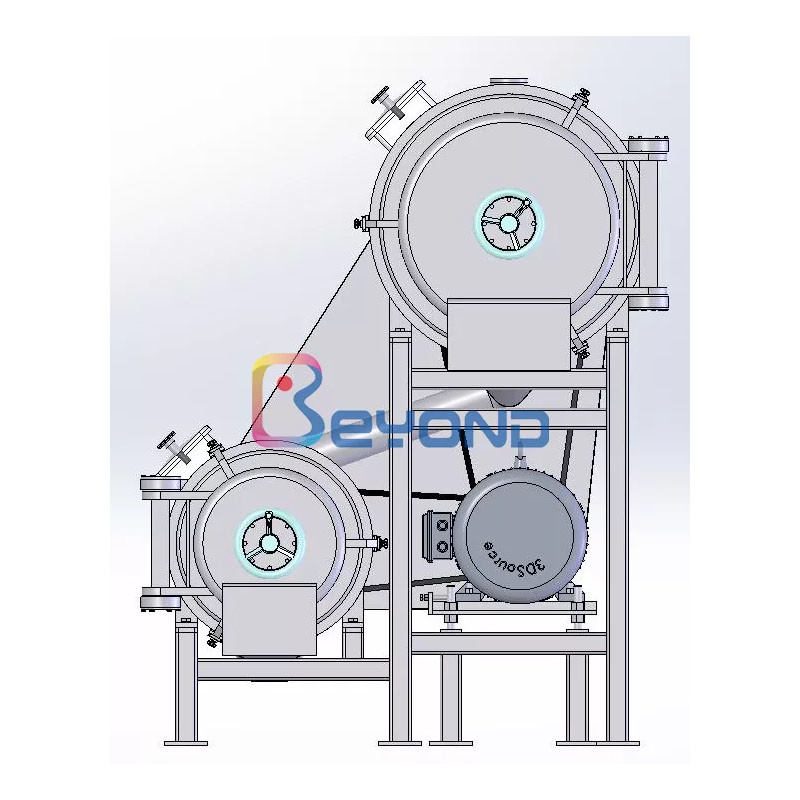

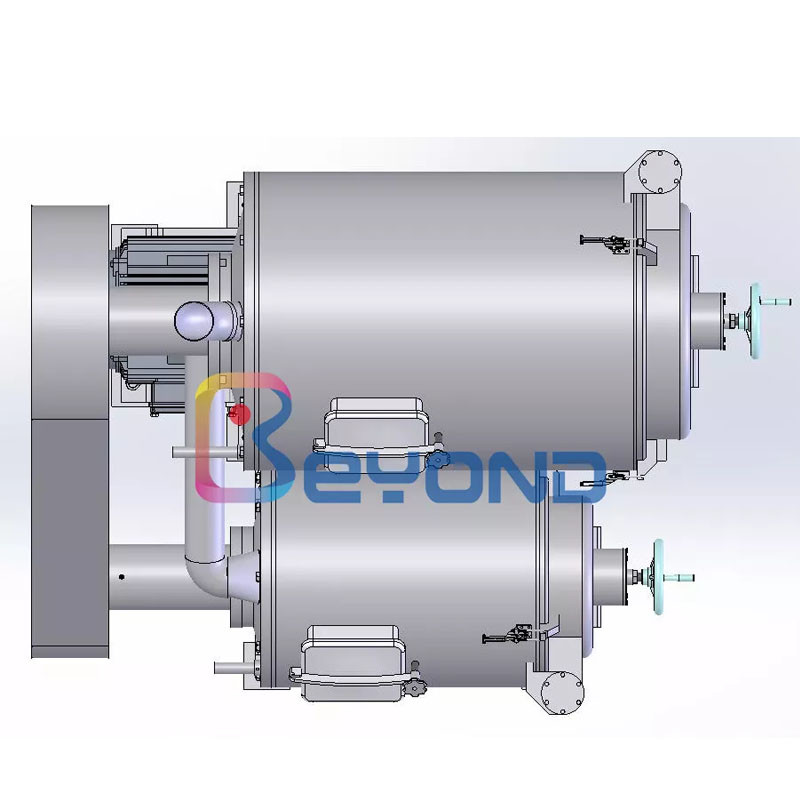

Fruit processing turbine extractor and refiner
The turbine extractor for fruit processing is suitable for extracting and refining fruit puree, tomatoes and vegetables.

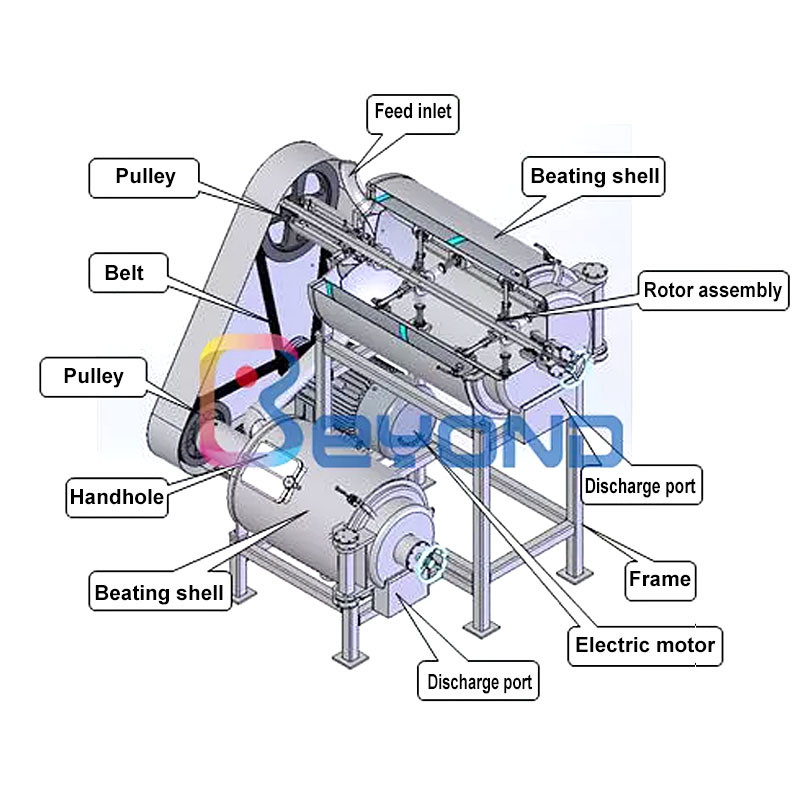

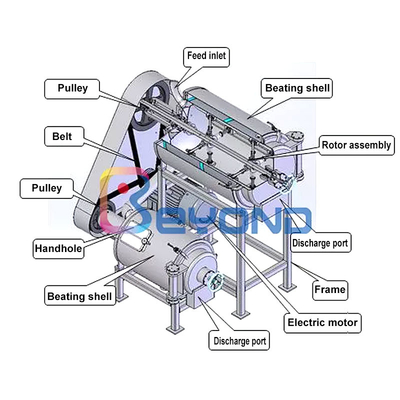

The equipment consists of an extractor and a refiner, equipped with a double horizontal cylinder, a double motor shaft, a double bearing structure, a three-phase motor, two safety devices and an internal cleaning device, and water sprayers and steam generators on the two horizontal planes.
The shaft support is a precision machined cast housing that lubricates the bearings to the bearings and is equipped with grease fittings.
The main body of the upper section of the refiner is made of SUS304, and the pulping net is composed of 3 mm outer hole and 1.5 mm inner hole; The main body of the lower section of the refiner is made of SUS304, and the pulping net is composed of 1.5 mm outer hole and 1.2 mm inner hole.
The rotor is fully aligned inside the screen.
Cleaning can be performed instead of body and filter screen
The rotor is made of stainless steel 304, the blades are mounted on the hub, and the stainless steel is polished
The pulper is arranged to facilitate the removal of the hub from the shaft.
The rotor is manufactured with suitable heavy-duty ball bearing support in two positions.
The motor base is mounted on the frame.
With electrical panel for speed regulation
Suitably painted mild steel frame
The fruit processing turbine extractor is used to process a variety of products into seedless and peelless fruit puree. Used in product refining stage.
Application of turbine extractor in fruit processing
Tomatoes.
Apples, pears, apricots, etc.
Strawberries, cranberries, raspberries, etc.
Grape.
Bananas and tropical fruits.
All kinds of vegetables.
Capacity: minimum 500 kg / h, maximum 10 t / h.
Technical parameter
| Model | Description | External dimension(mm) | Suggested capacity | Suggested power |
| L*W*H | capacity and power varies as to different fruits | |||
| SDJ-2 | All made of sus304 stainless steel, rotating 960RPM-1350RPM | 1170*950*1250 | ≤2(T/H) | 7.5 |
| SDJ-5 | 1760*1350*1500 | 3~5(T/H) | 18.5 | |
| SDJ-10 | 1950*1550*1880 | 6~10(T/H) | 30 | |
| SDJ-15 | 2150*1550*1880 | 11~15(T/H) | 37 | |
The fruit processing turbine extractor and refiner can be designed and manufactured according to customers' needs. Our after-sales engineers will guide and assist customers in equipment installation and commissioning, so as to ensure that customers' new equipment can be put into production and use in the shortest possible time. Our fruit processing turbine extractor and refiner customers cover different industries in many countries around the world, They have achieved remarkable success in their respective industries.
