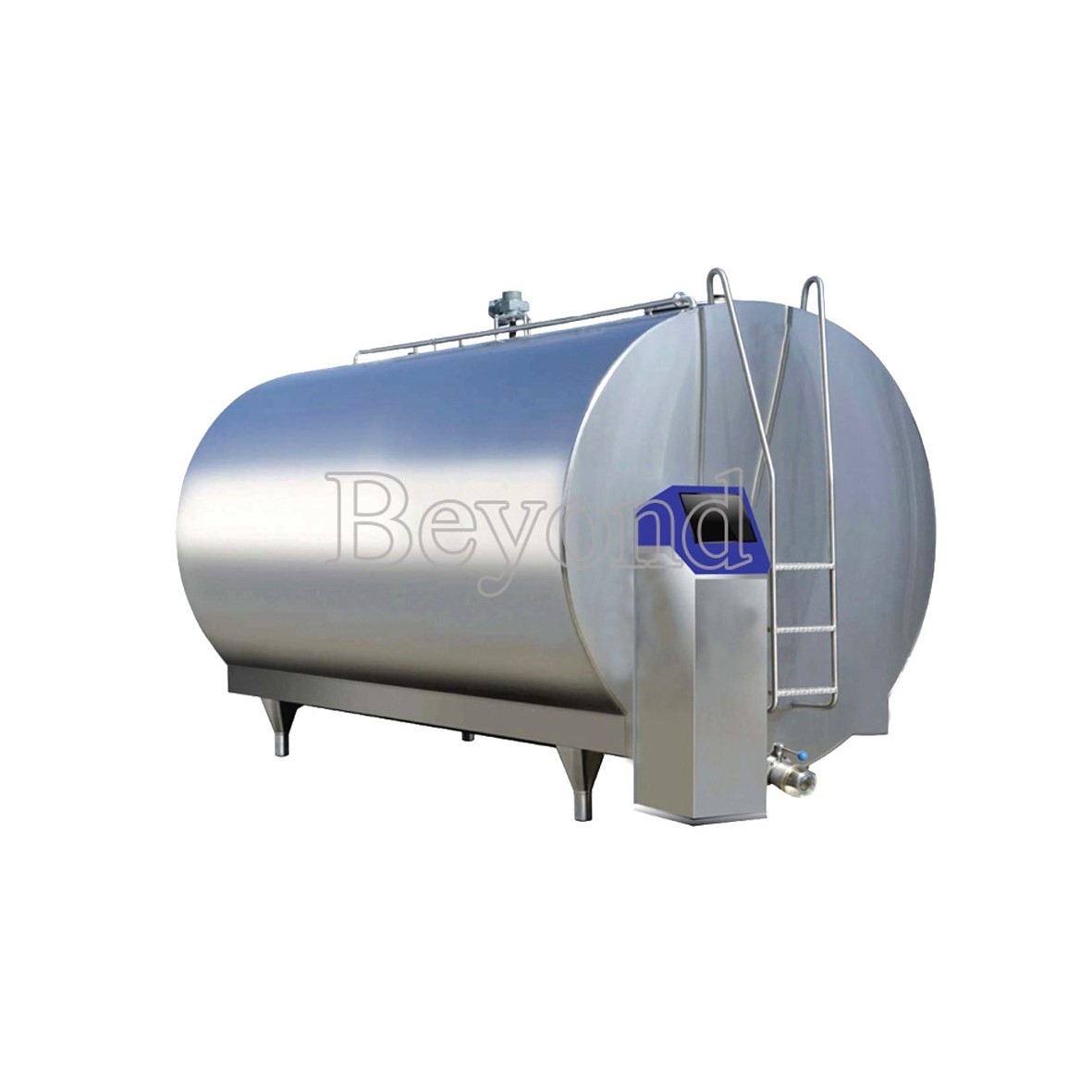

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304

Place of Origin China
Brand Name Shanghai Beyond
Certification SGS/CE/ISO9001
Model Number BY-CT
Minimum Order Quantity 1 piece
Price negotiation
Packaging Details export standard package
Delivery Time 35-50 working days upon receipt of payment and confirmed the drawings
Supply Ability 50 pcs per month
Product Details
Product Name Milk Cooling Tank For Sale Material SUS304/SUS316L
Function Cooling And Storage For Fresh Milk Capacity Customized
Diameter 500l~8000l Advantage Easy To Operate
Application Beverages, Cosmetics, Dairy Products, Food And Pharmaceuticals
High Light

Automatic Milk Cooling Tank

,

200 Ltr Milk Cooling Tank

,

SUS304 Milk Cooling Tanks

Leave a Message
Product Description

Milk cooling tank for sale automatic industrial Milk Cooling Tanks 200 Ltr - 10000 Ltr



Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 0





Features
1. Rugged stainless steel. Refined steel is acid and alkali resistant, non rusting and long service life;
2. Structural form. The specifications of vertical / horizontal refrigerators are complete.
3. Large capacity special capacity. 50l-20000l various capacity specifications can meet your needs.
4. Imported grain wheel compressor. The imported grain impeller compressor has good refrigeration effect, stable performance and long service life.
5. Microporous full foaming. Polyurethane foam layer has high density and good heat preservation and cold locking effect.
6. Microcomputer control. Fully automatic microcomputer control system, one-step observation operation.
application.


The integrated milk cooling tank is applicable to the storage and cooling of fresh milk in pastures, small milk stations, dairy factories, food, feed, medicine, factory warehouses, coolant materials and other places.




Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 1



Tank type:

● tanks

● cooling water tank

● single -, double -, and three-layer tanks

● isolation tank

● process tanks

● fermentation tank

● batch pasteurizer





Pre installation requirements
During the whole process, be careful not to tilt the equipment back and forth by more than 30 ° to avoid damage to the equipment. Check the box before opening it. When the equipment is packed, coolant has actually been added. It is not allowed to open the closing device of multiple compression groups during transportation and storage space.
Tank installation
After the container is located in a certain area, readjust the support foot bolts to make the storage tank tilt towards the power socket end, but the turning range should not be too large. Ideal and left tilt can be changed to the linear range of the left foot and ideal foot so that the left and right do not tilt to the left or to the left.



Technical Parameter:

Model Volume(L) Rating power(kw) Refrigeration capacity(w) External size Total weight
BZLG-500 500 3.6 7380 1750*1150*1300 242
BZLG -1 1000 4.4 9280 1950*1350*1450 285
BZLG -2 2000 6.7 15820 3950*1550*1750 460
BZLG -3 3000 9 19534 3500*1650*1850 645
BZLG -5 5000 13.6 31640 4000*2050*2150 1150
BZLG -8 8000 19.6 47460 4700*2300*2400 1450



Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 2





Technical Parameter:

Tank volume 2000L, 3000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 20000L
Temperature -20℃~+40℃, liquid temperature:4+/-1°, temperature difference ≤ 2℃.
Standard configuration



Quick-opening sealed manhole, breathing valve, CIP cleaning pipes, material inlet (with valve)

Material SUS 304, Food hygiene grade silicone ring for seal
Dimension According to the size of truck chassis provided by customer





Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 3

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 4







Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 5



Service flow chart



Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 6


Company information

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 7

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 8

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 9


Our services

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 10


Trade shows

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 11


Certificate

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 12


Packaging & Shipping

Industrial Milk Cooling Tanks Automatic 200 Ltr SUS304 13




FAQ



1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.



2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.



3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .



4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .



5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.


6) Q: I haven't done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.



7) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.



8) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.



9) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
