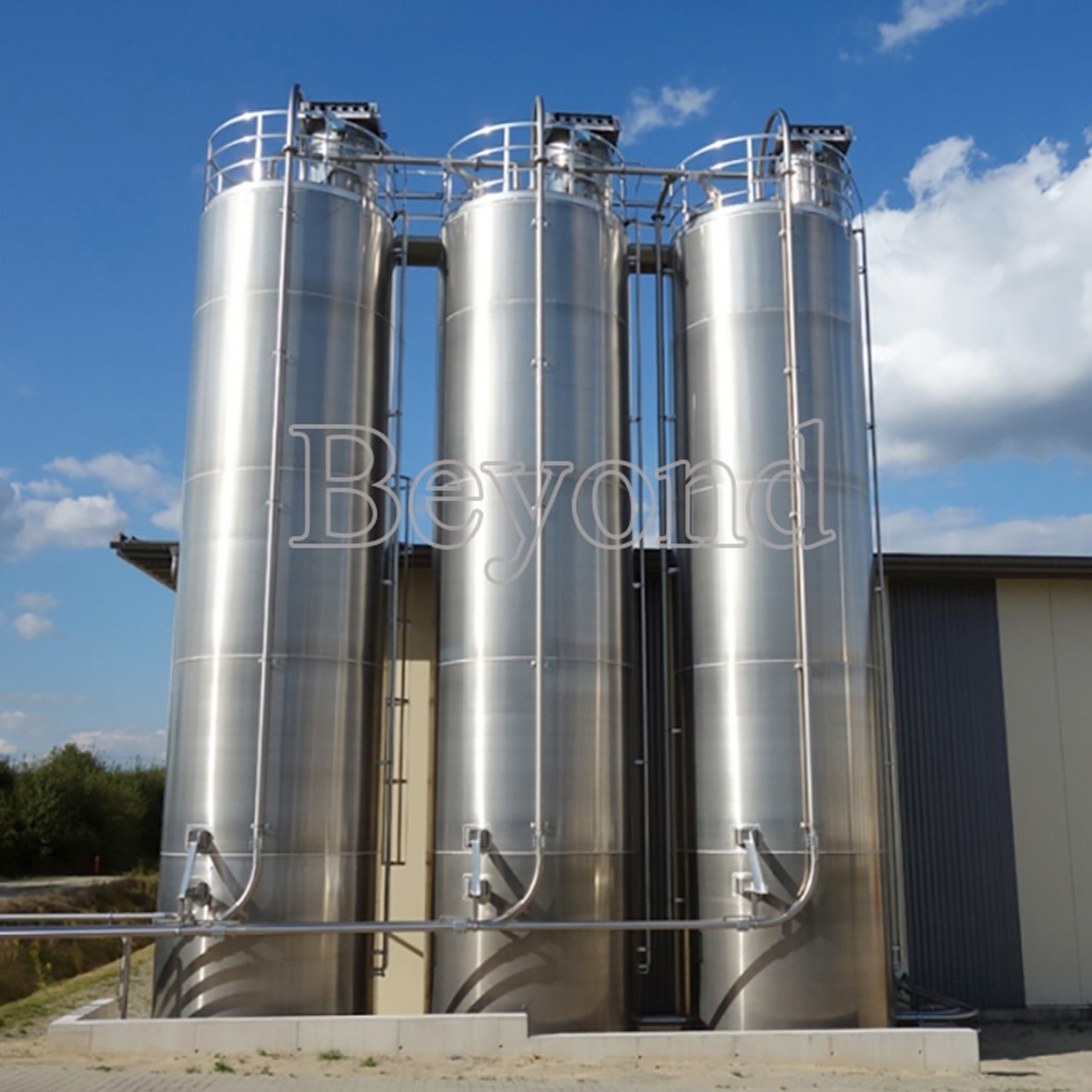

Food Grade Stainless Steel Refrigerated Milk Silo Tank 500ton 1000ton
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Milk SILO/big SILO/Flour SILO | Material | SUS304/SUS316 |
|---|---|---|---|
| Volume | 20m³-200m³ | Structure | Single Layer/double Layer/Insulated |
| Usage | Outdoor Silo For Storage | Product | Milk/Flour/Flour/Wine |
| Diameter | 15000L~120000L | Warranty | 1 Year |
| Temperature | 0~100℃ | Clean | Two Cip Cleaning Ball |
| High Light | Stainless Steel Refrigerated Milk Silo Tank,Food Grade Milk Silo Tank 500ton,1000ton Stainless Steel Tanks |
||
Product Description
Food grade Stainless steel Refrigerated milk silo tank 500ton 1000ton
The grain bin at the bottom of the combined hopper is made of high-quality hot-dip galvanized steel plate, which is pressed into wavy shape by special equipment, made into standard connection holes, and connected with high-strength bolts. Silos have a wide range of applications, and three silos are matched with one bucket elevator and one traction conveyor. Silos can be customized according to customer requirements.
Main components of silo
The silo at the bottom of hopper includes silo top, manhole, top handrail, vent, ladder, silo body, stiffener, silo door, silo bottom and silo leg.
Silo roofs are usually manufactured as 25 º sealed roofs, or 30 º according to customer requirements.
The cylinder is made of body panels and reinforcements, made of structural galvanized steel with high elastic tolerance, and the tapered bottom is made of galvanized or painted steel. It has the strength to support the silo and has a service life of 28 years. The 45 º hopper can easily unload fine materials such as feed particles.
With 20 years of experience in silo manufacturing, the products have no quality problems.
Silo specification of the project
The following is the silo model of 2 sets of steel silos.
Silo model volume eaves height total height silo capacity
With 20 years of design and manufacturing experience, we can customize the granary according to customer requirements.
The following is only a partial silo model.
Technical parameter:
| Model | Effective volume(L) | External diameter(mm) | Total height(mm) | Heat insulation layer(mm) | Diameter of inlet/outlet |
Motor Power (kw) |
Side agitator speed(rpm) |
| BYCG-15 | 15000 | 2200 | 6500 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-20 | 20000 | 2380 | 7150 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-30 | 30000 | 2700 | 7850 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-50 | 50000 | 3200 | 9200 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-60 | 60000 | 3400 | 9800 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-100 | 100000 | 3620 | 12990 | 100 | φ51 | 5.5×2 | 960rpm |
| BYCG-120 | 120000 | 3700 | 14200 | 100 | φ51 | 5.5×2 | 960rpm |
Other volumes not specified, we could customize as to customers’ requirement.
And we will recommend manufacturing on site for the volumes that more than 120T.
Production Details
The silo will pass at least 4 inspections before leaving the factory.
During the production process, we have a special inspection team for random inspection.

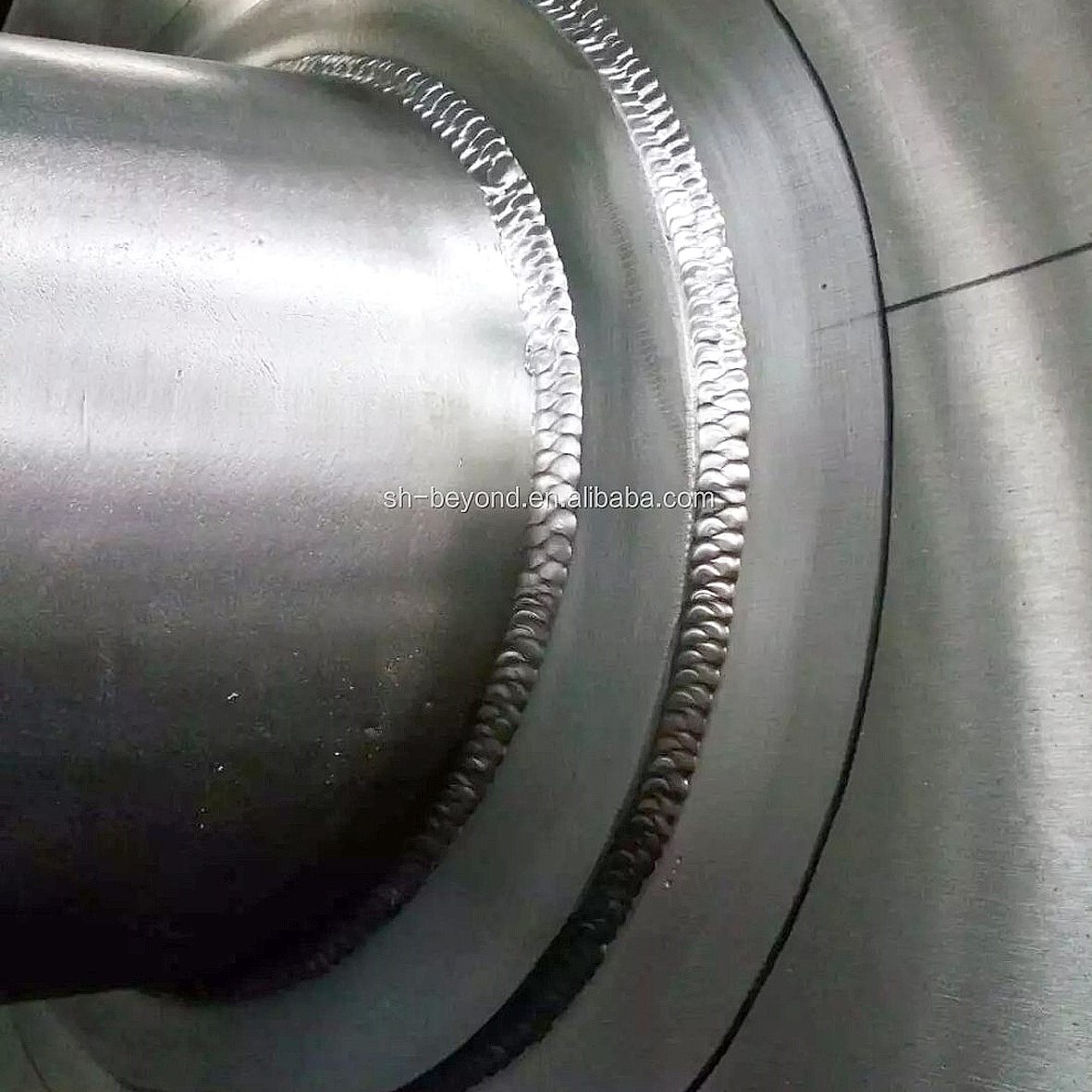

Some silo parts need welding, cutting, etc., which are operated by professionals.
Please check some production details of the factory.
Packaging and transportation
The factory strictly classifies and packs each part of the silo and silo accessories to ensure that the goods will not be crushed and damaged during transportation.
In addition, some packaging items are made according to customer requirements.
Please see some packaging and shipping photos below for reference.

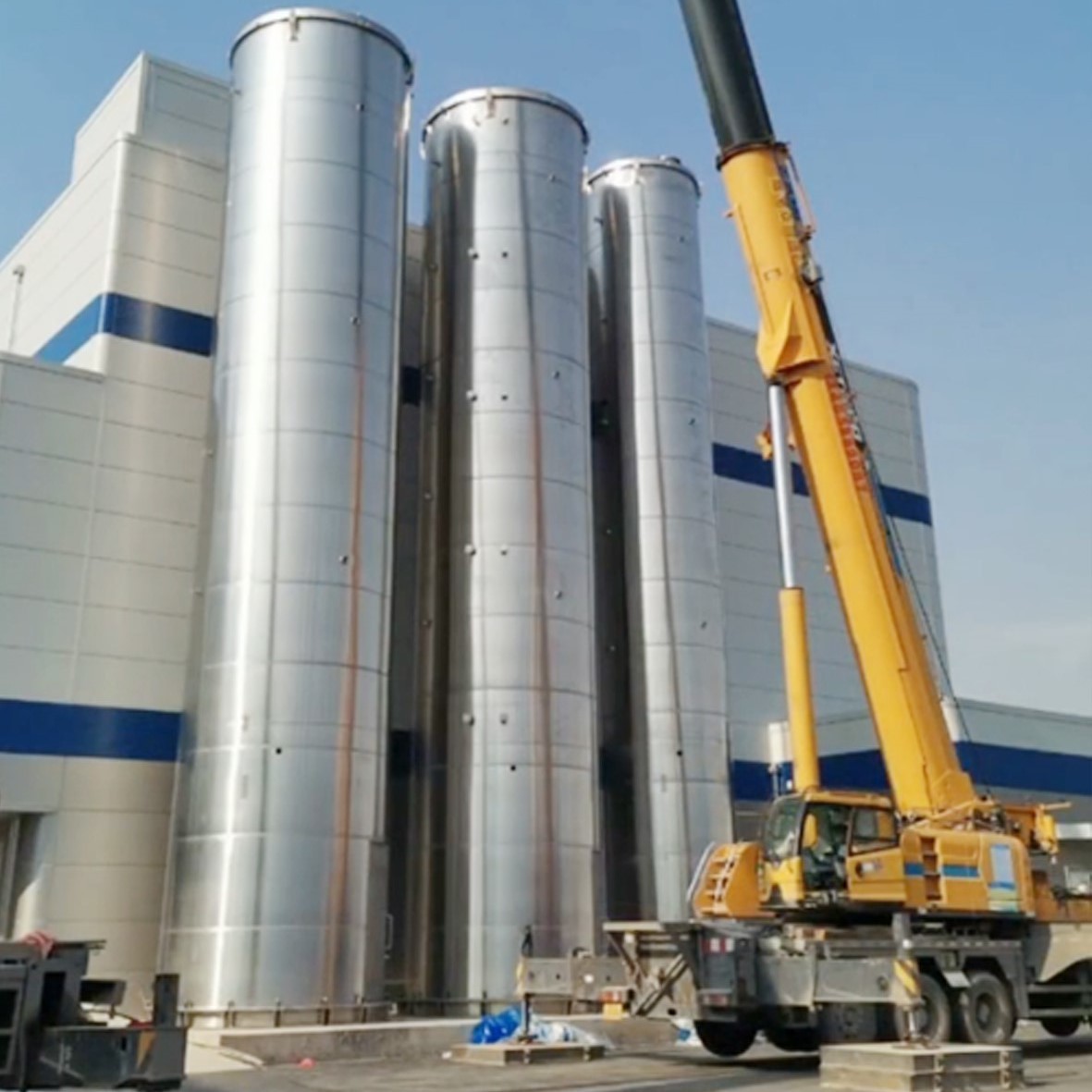

Installation of silo at the bottom of hopper
Can be installed in different ways
*If the customer wants to install the silo by himself, we can provide detailed instructions, and we will answer any questions in the process as quickly as possible.
*We can also send engineers to supervise the installation process. Customers can find local workers for the installation work, and our engineers will help them during the installation process.
*If the customer needs, we can send our installation team to solve the entire installation problem.
Frequently asked questions
Q1: What certifications do you have?
A1: ISO certification, BV certification and CE certification.
Q2. What is your payment method?
A2: 30% advance payment for foreign projects, full payment.
Q3. Can you do custom design and production?
A3: The selection of prefabricated steel silos is fixed and the diameter cannot be changed. If other silos are needed, such as flour silos, cement silos and square silos, they can be customized.
Q4: What materials do you use in your steel warehouse?
A4: At the top of the warehouse, the tank body is galvanized steel plate, the diameter of the cone bottom is 4.5m, which is galvanized steel plate, and the diameter of the cone bottom is 4.5-11m, which is carbon steel plate.
Q5: What types of steel silos do you have?
A5: We mainly have cone bottom steel silos, conveyor belt bucket elevators and flour silos.
Q6: Can you provide supporting equipment? What can be provided?
A6: Yes. Cleaning equipment includes cleaning screen, vibrating screen, dedusting equipment and conveying equipment, including elevator, scraper, belt conveyor and screw conveyor.
