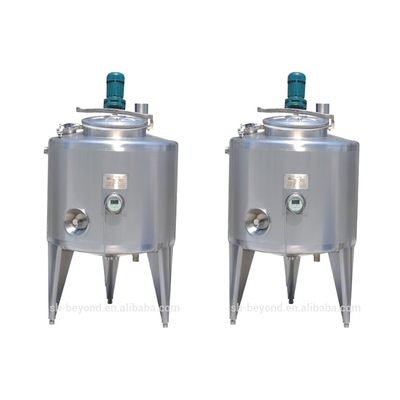

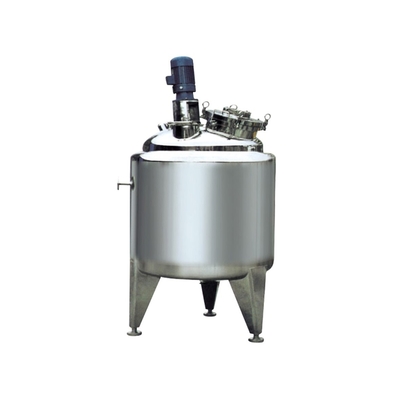

Customized Drum Jacketed Insulated Stainless Steel Storage Tank Liquid Water Storing Vessel

Factory price sanitary food liquid water storing vessel customized drum jacketed insulated stainless steel storage tank

We can provide single-layer, double-layer and three-layer stainless steel tanks, which can mix products with or without stirring. These tanks are widely used in beverage, food, dairy, pharmaceutical, chemical and processing industries, as well as agitator tanks, buffer tanks and storage tanks. The equipment meets the health standards of the food industry.

Characteristics of stainless steel tank:

1. Single layer/double layer/three layer structure

2. The tank is made of stainless steel

3. The tank design is welcomed by customers

Application field of stainless steel tank:

1. It is used for raw milk tank, processing milk tank, mixing tank (without heating), temporary storage tank, waiting tank, etc.

2. It is applicable to dairy products, fruit juice, beverages, pharmaceutical and chemical engineering or bioengineering projects.

Structure:

1. It is composed of inner tank body and outer covering layer, including thermal insulation materials.

2. The water tank is made of high-quality stainless steel.

Standard scheme of stainless steel tank:

1. Quick opening manhole

2. Digital indicating thermometer

3. T-type washing head

4. Lever drain valve

5. Adjustable tapered support foot

Technical parameters of stainless steel tank:

Material: SS304 or SS316L or duplex stainless steel or 904L

Design pressure: - 1-10 bar (g) or ATM B9

Operating temperature: 0-200 ° C

Volume: 100~30000 liters

Construction: vertical or horizontal

Type of sheath: pit sheath, full sheath or coil sheath

Structure: single layer vessel, vessel with jacket, vessel with sheath and insulation

Function: According to heating or cooling requirements, the oil tank will have a jacket for the required function

Motor: Siemens, SEW or Chinese brand

Surface finish: mirror polishing or matte polishing or pickling and pickling or 2B

Standard components: manhole, observation hole, cleaning ball

Optional components:

Ventilation filter, thermometer, directly displayed on the instrument on the container

Temperature sensor PT100, digital display of instrument on control cabinet

Temperature sensor with heating and cooling control device with digital level gauge

The instrument load cell valve is displayed on the control cabinet

Application of stainless steel tank:

Wine, beer juice, food and beverage, pharmacy, biotechnology and

Laboratory medical and medical equipment Chemical industry Coating industry
