Carrot Washing And Peeling Machine Stainless Steel Carrot Processing Equipment

Place of Origin China
Brand Name Shanghai Beyond
Certification ISO/CE/SGS
Model Number BY-CW
Minimum Order Quantity 1PCS
Price negotiable
Packaging Details exporting standard package
Delivery Time 60 days upon receipt of advance payments and confirming the drawing
Supply Ability 20pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Stainless Steel And Plastic Speed Adjustable
Advantage Avoiding Chemicals Solvents Or Reagents Application Plastic Crates
Certification CE ISO Warranty 1 Year
After-sales Service Provided Video Technical Support Capacity 1-5t/h
Name Carrot Processing Equipment
High Light

Stainless Steel Carrot Processing Equipment


Carrot Peeling Machine 5t/h


Adjustable Carrot Washing Machine

Leave a Message
Product Description

Carrot washing and peeling machine for sale carrot processing equipment

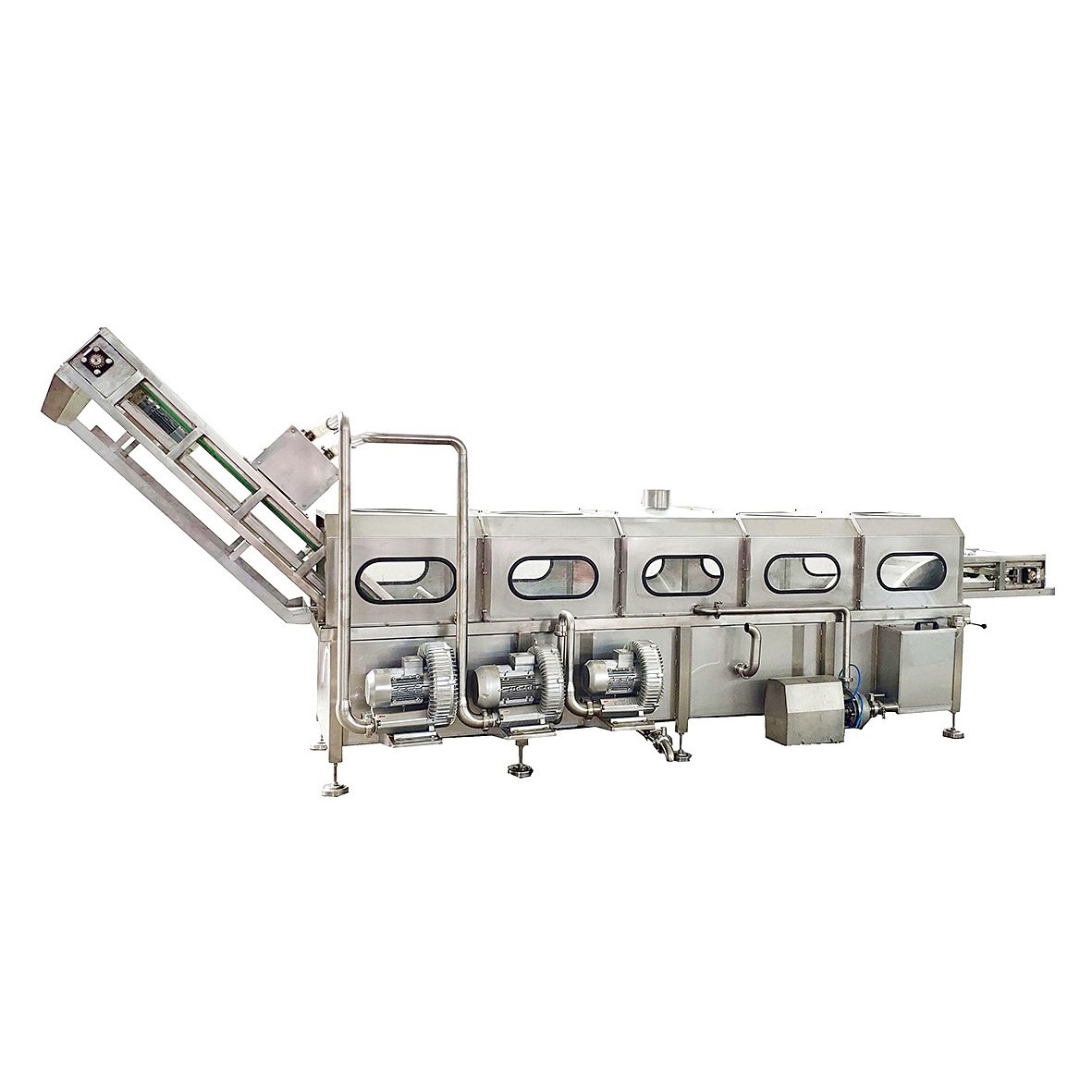

Carrot Washing And Peeling Machine Stainless Steel Carrot Processing Equipment 0



The carrot washing machine for sale is a brush roller type, which can wash carrots and peel them. Equipped with a number of brush rollers, soft brush is used for cleaning and hard brush is used for peeling. The brush roller material is durable and wear-resistant after special processing (rolled with nylon rope).


Advantages of carrot washing machine

▼ Save labor and water;

▼ Power failure protection;

▼ Soft and hard brush for cleaning;

▼ 304 food-grade stainless steel material;


Application of carrot washing and peeling machine

Carrot washing machines are widely used for round and oval fruits and vegetables. For example, the cleaning rate of baked meat products such as potato, taro, cassava, ginger, radish, konjac, pig head, pig hoof, pig ear, etc. is as high as 95%, with large volume, high efficiency, low energy consumption and continuous cleaning.

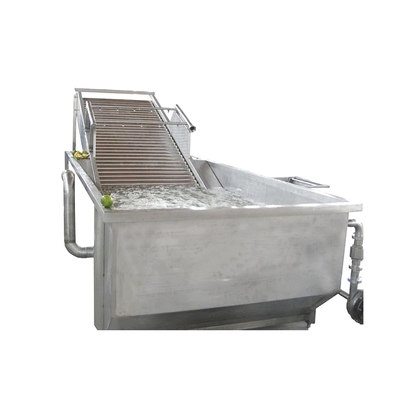

Carrot Washing And Peeling Machine Stainless Steel Carrot Processing Equipment 1



Main structure

The equipment is mainly composed of frame, main drive, passive drive, brush roller, reduction motor, fruit catching device, spray device, feed hopper, discharge hopper etc.

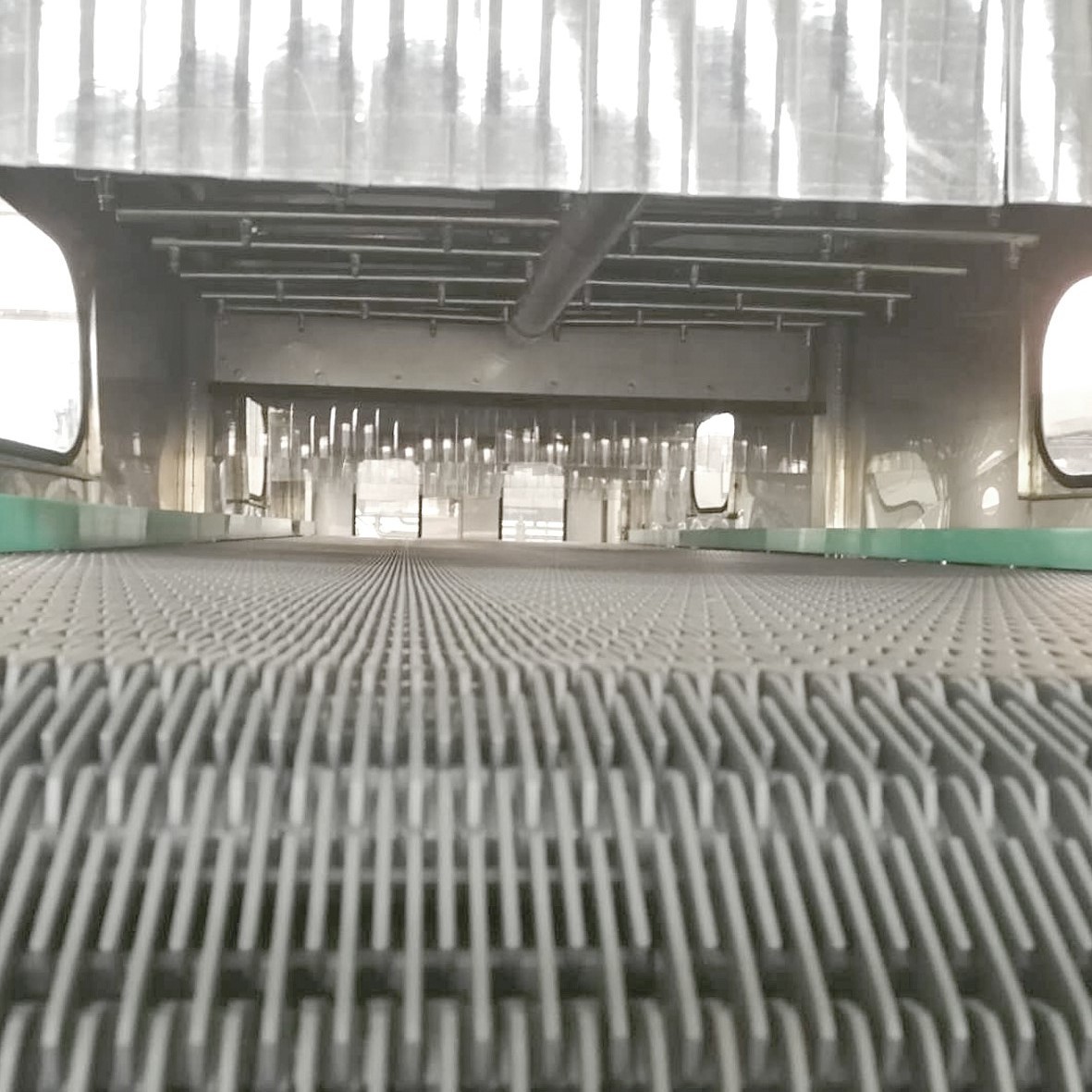

Carrot Washing And Peeling Machine Stainless Steel Carrot Processing Equipment 2



Fruit driving device(Entire machine features)

The surface of the brush roller is elliptical arc shape, which can effectively remove the residues, debris and pesticide residues on the fruit skins.
The upper part of the machine is equipped with a spray device, which can effectively wash and remove the agricultural residues, leaves and soil remaining on the surface of fruits and vegetables.The frame structure welded by stainless steel tubes and other profiles, with good overall rigidity, the whole machine in low vibration, and the transmission chain has a safety cover to ensure good safety protection performances.The equipment has a fruit catching device, effectively convey the remaining product materials to the discharge port, and then enter the next working section.


Working principles
The cleaned fruit go to the brush cleaning machine from the previous process, and come into the high-speed rotating brush roller. By means of the collisions between the fruit and the friction on fruit from the brush roller, remove the remaining agricultural residues, leaves and soil on the surface of the fruits and vegetables. The spray device on the top cleans the removed debris, several sets of brush rollers operate at the same time, and the auxiliary drive of the fruit drive device convey the product materials to the discharge port, and then go to the next process.



Technical parameter(refer to the raw fruit processing capacity)


Model Description

External dimension



Suggested capacity









Suggested power(kw)

capacity and power varies as to

different fruits

GMQXJ-2 The material used is sus304 stainless steel, speed is adjustable, with water spraying device






≤2(T/H) 1.1
GMQXJ-5 3000*1250*1850 3~5(T/H) 1.5
GMQXJ-10 3800*1500*2000 6~10(T/H) 2.2
GMQXJ-15 4000*1650*2000 11~15(T/H) 3
GMQXJ-20 4000*1900*2000 16~20(T/H) 4
GMQXJ-40 4500*2200*2000 40(T/H) 5.5


Characteristics of carrot washing machine

The peeled carrots are smooth and clean, and the damage of carrots is greatly reduced. It can also be used for hair removal and cleaning of pig head and hoof;

The hair roll is driven by the motor, rolls in a relatively opposite direction, and generates friction through direct contact with carrots to achieve peeling effect;

It is equipped with a special automatic high-pressure nozzle, which can peel and wash carrots at the same time;

The hardness of the bristles can be changed according to the variety of carrots. The harder silk brush roller can be used to achieve the peeling effect of carrots, and the softer silk brush roller can be used to wax polish carrots.


After the carrots are washed and peeled, we can also support the carrot slicing or slicing machine, as well as the diced carrot freezing machine, the carrot slice dehydrator and the carrot juice machine. If you have any questions about carrot processing, please feel free to contact us.

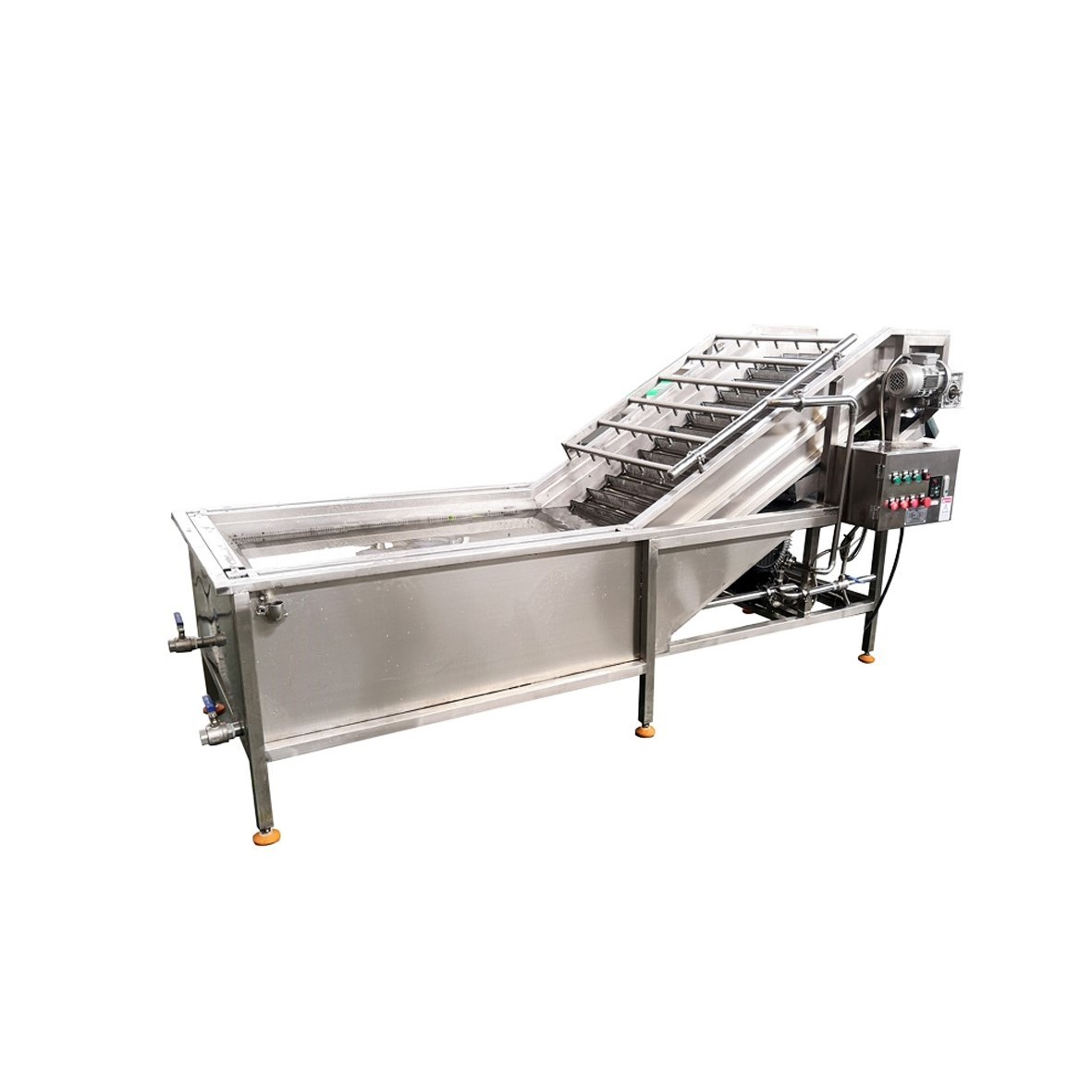

Carrot Washing And Peeling Machine Stainless Steel Carrot Processing Equipment 3


After soaking and brushing, you can thoroughly clean the fresh ginger. For peeled fresh ginger, you can also perform other operations, such as slicing, squeezing, drying and grinding. Whether you want to get ginger slices, ginger juice, ginger powder or dry ginger, we can provide you with a complete solution. If you have any questions about the processing of fresh ginger, please feel free to contact us!
