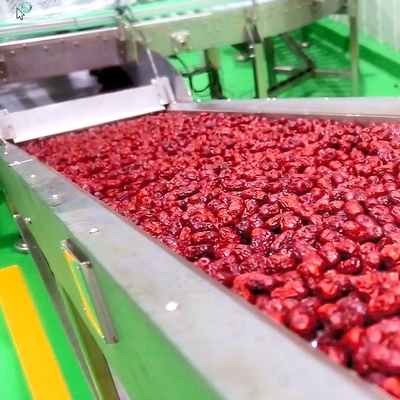

Juice Extractor Machine Fruit Juice Processing Line 20T/D－2000T/D Capacity
|Capacity||2T/D – 20T/D||End Product Package||Pre-pak Pouch, Plastic Bag, Gable Top Bag, Plastic Cup, Plastic Bottle, Glass Bottle, Sanitary Can Etc.|
|Raw Material||Seabuckthorn Juice/pulp||End Product||Date Juice, Date Liquid Sugar, Date Honey, Date Syrup|
|Shelf Life||6months-12months||Production Line Efficiency||85-90%|
|Fresh Date Brix||10-15brix（for Fresh Juice）||Final Product Brix||60 Brix|
fruit juice production line,
juice manufacturing plant
Complete set of industrial 2T-5T/h Seabuckthorn juice and pulp , seeds oil processing line
|Raw material:||Big or small sea-buckthorn(with fruit sticks or not)|
|End product:||juice Concentrate, transparent juice, cloudy juice, sea-buckthron oil|
|Packing type for end product:||Aseptic Bag/glass Bottle／PET Bottle ／gable Top Box|
Shanghai beyond machinery co., ltd is specialized in supplying Sea-buckthorn deep processing line. The end products can be NFC fresh juice, concentrated juice, sea-buckthorn clear juice, sea-buckthorn pulp sea-buckthorn pulp oil, sea-buckthorn seeds oil.Description:
Shanghai Beyond can supply complete turnkey projects for customers, integrating with designing, equipment manufacturing, to installation and commissioning and also training the operators.
The traditional ways is to press and extracting Sea-buckthorn together with stem/sticks. The new technology that developed by shanghai beyond is to remove the stem/sticks firstly, and then to produce the juice by pulping method, which solves several technology difficulties, such as stem/sticks removing method, cleaning, pulping, clarification etc. Meanwhile, during the juice production, the juice oil and seed oil are processed and obtained in maximum percentage, which highly increased the additional value of product from Sea-buckthorn.
Features and advantages:
1. Wide range of raw fruits are available, this line is applicable for all kinds of all kinds of big or small Sea-buckthorn fruits;
2. Flexible configuration to make the line, according to different requirements for the end products, some exact equipments with different functions are flexible chosen, for example: enzymolysis, membrane filtration,evaporation etc.
3. According to different investment value and product structure, we can customize average, middle level or high level processing equipments.
4. End product with pure flavor, bright color, and high output percentage;
5. Whole line with features as high level automatic, low labour intensity, easy operation, safe function and low operation cost.
6. Whole line adopt sanitary design, can be cleaned thoroughly, with high level sanitation.
Technical parameter of 1000kg per hour sea-buckthorn juice, pulp, and seeds oil line:
|Flow NO.||Equipment Name||Capacity||Main Technical Parameter||UNIT||QTY|
|A||Washing and pulping system|
|A-1||Surfing and unfreezing Washer||1T/H||SUS304, net conveying, hot water recycle system, steam coil pipe heating, Germany Burkert temperature control system, 3000*800*1200, including net elevating, 10-20RPM stepless speed adjustable||Unit||1|
|A-2||Clapboard elevator||1T/H||SUS304 stainless steel, clapboard elevator, power: 2.2KW, stepless speed adjustable by manually, 20-100RPM stepless speed adjustable, 5000*400*5000||Unit||1|
|A-3||First Step pulping machine||1T/H||SUS304, rotary speed, 960R/Minutes, power:30KW, frequency converter adjustable, 1-2MM net hole, 1700*600*1250mm||Unit||1|
|A-4||Second Step pulping machine||1T/H||SUS304, rotary speed, 960R/Minutes, power:30KW, frequency converter adjustable, 1-2MM net hole, 1170*600*1250mm||Unit||1|
|A-5||Seed screw conveyer||0.5T/H||SUS304, side plate thickness 3MM, power:2.2KW, stepless adjustable, 6000*200*1400||Unit||1|
|A-6||Fruit skin screw conveyer||0.5T/H||SUS304, side plate thickness 3MM, power:2.2KW, stepless adjustable, 6000*200*1400||Unit||1|
|A-7||Temporary storage tank||500L||SUS304 stainless steel, single layer, plate thickness 3MM, feet adjustable, semi-open type, bottom flange outlet, there is sightglass on both top and bottom of the tank.||Unit||1|
|A-8||Screw pump||1T/H||SUS304 Stainless steel, food grade rubber stator, stepless speed adjustable||Unit||1|
|A-9||Buffer tank||1000L||SUS304 stainless steel, single layer, with verticle stirrer 30RPM, sealing manway, digital thermometer, CIP sprayer, anti-votex plate, material discharge at bottom, adjustable feet, ladder, glass tube liquid meter||Unit||1|
|A-10||Centrifugal pump||3T/H||SUS304, mechanical seal, ABB motor, pumping lift 24meter||Unit||1|
|B||Separate and temporary storage system||Unit|
|B-1||Oil and water separate machine||1T/H||Food grade, auto discharge residue, 6600RPM, auto discharge oil||Unit||1|
|B-2||Oil temporary storage tank||500L||SUS304 stainless steel, single layer, plate thickness 3MM, feet adjustable||Unit||1|
|B-3||Temporary storage tank||1000L||SUS304 stainless steel, single layer, with verticle stirrer 30RPM, sealing manway, breath valve, digital thermometer, CIP sprayer, anti-votex plate, material discharge at bottom, adjustable feet, ladder, glass tube liquid meter||Unit||2|
|B-4||Centrifugal pump||3T/H||SUS304 stainless steel, mechanical seal, ABB motor, pumping lift 24meter||Unit||1|
|C||Sterilization and homogenization system||Unit|
|C-1||Full-auto tubular sterilizer||0.5T/H||SUS304 stainless steel, PLC full-auto control, colorful touch scree, 120℃, 15S, UK Spirax Sarco steam valve control system, with self CIP cleaning system||Unit||1|
|C-2||Homogenizer||0.5T/H||25MPa, 5.5KW, with starting cabinet||Unit||1|
|D-1||High level tank||1000L||SUS304 stainless steel, single layer, with verticle stirrer 30RPM, sealing manway, breath valve, digital thermometer, CIP sprayer, anti-votex plate, material discharge at bottom, adjustable feet, ladder, glass tube liquid meter||Unit||1|
|D-2||High level platform||SUS304 stainless steel, with checkered plate , 2.5mX2.5mX2m||Unit||1|
|D-3||Plastic bag filling machine||SUS304 stainless steel, 2000Bag/hour, 350ML/Bag||Unit||1|
|E-1||Semi-auto CIP system||1000L*4||Single circuit, semi-auto, including acid tank, alkali tank, hot water tank, pure water tank, temperature auto-control, acid and alkali concentrate auto supplying system||Unit||1|
|E-R||CIP return pump||20T/H||SUS304 stainless steel, pumping lift: 20Meter||Unit||1|
|1||10 t/H Concentration Sea Buckthorn Juice Beverage Production Line||Erdos||Turnkey Project|
|2||3 t/H Red Jujube Tea Drink Production Line||Shanxi yanan||Turnkey Project|
|3||8t/H juice, buckwheat beverage production line||Sichuan liangshan||Turnkey Project|
|4||24000 p/HPET Honeysuckle Extraction Drink Pre-process Production Line||Chongqing xiushan||Turnkey project|
3 t/H Winter Jujubes
|Shandong leling||Turnkey project|
|6||2 T/H Buckthorn Juice, Pulp, Oil Line.||Mongolia||Cooperated with Germany Engineering Company|
