200m³ Flour/powder/milk SILO Outdoor big SILO Stainless Steel Tanks
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||Milk SILO/big SILO/Flour SILO||Material||SUS304/SUS316|
|Volume||20m³-200m³||Structure||Single Layer/double Layer/Insulated|
|Usage||Outdoor Silo For Storage||Product||Milk/Flour/Flour/Wine|
200m3 Stainless Steel Tanks,
sus304 Milk Tanks,
20m3 Stainless Steel Tanks

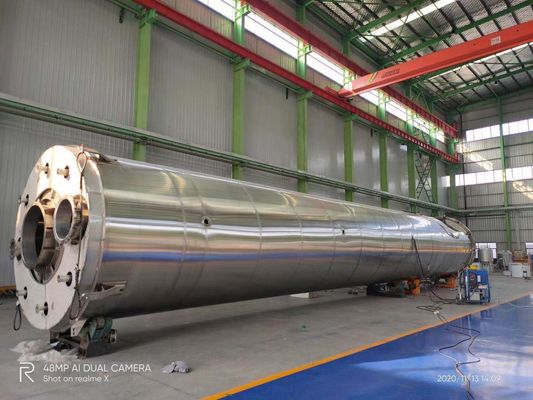

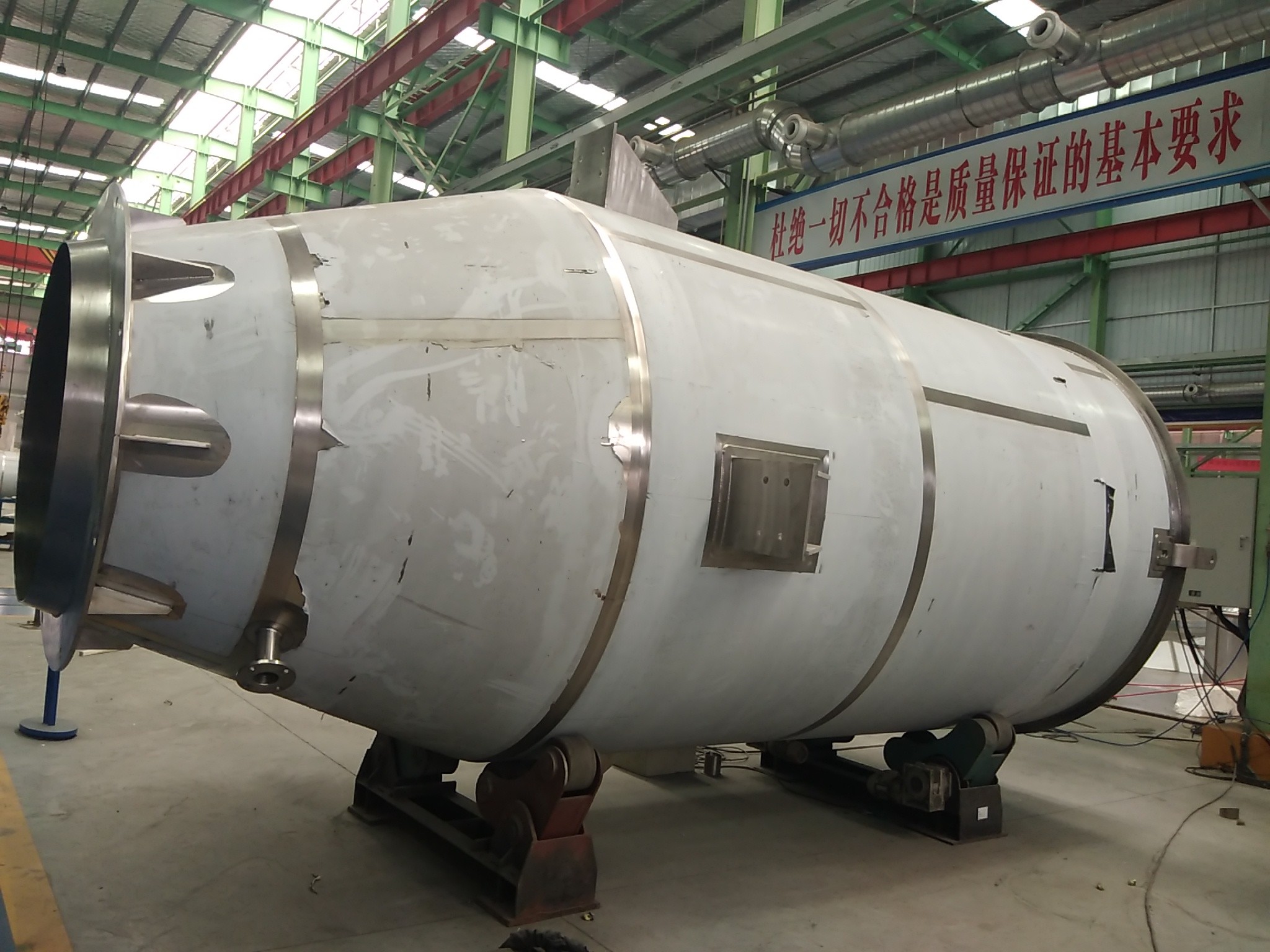

Milk Silo / Large Outdoor Storage Tank / Stainless Steel Tank
Usage: Applicable for large milk collection center, or for milk outdoor storage at large milk production plant; also used at other food and pharmacy factory for storage of liquid product.
This equipment is equipped with cleaning system, agitator, sight and view devices, also have attachments of thermometer and level indication meter.
Material: all material used is high quality sus304-2B stainless steel or SUS 316, inner shell δ=3-4mm and out shell δ=2mm and cooling jacket δ=1.5mm;
Structure: cylindrical shape, conical top cover of 15 degree, with skirt base; with PU(Polyurethane) as heat insulation; with cooling dimple pad at tank wall and base.
Volume range: 15,000L-120,000L
a). One air tight side manhole;
b). One side mounted agitator at the bottom;
c). One PT100 thermometer, temperature range 0~100℃
d). Two CIP cleaning balls;
e). One aseptic sample valve;
f). Anti butterfly and dirt air vent;
g). Product inlet/outlet
h). Cooling medium inlet/outlet;
i). Level sensor;
j). Ladder with circle protection and protection fence at tank top
|Model||Effective volume(L)||External diameter(mm)||Total height(mm)||Heat insulation layer(mm)||Diameter of inlet/outlet||
|Side agitator speed(rpm)|
Other volumes not specified, we could customize as to customers’ requirement.
And we will recommend manufacturing on site for the volumes that more than 120T.
