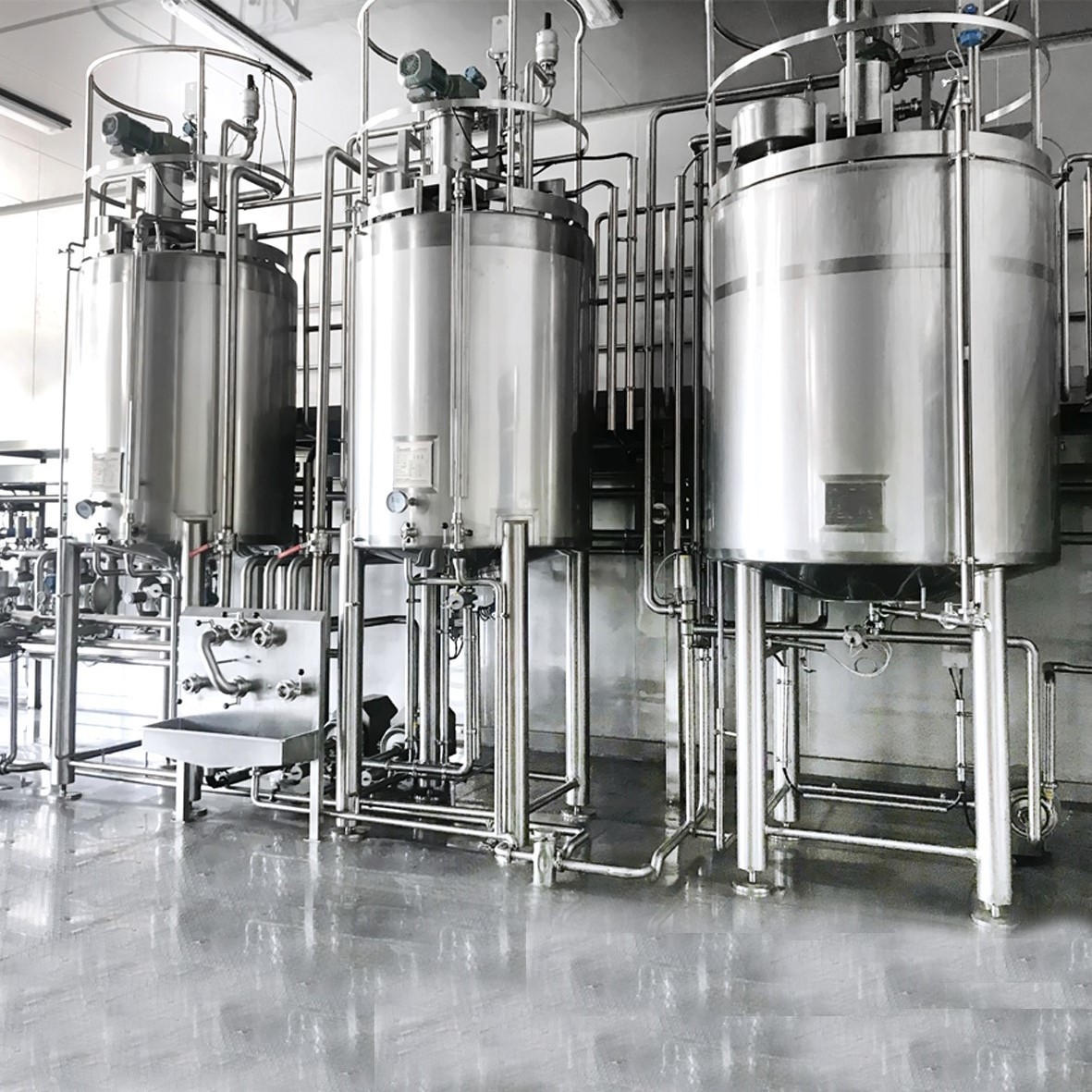

SUS316L 12000l SS 1.5mm Jacketed Mixing Tank With Stirrer
| Place of Origin | China |
|---|---|
| Brand Name | Shanghai Beyond |
| Certification | SGS/CE/ISO9001 |
| Model Number | BY-JT |
| Minimum Order Quantity | 1 piece |
| Price | negotiation |
| Packaging Details | export standard package |
| Delivery Time | 35-50 working days upon receipt of payment and confirmed the drawings |
| Supply Ability | 50 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Industrial Tanks | Material | SUS304/SUS316L |
|---|---|---|---|
| Capacity | Customized | Voltage | According To Customer Local Voltage |
| Powder Consumption | Energy Saving Type | Warranty | 12 Months/1 Year |
| Seat Port | Shanghai | Attachment | Dimple Pad |
| Model | BYJG | Jacket Thickness | 1.5mm |
| High Light | 12000l jacketed mixing tank,SUS316L jacketed mixing tank,jacketed ss tank with stirrer |
||
Product Description
Blend tank 15000l 12000l 10000l stainless steel water storage tanks for storage all kinds of liquid products
Usage:
The jacket in tank can be made with dimple pad or hollow jacket or coiled pipes, which can heat or cool the product;
Special design of flow path ensures the cooling or heating medium distribute much well in the jacket, so the heat exchange efficiency is high.
Application : Widely used for preparing(heating), sterilizing, fermentation, aging, blending, cream storage etc.
Technical parameter
| Model | Diameter | External diameter |
Height (mm) |
Insulation(mm) |
Jacket (δ) |
Diameter of inlet/outlet |
| BYDG-500 | φ500 | 800 | 2140 | 50 | 1.5 | φ38 |
| BYDG-1 | φ1000 | 1050 | 2380 | 50 | 1.5 | φ38 |
| BYDG-1.5 | φ1500 | 1180 | 2550 | 50 | 1.5 | φ38 |
| BYDG-2 | φ2000 | 1340 | 2760 | 50 | 1.5 | φ38 |
| BYDG-2.5 | φ2500 | 1420 | 2940 | 50 | 1.5 | φ38 |
| BYDG-3 | φ3000 | 1540 | 3050 | 50 | 1.5 | φ38 |
| BYDG-4 | φ4000 | 1650 | 3200 | 50 | 1.5 | φ38 |
| BYDG-5 | φ5000 | 1780 | 3250 | 50 | 1.5 | φ38 |
| BYDG-6 | φ6000 | 1900 | 3350 | 50 | 1.5 | φ38 |
| BYDG-8 | φ8000 | 2100 | 3800 | 60 | 1.5 | φ65 |
| BYDG-10 | φ10000 | 2300 | 4050 | 60 | 1.5 | φ65 |
| BYDG-12 | φ12000 | 2520 | 4450 | 60 | 1.5 | φ65 |
| BYDG-15 | φ15000 | 2540 | 4700 | 60 | 1.5 | φ65 |
Uniform mixing of viscous components
When handling viscous components, our radial jet mixer can be equipped with a two-stage nozzle. This option saves 50% more energy than a single-stage nozzle. It helps to mix ingredients with floating or sinking particles (such as fibers and pulp) and large amounts of viscous concentrate or dry powder.
FAQ:
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.
6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
7) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.
8) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
