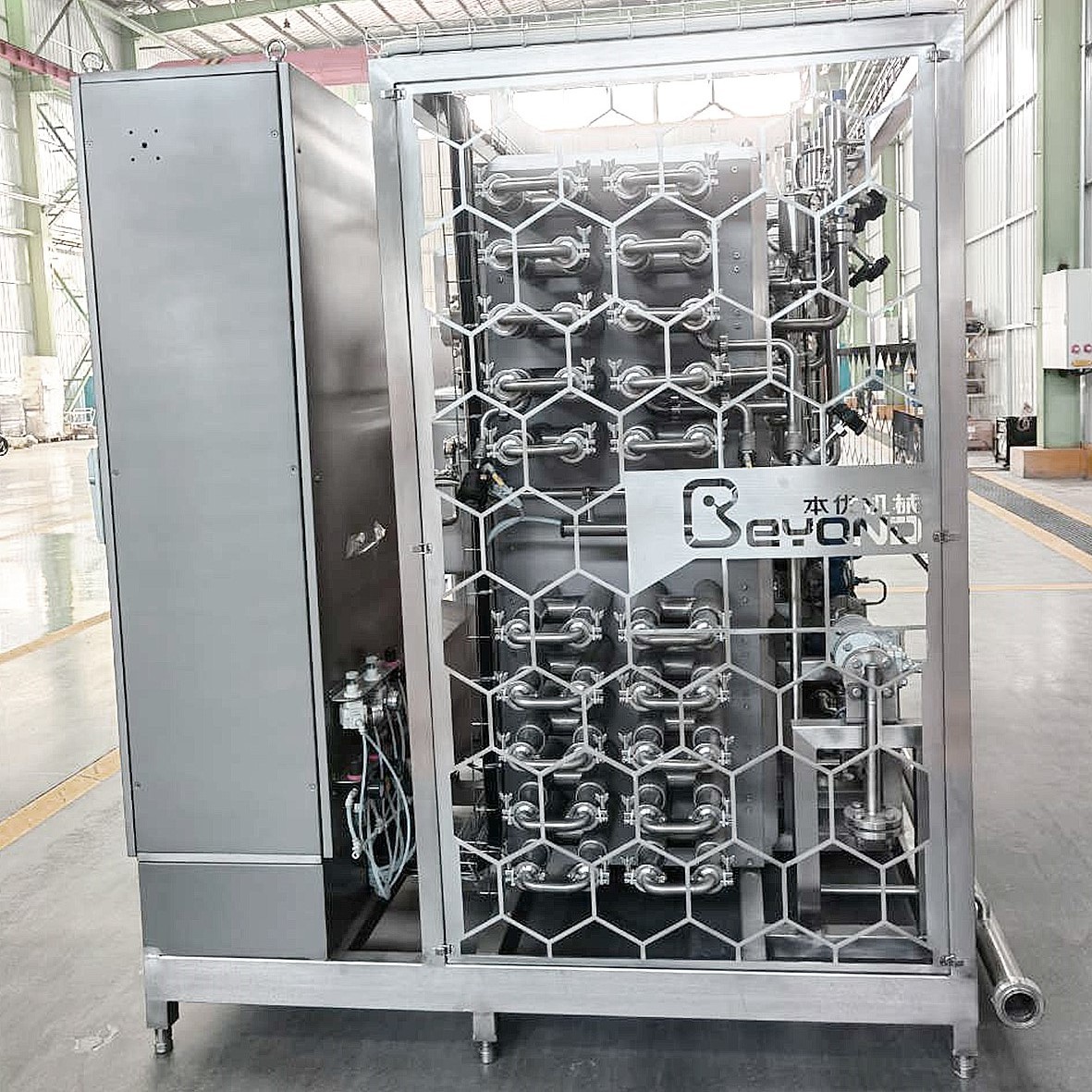

Tight Structure SUS316 Electric UHT Milk Pasteurization Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Uht Sterilized Liquid Milk Processing | Material | SUS304 Or SUS316 |
|---|---|---|---|
| Control | Automatically Control And Semi-auto Control | Voltage | According To Customer's Local Voltage |
| Sea Port | Shanghai | Warranty | 1 Year Or 12 Months |
| Attachment | Plate Heat Exchanger | Pump | Product Pump,Imported Hot Water Pump |
| High Light | SUS316 electric milk pasteurizer,Tight structure electric milk pasteurizer,SUS316 uht pasteurization machine |
||
Product Description
uht sterilized liquid milk processing machine long service life and temperature control well plate sterilizer
Introduction of pasteurizer
Pasteurization is mainly used to make products safe to eat or drink, prolong shelf life and reduce deterioration. However, it can also be used to change the performance of the final product. For example, pasteurization of yogurt milk denaturates the protein, makes the yogurt culture grow, and makes the product more viscous and stable.
In view of various applications and customer requirements, more than 80% of the pasteurization equipment provided by Tetra Pak are customized to meet the personalized needs of customers.
To support our customers' success, we focus on two main areas: food safety and total cost of ownership. Take food safety as an example - our equipment provides many unique functions to ensure the safety of your products. For example, our pasteurizer maintains a high pressure on the pasteurization side when discharging the separator. The "integrated pressure test" function allows you to detect any leakage in the heat exchanger plate without removing the plate heat exchanger.
Pasteurization also becomes more economical by filling the balance tank from the bottom while filling the pasteurizer (when filling and emptying the pasteurizer). This will halve product losses at the beginning and end of production operations
This UHT system adopts ultra high heat treatment to sterilize the liquid dairy products, tea drink or juice for the the aseptic filling production; the sterilize temperature is 137ºC holding for 3~5S, to remain the nature nutrition and flavor of the milk and juice;
This machine has the following characteristics: high heat reuse efficiency, compact structure design fine looking and good temperature control performance etc; Material outlet temperature from this machine can be self controlled so it is suitable for the hot filling procedure and meanwhile for aseptic cold filling;
Control styles: full-automatic controlled (PLC, touch screen).
Model |
LG-UHT-1 |
LG-UHT-2 |
LG-UHT-3 |
LG-UHT-4 |
LG-UHT-5 |
Production capacity |
1000 | 2000 | 3000 | 4000 | 5000 |
Inlet temperature |
5ºC | 5ºC | 5ºC | 5ºC | 5ºC |
Holding time(s) |
4-15 | 4-15 | 4-15 | 4-15 | 4-15 |
Sterilize temperature |
105~143ºC | 105~143ºC | 105~143ºC | 105~143ºC | 105~143ºC |
Product outlet temperature |
20 | 20 | 20 | 20 | 20 |
Ice water inlet temperature |
≤2ºC | ≤2ºC | ≤2ºC | ≤2ºC | ≤2ºC |
Steam pressure |
0.5MPa | 0.5MPa | 0.5MPa | 0.5 MPa | 0.5 MPa |
Steam consumption |
~150Kg/h | ~210Kg/h | ~280Kg/H | ~350Kg/h | ~420Kg/h |
Compressed air pressure |
0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption |
50L/H | 50L/H | 60L/H | 60L/H | 70 L/H |
External dimension(mm) (homogenizer excluded) |
3500*2000*2500 | 3500*2000*2500 | 4500*2500*2200 | 5000*2000*2200 | 5000*2000*2200 |
Total weight of machine |
1700kg | 2000Kg | 2200 Kg | 2500Kg | 2800kg |
Technical Parameter
Material SUS304, Semi-auto PID control, famous brand steam pressure reduce valve, regulating valve, drain valve, famous brand temperature sensor, with CIP cleaning function, frame support, stainless steel control cabinet, famous brand electric componets.
Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;
Related machinery of dairy(cheese, butter, milk, yoghurt,cream) processing line
Large outdoor storage tank, agitator tank, jacket tank, ferment growing tank, emulsification tank, milk weighing, milk receiving/collecting, extracting, pasteurizer yoghurt, UHT, HTST pasteurizer, plate pasteurizer, tubular UHT sterilizer, spraying type pasteurization, cooling tunnel, bottle tilting sterilization chain, CIP cleaning system, full-auto CIP, semi-auto CIP, evaporator, curd cutting, whey draining, cheese making, scalding/stretching/molding, cheese vat, mozzarella cheese, cheddar cheese, blending system, pre-pasteurization, cream separator system, powder melting, dissolving system, homogenizer system, turn-key project.
Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;
Related machinery of dairy(cheese, butter, milk, yoghurt,cream) processing line
Large outdoor storage tank, agitator tank, jacket tank, ferment growing tank, emulsification tank, milk weighing, milk receiving/collecting, extracting, pasteurizer yoghurt, UHT, HTST pasteurizer, plate pasteurizer, tubular UHT sterilizer, spraying type pasteurization, cooling tunnel, bottle tilting sterilization chain, CIP cleaning system, full-auto CIP, semi-auto CIP, evaporator, curd cutting, whey draining, cheese making, scalding/stretching/molding, cheese vat, mozzarella cheese, cheddar cheese, blending system, pre-pasteurization, cream separator system, powder melting, dissolving system, homogenizer system, turn-key project.
